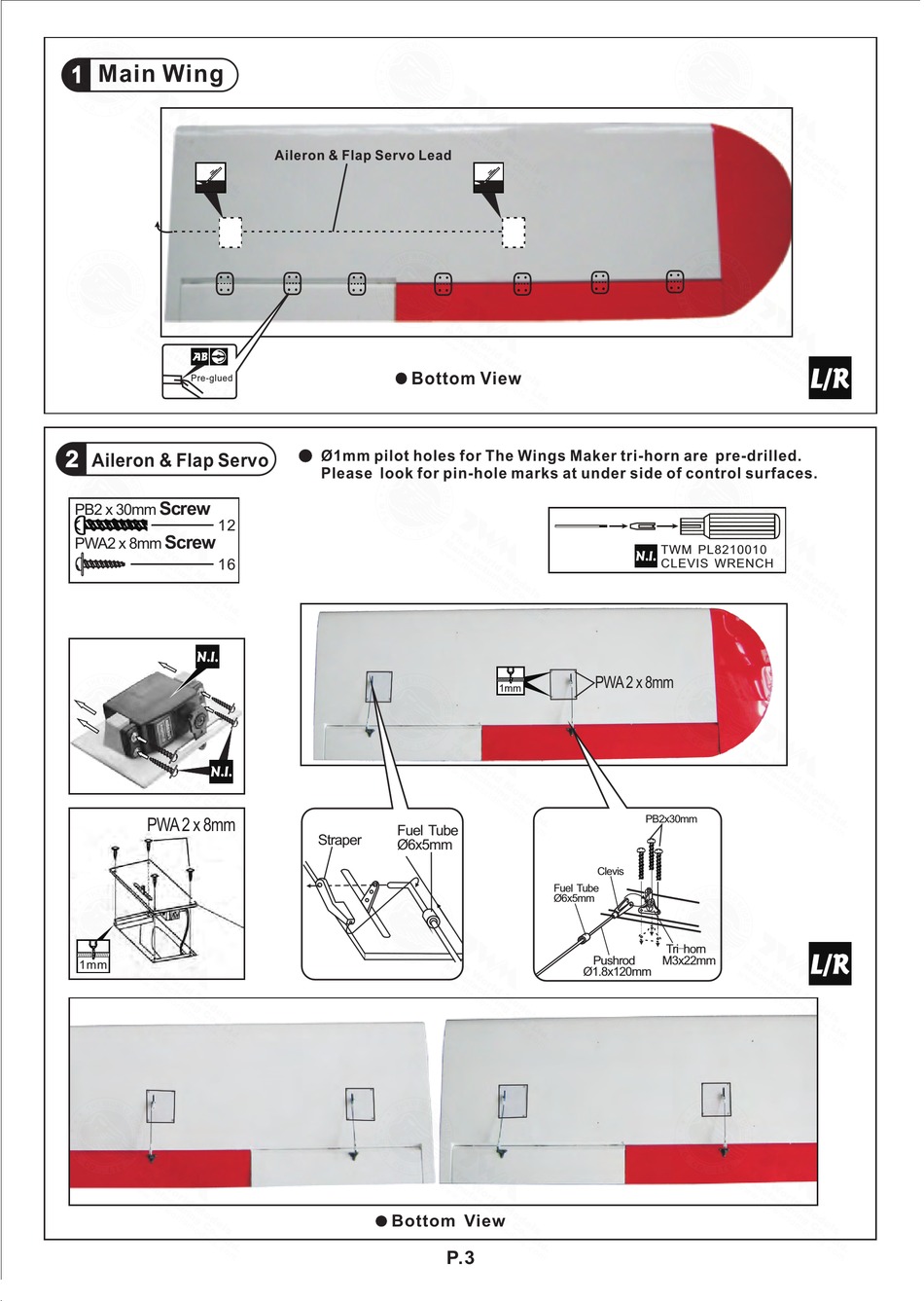

Main Wing
1
Pre-glued
2
Aileron & Flap Servo
Screw
PB2 x 30mm
12
Screw
PWA2 x 8mm
16
PWA 2 x 8mm
1mm
1 m m
Aileron & Flap Servo Lead
Bottom View
Ø1mm pilot holes for The Wings Maker
Please look for pin-hole marks at under side of control surfaces.
Fuel Tube
Straper
Ø6x5mm
Bottom View
P.3
tri-
horn are pre-drilled.
TWM PL8210010
CLEVIS WRENCH
PWA 2 x 8mm
1mm
PB2x30mm
Clevis
Fuel Tube
Ø6x5mm
Tri-horn
Pushrod
M3x22mm
Ø1.8x120mm
