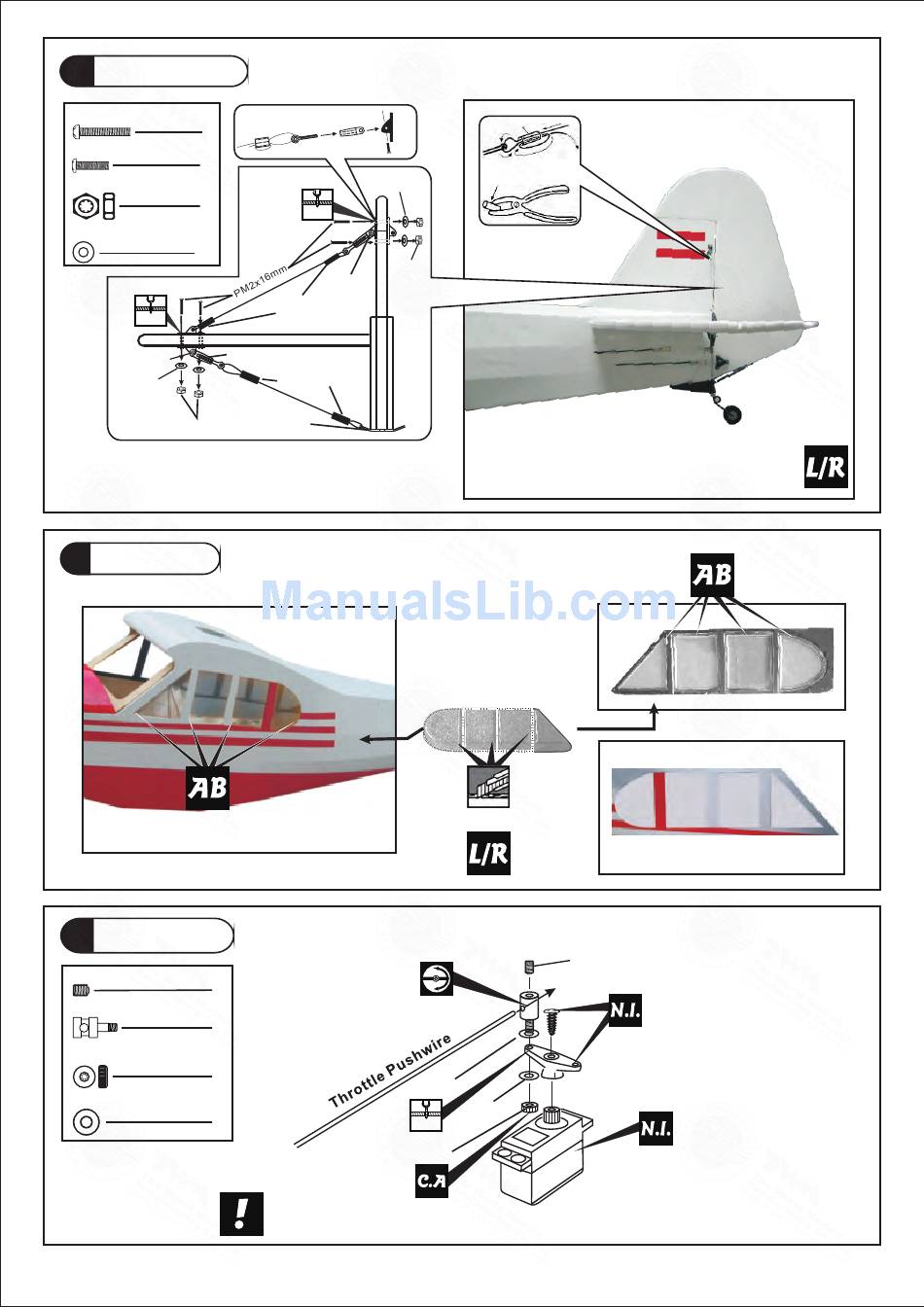

THE WORLD MODELS 1/4 SUPER CUB Instruction Manual page 10

Flying Wire
15
PM2x16mm Screw
6
PM2x8mm Screw
4
M2 Nut
6
Washer
3mm
6
2mm
Clevis
PM2x8mm
d2xD5mm
COPPER PLATE
M2 Nut
Windows
16
Window A
COMPLETED
Securely glue the windows to the fuselage.
Servo Set
17
3x3mm Set Screw
1
Linkage Connector
1
Nut
M2
1
2mm Washer
2
d2xD5mm
2mm
M2 Nut
PM2x8mm
d2.5xD3.2x8mm
d2.5xD3.2x8mm
1x10x40mm
Washer
2m m
M2
Please refer to the attached sheet for linkage connector installation.
Copper Tube
Press down the center
1/3 portion
Window B
3x3mm Set Screw
2mm
2mm
Washer
Nut
P.9
COMPLETED
Throttle Servo.
