THE WORLD MODELS 1/4 SUPER CUB Instruction Manual page 3

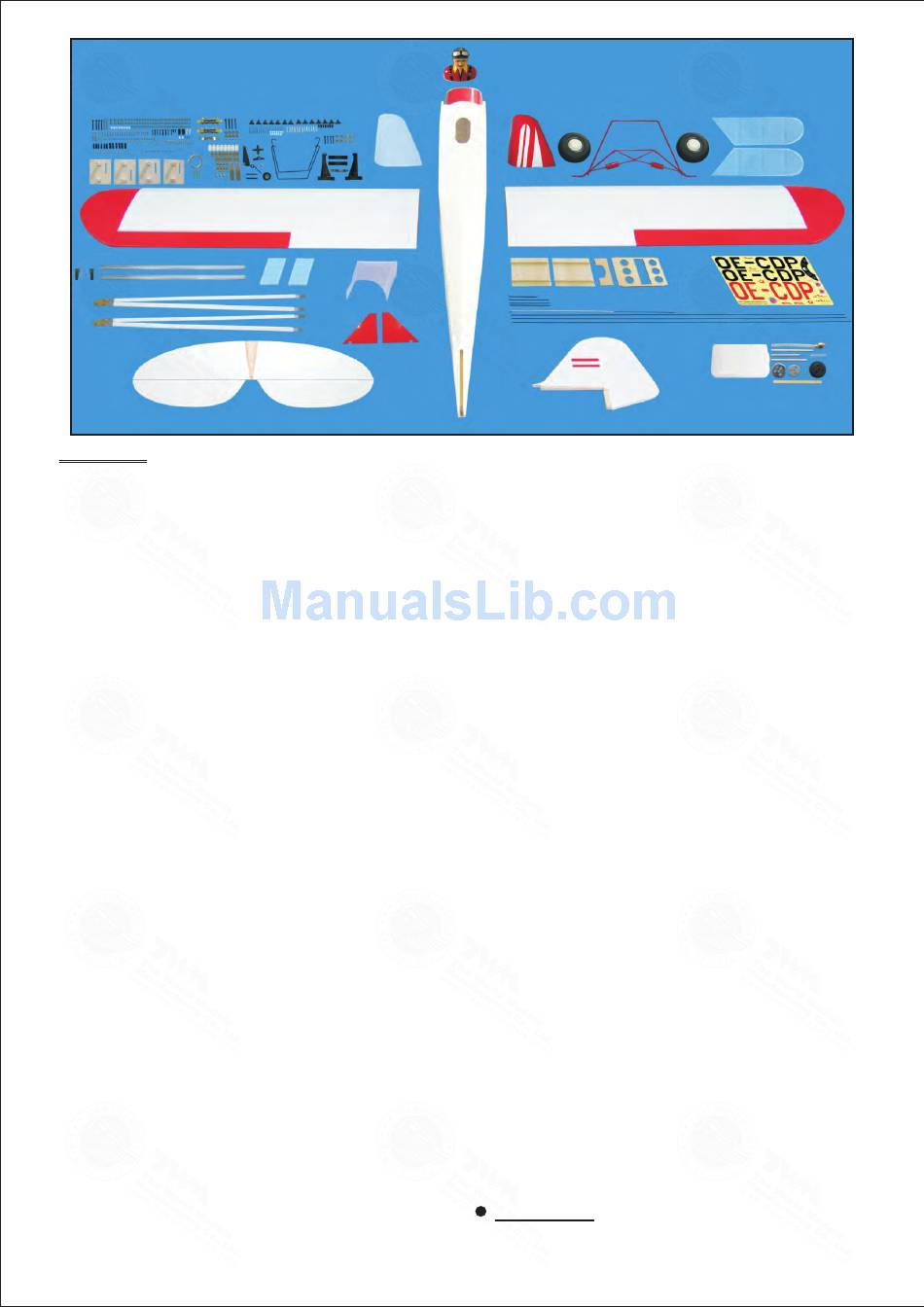

Parts List
1.MAIN WING -- 1 pair
2.PUSHROD Ø1.8x120mm
w/ Threads(For Aileron & Flap Servo) -- 4 pcs
FUEL TUBE Ø6x5mm -- 8 pcs
STRAPER PL4112102 -- 4 pcs
SCREW PB 2x30mm -- 12 pcs
SCREW PWA2x8mm -- 16 pcs
SERVO MOUNTING PANEL--4 pcs
CLEVIS PL4112103-- 4 pcs
TRI-HORN M3x22mm(L) PL4111251 -- 4 sets
3.SCREW PM3x15mm -- 12 pcs
WASHER d3xD7mm -- 16 pcs
M3 NUT -- 4 pcs
MAIN WING STRUTS -- 1 set
WING STRUT WIRE Ø3x143x208mm -- 2 pcs
PLASTIC WIRE BRACKET PL5330030 -- 8 pcs
4.FUSELAGE -- 1 pc.
STABILZER & ELEVATOR -- 1 set
5.VERTICAL FIN & RUDDER -- 1 set
6.TAIL GEAR ASSEMBLY 11-22LBS PL3410021 -- 1 set
PLATE(For Staying on Tail Fuselage Bottom) 1x10x40mm -- 1 pc
7.SCREW PM3x13mm -- 2 pcs
ALUMINUM PLATE 2mm -- 2 pcs
MAIN LANDING GEAR -- 1 set
SCREW PA3x12mm -- 14 pcs
WASHER d3xD7mm -- 2 pcs
MOUNTING PLATE 12x20mm -- 6 pcs
8.SCREW PA 1.7x8mm -- 6 pcs
SCREW PM3x13mm -- 8 pcs
WASHER d3xD7mm -- 16 pcs
M3 NUT -- 8 pcs
COLLAR Ø4.6mm w/ set screw -- 4 sets
MAIN WHEEL(CUB) Ø107mm -- 2 sets
PLYWOOD 3x145x171mm(Main Landing Gear Cover) -- 2 pcs
PLASTIC WIRE BRACKET PL5330050 -- 8 pcs
9.ENGINE MOUNT PL5111080 -- 1 set
SOCKET HEAD SCREW M4x30mm -- 4 pcs
WASHER d4.2xD14.5mm -- 4 pcs
M4 BLIND NUT -- 4 pcs
10.ALUMINUM PLATE(For Engine Mount) -- 1 pc.
ANTI-VIBRATION MOUNT PL5214094 -- 1 set
INCLUDE:SOCKET HEAD SCREW M4x35mm -- 4 pcs
SCERW KM3x20mm -- 8 pcs
WASHER d4xD12mm -- 8 pcs
NYLON INSERT LOCK NUT M3 -- 8 pcs
NYLON INSERT LOCK NUT M4 – 4 pcs
THROTTLE PUSHWIRE Ø1.2x480mm -- 1 pc.
PLASTIC TUBE d2xD3x300mm -- 1 pc.
11.SCREW PWA2.6x12mm -- 4 pcs
SILICON GROMMET d1.5xD6.5mm(For Cowling) -- 4 pcs
COWLING -- 1 pc.
12.FUEL TANK 500cc -- 1 set
CABLE TIE 1.5x5x400mm -- 1 pc.
DOUBLE-SIDED TAPE 40x100mm -- 1 pc.
13.SCREW PB2x16mm -- 6 pcs
FUEL TUBE Ø6x5mm -- 2 pcs
CLEVIS PL4112103 -- 2 pcs
TRI-HORN M3x22mm(L) PL4111251 -- 2 sets
PUSHROD Ø1.8x1000mm w/ Threads(For Elevator Servo) -- 2 pcs
14.SCREW PB2x16mm -- 3 pcs
FUEL TUBE Ø6x5mm -- 1 pc.
CLEVIS PL4112103 -- 1 pc.
TRI-HORN M3x22mm(L) PL4111251 -- 1 set
PUSHROD Ø1.8x1065mm w/ Threads(For Rudder Servo) -- 1 pc.
15.FLYING WIRE Ø1x1300mm -- 1 pc.
FLYING WIRE BRACKET PL4112600 -- 6 pcs
FLYING WIRE BRACKET CLEVIS -- 4 pcs
EYE SCREW M1.8x6x12mm -- 4 pcs
SCREW PM2x16mm -- 6 pcs
SCREW PM2x8mm -- 4 pcs
M2 NUT -- 6 pcs
WASHER d2xD5mm -- 6 pcs
COPPER TUBE d2.5xD3.2x8mm (For Rudder) -- 8 pcs
16.SIDE WINDOWS -- 1 pair
17.LINKAGE CONNECTOR Ø2.1mm -- 1 set
18.PLYWOOD 3x153x210mm(For Fuselage Servos) -- 1 pc.
FUEL TUBE Ø6x5mm -- 2 pcs
STRAPER PL4112102 -- 2 pcs
PUSHROD Ø1.8x85mm(For Elevator) -- 1 pc.
PUSHROD CONNECTOR 4x9x20mm PL4410010 -- 1 set
SPONGE 10x80x200mm -- 2 pcs
19.SCREW PWA2x12mm -- 4 pcs
PILOT PC001102A -- 1 set
COCKPIT BASE PANEL 3x145x165mm -- 2 pcs
20.SCREW PWA2.3x12mm -- 4 pcs
SCREW PM2x14mm -- 2 pcs
WASHER d2xD5mm -- 4 pcs
SILICON GROMMET d1.5xD6.5mm(For Wind Shield) -- 4 pcs
M2 NYLON INSERT LOCK NUT -- 2 pcs
WIND SHIELD -- 1 pc.
MOUNTING PLATE 5x15mm -- 2 pcs
21.WING TUBE Ø16x661mm -- 2 pcs
SELF-TIGHTENING LATCHING PIN PL9120010 -- 4 pcs
WIRE Ø0.8mm -- 2 pair
M3x8mm SET SCREW -- 4 pcs
22.SOCKET HEAD SCREW M3x8mm -- 2 pcs
WASHER d3xD7mm -- 4 pcs
M3 NYLON INSERT LOCK NUT -- 2 pcs
23.DECALS:A036DEC -- 1 set
COVERING:--
TOUGHLON STL 100 WHITE
TOUGHLON STL 311 FERRARI RED
P.2
