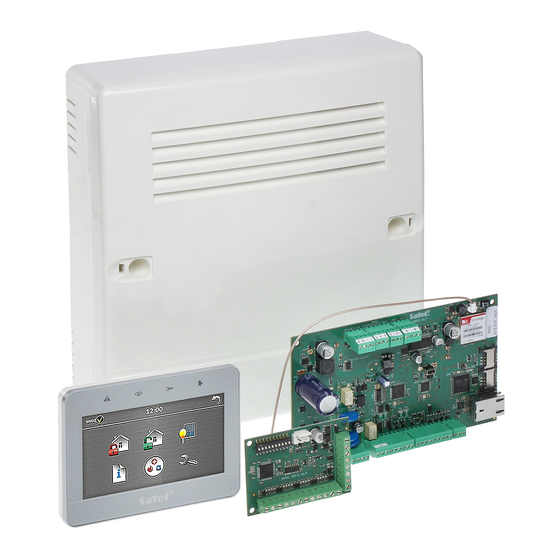

Satel Versa Plus Quick User Manual
Alarm control panel
Hide thumbs
Also See for Versa Plus:
- Programming manual (97 pages) ,
- User manual (43 pages) ,
- Installer manual (41 pages)
Related Manuals for Satel Versa Plus
Summary of Contents for Satel Versa Plus

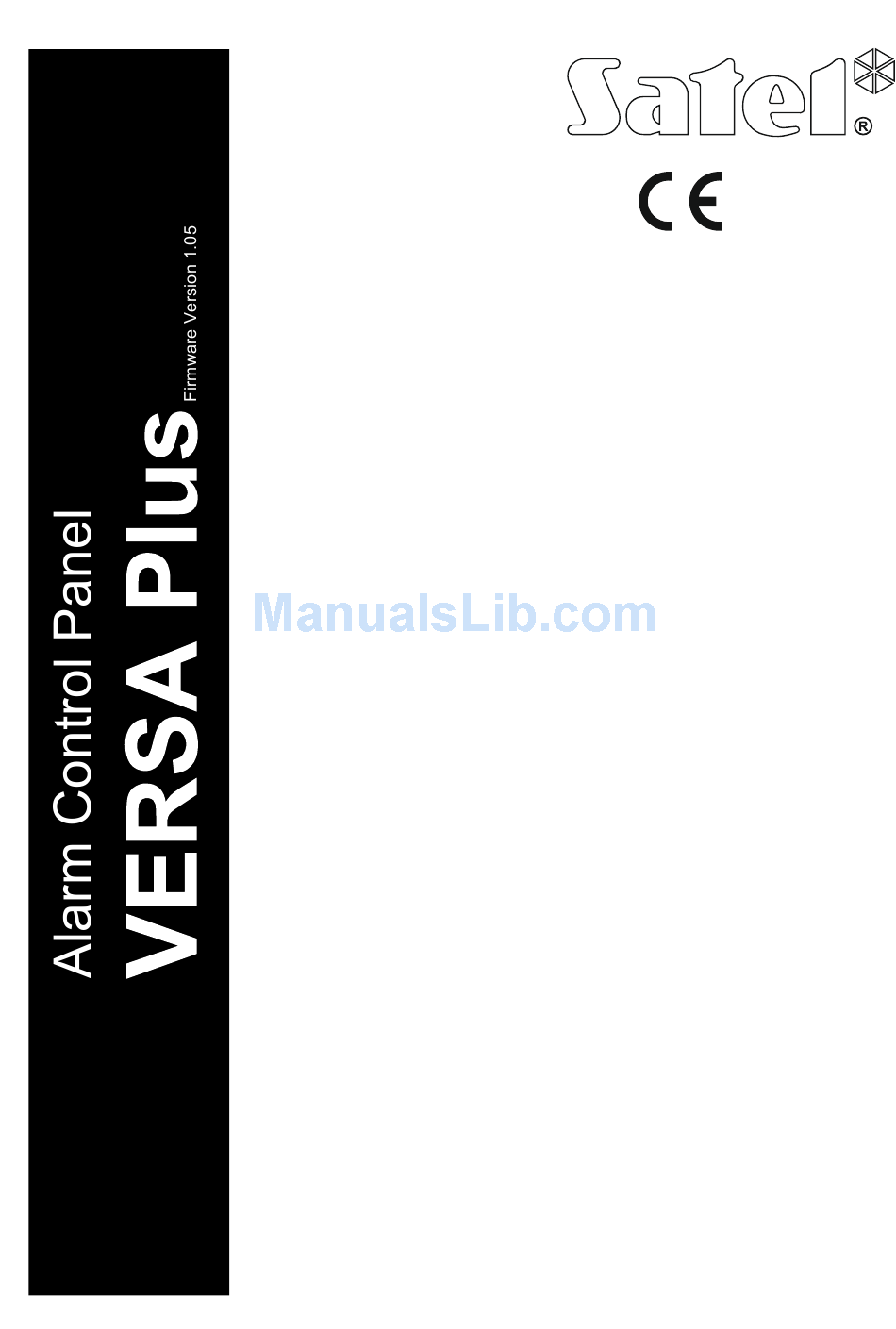

- Page 1 1471 QUICK USER MANUAL The full user manual and other manuals are available on www.satel.eu SATEL sp. z o.o. ul. Budowlanych 66 80-298 Gdańsk POLAND tel. 58 320 94 00 info@satel.pl www.satel.eu versa_plus_us_en 03/15...
- Page 2 Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty. The SATEL's goal is to continually upgrade the quality of its products, which may result in alterations of their technical specifications and firmware. The current information on the introduced modifications is available on our website.
-
Page 3: Operating The Alarm System From Keypad
1. Operating the alarm system from keypad SATEL offers the following keypads for VERSA Plus control panels: INT-TSG – hardwired touchscreen keypad (how to operate the alarm system from the INT-TSG, please refer to the manual delivered with the keypad), VERSA-LCDM –... - Page 4 VERSA Plus SATEL green LED – indicates the partition state (each red LED – indicates alarm or alarm memory in partition has its own LED) the partition (each partition has its own LED) ON – partition is armed The information is presented for 2 seconds and blinking –...
- Page 5 SATEL VERSA Plus Arming without partition selection Disarming and/or alarm clearing [CODE] - full arming [CODE] - in both partitions [CODE] - night arming [CODE] - in partition 1 [CODE] - day arming [CODE] - in partition 2 Arming Partition 1...
- Page 6 VERSA Plus SATEL 1.1 Codes Operating the alarm system by means of the keypad is possible after entering the code. Only some functions can be run without the code being entered. Do not make your code available to other people.
- Page 7 SATEL VERSA Plus 1.3 Disarming and alarm clearing 1.3.1 Disarming and alarm clearing without partition selection Enter the code and then press the key. Disarming / alarm clearing will take place in the partitions to which you have access. 1.3.2 Disarming and alarm clearing in selected partition 1.
- Page 8 VERSA Plus SATEL 1.7.2 Zone bypassing If a zone is not to trigger alarm, you can bypass it, when the partition to which the zone belongs is disarmed. Zone bypassing is useful, for example, when you want to leave a window open when the system is armed or when a detector connected to the zone is out of order and sets off false alarms.
-
Page 9: Operating The Alarm System By Means Of Keyfob
SATEL VERSA Plus – the zone is to be unbypassed. LED keypad The way of indicating the zone status and the procedure are identical to those used for zone inhibiting. 1.7.3 Viewing the event log The function is only available in the LCD keypad. -
Page 10: Ending The Operating By Telephone
enter the name of control panel (to enable identification of the control panel when using the application), enter the MAC address of control panel (the hardware address of built-in Ethernet communication module), enter the ID number of control panel (the individual identification number for the purpose of communication via the SATEL server),... - Page 11 SATEL VERSA Plus enter the user code (which will be used when operating the control panel by means of the application), select an icon for the control panel (to facilitate identification of the control panel when using the application), ...
