USER
MANUAL
SATEL sp. z o.o.
ul. Budowlanych 66
80-298 Gdańsk
POLAND
tel. 58 320 94 00
www.satel.eu
versa_u_en 04/16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Versa and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Satel Versa

Summary of Contents for Satel Versa

  • Page 1 USER MANUAL SATEL sp. z o.o. ul. Budowlanych 66 80-298 Gdańsk POLAND tel. 58 320 94 00 www.satel.eu versa_u_en 04/16...
  • Page 2 (the alarm will be signaled optically and acoustically, appropriate services will be notified, etc.), which may deter the potential burglars. SATEL's goal is to continually upgrade the quality of its products, which may result in some changes of their technical specifications and firmware. The current information on the introduced modifications is available on our website.

  • Page 3: Table Of Contents

    Codes ........................... 11 6.2.1 Factory default codes ........................11 Arming ..........................11 6.3.1 Arming without partition selection....................11 6.3.2 Arming with proximity card VERSA-LCDR / VERSA-LCDM-WRL ..........11 6.3.3 Arming the selected partition .......................12 6.3.4 Quick arming..........................12 6.3.5 Arming without delay ........................12 6.3.6 Information about bypassed zones .....................12...
  • Page 4 Failure of the arming procedure initiated from keyfob............36 Operating the alarm system by telephone..............36 Starting the operating by telephone ..................37 Voice menu .......................... 37 Ending the operating by telephone ..................38 Acknowledgement of voice messaging ..............38 10. VERSA CONTROL application ..................39 11. Manual update history....................40...

  • Page 5: Introduction

    The SATEL Company is manufacturer of a broad range of devices dedicated for use in security alarm systems. Further information is available on our website www.satel.eu or at the points of sale offering our products.

  • Page 6: Glossary

    VERSA SATEL 4. Glossary Alarm – reaction of the alarm system to detection by the detectors of an intruder in the protected area, or to another event within the protected area (e.g. glass pane break, gas detection, etc.). The alarm can be signaled in keypads, proximity card arm/disarm devices, or by sirens (during a defined time or until cleared).

  • Page 7: Control Panel Compliance With En 50131 Standard Requirements For Grade 2

    SATEL VERSA Protected area – the area supervised by detectors being part of the alarm system. Proximity card – a passive transponder that allows the user to operate the alarm system by means of a proximity card reader (INT-CR and INT-IT proximity card arm/disarm devices are provided with the reader).

  • Page 8: Operating The Alarm System With Lcd Keypad

    How requirements of the standard affect the use of the control panel is described in detail hereunder. 6. Operating the alarm system with LCD keypad Fig. 1. VERSA-LCDM keypad (the VERSA-LCDR and VERSA-LCDM-WRL keypads differ only in some graphic elements on its glass). Fig. 2. VERSA-LCD keypad.

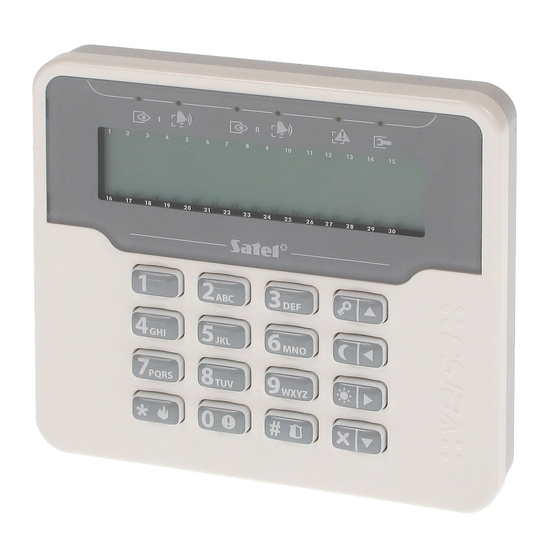

  • Page 9: Keypads Description

    The keypads are available in a variety of color options for the display and key backlight. The color variant is indicated by the additional designation in the keypad name (e.g. VERSA-LCD-GR – green display and keys backlight; VERSA-LCDM-WH – white display and keys backlight).

  • Page 10: Display

    VERSA SATEL When you are using the user menu or service menu, the LED is:  blinking rapidly during navigation through the menus and submenus,  steady on after a function is started. 6.1.2 Display The display provides a number of data, facilitating communication between the alarm system and the user.

  • Page 11: Keys

     quickly check the partition state (press and hold down for 3 seconds) 6.1.4 Built-in proximity card reader The VERSA-LCDR and VERSA-LCDM-WRL keypads have a built-in proximity card reader. You can use proximity cards (tags or other 125 kHz passive transponders) to: –...
  • Page 12 – turning off the CHIME in the keypad, using the key, – switching over the display from the normal mode to the zone status presentation mode, and vice versa, by means of the key. 4 short beeps and 1 long beep – confirmation of: –...

  • Page 13: Codes

    The partitions to which you have access will be armed. 6.3.2 Arming with proximity card VERSA-LCDR / VERSA-LCDM-WRL You can use one of the following methods to arm the system (consult with the installer which method is to be used): –...

  • Page 14: Arming The Selected Partition

    VERSA SATEL The reader in VERSA-LCDM-WRL keypad is enabled:  for 5 seconds after disappearance of the connection establishment message (the message is displayed after the keypad is activated by pressing any key),  for 20 seconds after pressing the keys simultaneously.

  • Page 15: Denial Of Arming And Forced Arming

    SATEL VERSA “Bypassed zones 1=Arm” – if you don’t have the Z right. You can: ONE INHIBITION – press the key to cancel the arming, – press the key to proceed with the arming. 6.3.7 Denial of arming and forced arming...

  • Page 16: Disarming And Alarm Clearing

    Bring the card close to the keys and move it away. Disarming / alarm clearing will take place in the partitions to which you have access. The reader in VERSA-LCDM-WRL keypad is enabled:  for 5 seconds after disappearance of the connection establishment message (the message is displayed after the keypad is activated by pressing any key), ...

  • Page 17: Triggering The Alarm From Keypad

    SATEL VERSA To terminate the function of partition state presentation, press . The keypad will quit the function automatically after 2 minutes. Triggering the alarm from keypad The installer can permit triggering alarms from the keypad. To trigger an alarm, do the following: fire alarm –...

  • Page 18: Step By Step" Programming Method

    VERSA SATEL 6.8.2 “Step by step” programming method In case of some functions (e.g. adding and editing users, configuring timers, etc.), the programming is effected by using the “step by step” method. After calling the function and selecting the item to be configured from the list, the first parameter available for programming will be displayed.

  • Page 19: User Functions List

    SATEL VERSA Characters available after next keystroke  " & < > Table 2. Characters available when entering names. The upper case letters are available under the same keys (to change the letter case, press 6.8.4 User functions list Shown in square brackets are key sequences that enable calling the given submenu or starting the given function from the main menu level.

  • Page 20: Change Own Code

    [95#] 5. MS1 test test of telephone reporting to station 1 [96#] 6. MS2 test test of telephone reporting to station 2 [97#] 7. VERSA version checking firmware version of control panel [98#] 8. Expander ver. checking firmware version of system modules [99#] 9.
  • Page 21 Information on the selected partition(s) will appear in the lower display line. Press to confirm your selection. 5. Step 5. Adding 433 MHz keyfob. If the INT-RX-S, INT-RX or VERSA-MCU module is connected to the control panel, the user may be assigned a 433 MHz keyfob. Press in turn...
  • Page 22 VERSA SATEL 7. Step 5b. Adding 433 MHz keyfob. Depending on the selected method: – enter the keyfob serial number and press – press twice any button on the keyfob (displayed messages will prompt you what to do). Numbering of the buttons in 433 MHz keyfobs is described in section “Operating the alarm system by means of keyfob”...
  • Page 23 SATEL VERSA 40. Arming partitions 1 and 2 – night armed mode 41. Arming partitions 1 and 2 – day armed mode 42. Disarming / clearing alarm in partitions 1 and 2 43. Loud panic alarm 44. Silent panic alarm 45.
  • Page 24 VERSA SATEL 10. Step 5e. Assigning function to 433 MHz keyfob button 3. Proceed in the same way as in Step 5c. 11. Step 5f. Assigning function to 433 MHz keyfob button 4. Proceed in the same way as in Step 5c.
  • Page 25 SATEL VERSA 7. Output 7 state 8. Output 8 state 9. Output 9 state 10. Output 10 state 11. Output 11 state 12. Output 12 state 13. Arming: Partition 1 LED is ON when partition 1 is armed 14. Arming: Partition 2 LED is ON when partition 2 is armed 15.

  • Page 26: User Editing

    VERSA SATEL 6.10.2 User editing 1. Enter the user menu and press in turn . User editing is effected by the “step by step” method, hence the programming step number is presented on the LEDs of the first and second partitions (see: page 16, Table 1).

  • Page 27: Removing A User

    SATEL VERSA – in turn, if the user has a keyfob and you want to edit the rules of confirmation (the procedure is similar as for defining the rules of confirmation after an APT-100 keyfob has been added to a new user).

  • Page 28: Zone Isolating

    VERSA SATEL Enter the user menu and press in turn . Shown in the upper line of the display will be a message to inform you that the zone is bypassed, and in the lower line – the zone name. You can scroll through the zone list using the keys.

  • Page 29: Simple Auto-Arming Deferment

    SATEL VERSA 6.14.1 Simple auto-arming deferment The installer defines whether the users will be allowed to use the simple auto-arming deferment and whether they will be able to use the simple auto-arming deferment just once or multiple times. The simple auto-arming deferment is possible during the auto-arming delay countdown. The keypad displays then a suitable message and can additionally emit a sound signal.

  • Page 30: Programming The Weekly Schedule

    VERSA SATEL 6.16.1 Programming the weekly schedule 1. Step 3. Programming timer activation/deactivation time on Monday. Use the keys to move the cursor. If you want, you can only program the activation or deactivation time. Instead of the other parameter, enter the sequence 9999 then. Press to go on to the next step.
  • Page 31 SATEL VERSA - telephone 4, - telephone 5, - telephone 6, - telephone 7, - telephone 8. 3. Enter the telephone number (the available characters are presented in Table 4). You can enter up to 16 characters. Some of the characters occupy two positions (a, b, c, d, # and ).

  • Page 32: Programming Codes To Acknowledge / Clear Messaging

    In the event of failure of the control panel processor system (HSE), when you have exited the 7. S function by using the key, the “Make VERSA panel YSTEM STATE restart? 1=Yes” message will be displayed. Pressing the key will restart the control panel and repair the trouble.

  • Page 33: Output Control

    Press the key to which the controllable output is assigned, and then 6.20.2 Controlling the outputs by means of proximity card VERSA-LCDR / VERSA-LCDM-WRL The status of outputs can be toggled by using the proximity card, provided that the keypad has been configured by the installer so as to make this function available.

  • Page 34: Output Test

     the quality of radio signal received by the controller from 433 MHz wireless detectors (if the VERSA-MCU controller is connected to the control panel),  the level of radio signal received by the controller from ABAX wireless devices (if the ABAX system controller is connected to the control panel).

  • Page 35: Checking The Firmware Version Of Modules

    (IP address, MAC address, individual identification number for the purpose of communication via the SATEL server [ID]). 6.21.8 Checking the current supply voltage in modules Not all modules provide information on the current voltage.

  • Page 36: Defining The Service Access Time

    The alarm system can be operated by means of keyfobs, if the 433 MHz keyfo receiver expansion module (INT-RX-S / INT-RX), 433 MHz wireless system controller (VERSA-MCU) or ABAX wireless system controller (ACU-120 / ACU-270 / ACU-10 0 / ACU-250) is connected to the control panel.

  • Page 37: Denial Of Arming

    SATEL VERSA Fig. 4. T-4 keyfob [433 MHz keyfob]. A – numeration of keyfob buttons (button 5 – pressing buttons 1 and 2 simultaneously; button 6 – pressing buttons 1 and 3 simultaneously). A single keyfob enables up to 6 functions to be executed. The list of functions assigned to the buttons / combination of buttons should be obtained from the person who configured the keyfob settings when adding / editing a user.

  • Page 38: Failure Of The Arming Procedure Initiated From Keyfob

    VERSA SATEL The installer can program the control panel so that arming by means of keyfob is not possible when:  in the partition to be armed, at least one zone that must not be violated during arming (the option has been enabled for the zone by the installer) is violated, RIORITY ...

  • Page 39: Starting The Operating By Telephone

    SATEL VERSA Starting the operating by telephone 1. Call the control panel phone number. After the call is received, you will hear three short beeps. The installer can configure the control panel in such a manner that the telephone communicator will only go off hook after the recall. If this is the case, call the number, but hang up after the number of rings which has been set by the installer.

  • Page 40: Ending The Operating By Telephone

    VERSA SATEL 4 – zones [you can play back information on the state of zone, bypass/unbypass the zone] enter the zone number and press # (if only one zone is available, this step will be skipped) 1 – inhibit 2 – isolate 6 –...

  • Page 41: Versa Control Application

    10. VERSA CONTROL application If the ETHM-1 Plus module is connected to the control panel, you can operate the alarm system from mobile devices using VERSA CONTROL application that allows to:  arm / disarm the system or clear alarm, ...
