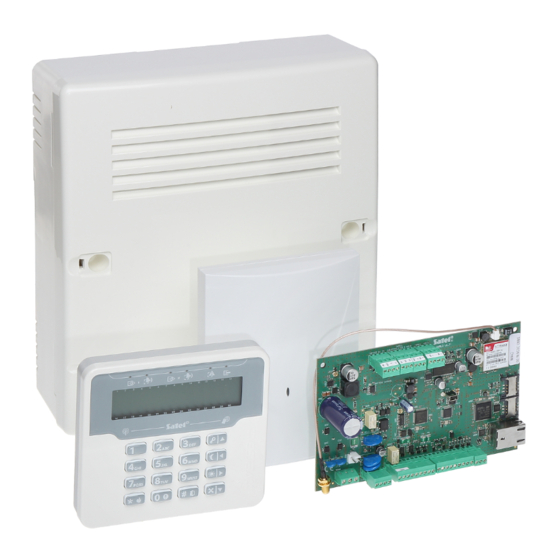

Satel VERSA Plus Instructions For Operating Manual
Alarm control panel from led keypad
Hide thumbs
Also See for VERSA Plus:
- Programming manual (97 pages) ,
- User manual (43 pages) ,
- Installer manual (41 pages)
Subscribe to Our Youtube Channel
Related Manuals for Satel VERSA Plus
Summary of Contents for Satel VERSA Plus

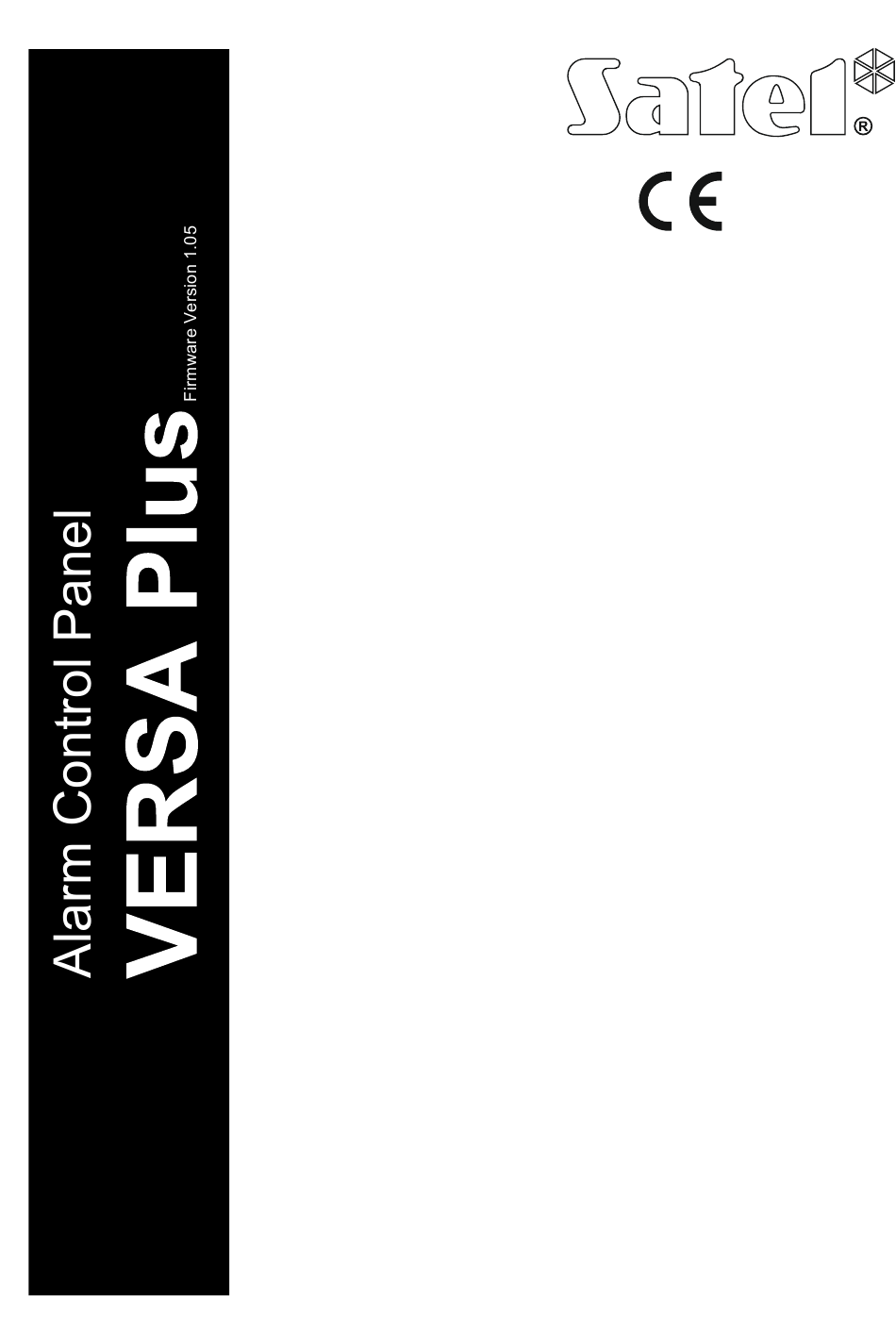

- Page 1 1471 INSTRUCTIONS FOR OPERATING CONTROL PANEL FROM LED KEYPAD SATEL sp. z o.o. ul. Budowlanych 66 80-298 Gdańsk POLAND tel. 58 320 94 00 info@satel.pl www.satel.eu versa_plus_led_en 03/15...
- Page 2 Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty. SATEL's goal is to continually upgrade the quality of its products, which may result in alterations of their technical specifications and firmware. The current information on the introduced modifications is available on our website.
-
Page 3: Table Of Contents
CONTENTS Introduction........................3 Keypad description ......................3 LEDs presenting partition and system state................4 LEDs presenting zone status ....................4 Keys ............................5 Sound signaling........................6 2.4.1 Beeps generated when operating ....................6 2.4.2 Beeps generated during programming..................6 2.4.3 Events signaled by sounds......................6 Operating the alarm system from keypad .............. - Page 4 VERSA Plus SATEL 3.18.1 Quick control of outputs ......................26 3.18.2 Controlling the outputs by means of function ................26 3.19 Tests ............................ 26 3.19.1 Zone test ............................. 26 3.19.2 Output test ..........................27 3.19.3 Checking the level / quality of radio / GSM signal ..............27 3.19.4...
-
Page 5: Introduction
The SATEL Company is manufacturer of a broad range of devices dedicated for use in security alarm systems. Further information is available on our website www.satel.eu or at the points of sale offering our products. -
Page 6: Leds Presenting Partition And System State
VERSA Plus SATEL LEDs presenting partition and system state Color Description green indicates the partition state (each partition has its own LED) ON – partition is armed blinking – exit delay countdown is running in partition indicates alarm or alarm memory in the partition (each partition has its own LED) The way of presenting the information is shown graphically below. -
Page 7: Keys
SATEL VERSA Plus 30 numbered LEDs provide information about the status of zones. The LED numbers correspond to the zone numbers. When the user functions are in use, the LEDs can present other information. The way of presenting information is shown graphically below. The information is presented for 2 seconds and repeated ( –... -
Page 8: Sound Signaling
VERSA Plus SATEL Sound signaling The installer can disable the sound signaling. 2.4.1 Beeps generated when operating 1 short beep – pressing any number key. 3 short beeps – confirmation of: – starting the arming procedure (there is exit delay in the partition) or arming (there is no exit delay in the partition), –... -
Page 9: Operating The Alarm System From Keypad
SATEL VERSA Plus Continuous beep – alarm. Long beep every second – fire alarm. 3. Operating the alarm system from keypad Codes Operating the alarm system by means of the keypad is possible after entering the code. Only some functions can be run without the code being entered. -
Page 10: Arming The Selected Partition
VERSA Plus SATEL 3.2.2 Arming the selected partition 1. Indicate the partition which is to be armed (press one of the keys: - partition 1; - partition 2). 2. Select the arming mode (press one of the keys: - full arming;... -
Page 11: Disarming And Alarm Clearing
SATEL VERSA Plus Disarming and alarm clearing Disarming and alarm clearing are carried out in the same way, the procedures being interconnected. If the partition is armed and an alarm is triggered in it, then disarming will also mean alarm clearing. -
Page 12: Turning The Chime On /Off
VERSA Plus SATEL medical (auxiliary) alarm – press for approx. 3 seconds, panic alarm – press for approx. 3 seconds. The installer defines whether the loud panic alarm (setting off the loud alarm signal) or the silent panic alarm (without the loud signal) will be triggered. - Page 13 SATEL VERSA Plus see Table 1. LEDs 1-4 present the first character, LEDs 5-8 – the second, LEDs 9-12 – the third, LEDs 16-19 – the fourth, LEDs 20-23 – the fifth, and LEDs 24-27 – the sixth character. LED status Digits and characters –...
-
Page 14: User Functions List
VERSA Plus SATEL 3.7.4 User functions list Shown in square brackets are key sequences that enable starting the given function. The functions that are only available after entering the service code have been specially highlighted (white text against black background). The access to other functions depends on the user rights. -
Page 15: Users
SATEL VERSA Plus sers There an be up to 30 users in the sys tem. A person using the service code (installer / servi technician), who is an additional user, has a special status, but his/her access can be limited (see: “Defining the service access rules” p. - Page 16 VERSA Plus SATEL Using the DURESS right code will trigger a silent alarm, which is not signaled in way, but the alarm code will be sent to the monitoring station. 4. Step 4. Selecting partitions accessible to the user. Press...
- Page 17 SATEL VERSA Plus 8. Step 5c. Assigning function to 433 MHz keyfob button 1. Press to confirm the default function (defined by the installer in the user schedule) or enter the number of one of the following functions, and then press 0.
- Page 18 VERSA Plus SATEL 51. Output 1 activation 52. Output 2 activation 53. Output 3 activation 54. Output 4 activation 55. Output 5 activation 56. Output 6 activation 57. Output 7 activation 58. Output 8 activation 59. Output 9 activation 60. Output 10 activatio 61.
- Page 19 SATEL VERSA Plus ion to 433 MHz keyfob button 6. Proceed in the same way as Step 5h. Assigning funct in Step 5c. Pressing the key between Step 5a and Step 5h will cancel the keyfob adding, but will not terminate the user adding procedure.
- Page 20 VERSA Plus SATEL 3. Step 6i. Selecting confirmation for LED 1 in APT-100 keyfob. Press to confirm the default method of confirmation (defined by the installer in the user schedule) or enter the number of one of the following functions and then press 0.
-
Page 21: User Editing
SATEL VERSA Plus allow you to select the device (the LED corresponding to the selected module will start blinking). Having select ed the devi ce, press Depending on the selected method: Step 7b. Adding proximity card. – enter the card code (see: “... -
Page 22: Removing A User
VERSA Plus SATEL – turn, if the user has a keyfob and you want to edit functions assigned to the keyfob buttons (the procedure is similar to that for assigning functions after an APT-100 keyfob has been added to a new user), –... -
Page 23: Zone Inhibiting
SATEL VERSA Plus The zone bypassing functions can also be used to unbypass the zones (the zone inhibiting function makes it also possible to unbypa s an isolated z one, while the zone isolating function makes it also possible to unbypas... -
Page 24: Programming The Timers
VERSA Plus SATEL 3.14 Programming the timers You can program 4 timers. The timers can control partition arming mode and outputs. The timer compares the time with the contro l pan cloc and executes the selected function at the preset time. -
Page 25: Programming An Exception
SATEL VERSA Plus 7. Step 9. Programming timer activation/deactivation time on Sunday. Proceed in the same ay a s in Step 3. 8. Step 0. Pr ogramming timer activatio n/deactivation time on every day of the week. Proceed in the same way as in Step 3. -
Page 26: Programming Codes To Acknowledge / Clear Messaging
VERSA Plus SATEL Characters available after next keystroke mode [ABC] mode [abc] Table 4. Characters available in the keypad when entering telephone numbers (to change the letter case, press key). Specia char acter Function description switch-over to pulse dialing switch... -
Page 27: Checking The Troubles
/ Ethernet network not available / no communication with device selected for communication test (PING) / wrong PIN code of SIM1 or SIM2 card / no connection to SATEL server / MAC/ID error / GSM jamming, short-circuit in communication bus,... -
Page 28: Trouble Handling Procedure
VERSA Plus SATEL 3.17.2 Trouble handling procedure Each trouble poses a danger to proper functioning of the alarm system and should be repaired as soon as possible. If necessary, consult the installer. In the event of failure of the control panel processor system (HSE), when you have exite d the 7. -
Page 29: Output Test
SATEL VERSA Plus You can test the zones for which the installer has programmed other wiring type than OT USED Zone violation during the test will not trigger the control panel reaction, as preprogrammed for the zone. When testing the zones, the keypad does not present the cur... -
Page 30: Starting The Manual Test Transmission
VERSA Plus SATEL 3.19.4 Starting the manual test transmis i n Enter the user menu and press in turn . A “Manual reporting test” event will be saved to the control panel memory. The event code will be sent to the monitoring station. -
Page 31: Defining The Service Access Time
SATEL VERSA Plus 3.20.2 Defining the service access time The function is available when the P option is disabled (see: “Defining the MANE service access rules”). Enter the user me nu and press in turn . LEDs 1-12 will present the number of remaining hours during which you can get access to the alarm system by using the service code (see page 11 Table 1).
