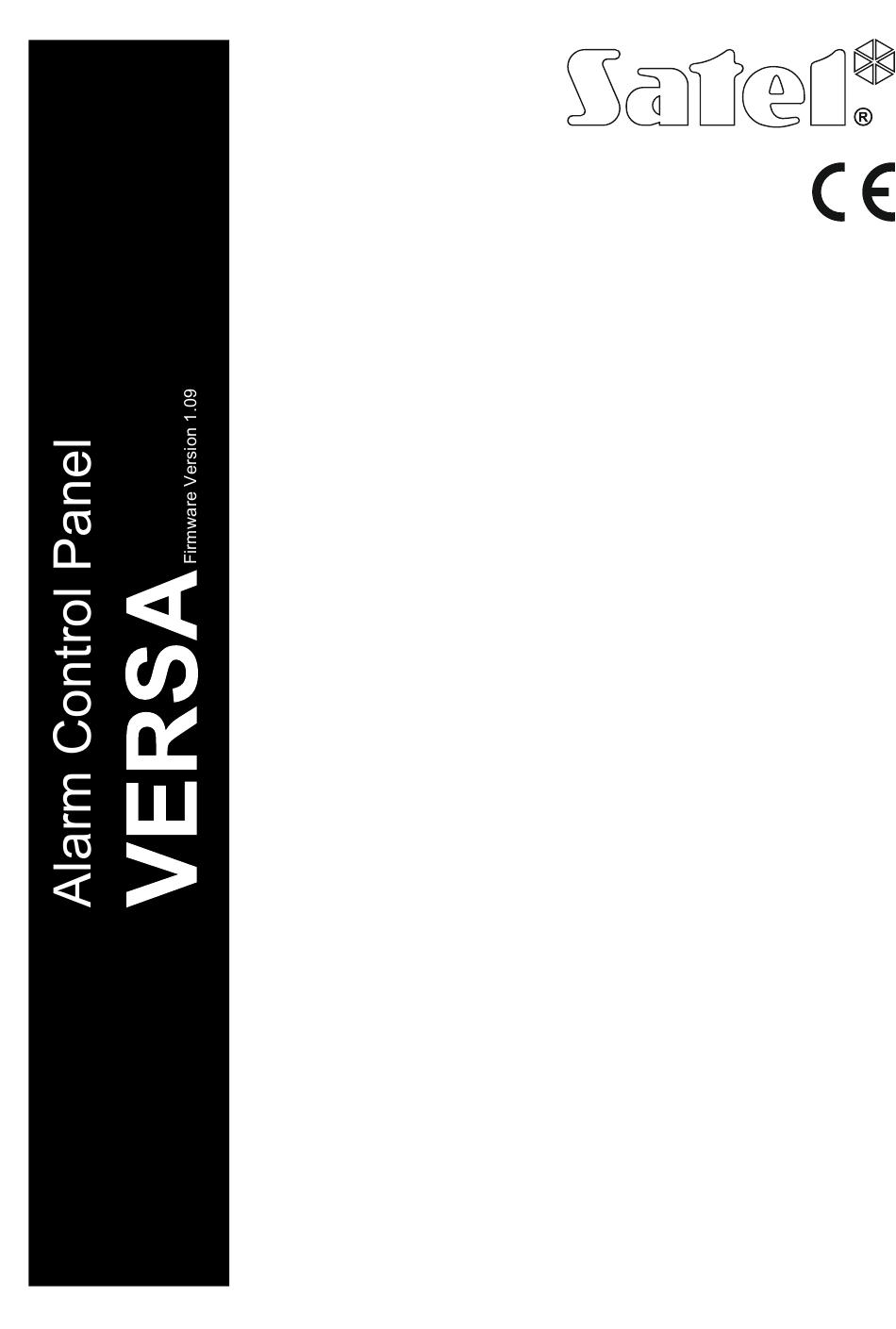

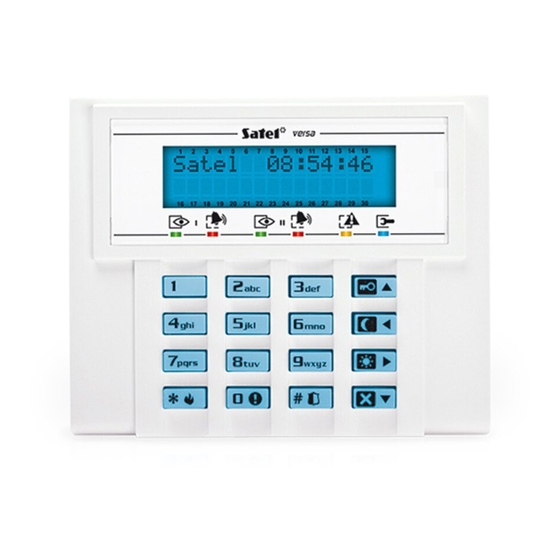

- Page 1 INSTRUCTIONS FOR OPERATING CONTROL PANEL FROM LED KEYPAD SATEL sp. z o.o. ul. Budowlanych 66 80-298 Gdańsk POLAND tel. +48 58 320 94 00 www.satel.eu versa_led_en 11/17...
- Page 2 Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty. SATEL's goal is to continually upgrade the quality of its products, which may result in some changes of their technical specifications and firmware. The current information on the introduced modifications is available on our website.
-
Page 3: Table Of Contents
CONTENTS Introduction........................3 Keypad description ......................3 LEDs presenting partition and system state................4 LEDs presenting zone status ....................4 Keys ............................5 Sound signaling........................6 2.4.1 Beeps generated when operating ....................6 2.4.2 Beeps generated during programming..................6 2.4.3 Events signaled by sounds......................6 Operating the alarm system .................. - Page 4 VERSA SATEL 3.18.1 Quick control of outputs ......................27 3.18.2 Controlling the outputs by means of function ................27 3.19 Tests ............................ 27 3.19.1 Zone test ............................. 27 3.19.2 Output test ..........................28 3.19.3 Checking the level / quality of radio signal ................. 28 3.19.4...
-
Page 5: Introduction
The SATEL Company is manufacturer of a broad range of devices dedicated for use in security alarm systems. Further information is available on our website www.satel.eu or at the points of sale offering our products. -
Page 6: Leds Presenting Partition And System State
VERSA SATEL LEDs presenting partition and system state Color Description green indicates the partition state (each partition has its own LED) ON – partition is armed blinking – exit delay countdown is running in partition indicates alarm or alarm memory in the partition (each partition has its own LED) The way of presenting the information is shown graphically below. -
Page 7: Keys
SATEL VERSA 30 numbered LEDs provide information about the status of zones. The LED numbers correspond to the zone numbers. When the user functions are in use, the LEDs can present other information. The way of presenting information is shown graphically below. The information is presented for 2 seconds and repeated ( –... -
Page 8: Sound Signaling
VERSA SATEL Sound signaling The installer can disable the sound signaling. 2.4.1 Beeps generated when operating 1 short beep – pressing any number key. 3 short beeps – confirmation of: – starting the arming procedure (there is exit delay in the partition) or arming (there is no exit delay in the partition), –... -
Page 9: Operating The Alarm System
SATEL VERSA Continuous beep – alarm. Long beep every second – fire alarm. 3. Operating the alarm system Codes Operating the alarm system by means of the keypad is possible after entering the code. Only some functions can be run without the code being entered. -
Page 10: Arming The Selected Partition
VERSA SATEL The partitions to which you have access will be armed. 3.2.2 Arming the selected partition 1. Indicate the partition which is to be armed (press one of the keys: - partition 1; - partition 2). 2. Select the arming mode (press one of the keys: - full arming;... -
Page 11: Disarming And Alarm Clearing
SATEL VERSA there is a trouble which did not exist when the arming procedure was started. Disarming and alarm clearing Disarming and alarm clearing are carried out in the same way, the procedures being interconnected. If the partition is armed and an alarm is triggered in it, then disarming will also mean alarm clearing. -
Page 12: Triggering The Alarm From Keypad
VERSA SATEL Triggering the alarm from keypad The installer can permit triggering alarms from the keypad. To trigger an alarm, do the following: fire alarm – press for approx. 3 seconds, medical (auxiliary) alarm – press for approx. 3 seconds, panic alarm –... - Page 13 SATEL VERSA Entering hexadecimal characters To enter digits, use the numeric keys, and to enter characters from A to F, use the keys (keep pressing the key until the required character appears). The characters are presented by means of LEDs (up to 6 digits). A single character is presented on four LEDs –...
-
Page 14: User Functions List
VERSA SATEL Fig. 2. Examples of presenting decimal values by means of LEDs. Example A: 931708. Example B: 1605. 3.7.4 User functions list Shown in square brackets are key sequences that enable starting the given function. The functions that are only available after entering the service code have been specially highlighted (white text against black background). -
Page 15: Change Own Code
SATEL VERSA [92#] starting output test [93#] checking the level / quality of radio signal [94#] starting manual test transmission [99#] checking current supply voltage in modules [90#] deactivating outputs / activating 21. D output ETECTORS RESETTING [00#] starting service mode... - Page 16 The LED with number corresponding to your choice will start blinking. Press to confirm your selection. 5. Step 5. Adding 433 MHz keyfob. If the INT-RX-S, INT-RX or VERSA-MCU module is connected to the control panel, the user may be assigned a 433 MHz keyfob. Press in...
- Page 17 SATEL VERSA Fig. 3. T-4 keyfob [433 MHz keyfob]. A – numeration of keyfob buttons (button 5 – pressing buttons 1 and 2 simultaneously; button 6 – pressing buttons 1 and 3 simultaneously). Fig. 4. MPT-300 (black enclosure) / MPT-350 (light gray enclosure) keyfob [433 MHz keyfob].
- Page 18 VERSA SATEL 17. Zone 17 violation 18. Zone 18 violation 19. Zone 19 violation 20. Zone 20 violation 21. Zone 21 violation 22. Zone 22 violation 23. Zone 23 violation 24. Zone 24 violation 25. Zone 25 violation 26. Zone 26 violation 27.
- Page 19 SATEL VERSA 77. Output 7 deactivation 78. Output 8 deactivation 79. Output 9 deactivation 80. Output 10 deactivation 81. Output 11 deactivation 82. Output 12 deactivation 91. Output 1 switchover 92. Output 2 switchover 93. Output 3 switchover 94. Output 4 switchover 95.
- Page 20 VERSA SATEL Fig. 5. APT-100 keyfob (dark gray enclosure). A – numeration of LEDs. B – numeration of keyfob buttons (button 6 – pressing buttons 1 and 5 simultaneously). 17. Step 6c. Assigning function to APT-100 keyfob button 1. Proceed in the same way as in Step 5c.
-
Page 21: User Editing
SATEL VERSA 13. Arming: Partition 1 LED is ON when partition 1 is armed 14. Arming: Partition 2 LED is ON when partition 2 is armed 15. Arming: Partition 1 or 2 LED is ON when partition 1 or 2 is armed 16. - Page 22 VERSA SATEL 2. Step 1. Selecting user whose data are to be edited. You can make your selection by using the keys or by entering the user number (the LED designated by the number of selected user should start blinking). Having selected the user, press You can press to interrupt the procedure of editing a user.
-
Page 23: Removing A User
SATEL VERSA – in turn, if you want to add a card (the procedure is much similar to that for adding a card to a new user), – , if you want to remove a card. 3.9.3 Removing a user 1. -
Page 24: Zone Isolating
VERSA SATEL LED OFF – the zone is to be unbypassed. Press to quit the function. The zones will be inhibited/unbypassed. 3.11.2 Zone isolating The isolated zone will remain bypassed until it is unbypassed by the user. Enter the user menu and press in turn . -
Page 25: Programming The Weekly Schedule
SATEL VERSA 3. Step 2. Selecting parameters to be programmed. Press in turn the suitable keys to select a parameter: - weekly schedule, - exception 1, - exception 2, - exception 3, - exception 4, - partition 1 arming mode, - partition 2 arming mode. -
Page 26: Selecting The Arming Mode
VERSA SATEL activation/deactivation in the weekly schedule. After pressing , you will be taken back to Step 2. 3.14.3 Selecting the arming mode 1. Define whether and what arming mode is to be activated by the timer (press one of the keys: - full arming;... -
Page 27: Programming Codes To Acknowledge / Clear Messaging
SATEL VERSA Special character Function description switch-over to pulse dialing switch-over to tone dialing (DTMF) waiting for additional signal 3 second pause 10 second pause signal in DTMF mode signal # in DTMF mode other signals generated in DTMF mode Table 4. -
Page 28: Trouble Handling Procedure
LED 11 - jamming ABAX system wireless devices / Ethernet module initialization error / Ethernet network not available / no communication with device selected for communication test (PING) / no connection to SATEL server / MAC/ID error, LED 12 - short-circuit in communication bus,... -
Page 29: Output Control
SATEL VERSA 3.18 Output control Using the keypad, you can control the operation of devices connected to the outputs (e.g. to raise/lower roller blinds/shutters, turn on/off lighting or heating, etc.). The installer defines how the outputs should work (whether the output will be activated for a defined time, or it will remain active until deactivated by the user, timer, etc.). -
Page 30: Output Test
the quality of radio signal received by the controller from 433 MHz wireless detectors (if the VERSA-MCU controller is connected to the control panel), the level of radio signal received by the controller from ABAX wireless devices (if the ABAX system controller is connected to the control panel). -
Page 31: Service
SATEL VERSA deactivate for 16 seconds the 11. F function output (to clear IRE DETECTORS POWER SUPPLY the alarm memory of fire detectors), activate the 21. D function output. ETECTORS RESETTING Enter the user menu and press in turn 3.20 Service... -
Page 32: Manual Update History
VERSA SATEL 4. Manual update history Manual version Introduced changes 04/16 Note about entry delay time in day armed mode for arming without delay has been added (p. 8). 11/17 Information on how the keypad works if blocked has been added (p. 7).
