  • Page 1 INSTALLER MANUAL versa_plus_i_en 09/21 SATEL sp. z o.o. ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
  • Page 2 Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.
  • Page 3 Changes made to the firmware version 1.10 VERSA-ETH New parameter: MCC/MNC CODE New option: AUTO.

  • Page 4: Table Of Contents

    VERSA Plus SATEL CONTENTS Introduction ........................4 Features ........................... 4 Keypads ........................... 6 Keypads features ....................... 7 Expansion modules ......................8 System installation ......................8 Installation plan ......................8 Estimation of the system current consumption ............8 Cabling ........................9 Installation of control panel mainboard ..............
  • Page 5 SATEL VERSA Plus Numeration of zones and outputs in the system ............35 Numeration of zones ....................35 6.1.1 Hardwired zones ....................35 6.1.2 Wireless zones ....................36 Numeration of outputs ..................... 36 6.2.1 Hardwired outputs .................... 36 6.2.2 Wireless outputs ....................36 Specifications .......................

  • Page 6: Introduction

    VERSA Plus SATEL 1. Introduction This manual describes the VERSA Plus control panel and how it should be installed. In addition, the manual provides information about devices compatible with the control panel and how they are to be connected. The VERSA Plus alarm control panel meets the requirements of the following standards: EN 50131-1 Grade 2, EN 50131-3 Grade 2, EN 50131-6 Grade 2, EN 50130-4 and EN 50130-5 Class II.
  • Page 7 SATEL VERSA Plus • Dual SIM support by cellular communicator. • Built-in 300 bps modem. Reporting • Reporting events to two monitoring stations: – several communication formats (including Contact ID and SIA), – 4 identifiers. • Multiple transmission paths: – Ethernet network, –...

  • Page 8: Keypads

    – firmware update for the control panel and built-in modules. • Removable terminals. 3. Keypads SATEL offers the following keypads for VERSA Plus alarm control panels: INT-TSG – hardwired touchscreen keypad, INT-TSG2 – hardwired touchscreen keypad, INT-TSH – hardwired touchscreen keypad,...

  • Page 9: Keypads Features

    For information on the INT-TSG, INT-TSG2, INT-TSH, INT-TSH2, VERSA-KWRL2 and VERSA-LCDM-WRL keypads, please refer to the manuals delivered with the keypads. Fig. 1. Examples of keypads supported by the VERSA Plus control panel. Keypads features • Display 2 x 16 characters with backlight.

  • Page 10: Expansion Modules

    VERSA Plus SATEL • Built-in proximity card reader. VERSA-LCDR • Tamper contact reacting to the enclosure opening or detaching from the wall. 4. Expansion modules INT-RX-S / INT-RX. 433 MHz keyfobs receiver expansion module. Enables operation of the alarm system using the 433 MHz keyfobs.

  • Page 11: Cabling

    SATEL VERSA Plus If the sum of currents exceeds the maximum output current of the control panel power supply, expander with power supply or an additional power supply unit should be used. The sum of currents consumed by the devices connected to the power supply unit (expander with power supply) must not exceed the power supply output current.

  • Page 12: Description Of The Mainboard

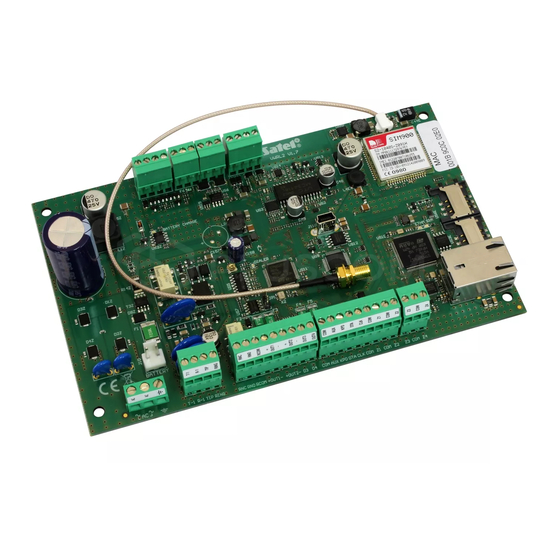

    VERSA Plus SATEL 5.4.1 Description of the mainboard Fig. 2. Mainboard of the control panel. battery connection cables (red +, black -). BATTERY CHARGE LED. Indicates that the battery is charging. a group of dedicated terminals for connecting the ABAX 2 (ACU-220 / ACU-280) / ABAX (ACU-120 / ACU-270 / ACU-100 / ACU-250) / MICRA (VERSA-MCU) wireless system controller.

  • Page 13: Connecting Devices To The Communication Bus

    SATEL VERSA Plus ETHM LED: OFF – Ethernet communicator is disabled, ON – Ethernet communicator is enabled. SIM LED: OFF – cellular communicator is disabled, single flash – cellular communicator is enabled, SIM 1 card is active, double flash – cellular communicator is enabled, SIM 2 card is active.

  • Page 14: Connecting Hardwired Keypads

    VERSA Plus SATEL The device can be powered directly from the control panel, if the distance to the control panel does not exceed 300 m. Where the distance is greater, another power source must be provided for the device (power supply or expander with power supply).

  • Page 15: Connecting 433 Mhz Keyfobs Receiver Expansion Module

    SATEL VERSA Plus Fig. 3. Connecting keypads to the control panel. 5.5.2 Connecting 433 MHz keyfobs receiver expansion module One INT-RX-S or INT-RX expansion module can be connected to the control panel. The module enables 433 MHz keyfobs to be assigned to the users (up to 30 keyfobs). Address 7 (07h) must be set in the module.

  • Page 16: Connecting Abax 2 / Abax Wireless System Controller

    VERSA Plus SATEL can support up to 30 wireless zones. If the wireless zone number coincides with that of the wired zone (on mainboard or in expander), the wireless zone is supported. The controller DIP-switches are not used. The VERSA-MCU controller is identified by the control panel as two devices: INT-RX (address 7) and VERSA-MCU (address 8).

  • Page 17: Connecting The Hardwired Zone Expanders

    SATEL VERSA Plus Fig. 7. Connecting the ACU-220 / ACU-280 / ACU-120 / ACU-270 controller to the control panel. Fig. 8. Connecting the ACU-100 / ACU-250 controller to the control panel. Fig. 9. Setting the DIP-switches in the ABAX 2 / ABAX controllers.
  • Page 18 VERSA Plus SATEL • define how the expander is to be identified – switch 10 (INT-E) or 8 (CA-64 E / CA-64 EPS). For detailed information on how the expander will be identified and what are the functional differences resulting from the identification, please refer to the manual delivered with the expander.

  • Page 19: Connecting The Hardwired Output Expander

    SATEL VERSA Plus Expander address Zone numbers decimally hexadecimally 7-14 15-22 23-30 Table 2. 5.5.6 Connecting the hardwired output expander One INT-O / INT-ORS / CA-64 O / CA-64 OPS expander can be connected to the control panel. This enables expansion of the system by adding 8 programmable wired outputs.

  • Page 20: Connecting The Detectors

    VERSA Plus SATEL Fig. 14. Connecting the INT-IT / INT-IT-2 module to the control panel. Fig. 15. Setting the address, as in the case of the INT-IT / INT-IT-2 module. Connecting the detectors How the detector is connected to the zone must be suitable for the configuration chosen for that zone.
  • Page 21 SATEL VERSA Plus Fig. 16. The ways to connect detectors to zones. The detector outputs are designated with letters: A - alarm, T – tamper. R=R1+R2. VERSA Plus Fig. 17. Example of connecting an NC detector (NO detector connect in the same way).
  • Page 22 VERSA Plus SATEL VERSA Plus Fig. 18. Example of connecting an NC detector in Single EOL configuration. VERSA Plus Fig. 19. Example of connecting an NO detector in Single EOL configuration.

  • Page 23: End-Of-Line Resistors

    SATEL VERSA Plus VERSA Plus Fig. 20. Example of connecting an NC detector in Double EOL (2EOL) configuration (NO detector connect in the same way). 5.6.1 End-of-line resistors For the control panel mainboard zones, use a 2.2 kΩ resistor in Single EOL configuration and two 1.1 kΩ...

  • Page 24: Connecting The Radio Monitoring Transmitter

    OUT 3/4 global option must be enabled in the control ERIAL DATA ON panel (see P manual). Table 3 contains description of the connector contacts in ROGRAMMING the NOKTON NR2-DSC transmitter, used for connecting to the VERSA Plus control panel. Contact Description Connection method number...

  • Page 25: Connecting The Analog Telephone Line

    SATEL VERSA Plus Fig. 22. Connecting the NOKTON NR2-DSC transmitter to the control panel. The DB-15 female connector is shown from the solder side. Connecting the analog telephone line Do not send telephone signals and alarm system signals by one multicore cable.

  • Page 26: Connecting The Ethernet Network

    VERSA Plus SATEL Fig. 23. Connecting analog telephone line to the control panel. 5.10 Connecting the Ethernet network The device is designed to be used only in the local area networks (LAN). It must not be connected directly to the public computer network (MAN, WAN). For establishing connection with public networks, use a router or xDSL modem.
  • Page 27 SATEL VERSA Plus Fig. 24. Opening the INT-AVT terminal enclosure. 2. Disconnect the speaker plug from the electronics board. 3. Put the enclosure base to the wall and mark the location of mounting holes. 4. Drill the holes for wall plugs (screw anchors).

  • Page 28: Connecting The Power Supply And Starting The Control Panel

    VERSA Plus SATEL 5.12 Connecting the power supply and starting the control panel Do not connect power until all installation operations are completed. 5.12.1 Main power supply The control panel requires 18 VAC (±10%) power supply. It is recommended that a transformer with up to 40 VA rating be used.

  • Page 29: Emergency Procedure Of The Control Panel Start-Up

    SATEL VERSA Plus If it is necessary to de-energize the control panel, turn off the main power supply (AC) first, and the backup power supply (battery) afterwards. Observe the above described procedure when reconnecting the power supply. 5.12.4 Emergency procedure of the control panel start-up If the control panel fails to start properly, keypads are not supported, codes are not accepted by the control panel etc., despite all connections having been made correctly, follow the steps...

  • Page 30: Programming The Address Without Entering The Service Mode

    VERSA Plus SATEL 1. Enter the service code (by default 12345) and press the key. 2. Press in turn the keys. The service mode will start. 3. Press in turn the keys. The K . function will start. All EYPADS ADDR...

  • Page 31: Identification Of Devices Connected To The Bus

    SATEL VERSA Plus 5. Press the key with the number corresponding to the new address. The address change will be confirmed by four short beeps followed by a long one. Pressing allow to change the address again (the keypad restart will follow and information on the current address will be displayed again).

  • Page 32: Connecting The Computer To The Control Panel

    VERSA Plus SATEL If the SIM card requires entering the PIN code, program the PIN code using the DLOADX program (see the P manual) before the SIM card is inserted. ROGRAMMING If an incorrect PIN code has been programmed, the control panel will report a trouble at the first attempt to use the code.

  • Page 33: Adding New Abax 2 / Abax Wireless Devices

    SATEL VERSA Plus 5.17.1 Adding new ABAX 2 / ABAX wireless devices Before adding an ABAX 2 device that was previously registered to the ABAX 2 / ABAX system, you must restart it (remove the battery / power the device off for 30 seconds).
  • Page 34 VERSA Plus SATEL 6. A message will confirm that the device has been added (unless you have entered an invalid serial number, of which you will be informed by a message). 6.1. Device type will be displayed. 6.2. A new name of the zone to which the device is to be assigned will be displayed.

  • Page 35: Removing Abax 2 / Abax Wireless Devices

    SATEL VERSA Plus 5.17.2 Removing ABAX 2 / ABAX wireless devices DLOADX program You can remove ABAX 2 / ABAX wireless devices in the “VERSA – Structure” window, “Hardware” tab, after clicking on the ABAX 2 / ABAX controller name in the list of devices.
  • Page 36 VERSA Plus SATEL The MSD-350 detector is identified as the MSD-300 detector. The MXD-300 detector is identified as the MMD-302 detector. DLOADX program You can add MICRA (433 MHz) wireless detectors in the “VERSA – Structure” window, “Hardware” tab, after clicking on the VERSA-MCU controller name in the list of devices.

  • Page 37: Removing Micra (433 Mhz) Wireless Detectors

    SATEL VERSA Plus 10. The “Presence control” option will be displayed. By default, the option is enabled (the symbol is displayed). If you want to disable the option, press any number key (the symbol will be displayed). 11. Press 5.18.2 Removing MICRA (433 MHz) wireless detectors DLOADX program You can remove the MICRA (433 MHz) wireless detectors in the “VERSA –...

  • Page 38: Wireless Zones

    VERSA Plus SATEL 6.1.2 Wireless zones The numbers of wireless zones are defined when adding the wireless devices. You can select any zone number which is not occupied by another wireless device. Numeration of outputs The control panel supports outputs having numbers from 1 to 12. The numbers of hardwired and wireless outputs may coincide.

  • Page 39: Versa-Lcd Keypad

    SATEL VERSA Plus Keypads .......................... up to 6 Partitions ..........................2 Telephone numbers for messaging ..................8 Voice messages ........................16 Text messages ........................64 Email addresses for messaging ....................8 Users ............................. 30 Timers ............................4 Event log ..........................2047 Security grade according to EN50131 ................

  • Page 40: Versa-Led Keypad

    VERSA Plus SATEL Operating temperature range .................. -10…+55°C Maximum humidity ......................93±3% Enclosure dimensions ................. 139 x 124 x 22 mm Weight ..........................240 g VERSA-LED keypad Supply voltage ....................12 VDC ±15% Standby current consumption VERSA-LED-GR ........33 mA VERSA-LED-BL ........40 mA Maximum current consumption VERSA-LED-GR ........
