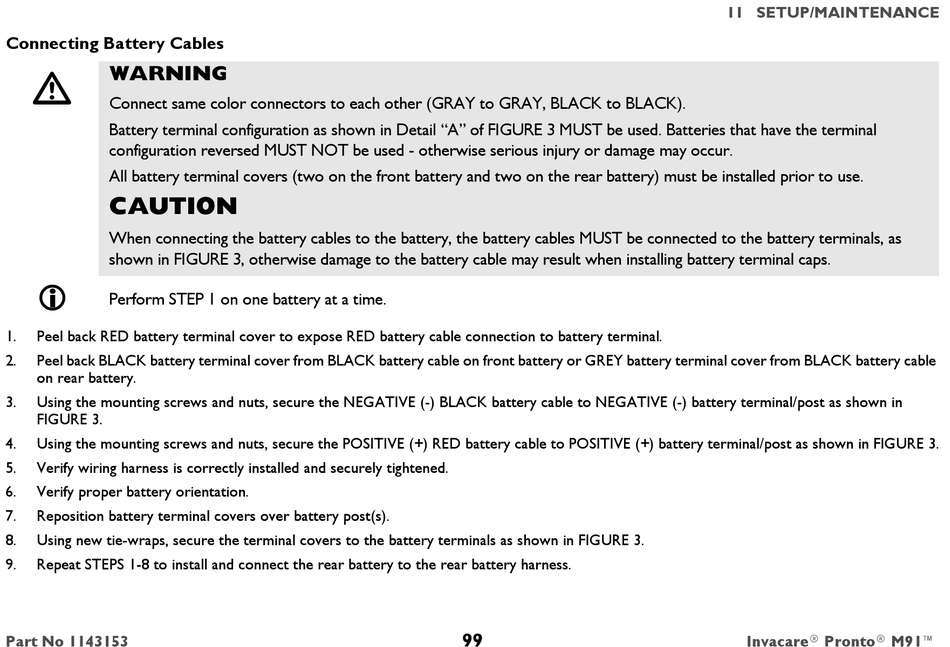

Connecting Battery Cables

WARNING
Connect same color connectors to each other (GRAY to GRAY, BLACK to BLACK).
Battery terminal configuration as shown in Detail "A" of FIGURE 3 MUST be used. Batteries that have the terminal
configuration reversed MUST NOT be used - otherwise serious injury or damage may occur.
All battery terminal covers (two on the front battery and two on the rear battery) must be installed prior to use.
CAUTION
When connecting the battery cables to the battery, the battery cables MUST be connected to the battery terminals, as
shown in FIGURE 3, otherwise damage to the battery cable may result when installing battery terminal caps.

Perform STEP 1 on one battery at a time.
1. Peel back RED battery terminal cover to expose RED battery cable connection to battery terminal.
2. Peel back BLACK battery terminal cover from BLACK battery cable on front battery or GREY battery terminal cover from BLACK battery cable
on rear battery.
3. Using the mounting screws and nuts, secure the NEGATIVE (-) BLACK battery cable to NEGATIVE (-) battery terminal/post as shown in
FIGURE 3.
4. Using the mounting screws and nuts, secure the POSITIVE (+) RED battery cable to POSITIVE (+) battery terminal/post as shown in FIGURE 3.
5. Verify wiring harness is correctly installed and securely tightened.
6. Verify proper battery orientation.
7. Reposition battery terminal covers over battery post(s).
8. Using new tie-wraps, secure the terminal covers to the battery terminals as shown in FIGURE 3.
9. Repeat STEPS 1-8 to install and connect the rear battery to the rear battery harness.
Part No 1143153
99
11 SETUP/MAINTENANCE
Invacare® Pronto® M91™
