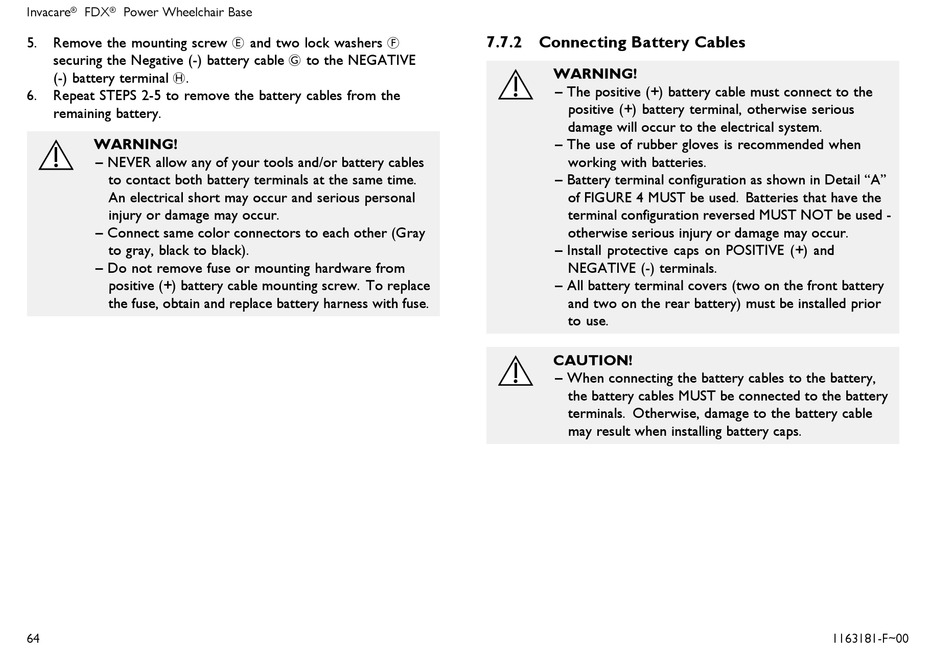

Invacare® FDX® Power Wheelchair Base
5. Remove the mounting screw E and two lock washers F
securing the Negative (-) battery cable G to the NEGATIVE
(-) battery terminal H.
6. Repeat STEPS 2-5 to remove the battery cables from the
remaining battery.
WARNING!
– NEVER allow any of your tools and/or battery cables
to contact both battery terminals at the same time.
An electrical short may occur and serious personal
injury or damage may occur.
– Connect same color connectors to each other (Gray
to gray, black to black).
– Do not remove fuse or mounting hardware from
positive (+) battery cable mounting screw. To replace
the fuse, obtain and replace battery harness with fuse.
64

7.7.2 Connecting Battery Cables

WARNING!
– The positive (+) battery cable must connect to the
positive (+) battery terminal, otherwise serious
damage will occur to the electrical system.
– The use of rubber gloves is recommended when
working with batteries.
– Battery terminal configuration as shown in Detail "A"
of FIGURE 4 MUST be used. Batteries that have the
terminal configuration reversed MUST NOT be used -
otherwise serious injury or damage may occur.
– Install protective caps on POSITIVE (+) and
NEGATIVE (-) terminals.
– All battery terminal covers (two on the front battery
and two on the rear battery) must be installed prior
to use.
CAUTION!
– When connecting the battery cables to the battery,
the battery cables MUST be connected to the battery
terminals. Otherwise, damage to the battery cable
may result when installing battery caps.
1163181-F~00
