5.9.5 Foot plates
The foot plates may be flipped up to aid entry and exit
from the wheelchair.
WARNING!
Do not use the foot plates to stand on as the full weight of
your body may cause the wheelchair to tip forwards. This
could result in injury and could damage the foot rests.
5.9.4 Adjusting the foot rest length:
Salsa Type:
To adjust the foot rest length:
• Remove the bolts/screws on the foot rest stem as
shown in (Fig. 5.48),
• Adjust the length to suit.
• Ensure the bolts/screws are firmly located and
tighten ed prior to use.
NOTE: The internal foot rest stem may require cutting
down in length to allow the foot plate position to be
raised. Contact your approved Sunrise Medical dealer.
Uni Type:
To adjust the foot rest length:
• Use a 11.0 mm spanner to loosen the pinch bolt,
(Fig.5.48.1).
• Adjust the length to suit.
• Tighten the pich bolt.
• Ensure the bolts/screws are firmly located and
tighten ed prior to use.

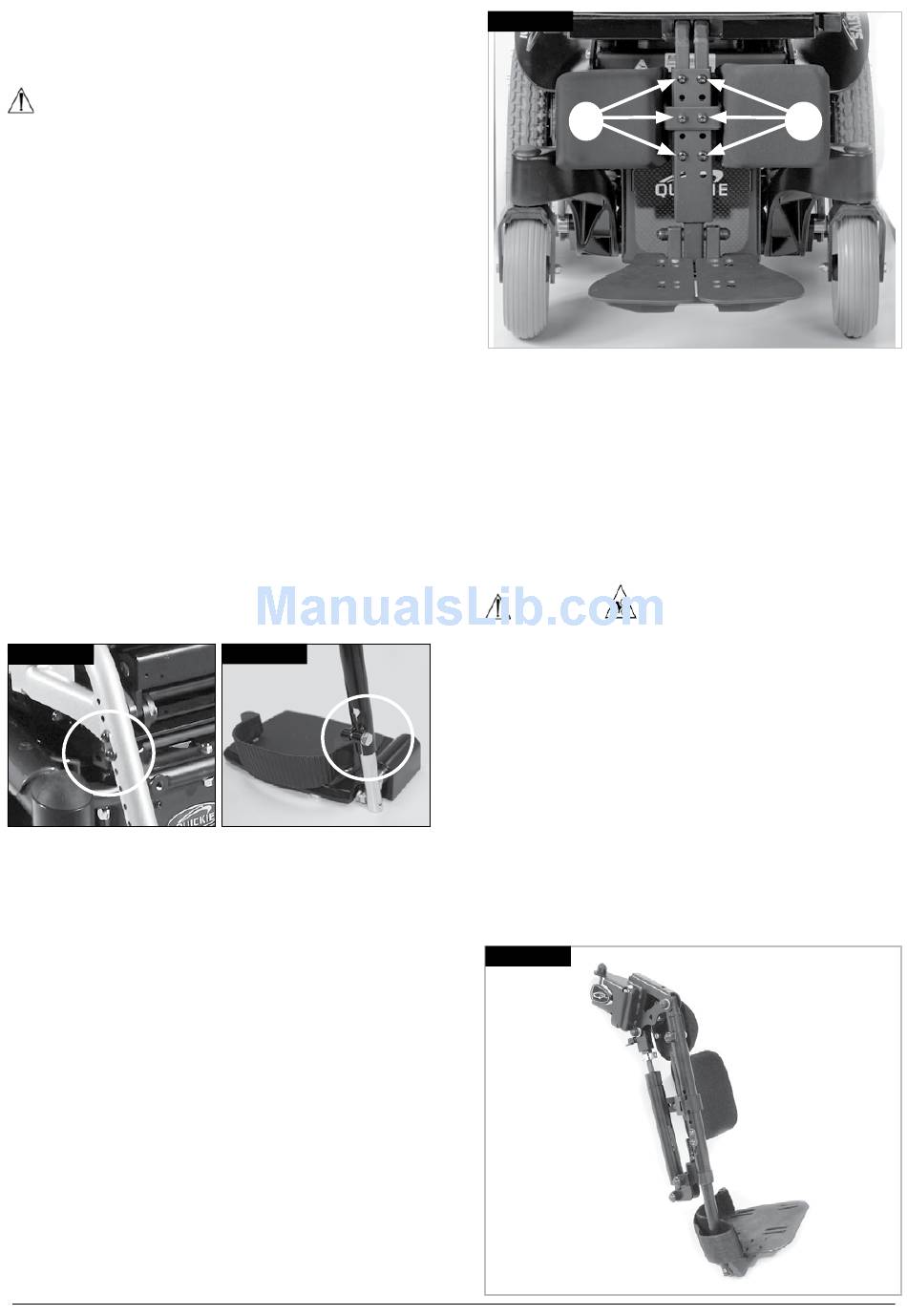

Fig.5.48
5.9.6 Manual Centre Mount Leg rest
To adjust the foot rest length:
• Remove the bolts/screws on the foot rest stem as
shown in (A-Fig. 5.49),
• Adjust the length to suit.
• Refit bolts/screws.
• Ensure the bolts/screws are firmly located and
tighten ed prior to use.
Rev.1.0
Fig.5.48.1
Fig.5.49
A
5.9.7 Manual Articulating / Elevating Leg rest
To elevate:
Pull the leg rest upwards and stop at the desired height.
The leg rest will automatically lock in the chosen
position.
To lower:
Push the release lever slowly forward. The leg rest will
lower the angle. As soon as you release the lever, the
leg rest will be locked in the current position, (Fig.5.50).
WARNING!
Keep hands clear of the adjustment mechanism
between the frame and the movable parts of the leg rest
while elevating or lowering the leg rest.
Keep hands clear of the adjustment mechanism
between the frame and the movable parts of the leg rest
while elevating or lowering the leg rest.
Fig.5.50
A
