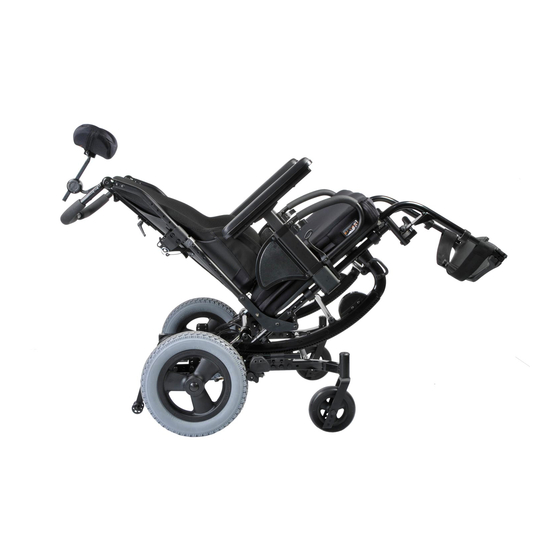

Quickie
SR45
*
with transit option
Supplier:
This manual must be given to the user of this wheelchair.
User:
Before using this wheelchair read this entire manual and save for future
reference.
Distribuidor: Este manual debe ser entregado al pasajero de esta silla de ruedas.
Pasajero:
Antes de usar esta silla de ruedas, lea este manual en su totalidad y
guárdelo para futura referencia.
Cada una de las sillas se envía con un manual de instrucciones en inglés. El manual en español o
francés está disponible en formato PDF en nuestra página en Internet: www.SunriseMedical.com.
Ingrese a la página del producto específico para descargar el manual, o comuníquese con el
proveedor autorizado de Sunrise Medical.
Fournisseur: Ce manuel doit être remis à l'utilisateur / utilisatrice de ce fauteuil
roulant.
Utilisateur / Utilisatrice:Avant d'utiliser ce fauteuil roulant, lisez entièrement ce manuel
et conservez le pour le consulter ultérieurement.
Chaque fauteuil est livré avec un manuel d'instructions en anglais. Les versions en espagnol et en
francais sont à ançais est à votre disposition en format PDF sur le site: www.SunriseMedical.com.
Veuillez vous rendre à la page de votre produit pour télécharger le manuel dans la langue
souhaitée, ou contactez un fournisseur agréé Sunrise Medical.
Rivenditore : Il presente manuale va consegnato all'utente della carrozzina.
Utente : Prima di usare la carrozzina, leggere il presente manuale per intero e
conservarlo per riferimento futuro.
Ogni carrozzina è accompagnata da un manuale d'uso scritto in inglese. La versione tradotta è
reperibile nel formato PDF sul nostro sito web: www.SunriseMedical.com. Visitare la pagina del
prodotto specifico da scaricare, o contattare il fornitore Sunrise Medical autorizzato.
Fachhändler : Dieses Handbuch muss dem Benutzer des Rollstuhls ausge-
händigt werden.
Benutzer : Vor dem Gebrauch des Rollstuhls lesen Sie bitte das gesamte
Handbuch, und bewahren Sie es für zukünftigen Bedarf auf.
Zum Lieferumfang jedes Rollstuhls gehört ein Bedienungshandbuch in englischer Sprache. Diese
übersetzte Version des Handbuchs steht im PDF-Format auf unserer Website zur Verfügung:
www.SunriseMedical.com. Gehen Sie bitte zu der betreffenden Produktsite für den Download
der übersetzten Version oder wenden Sie sich an Ihren authorisierten Sunrise Medical
Fachhändler.
SECTIO N
*
without transit option
O w n e r ' s M a n u a l
M a n u a l d e I n s t r u c c i o n e s
M o d e d ' e m p l o i
M a n u a l e d ' u s o
B e n u t z e r a n w e i s u n g e n
ENGLISH
SR45

Advertisement

Table of Contents
loading

Related Manuals for Quickie SR45

Summary of Contents for Quickie SR45

  • Page 1 SECTIO N ENGLISH SR45 ® Quickie SR45 with transit option without transit option O w n e r ’ s M a n u a l Supplier: This manual must be given to the user of this wheelchair. User: Before using this wheelchair read this entire manual and save for future reference.

  • Page 2: Roduction

    I. INTRODUCTION SUNRISE MEDICAL LISTENS Thank you for choosing a Quickie SR45 tilt in space wheelchair. We want to hear your questions or comments about this manual, the safety and reliability of your chair, and the service you receive from your Sunrise supplier.

  • Page 3: Table Of Contents

    SR45 II. I. TABLE OF CONTE I. I. I RODUCTION ................2 K. Rear Axles ..................12 II. II. TABLE OF CONT S..............3 L. Rear Wheel Locks..............12 III. III. R CHAIR AND ITS PARTS..........4 M. Modified Seat Systems............12 IV. NOTIC READ BEFORE USE ............4 VIII.

  • Page 4: R Chair And Its Parts

    12. Back Cane 13. Tilt Lever 14. Push handle NOTE– Not all options are available on both the Quickie SR45. Please refer to the order form for specific option availability. IV. NOTICE– READ BEFORE USE A. CHOOSE THE RIGHT CHAIR & SAFETY OPTIONS C.

  • Page 5: Ral Warnings

    1. BEFORE riding, you should be trained in the safe use of this chair by your health care advisor. The Quickie SR45 Series of wheelchair's intended use is to provide mobili- ty to persons limited to a sitting position. 2. Practice bending, reaching and transfers until you know the limit of your ability.

  • Page 6: Environmental Conditions

    SR4 5 V. GENERAL WARNINGS I. ENVIRONMENTAL CONDITIONS WARNING If your chair is NOT equipped with the Transit Option: 1. NEVER let anyone sit in this chair while in a moving vehicle. WARNING a. ALWAYS move the rider to an approved vehicle seat. b.

  • Page 7: Safety Warnings: Falls & Tip-Overs

    SR4 5 VI. SAFETY WARNINGS: FALLS & TIP-OVERS A. CENTER OF BALANCE 6. If your chair has anti-tip tubes, do not go over an obstacle without help. WARNING 7. Keep both of your hands on the handrims as you go over an obsta- cle.

  • Page 8: G.escalators

    SR45 VI. SAFETY WARNINGS: FALLS & TIP-OVERS Downslope less than 10° G. ESCALATORS Straight down Control Speed WARNING Go Slow NEVER use this chair on an escalator, even with an attendant. If you do, a fall or tip-over is likely.

  • Page 9: Curbs And Single Steps

    SR4 5 VI. SAFETY WARNINGS: FALLS & TIP-OVERS J. CURBS & SINGLE STEPS WARNING Before riding over curbs, or negotiating even a single step, ALWAYS ask for assistance first. Curbs and steps can cause tipping and serious bodily harm. When in doubt as to our ability to avoid, or traverse any obstacle, ALWAYS ask for help.

  • Page 10: M.stairs

    4. Never push or propel the chair with the seat tilted in a forward position. 5. Never add chair accessories that are not specifically designed for the SR45. 6. Never exceed a tilted position that aligns the backrest parallel to the ground.

  • Page 11: Rnings: Components & Options

    Recommended Tire Pressures WARNING 1. Quickie standard foam cushions are not designed for the relief of pressure. 2. If you suffer from pressure sores or if you are at risk that they will occur, you may need a special seat system or a device to control your posture.

  • Page 12: Positioning Belts

    SR45 VII. WARNINGS: COMPONENTS & OPTIONS I. POSITIONING BELTS (OPTIONAL) L. REAR WHEEL LOCKS WARNING WARNING Use positioning belts ONLY to help support the rider’s posture. Improper Rear wheel locks are NOT designed to slow or stop a moving wheelchair.

  • Page 13: Se And Maintenance

    SR4 5 VIII. USE AND MAINTENANCE D. CLEANING WARNING 1. Paint Finish a. Clean the painted surfaces with mild soap or detergent at least once The owner and/or Caregiver for the use of this product, is responsible for a month. making sure that it has been setup and adjusted by a trained service pro- b.

  • Page 14: To Mount And Remove Rear Wheels

    SR45 VIII. USE AND MAINTENANCE F. TO MOUNT AND REMOVE REAR WHEELS Do not use this chair UNLESS you are sure both quick-release axles are locked. An unlocked axle may come off during use and cause a fall. NOTE– Axle is not locked until the quick-release button (A) pops out fully.

  • Page 15: Dual-Post Armrests

    SR4 5 VIII. USE AND MAINTENANCE J. DUAL-POST ARMRESTS 1. Installation or Removal a. The assembly is held securely in place when the securing lever (A) is facing outside. b. Pull front securing lever (A) forward to release. c. Insert or remove armrest. d.

  • Page 16: Swing-Away Hangers/Footrests

    SR4 5 VIII. USE AND MAINTENANCE L. SWING-AWAY HANGERS/FOOTRESTS Swing-in-Swing-out Hangers and Footrests (70º, 80°) 1. Installation a. Place swing-in/swing-out pivot saddle into the receiver (A) on front frame tube with the footrest facing inward or outward from the frame. b.

  • Page 17: O.tilt-In-Space Mechanism

    SR45 VIII. USE AND MAINTENANCE O. TILT-IN-SPACE MECHANISM The tilt-in-space mechanism is installed by Sunrise. Two cable/trigger mechanisms positively lock the chair in place from 0º to 45º depending on the set-up. 1. Trigger Tilt Operation a. Depressing both triggers (A) at the same time disengages the locking mechanism and allows the seat and back to rotate in space.

  • Page 18: R Service & Adjustment

    8. Phillips and Flat screwdrivers 2. Dealer Service and Adjustment Reference materials: Go to www.sunrisemedical.com for parts manuals, instruction sheets, and instructional videos that will aid in the repair of the Quickie/Zippie Family of wheelchairs. C. CLEANING 1. Paint Finish a.

  • Page 19: Wheel Locks

    SR45 IX. DEALER SERVICE & ADJUSTMENT 4. Axle Height Adjustment a. Loosen and remove bolts (E). b. Set axle at desired height using pre-set holes in the axle plate (B) on both sides. c. Replace and tighten bolts. E. WHEEL LOCKS Adjustment a.

  • Page 20: H.footplate Adapter Bracket

    SR4 5 IX. DEALER SERVICE & ADJUSTMENT H. FOOTPLATE ADAPTER BRACKET The footplate adapter bracket(A) can be installed by the dealer. The main purpose of this part is to allow for height adjustment while using front mount footplates on a quick release hanger. The plate can be reversed which adds to it’s range of adjustment.

  • Page 21: Tilt-In-Space Mechanism

    SR4 5 IX. DEALER SERVICE & ADJUSTMENT J. TILT-IN-SPACE MECHANISM The tilt-in-space mechanism is installed by Sunrise. Two cable/trigger mechanisms positively lock the chair in place from 0º to 45º depending on the set-up. 1. Rocker Cover removal a. Remove the (4 or 5) screws (A) that hold the cover to the Rocker Frame (B). b.

  • Page 22: Caster/Fork Assembly

    SR45 IX. DEALER SERVICE & ADJUSTMENT 4. Flip-Down Back Function a. To fold the back down, pull-up the back release pins (A) and push the backrest forward. b. To lock it back in position, lift the backrest firmly until it locks in its original position.

  • Page 23: N.frame Width

    IX. DEALER SERVICE & ADJUSTMENT N. FRAME WIDTH The frame of the SR45 is built to accommodate growth by using the growth kit components. 1) Fixed Strut Tube Width Adjustment (Rocker assembly) a. Remove the bolts (A) from both ends of the strut tubes (B) for all strut tubes.

  • Page 24: Carriage

    SR45 IX. DEALER SERVICE & ADJUSTMENT P. CARRIAGE The carriage of the SR45 can be adjusted to preset a range of tilt. IMPORTANT NOTE– This adjustment must be done by an authorized supplier only 1. Location Adjustment a. Loosen and remove bolts A & B.

  • Page 25: Q.attendant Wheel Lock Installation

    SR4 5 IX. DEALER SERVICE & ADJUSTMENT Q. ATTENDANT WHEEL LOCK INSTALLATION 1. Remove wheels from chair. 2. Attach Mount bracket/cable assembly to axle strut tube using 1/4" x 2" bolt (item 1) with nut and wash- ers. 3. If push-to-lock wheel locks are already installed, remove the push-to-lock assemblies by loosening slide adjusting screws and sliding the wheel lock assembly out of the clamp.

  • Page 26: Lap Belt Instructions

    SR4 5 IX. DEALER SERVICE & ADJUSTMENT R. LAP BELT INSTRUCTIONS NOTE– Lap belts are fitted as positional aids, and are not suitable as transportation restraints. Positioning Belt Kit The positioning belt kit contains: one positioning belt (A), three tri glide buckles (B), two cable ties (C) 1.

  • Page 27: Sunrise Limited Warranty

    S S R R 4 4 5 5 X. SUN RISE LIMIT ED WARRAN TY D. WHAT WE WILL DO A. FOR LIFETIME Our sole liability is to repair or replace covered parts. This is the exclusive Frame and cross-brace (if applicable) warranty: remedy for consequential damages.
  • Page 28 Sunrise Medical (US) LLC Sunrise Medical, Inc. Sunrise Medical Limited Sunrise Medical GmbH+Co.KG Thorns Road, Brierley Hill, Kahlbachring 2-4 237 Romina Drive, Unit 3 2842 Business Park Ave. West Midlands, D-69254 Malsch/Heidelberg Concorde, Ontario L4K 4V3 Fresno, CA 93727 DY5 2LD, England DEUTSCHLAND CANADA Phone: 0845 605 66 88...
