Non-Folding Backrest

Instructions for Initial Backrest Assembly

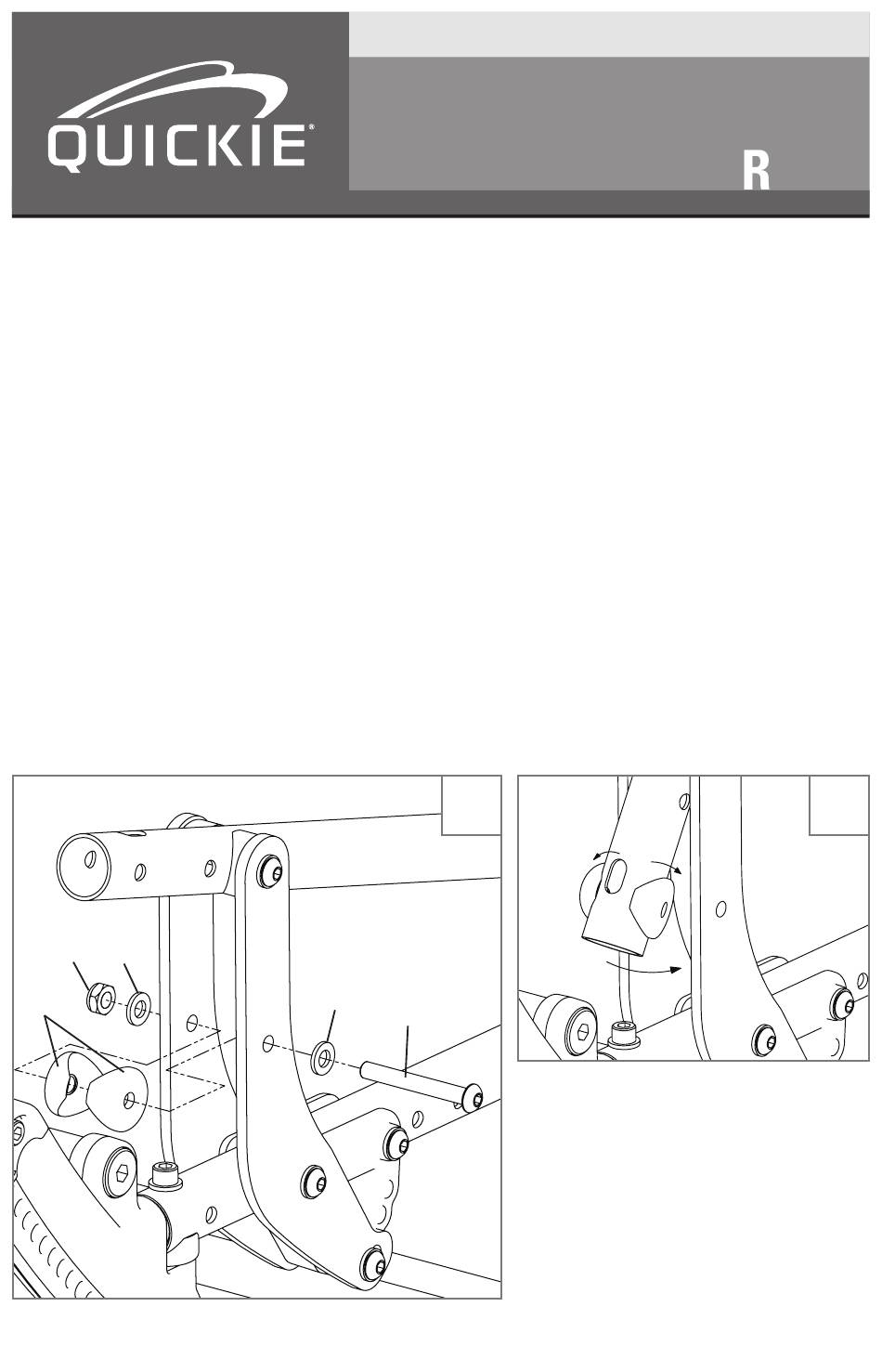

1. Remove nut (1) and washer (2) from lower screw in
back plate.
2. Remove lower screw (3) with washer (4) from back
plate, retaining saddles (5).
3. Hold saddles to both sides of back cane at lower hole
and raise back canes upright, moving lower part of back
cane between back plates and align holes in back plates,
saddles, and back canes. Use a screwdriver or similar
object as an aligning tool if necessary.
1
2
5
1
4
3
RECOMMENDATION: Just before
back cane goes between back
plates, rotate saddles around the
back cane toward the front of the
chair to allow the saddles to lead
in between the back plates more
easily. (Fig. 2)
S 45
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SR45 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Quickie SR45

  • Page 1 S 45 Non-Folding Backrest Instructions for Initial Backrest Assembly 1. Remove nut (1) and washer (2) from lower screw in back plate. 2. Remove lower screw (3) with washer (4) from back plate, retaining saddles (5). 3. Hold saddles to both sides of back cane at lower hole and raise back canes upright, moving lower part of back cane between back plates and align holes in back plates, saddles, and back canes.
  • Page 2 4. Once holes are aligned, insert screw through back plates, saddles and back cane. Install washer and lock nut and tighten snugly. Head of screw should face the outside of the chair. Backrest should appear as shown in figure 3. 5.
