PureLink PureMedia 4K Owner's Manual

Fiber optic extenders
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

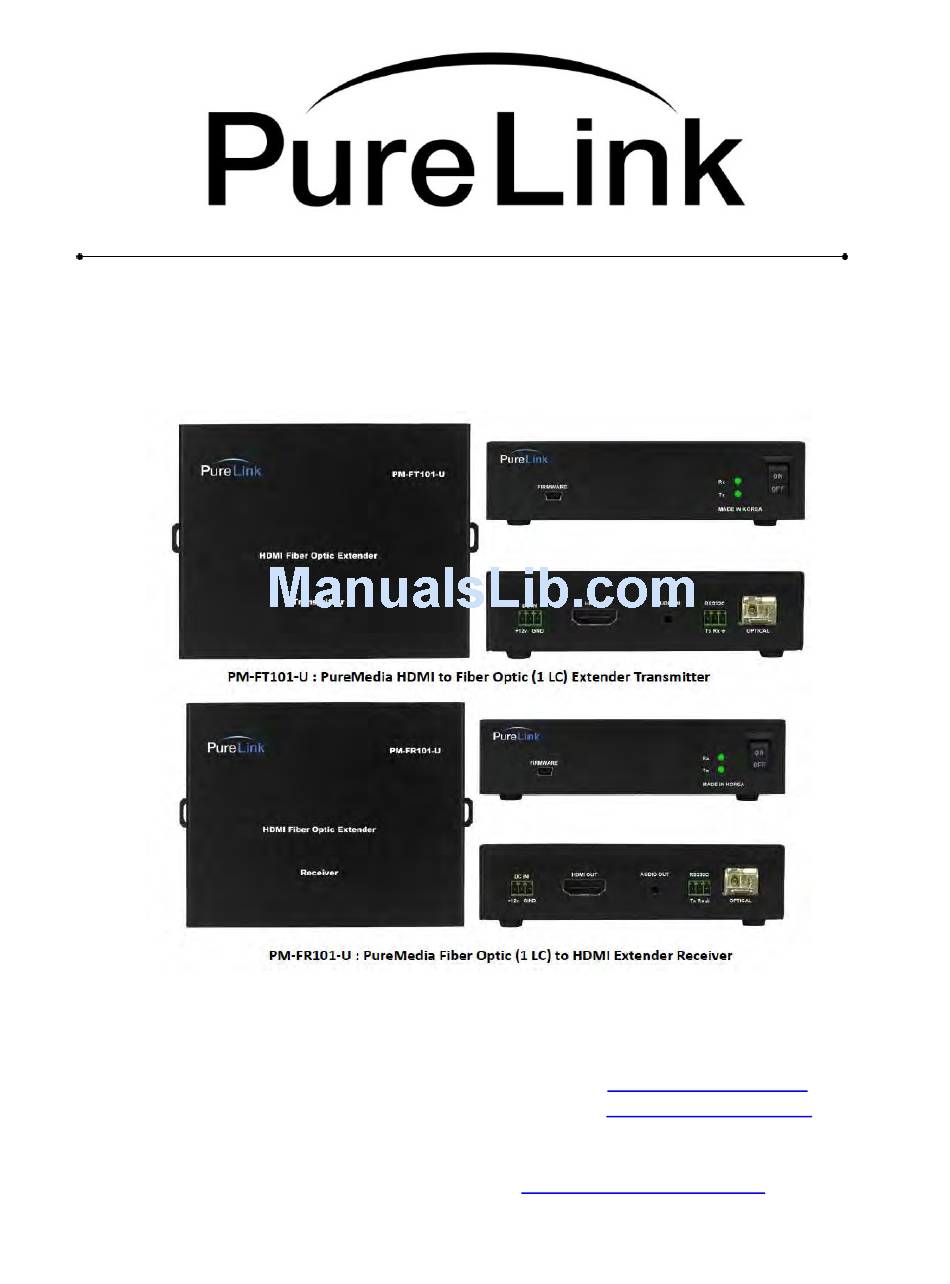

PureMedia 4K Fiber Optic
Extenders Owner's Manual
PM Series Fiber Optic Standalone and Wall-plate type Extender
TM
PureLink
535 East Crescent Ave
Ramsey, NJ 07446
Tel: 201.488.3232
Fax: 201.621.6118
Website :
www.purelinkav.com
E-mail :
info@purelinkav.com
For Technical Support, contact us at
:
support@purelinkav.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PureMedia 4K and is the answer not in the manual?

Questions and answers

Related Manuals for PureLink PureMedia 4K

Summary of Contents for PureLink PureMedia 4K

  • Page 1 PureMedia 4K Fiber Optic Extenders Owner’s Manual PM Series Fiber Optic Standalone and Wall-plate type Extender Website : www.purelinkav.com PureLink E-mail : info@purelinkav.com 535 East Crescent Ave Ramsey, NJ 07446 For Technical Support, contact us at Tel: 201.488.3232 Fax: 201.621.6118...

  • Page 2: Table Of Contents

    PureLink by Dtrovision ABLE OF ONTENTS Chapter 1. Introduction 1.1 Safety Precautions --------------------------------------------------------------------------- 1.2 Product Introduction -------------------------------------------------------------------------- 1.3 Package Contents ----------------------------------------------------------------------------- Chapter 2. Features and Specifications 2.1 Features ----------------------------------------------------------------------------------------- 2.2 Transmitter Specifications ------------------------------------------------------------------ PM-FT101-U--------------------------------------------------------------------------------------- PM-FT102-U --------------------------------------------------------------------------------------- 8 PM-FT103-U --------------------------------------------------------------------------------------- 10 Transmitters Compatibility Chart ----------------------------------------------------------- 13 2.3 Receiver Specifications ---------------------------------------------------------------------- 14...

  • Page 3: Chapter 1. Introduction

    PureLink by Dtrovision Chapter 1. Introduction 1.1 Safety Precautions When using and installing Dtrovision PureLink product, adhere to the following basic safety precautions.  Read and understand all instructions before using and installing this product.  The safety and operating instructions should be retained for future reference.

  • Page 4: Product Introduction

    PureLink by Dtrovision Welcome! Congratulations on your purchase of the PureLink PureMedia Fiber Optic (1 LC) extender. This manual contains information that will assist you in installing and operating the product. 1.2 Product Introduction Pure fiber optic cable for video, audio, and control signal...

  • Page 5: Chapter 2. Features And Specifications

    PureLink by Dtrovision Chapter 2. Features and Specifications 2.1 Features Zero loss & Zero noise delivery Zero loss & zero noise delivery of digital high definition video and audio signal using Fiber optic connection, PureMedia Fiber Optic (1 LC) extender delivers HD signals over single fiber optic cables without loss or digital interference maintaining the clarity and colors.

  • Page 6: Transmitter Specifications

    PureLink by Dtrovision Real Time EDID PureLink's real time EDID features failsafe, constant and continuous EDID for source devices. Various Transmitter and Receiver Choices There are three different types of transmitters and three different types of receivers to make today's sophisticated digital AV environment simple and flexible.

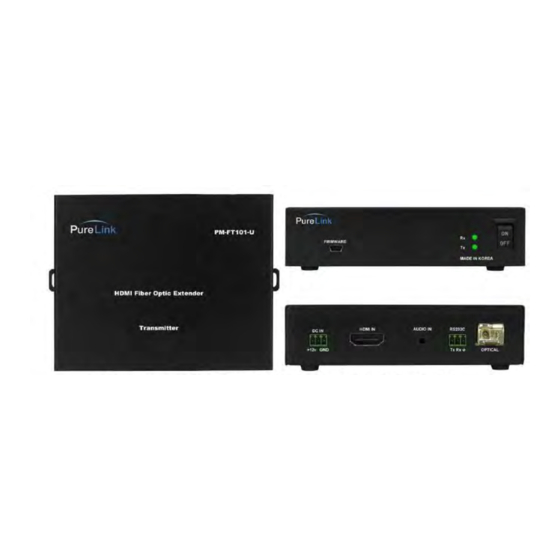

  • Page 7 PureLink by Dtrovision PM-FT101-U : PureMedia HDMI to Fiber Optic (1 LC) Extender Transmitter Front Connection Ports: Power S/W: Power On/Off switch Status LED: Video signal presence indicator Firmware: USB firmware update port Back Connection Ports: HDMI/DVI In: HDMI/DVI input port...

  • Page 8: Pm-Ft102-U

    PureLink by Dtrovision PC: VGA ~ WUXGA (up to 1920 x 1200 @60Hz) HDTV: 480i ~ 1080p, Supporting Display Up to Ultra HD 4K Resolutions 4096 x 2160 @24/25/30Hz (RGB/YCbCr 4:4:4 8 bits, YCbCr 4:2:2 8/10/12 bits) 4096 x 2160 @50/60Hz (YCbCr 4:2:0 8 bits)
  • Page 9 PureLink by Dtrovision PM-FT102-U : PureMedia HDMI/VGA to Fiber Optic (1 LC) Extender Transmitter Front Connection Ports: Power S/W: Power On/Off switch Status LED: Video signal presence indicator HDMI LED: HDMI signal indicator VGA LED: VGA (or component) signal indicator...

  • Page 10: Pm-Ft103-U

    PureLink by Dtrovision Data Transmission 3.4 Gbps/ch, Total 10.2 Gbps Max Speed PC: VGA ~ WUXGA (up to 1920 x 1200 @60Hz) HDTV: 480i ~ 1080p, Supporting Display Up to Ultra HD 4K Resolutions 4096 x 2160 @24/25/30Hz (RGB/YCbCr 4:4:4 8 bits, YCbCr 4:2:2...
  • Page 11 PureLink by Dtrovision PM-FT103-U : PureMedia HDMI/VGA to Fiber Optic (1 LC) Extender Transmitter, Wall plate Front Connection Ports: Power LED: Power status indicator Status LED: Video signal presence indicator HDMI LED: HDMI signal indicator VGA LED: VGA (or component) signal indicator...
  • Page 12 PureLink by Dtrovision Model Name PM-FT103-U DVI / HDMI (TMDS), VGA (supports YPbPr component) Input Signal 3.5mm stereo audio Output Signal Fiber Optical Output ( > -10dbm (after 32,808ft (10km) transmission)) Extinction Ratio > 4db (after 32,808ft (10km) transmission) Data Transmission 3.4 Gbps/ch, Total 10.2 Gbps Max...

  • Page 13: Transmitters Compatibility Chart

    PureLink by Dtrovision VGA input mVp-p Video Level (15Pin) Differential TMDS DVI input mVp-p (29Pin DVI) Interface Output Differential HDMI input TMDS mVp-p (19Pin) Interface Output Transmitter Output Signal Characteristics Output Signal Symbol Unit Typical Remarks Emission Λc1 1260 1310...

  • Page 14: Receiver Specifications

    PureLink by Dtrovision Transmitters PM-FT101-U PM-FT102-U PM-FT103-U Compatibility PM-FR101-U PM-FR101-U PM-FR101-U PureMedia Modular PM-FR102-U PM-FR102-U PM-FR102-U Extender Compatibility PM-FR103-U PM-FR103-U PM-FR103-U PureMedia RF Extender PM-FR101-U-RF PM-FR101-U-RF PM-FR101-U-RF Compatibility PM-FR102-U-RF PM-FR102-U-RF PM-FR102-U-RF PureMedia Matrix Board PM-FIS4-U PM-FIS4-U PM-FIS4-U Compatibility Receivers : PM-FR101-U : Standalone type.
  • Page 15 PureLink by Dtrovision HDMI/DVI Out: HDMI/DVI output port Audio Out: Stereo audio output port Optical: 1 LC Fiber Optic output port RS-232: RS-232 communication port DC In: DC 12V Power port Model Name PM-FR101-U (HDMI version), PM-FR101-U-D (DVI version) Input Signal Fiber Optical Output ( >...

  • Page 16: Pm-Fr102-U

    PureLink by Dtrovision Weight 0.5 lbs (0.23 Kg) PM-FR102-U : Standalone type. Built-in auto scaler Input : Fiber Optic (1 LC) Output : HDMI + 3.5mm stereo audio + RS-232 32,808ft, Compatible with PM-FOS4-U output board PM-FR102-U : PureMedia Fiber Optic (1 LC) to HDMI Extender Receiver w/Scaling...

  • Page 17: Pm-Fr103-U

    PureLink by Dtrovision Up to Ultra HD 4K 4096 x 2160 @24/25/30Hz (RGB/YCbCr 4:4:4 8 bits, YCbCr 4:2:2 8/10/12 bits) 4096 x 2160 @50/60Hz (YCbCr 4:2:0 8 bits) Single Mode Fiber: 1920 x 1200 @ 60Hz or at 1080p, Ultra HD 4K : 32,808 ft (10km) Max.
  • Page 18 PureLink by Dtrovision PM-FR103-U : PureMedia Fiber Optic (1 LC) to HDMI Extender Receiver, Wall plate Front Connection Ports: Power LED: Power status indicator Status LED: Video signal presence indicator HDMI Out: HDMI output port RS-232: RS-232 communication port Back Connection Ports:...

  • Page 19: Receivers Compatibility Chart

    PureLink by Dtrovision DVI / HDMI (TMDS) Output Signal 3.5mm stereo audio Data Transmission 3.4 Gbps/ch, Total 10.2 Gbps Max Speed PC: VGA ~ WUXGA (up to 1920 x 1200 @60Hz) HDTV: 480i ~ 1080p, Supporting Display Up to Ultra HD 4K...
  • Page 20 PureLink by Dtrovision Output Signal Description Unit Typical Input Signal Remarks HDMI Output Differential TMDS mVp-p (19Pin) Output Interface PureMedia Fiber Optic Receiver Compatibility Chart Receivers PM-FR101-U PM-FR102-U PM-FR103-U Compatibility PM-FT101-U PM-FT101-U PM-FT101-U PureMedia Modular PM-FT102-U PM-FT102-U PM-FT102-U Extender Compatibility...

  • Page 21: Operation And Reliability Specification

    PureLink by Dtrovision Operation and Reliability Specification 1. Operating Environment Temperature : 50F ~ 104F (10℃~ 40℃) Humidity : 10% ~ 80% Altitude : 3,000m Max. 2. Transit Environment Temperature : -13F ~ 140F (-25℃~ 60℃) Humidity : 5% ~ 95% Altitude : 15,000m Max.

  • Page 22: Chapter 3. Installation And Operating Instruction

    PureLink by Dtrovision Chapter 3. Installation and Operating Instruction 3.1 Installation Connection Instruction 1. Turn off both the video source and the display before connecting any cables 2. Connect LC terminated fiber optic cable between transmitter and receiver according to the picture below;...

  • Page 23: Cable Termination

    PureLink by Dtrovision Extended Display Identification Data (EDID) is an information set that digital display provides to describe its capabilities to a Video source. Video source will know what kinds of displays are connected and it will determine which resolution to Output according to the EDID information received from the display.

  • Page 24: Connector Pin Assignment

    PureLink by Dtrovision Connector Pin Assignment DC Input Part Number Pin No. Description Remark VCC( DC12V) ECH350R-03 RS232 Part Number Pin No. Description Remark ECH350R-03 DVI-D Input & Output Part Number Pin No. Description Remark TMDS DATA 2M TMDS DATA 2P...
  • Page 25 PureLink by Dtrovision DDC Data TMDS DATA 1M TMDS DATA 1P TMDS DATA 1/3 Shield TMDS DATA 3M(N.C) TMDS DATA 3P(N.C) Hot Plug Detect TMDS DATA 0M TMDS DATA 0P TMDS DATA 0/5 Shield TMDS DATA 5M(N.C) TMDS DATA 5P(N.C)
  • Page 26 PureLink by Dtrovision Hot Plug Detect...

  • Page 27: Chapter 4. Additional Information

    PureLink or its authorized resellers. If the product does not operate as warranted during the applicable warranty period, PureLink shall, at its option and expense, execute one of the following as necessary: 1. Repair the defective product or part 2.

  • Page 28: Fcc/Ce Statement

    PureLink by Dtrovision FCC/CE Statement This device complies with part 15 of FCC Rules and EN 55022/55024/61000-3 for CE certification. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must not accept any interference received, including interference that may cause undesired operation.
