Instruction Manual

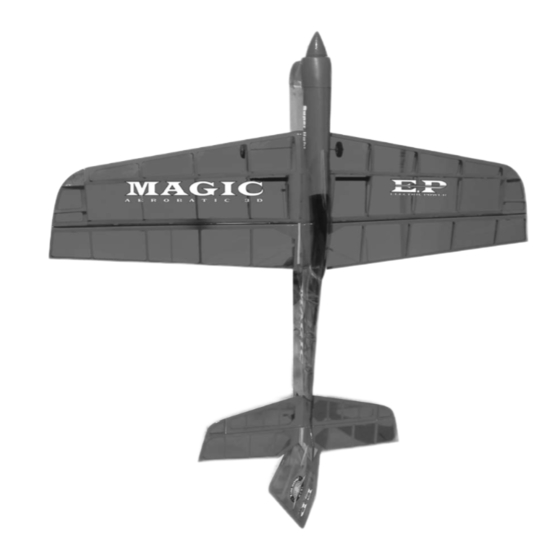

Wing span: 1000mm (39.37 inches)
Length: 950mm (37.4 inches)
g
Weight: 530gr - 580gr
Motor: AXI 2208/ 26 or 2208/ 24 or Motor 400 - 500 w/ gear box
Radio: 4 channel/ 4 servos mini
We wish you many enjoyable flights with your plane and once again thank you for your choosing a Phoenix Model product
Advertisement
Table of Contents
Related Manuals for Phoenix Model Magic Aerobatic 3D
Summary of Contents for Phoenix Model Magic Aerobatic 3D
-

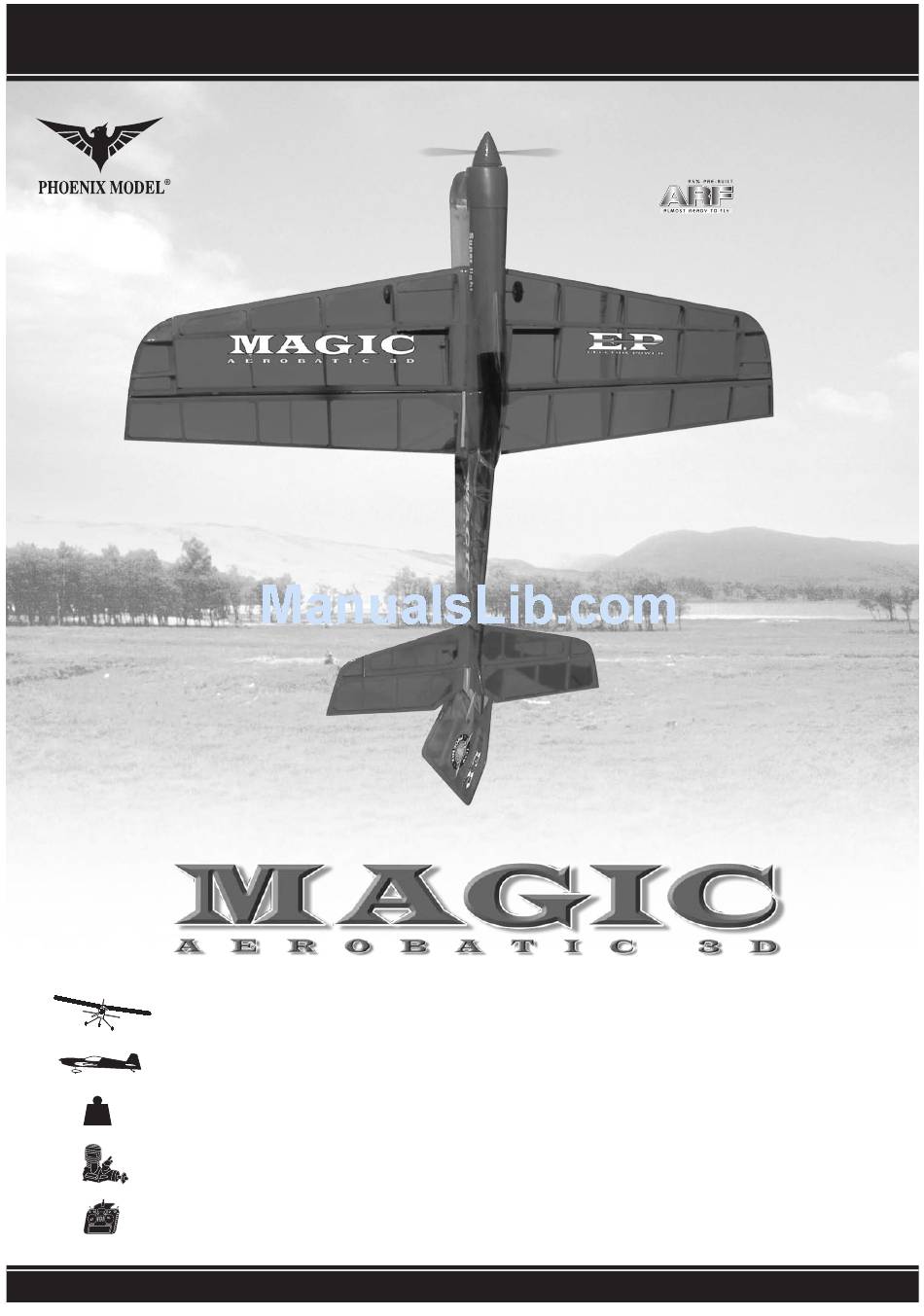

Page 1: Instruction Manual
Motor: AXI 2208/ 26 or 2208/ 24 or Motor 400 - 500 w/ gear box Radio: 4 channel/ 4 servos mini We wish you many enjoyable flights with your plane and once again thank you for your choosing a Phoenix Model product... - Page 3 Remove the covering from the bottom of the wing. Install the connector into the servo arm. Install the servo into the servo box. Mark the place where the control horn will be install. Remove the covering and the wood from the aileron. Glue the control horn into the aileron by C.A.
- Page 4 Cut the metal rod. Remove the covering from both side of the fuselage. Install the wing joiner. Make sure the wing joiner is center of the fuselage. Install the wing into the fuselage. Secure the wing. Install the second wing into the fuselage. Install the hardness.
- Page 5 Remove the covering. Prepare the servo lead. Pull the servo lead into the fuselage. Install the connector into the servo arm. Install the elevator servo into the fuselage. Install the connector into the servo arm. Install the rudder servo into the fuselage. Make the center line onto the elevator.
- Page 6 Cut away the covering from the top of the elevator. Cut away the covering from the rudder. Install the rudder into the elevator. Glue the rudder into the elevator. Mark the shape of the fuselage onto bottom of the elevator. Cut away the covering from the bottom of the elevator.
- Page 7 Glue the rudder into the fuselage. Mark the place for the rudder control horn. Cut away the wood from the rudder. Glue the control horn by C.A. glue. Install the metal rudder rod and secure it. Cut the metal rod. Mark the place for the elevator control horn.
- Page 8 Glue the control horn by C.A. Install the metal elevator rod and secure it. Cut the metal rod. Cut away the covering from the bottom of the fuselage for landing gear. Drill the hole for landing gear. Drill the hole for landing gear. Install the wheel collar and glue it.
- Page 9 Install the landing gear. Secure the landing gear. Secure the landing gear. Make the slot from the bottom of the rudder. Install the tail wheel. Prepare the engine mount, and glue it. Install the engine mount into the fuselage. Glue the engine mount into the fuselage.
- Page 10 Install the motor. Install the cowling. Install the cowling and propeller.
-
Page 11: Control Throws
5. Check the receiver antenna . It should be fully extended and not coiled up inside the fuselage. 6. Properly balance the propeller. We wish you many enjoyable flights with your plane and once again thank you for your choosing a Phoenix Model product... -
Page 12: Kit Contents
KIT CONTENTS: We have organized the parts as they come out of the box for better identification during assembly. We recommend that you regroup the parts in the same manner. This will ensure you have all of parts required before you begin assembly KIT CONTENTS AIR FRAME ASSEMBLIES RUDDER CONTROL SYSTEM...
