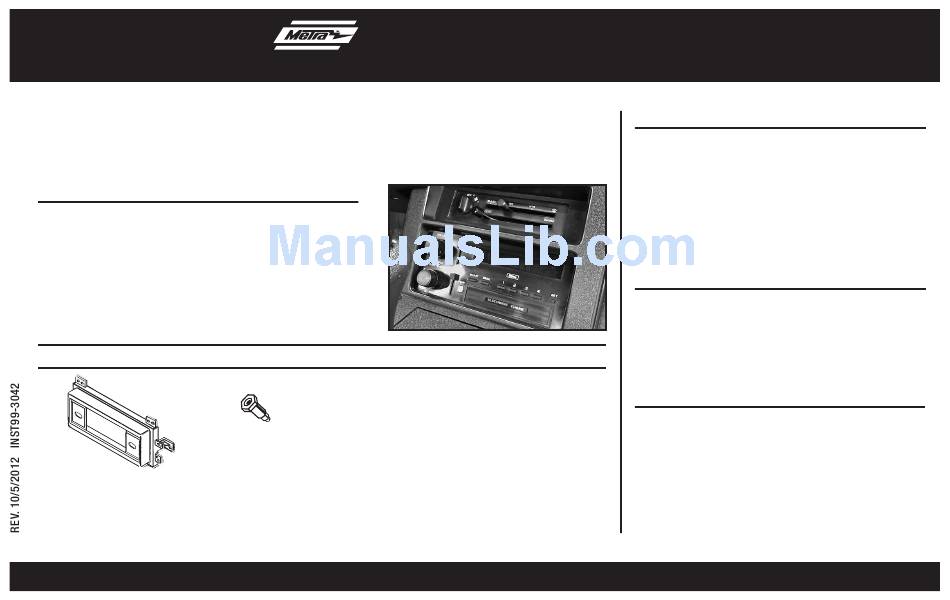

INSTALLATION INSTRUCTIONS FOR PART 99-3042
Chevrolet/GMC/Pontiac/Saturn 1982-1994
KIT FEATURES
• DIN head unit provision
• Rear support provision
KIT COMPONENTS

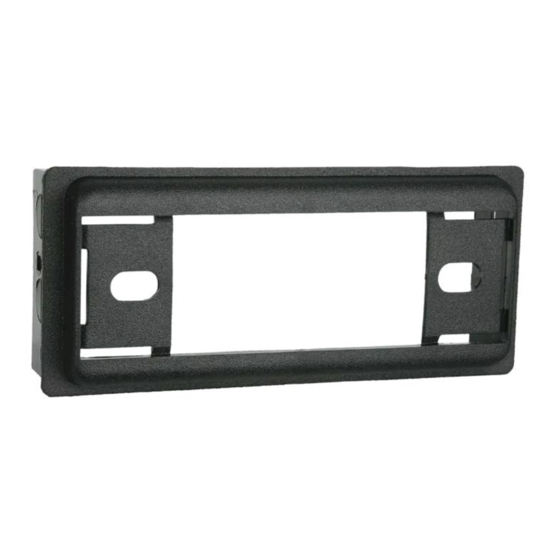

• A) Radio housing • B) Rear support bullet
A
B
METRA. The World's best kits.
APPLICATIONS
See application list inside
99-3042
™
1-800-221-0932
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness:
• 70-1858 - GM harness for select 1988-2002
• 70-1677-1 - GM/Chevy harness select 1978-1993
Antenna Adapter:
• 40-GM10 - GM adaptor for select 1988-2006
TOOLS REQUIRED
• Torx driver • Phillips screwdriver • Cutting tool
• Socket wrench
CAUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before
reconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.
metraonline.com
