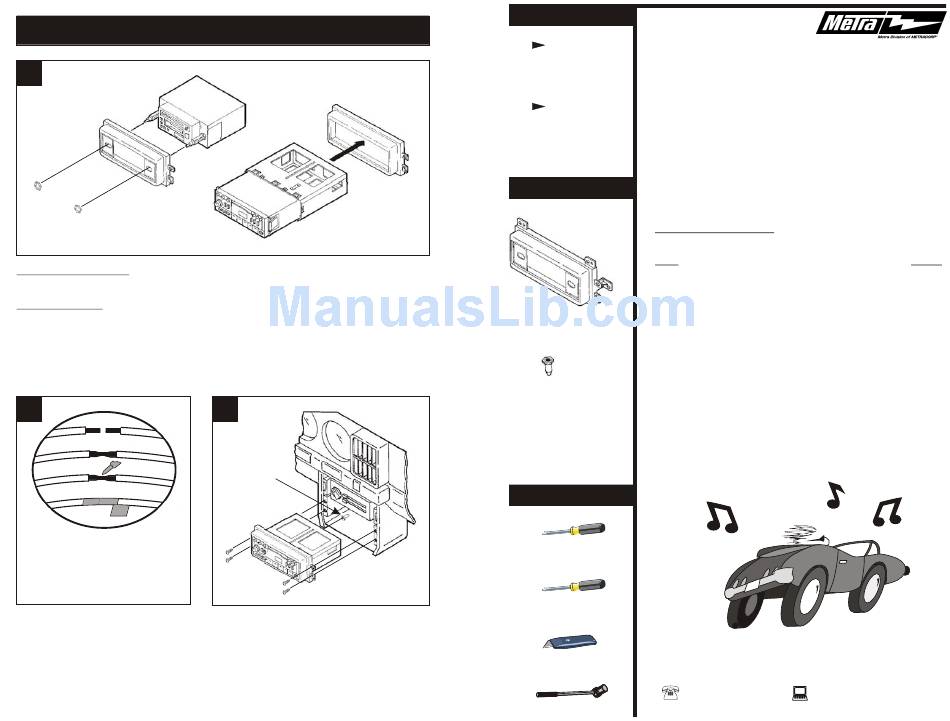

Metra Electronics 99-3042 Installation Instructions

ALL VEHICLES
3
Fig. A
2-SHAFT HEAD UNITS: Slide the aftermarket head unit into the kit and secure with shaft
nuts. (see Fig. A)
DIN HEAD UNITS: Cut and remove the shaft supports from the Radio Housing. Slide the
DIN cage into the kit and secure by bending the metal locking tabs down. Slide the aftermarket
head unit into the cage until secure. (see Fig. B)
4
A
B
C
D
A) Strip wire ends back ½"
B) Twist ends together
C) Solder
D) Tape
Locate the factory wiring harness in the
dash. Metra recommends using the
proper mating adaptor and making
connections as shown. (Isolate and
individually tape off the ends of any
unused wires to prevent electrical short
circuit).
3
Fig. B
5
"A"
Re-connect the battery terminal and test the unit
for proper operation. Screw the Rear Support
Bullet onto the bolt on the back of the aftermarket
head unit ("A"). Mount the radio/kit assembly to
the sub-dash with those screws previously
removed in step #1.
rev. 290601
KIT FEATURES
Shaft and
DIN unit
99-3042
provisions
Rear support
INSTALLATION
provisions
INSTRUCTIONS
KIT COMPONENTS
APPLICATIONS
Radio Housing
CAR
CHEVROLET
Blazer 1986-93........................................................... 2
Camaro 1982-92......................................................... 1
Rear
S-10 Pickup 1986-93................................................... 2
Support
GMC
Bullet
Jimmy 1986-93........................................................... 2
S-15 Pickup 1986-93................................................... 2
PONTIAC
Firebird 1982-92......................................................... 1
SATURN
(All models) 1991-94................................................... 2
TOOLS REQUIRED
Torx-head screwdriver
Phillips screwdriver
Cutting tool
1-800-221-0932
Socket wrench © COPYRIGHT 2001 METRA ELECTRONICS CORPORATION
PAGE
www.metraonline.com
