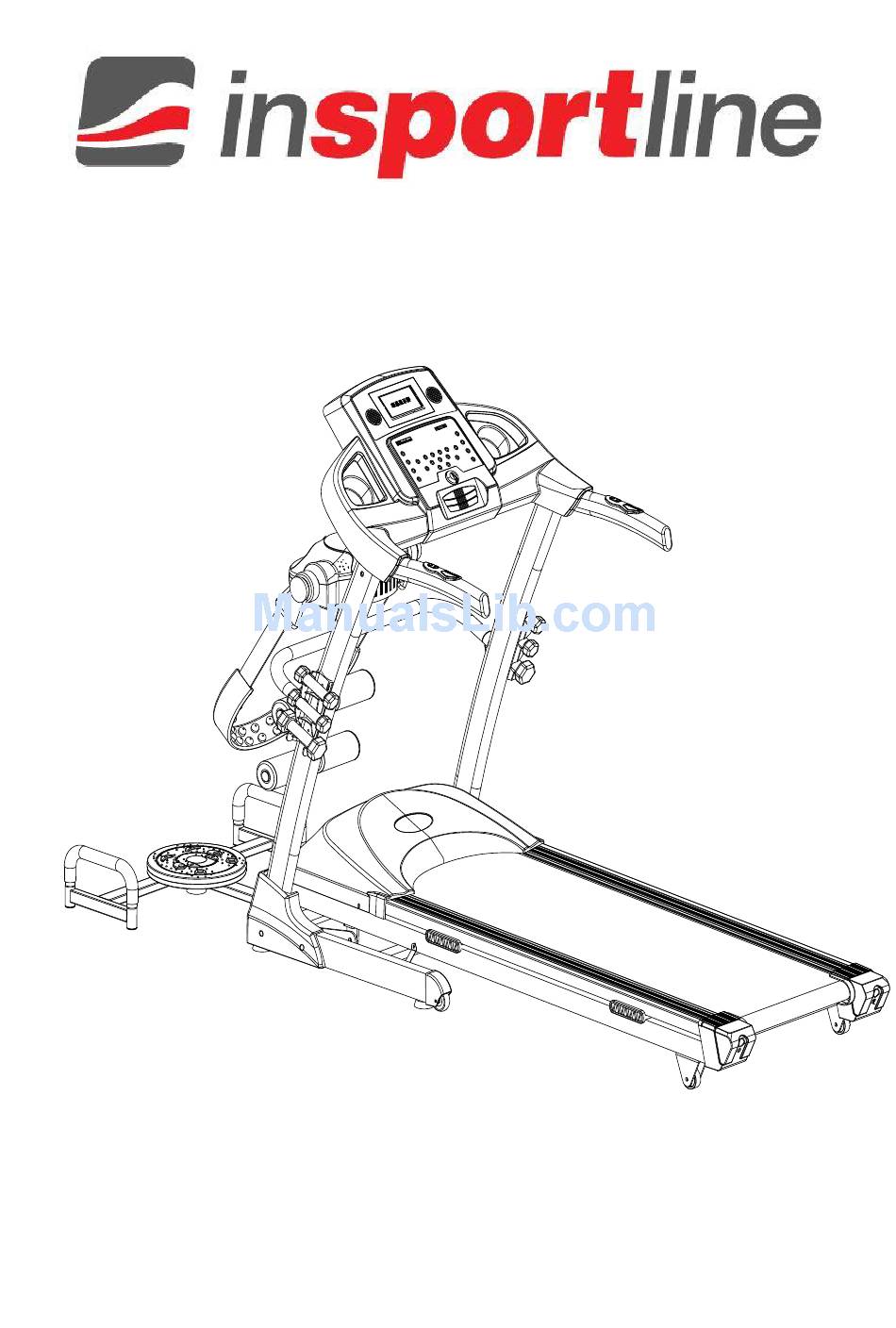

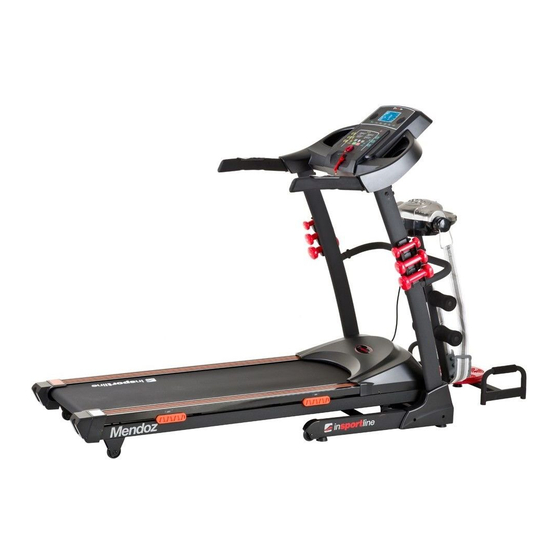

- Page 1 USER MANUAL – EN IN 7565 Motorized Treadmill inSPORTline Mendoz (QST8438)
-
Page 2: Table Of Contents
CONTENTS TIPS FOR SAFETY ..............................3 SPECIAL TIPS FOR SAFETY........................... 4 PACKING DETAILS ............................. 4 EXPLODED VIEW ..............................6 PARTS LIST ................................6 TREADMILL STRUCTURE ..........................9 ASSEMBLY ................................. 10 USE ..................................13 SAFETY KEY ..............................13 FOLDING / UNFOLDING ..........................14 INSTRUCTION FOR CONSOLE ........................ -
Page 3: Tips For Safety
Special tips: Before installation and operation, please read this operation manual carefully and save this manual for future reference. WARRANTY We make sure that this item is made of high quality materials. In normal use, if any problem, we will take charge of maintenance. The warranty time for this item is 1 year (From the day you buy it). -
Page 4: Special Tips For Safety
Please use the spare parts from us, it is not acceptable if you use spare parts from others. This machine is HC level, max weight shall be less than 120 kg. Please consult your doctor at first before running, if you have one of the following diseases. Cardiopathy, hypertension, sugar diabetes, respiratory disease, smoking, and other chronic diseases, complication disease. - Page 5 Umbrella-type allen screw Multi-wrench 1 pcs Homemade wrench 1 pcs M8*50*15 4pcs Umbrella-type allen screw M8*15 Umbrella-type allen screw Umbrella-type allen screw 12pcs M8*35*15 4pcs M8*80*20 1pcs Umbrella-type cross tapping screw Washer 21PCS Nut 9pcs M4.2*15 8pcs Lubricant Safety key MP3 connector 1pcs...
-
Page 6: Exploded View
EXPLODED VIEW These are all the components used in installation. All components are listed in the following form. PARTS LIST Component Quantity Base frame Frame Left pillar accessory Right pillar accessory Dashboard frame Incline frame... - Page 7 Pressure stick Motor stator Front roller Back roller Motor Incline motor Running belt Running board Multislot belt Motor cover Side rail Left back cover Right back cover Connector part for base frame Adjusting foot pad Left decorating cover at base Right decorating cover at base Base handling wheel set Lower cover of motor...
- Page 8 Lower communication line Red connecting line Red connecting line Green connecting line Power wire Speaker MP3 module Solid tube for multifunction frame Multifuntion frame Sponge protecting bush Tube plug Massage head Solid tube for twister Push-up handlebar Push-up handlebar sponge Twister Tube plug washer Dumbbell set...
-
Page 9: Treadmill Structure
TREADMILL STRUCTURE... -
Page 10: Assembly
ASSEMBLY STEP 1: Set meter tube on the base frame a) Make the communication line through the right meter tube. b) Set meter tube on the base frame. Use 2 pcs of Screw M8*15 with 2 pcs of washer and 4pcs of Screw M8*50 with 4 pcs of washer, 4 pcs of nut to solid the meter tube. - Page 11 STEP 3: Install solid tube for multifunction frame to meter tube Use 4 pcs of Screw M8*15 with 4 pcs of washer to solid it. (Don’t fasten screw at first). STEP 4: Install multifunction frame on base frame and solid tube a) Use 2 pcs of Screw M8*35 with 2 pcs of washer, 2 pcs of nut to solid multifunction frame on base frame.
- Page 12 STEP 5: Install massage head on multifunction frame. Use 3 pcs of Screw M8*15 with 3 pcs of washer to solid massage head. STEP 6: Install decorating cover at base. STEP 7: Disassemble connecting screw for base frame. STEP 8: Set twister frame on the base frame.
-
Page 13: Use
Use 2 pcs of M8*35 screw, 2 pcs of washer and 2 pcs of nut to solid twister frame on base frame. STEP 9: Set dumbbell frame on meter tube. a) Use 4 pcs of Screw ST4.2*15 to solid the dumbbell frame. b) Put the dumbbell on the dumbbell frame and put the push-up handlebar on twister frame. -
Page 14: Folding / Unfolding
under the dangerous condition. Then you will not be injured. If you need to reuse the machine, you could put safety key back. FOLDING / UNFOLDING Folding: Folding will help to save space. Before folding, please switch off and pull off the plug. Use your hand to lift the running board until it has been locked. -
Page 15: Instruction For Console
INSTRUCTION FOR CONSOLE Tech info: Time 00:00-99:59 Min Speed 1.0-16.0 km/h Incline 0-15% Distance 0.00-99.9 km Calorie 0-999 KCAL Heart rate 50-200 / Min Preset program P1-P99 User-defined program U1-U2 Program... -
Page 16: Panel Keys And Functions
Sexuality 01/02 (men/women) PANEL KEYS AND FUNCTIONS Fan Key Use this key, you could turn on/off the fan. START/STOP Key: Press “start” /“stop keys for starting/stopping the running belt. Reset: Press "Stop" Key twice continuously, the machine will be reset and start for new exercise record when you press "Start ". - Page 17 SPEED △▽Key Under ready condition, it is used for setting some data. Under running condition, it is used for setting speed, speed difference is 0.1 km/h for each time. When we press it for above 0.5 seconds, it will progressive increase or reduce automatically.
-
Page 18: Displayed Window
DISPLAYED WINDOW TIME: Display the data of time or heart rate HIGHT: Display the data of height CALORIES: Display the data of calorie WIGHT: Display the data of weight INCLINE: Display the data of incline PULSE: Display the data of pulse DISTANCE: Display the data of distance FAT: Display the data of body fat SPEED: Display the data of speed... - Page 19 When on distance countdown mode, press “MODE” to enter. Window “ DIST” displays “1.0” and shining, you could press “INCLINE△”, “INCLINE▽”, “SPEED+”, “SPEED-” to set exercise distance from 0.5—99.5 When on calorie countdown mode, press “MODE” to enter. Window “ CAL” displays “50” and shining, you could press “INCLINE△”, “INCLINE▽”, “SPEED+”, “SPEED-”...
-
Page 20: Maintenance
WOMAN 10------99 HEIGHT 100----220 WEIGHT 20-----150 ≤19 BODYFAT Underweight BODYFAT =(20---25) Normal weight BODYFAT =(25---29) Overweight ≥30 BODYFAT Obesity POWER SAVE MODE Our machine has power save function. When you turn on power switch for 10 minutes and don’t press any key, the machine will come into power save mode and there is no light on the screen. -
Page 21: Cleaning
a) Place the treadmill on a horizontal floor, turn the speed to be 6 km/h for running. b) If the running belt is deflected to the right, adjust the bolt on the right by turning it for half a turn clockwise, then adjust the bolt on the left by turning it half an anti-clockwise.(see Diagram 3) c) If the running belt is deflected to the left, adjust the bolt on the left by turning it for half a turn clockwise, then adjust the bolt on the right by turning it half a turn anti-clockwise.(see Diagram 4) -
Page 22: Guides For Malfunction
Please make sure that the plug has been pulled out before cleaning or maintenance. Depositing The treadmill should be deposited indoor in case of being damp. Water can’t be spattered and nothing can be laid and inserted on the treadmill. Please keep the air a little humid in winter. -
Page 23: Terms And Conditions Of Warranty, Warranty Claims
PCB. Check the lower communication line, make The PCB and meter cannot sure that PCB and lower communication line Displayed E04 on the communicate with each are connected well, Check the upper screen other communication line, make sure that meter and upper communication line are connected well. -
Page 24: Frame,
SEVEN SPORT, s.r.o. Borivojova 35/878 130 00 Praha 3, Czech Rebublic CRN: 268 47 264, VAT ID: CZ26847264 Orders: +420 556 300 970, objednavky@insportline.cz Warranty Claims: +420 556 770 190, Mobile: +420 604 853 019, reklamace@insportline.cz Service: +420 556 770 190, Mobile: +420 604 853 019,... - Page 25 Fax: +420 556 770 192, (Service +420 556 770 191) Web: www.insportline.cz, www.worker.cz, www.worker-moto.cz INSPORTLINE, s.r.o. Bratislavska 36, 911 05 Trencin, Slovakia CRN: 36311723, VAT ID: SK2020177082 Orders: +421(0)326 526 701, +421(0)917 649 192, objednavky@insportline.sk Warranty Claims: +421(0)326 526 701, +421(0)918 408 519, reklamacie@insportline.sk...
