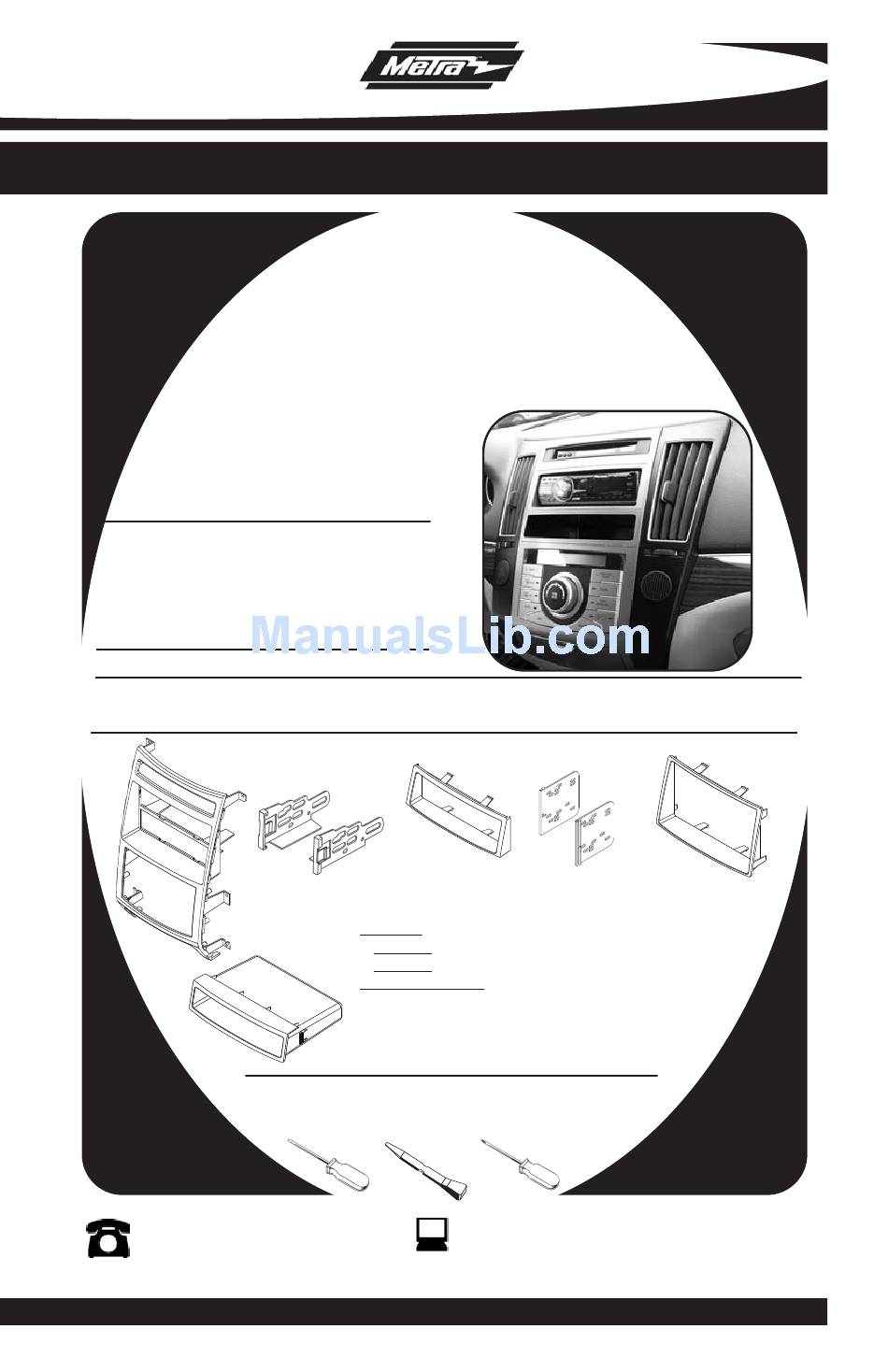

INSTALLATION INSTRUCTIONS FOR PART 99-7335S
Automatic climate control only
99-7335S
KIT FEATURES
• DIN Radio Provision with Pocket
• ISO Mount Radio Provision with Pocket
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision
• Painted to match factory dash-"S"=Silver
KIT COMPONENTS
• A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate • D) Double DIN Brackets
• E) Double DIN Trim Plate • F) Pocket
A
F
1-800-221-0932
© COPYRIGHT 2009 METRA ELECTRONICS CORPORATION
APPLICATIONS
HYUNDAI Veracruz
2007-2010
C
B
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Harness:
• 70-1004 - KIA/Hyundai harness 2004-up
• 70-7303 - KIA/Hyundai harness 2009
Antenna Adapter:
• 40-KI11 - KIA antenna adapter 2007-up
TOOLS REQUIRED:
Small Flat Blade Screwdriver/ Panel Removal Tool
• Phillips Screwdriver
D
www.metraonline.com
E
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Metra Electronics 99-7335S
Summary of Contents for Metra Electronics 99-7335S
- Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-7335S HYUNDAI Veracruz Automatic climate control only 99-7335S KIT FEATURES • DIN Radio Provision with Pocket • ISO Mount Radio Provision with Pocket • Double DIN Radio Provision • Stacked ISO Mount Units Provision • Painted to match factory dash-”S”=Silver KIT COMPONENTS •...
- Page 2 - ISO Mount Radio Provision with Pocket......4 Note: Refer also to the instructions included with the aftermarket radio. 99-7335S NOWLEDGE IS Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry.
- Page 3 HYUNDAI VERACRUZ 2007-2010 isconnect the negative battery terminal to prevent an accidental short circuit. Unclip and remove the side trim panels. (Tip: start at the bottom of the panels) (Figure A) Remove (6) Phillips head screws securing the radio trim panel and remove trim panel.
- Page 4 99-7335S KIT ASSEMBL Y KIT PREPARATION 1 Attach the climate control, pocket and the clock display into the 99-7335S radio housing using the factory hardware. (Figure A) Continue to kit assembly.
- Page 5 (Figure A) Snap the pocket into the bottom opening of the radio housing. (Figure B) Slide the aftermarket head unit into the cage and secure. (Figure C) Reassemble dash in reverse order of disassembly. 99-7335S KIT ASSEMBL Y...
- Page 6 (Figure B) Slide the head unit into the radio opening until the side clips engage. (Figure C) Snap the Trim plate into the Radio Housing. (Figure C) Reassemble dash in reverse order of disassembly. 99-7335S KIT ASSEMBL Y...
- Page 7 Double DIN head unit or stacked ISO head units to the assembly using the screws supplied with the radio. (Figure C) Snap the Double DIN trim plate into the Radio Housing. (Figure C) Reassemble dash in reverse order of disassembly. 99-7335S KIT ASSEMBL Y...
- Page 8 99-7335S INSTRUCTIONS 1-800-221-0932 www.metraonline.com REV. 09/02/09 © COPYRIGHT 2009 METRA ELECTRONICS CORPORATION INST99-7335S...
