XX100-00-01

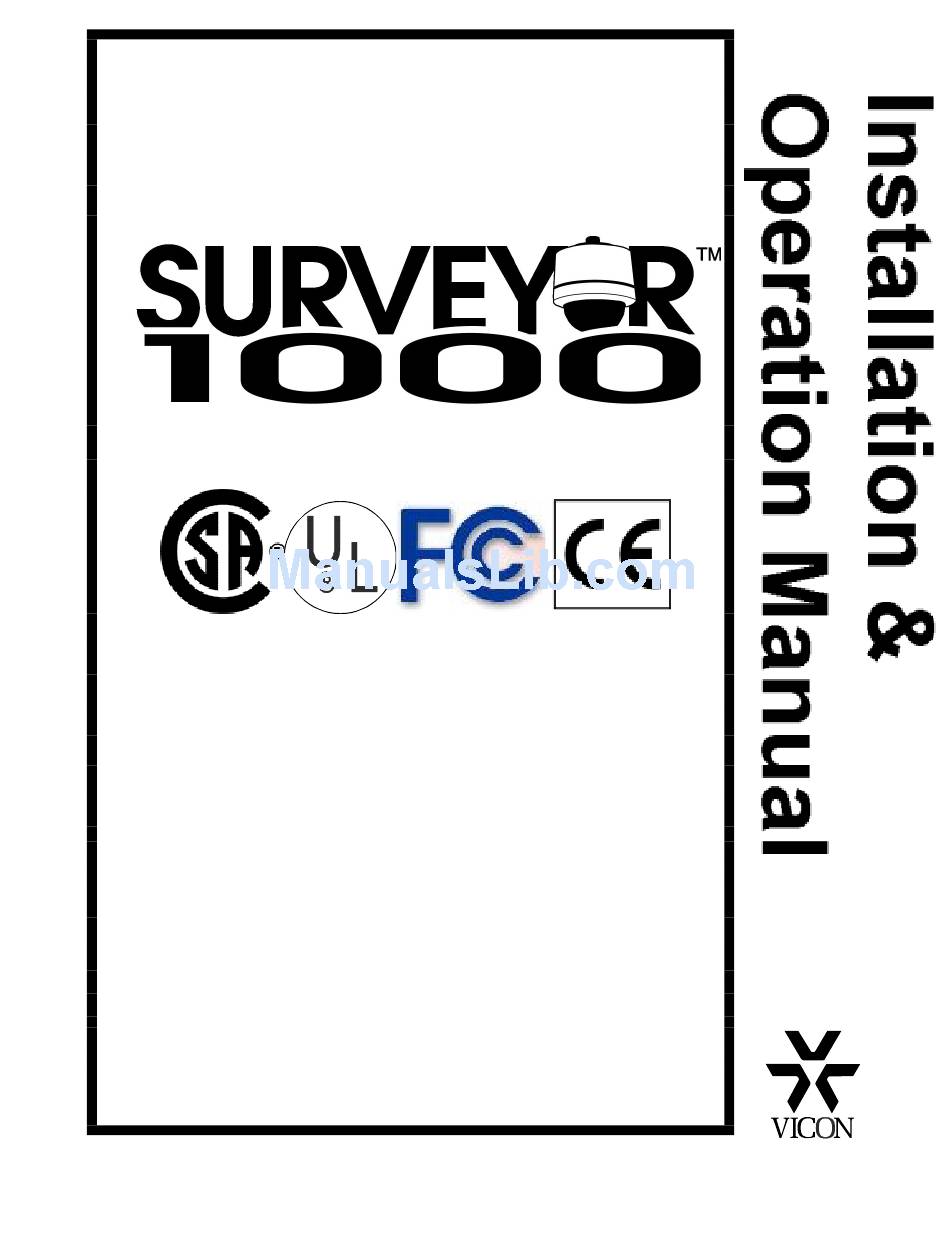

Surveyor1000 Camera Dome System
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet
your requirements or that the operation will be entirely error free or perform precisely as
described in the documentation. This system has not been designed to be used in life-critical
situations and must not be used for this purpose.
Copyright © 2002 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
Surveyor1000 and its logo are trademarks of Vicon Industries Inc.
Vicon and its logo are registered trademarks of Vicon Industries Inc.
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788
TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266)
UK: 44/(0) 1489-566300 INFOFAX: 800-287-1207 WEB: www.vicon-cctv.com
Vicon Part No. 8009-8100-00-01 Section 1 Rev 202

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the surveyor 1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vicon surveyor 1000

Summary of Contents for Vicon surveyor 1000

  • Page 1 XX100-00-01 Surveyor1000 Camera Dome System Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.

  • Page 5: Table Of Contents

    Contents INTRODUCTION ........................1 How to Use this Manual ..........................1 For Experienced Installers:........................1 For Novice Installers: ..........................1 Accessory Kits ............................... 2 Unpacking and Inspection ..........................2 Surveyor1000 Components .......................... 3 Enclosure..............................3 Camera Drive............................3 Shroud ..............................3 Lower Dome .............................
  • Page 6 Installing the Cables ............................ 27 For an In-Ceiling Installation........................27 For an Indoor or Outdoor Pendant Model Installation ................28 Using the Accessory Kit’s Termination Box and RJ-45 Cable for Wiring ..........30 Using the Optional Alarm Kit (S2000-ACL) .................... 32 CONFIGURATION ......................

  • Page 7: Introduction

    Surveyor1000 complies with the fire code of certain local municipalities. The fire code for any given municipality should be verified for Surveyor1000’s compliance at the installation site. Vicon strongly recommends the use of line conditioners; voltage regulators and uninterruptible power supply (UPS) systems in the electrical power service.

  • Page 8: Accessory Kits

    Unpacking and Inspection All Vicon equipment is tested and inspected before leaving the factory. It is the carrier’s responsibility to provide suitable delivery. Inspect the cartons upon delivery and, if damage is present, make detailed notes on the carrier’s bill. Then, obtain the carrier agent’s signature and file a damage claim as soon as possible.

  • Page 9: Surveyor1000 Components

    Surveyor1000 Components All Surveyor1000 versions are comprised of an Enclosure, a removable Camera Drive, a Shroud and a Lower Dome. This assembly is the heart of every prepackaged Surveyor1000 unit. Figure 1 shows an In-Ceiling model, Figure 2 shows an Indoor Pendant model and Figure 3 shows an Outdoor Pendant Model.
  • Page 10 Figure 2 Figure 3 Surveyor1000 Indoor Pendant Surveyor1000 Outdoor Pendant 4 • • • • Introduction XX100-00-01 Rev 202 Surveyor1000 Camera Dome System...

  • Page 11: Installation

    Installation Choose the installation type based on the specific unit purchased (In-Ceiling, Indoor and Outdoor Pendant). Quick Installation – In-Ceiling Model, Ceiling Access Installation • • • • 5 XX100-00-01 Rev 202 Surveyor1000 Camera Dome System...

  • Page 12: Quick Installation - In-Ceiling Model, No Ceiling Access

    Quick Installation – In-Ceiling Model, No Ceiling Access Q 6 • • • • Installation XX100-00-01 Rev 202 Surveyor1000 Camera Dome System...

  • Page 13: Quick Installation - Indoor Pendant

    Quick Installation – Indoor Pendant Installation • • • • 7 XX100-00-01 Rev 202 Surveyor1000 Camera Dome System...

  • Page 14: Quick Installation - Outdoor Pendant

    Quick Installation – Outdoor Pendant 8 • • • • Installation XX100-00-01 Rev 202 Surveyor1000 Camera Dome System...

  • Page 15: Detailed Installation

    Detailed Installation For novice or first-time installers, these steps provide the most thorough and accurate instructions. Use of the Provided Scribe A small metal scribe is provided to assist in marking an accurate hole size in a ceiling tile. Use as follows: 1.
  • Page 16 The Accessory Kit containing the RJ-45 to RJ- 45 10 foot (2.5 m) cable and RJ-45 Termination Box can be used in this installation for the 4 alarms or relay. Since there is no access to above ceiling space and the supplied cable is limited to 10 feet (2.5 m), the Termination Box must be mounted in an area with access.
  • Page 17 6. With the Camera Drive hanging from the Enclosure, terminate all the cables as follows: a) Remove Terminal Blocks TB1 and/or TB3. Since the control signals exist in both TB3 and J3, do not remove TB3 if J3 will be used for control signal wiring. b) Strip approximately 1 inch (25 mm) of insulation off all wires to be terminated in Terminal Blocks.
  • Page 18 1. Set switch 1 on DIP Switch 2 (S2) to the appropriate video mode (PAL or NTSC). 2. Set switch 2 on DIP Switch 2 (S2) to the ON position (Vicoax mode). 3. Set switch 3 on DIP Switch 2 (S2) to either position as it does not affect Vicoax protocol operation.
  • Page 19 From Above the Ceiling (access to the space above) The ceiling hole is marked with the scribe and cut. The Enclosure is then lifted up through ceiling hole and the Flipper Screws are turned and tightened against the ceiling. The Enclosure’s Top Cover is removed and the Surveyor1000 is wired and configured from above the ceiling.
  • Page 20 NOTE: Connectors that do not fit through the Strain Relief Fitting must be cut off and re-terminated after passing the cable through. It is recommended to pass any RJ-45 Connectors through the fitting first. BNC type connectors do not fit through the fitting and must be terminated later. 4.
  • Page 21 NOTE: Failure to loop the cables can prevent later removal of the Camera Drive from the Enclosure. Figure 9 Close-Up View - In-Ceiling Configuration with Cables 9. Configure the Surveyor1000 communication and address DIP Switches as follows: a) If RS-422 Mode will be used: 1.
  • Page 22 3. Set switch 2 on DIP Switch 2 (S2) to the OFF position (VPS/NOVA mode). 4. Set switch 3 on DIP Switch 2 (S2) to the appropriate communication mode (SIMPLEX/DUPLEX). 5. Set switch 4 on DIP Switch 2 (S2) to the appropriate communication protocol (RS-422 or RS-485) position as specified in Table 3.
  • Page 23 Optional Independent Support If it is necessary to provide independent support for the Surveyor1000, other than the ceiling material, order the optional In-Ceiling Mount Model Kit. It consists of a pre-assembled set of Mounting Rails and folding Ring as shown in Figure 11. 1.

  • Page 24: Indoor Pendant Model

    Indoor Pendant Model The Indoor Pendant Model mounts on a Vicon Mount or a 1.0-inch vertical Pipe. The pipe is a standard 1.0- inch NPT type and must be oriented vertically so the Surveyor1000 can effectively hang from the pipe.
  • Page 25 b) Strip approximately 1 inch (25 mm) of insulation off all wires to be terminated in Terminal Blocks TB1 and TB3. Then strip approximately 0.25 inches (6 mm) of insulation off of each individual wire. c) Make all connections to Terminal Blocks TB1 and TB3 with reference to Table 2. On TB3, the COMMAND IN + (CI+) and COMMAND IN - (CI-) connections must be used for Simplex operation.
  • Page 26 2. Set switch 2 on DIP Switch 2 (S2) to the ON position (Vicoax mode). 3. Set switch 3 on DIP Switch 2 (S2) to either position, as it does not affect Vicoax protocol operation. 4. Set switch 4 on DIP Switch 2 (S2) to either position, as it does not affect Vicoax protocol operation.

  • Page 27: Outdoor Pendant Model

    Outdoor Pendant Model The Outdoor Pendant Model mounts on a Vicon Mount or a 1.0-inch vertical Pipe in the same manner as the Indoor version. The Outdoor version includes a Sunshield, Heater and weather protection. The Mount is installed with all the cables run through it and the 1.0-inch NPT Pipe is prepared with Teflon Tape for the Housing and the Surveyor1000 installation.
  • Page 28 8. Route each cable from the inside top of the Housing down to the Fan’s Bracket and then comfortably over to its mating connector on the Communications/Power Supply Board. Add 1-inch (25 mm) of extra length to each cable for termination and cut them. The approximate length of each cable should be 13 - 16 inches (330 - 406 mm).
  • Page 29 4. Set switch 3 on DIP Switch 2 (S2) to the OFF position (SIMPLEX/DUPLEX). 5. Set switch 4 on DIP Switch 2 (S2) to the appropriate communication protocol (RS-422 or RS- 485). b) If Vicoax Mode will be used: 1. Set switch 1 on DIP Switch 2 (S2) to the appropriate video mode (PAL or NTSC).
  • Page 30 NOTES 24 • • • • Installation XX100-00-01 Rev 202 Surveyor1000 Camera Dome System...

  • Page 31: Wiring

    Wiring Wiring is done with runs of cable for power, video and control. Optional wiring can be installed for the Relay Output and 4 Alarm Inputs. All cables enter the Enclosure from the top on all pendant installations and through the Conduit Fitting on all In-Ceiling installations. Refer to the Technical Information section for all electrical requirements.

  • Page 32: Typical Relay And Alarm Connections

    Typical Relay and Alarm Connections Alarm Input and Relay Output type signals are also carried on individually-shielded twisted-pair cable sets. The signals are defined in the following descriptions. Alarms 1-4 are electronic TTL (transistor-transistor logic) type inputs that are driven by a dry contact type switch.

  • Page 33: Installing The Cables

    Installing the Cables WARNING: Disable the AC power to prevent installer injury and damage to the unit. Cables are installed using 2 different methods, depending on the installation type. For the In-Ceiling installation, cables are routed from above the ceiling through a Conduit Fitting on the Enclosure to the board. For the Pendant installation, cables are routed from the inside of the Housing through a Cable Clamp to the Communication Power Supply Board.

  • Page 34: For An Indoor Or Outdoor Pendant Model Installation

    8. Make all connections to Terminal Blocks TB1 and TB3 with reference to Table 2. On TB3, the COMMAND IN + (CI+) and COMMAND IN - (CI-) connections must be used for Simplex operation. For Half Duplex operation, the additional signals RESPONSE OUT + (RO+) and RESPONSE OUT - (RO-) must also be used.
  • Page 35 WARNING: If Vicoax mode is being used, DO NOT wire TB3 for control, as this will cause the Camera Dome Program to lock up upon power-up. 6. Reinstall the Terminal Blocks TB1 and TB3 into the Communication Power Supply Board at the proper block frames.

  • Page 36: Using The Accessory Kit's Termination Box And Rj-45 Cable For Wiring

    RJ-45 Connector through the fitting first. After this, the remaining connectors that do not fit through the fitting must be cut off and terminated later. NOTE: Use only the supplied Vicon RJ-45 cable or Figure 24 shielded equivalent. Use of Accessory Kit Cabling...
  • Page 37 7. Proceed to the Configuration Section of this manual for information on setting the 3 Termination jumpers. NOTE: Use only the supplied Vicon RJ-45 cable or shielded equivalent. When wiring several consecutive Surveyor1000s, follow the previous steps for each Camera Dome. Refer to Figure 27 as a general block diagram for the overall cabling of a typical Daisy Chain.

  • Page 38: Using The Optional Alarm Kit (S2000-Acl)

    Using the Optional Alarm Kit (S2000-ACL) This optional Alarm Kit consists of a Termination Box and RJ-45 Cable. It is used to assist in using connector J2, an RJ-45 socket on the Power Supply/Communication Board. Connector J2 provides access to the 4 alarm inputs. The RJ-45 Cable has one male end, which plugs directly into connector J2, and color-coded open wires on the other, which connect to the Termination Box.
  • Page 39 CONNECTOR/PIN CONNECTOR TYPE CONNECTOR/PIN LABEL SIGNAL NAME NUMBER BNC (female) VIDEO (J1) Video output VIDEO TERMINAL BLOCK POWER (TB1) TB1-1 TB1-2 Neutral TB1-3 No connection RJ-45 ALARM (J2) J2-1 ALARM1 Alarm input 1 J2-2 VSSA Ground J2-3 ALARM2 Alarm input 2 J2-4 VSSA Ground...
  • Page 40 NOTES 34 • • • • Wiring XX100-00-01 Rev 202 Surveyor1000 Camera Dome System...

  • Page 41: Configuration

    Configuration The Surveyor1000 must be configured for its address, and mode, and termination setting when using RS-485 protocol. The address and mode are set using the two 8-position DIP Switch banks S1 and S2. It is necessary to determine which communication mode, Camera/Lens Module type and Surveyor1000 address is required prior to configuration.
  • Page 42 DIP Switch 1 (S1) Address (NOVA/VPS Mode) SWITCHES SWITCHES SWITCHES Table 3 DIP Switch 1 (S1) Settings for Nova/VPS Mode 36 • • • • Configuration XX100-00-01 Rev 202 Surveyor1000 Camera Dome System...

  • Page 43: Setting The End-Of-Line Jumpers Jp1, Jp2 & Jp3 For Rs-485 Protocol Operation

    Setting the End-of-Line Jumpers JP1, JP2 & JP3 for RS-485 Protocol Operation This section defines setting the End-of-Line Jumpers JP1, JP2 and JP3. The jumper sockets are located on the underside of the Communications/Power Supply PC Board as shown in Figure 30. If a single axial-leaded jumper is found, proceed to the Alternate Jumper Configuration sub-section.
  • Page 44 NOTES 38 • • • • Configuration XX100-00-01 Rev 202 Surveyor1000 Camera Dome System...

  • Page 45: Uninstalling The Surveyor1000

    Uninstalling the Surveyor1000 The Surveyor1000 can be easily uninstalled by simply removing the Camera Dome from the Housing or the Camera Drive from the Enclosure. The In-Ceiling Mount Model requires removal of the Camera Drive and the Pendant models require removal of the Camera Dome Assembly. A Safety Cord is always available to safely hang the Camera Drive or Camera Dome Assembly while installing or uninstalling.
  • Page 46 NOTES 40 • • • • Uninstalling the Surveyor1000 XX100-00-01 Rev 202 Surveyor1000 Camera Dome System...

  • Page 47: Operation

    If the Surveyor1000 fails to power-up correctly, go to the Troubleshooting sub-section of this section. When initial power-up has been completed and verified, Surveyor1000 can be setup and operated in a normal fashion using a Vicon remote operator keypad, VPS/NOVA unit or through a PC running ProTech software.

  • Page 48: Verifying Proper Operation

    Surveyor1000. Power-on the control device and verify that it boots up. Set up the control device for operation with the Surveyor1000 in accordance with its Installation and Operation Manual. For a Vicon model V1300X-RVC or V1300X-DVC keypad connected directly to the Surveyor1000 or through a CPU, use the following procedure to access Surveyor1000 programming: 1.

  • Page 49: Troubleshooting

    4. Press the PP ENTER key again. The PRESET LED display remains with the number 95. The monitor will display the power-up test screen (Figure 33) for the duration of its initial testing. 5. The Surveyor1000 then switches to the opening screen (Figure 34). This screen will display the Camera Dome Program version, current date/time, the current address and a request to send communications to baud detect.
  • Page 50 NOTES 44 • • • • Operation XX100-00-01 Rev 202 Surveyor1000 Camera Dome System...

  • Page 51: Maintenance

    Maintenance The Surveyor1000 requires no scheduled maintenance, however, the Lower Domes require occasional cleaning. The Chrome and Gold Domes are referred to as Metallized type domes. The Clear and Smoked Domes are referred to as Acrylic type domes. All domes require careful handling and occasional cleaning. Care and Cleaning of Metallized Domes 1.

  • Page 52: Battery Replacement

    Battery Replacement The Battery (BT1) is located on the Processor/Driver Board. When necessary, replace it with the following type: BT1: Model number CR1632, Lithium, 3 VDC, 125 mAh It will be necessary to replace the battery when, upon power-up, the time is reset and the previous programming configuration is reset to factory defaults.

  • Page 53: Shipping Instructions

    Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A.
  • Page 54 NOTES 48 • • • • Shipping Instructions XX100-00-01 Rev 202 Surveyor1000 Camera Dome System...

  • Page 55: Coaxial Cable Recommendations

    400 (120) 530 (160) 820 (250) * Longer cable runs may produce a dim, faint picture. Use a Vicon Video Amplifier to obtain a usable picture for long cable runs. Usable Vicoax Signal vs. Cable Length Maximum Cable Length ft (m)

  • Page 56: Twisted-Pair Cable

    Twisted-Pair Cable CAUTION: Careful selection of the proper cable is essential to obtain the best performance from this equipment. Vicon assumes no responsibility for poor performance when cables other than those recommended are installed. Materials Use a pure copper stranded conductor with or without a tin plating to obtain a low DC resistance. Do not use cable with either a steel or an aluminum stranded conductor because these do not transfer signals effectively for long distances.

  • Page 57: Technical Information

    Technical Information ELECTRICAL Drive Type: Electrical motorized pan and tilt, electronic control. Camera Types: Units available in color (NTSC/ PAL). Input Voltage: 22 - 34 VAC. Wire Size for Specified Cable Run Lengths: See Table 7. Wire Size (AWG) (Annealed Distance: Indoor Unit, ft (m) Distance: Outdoor Unit, ft (m) Copper Wire)
  • Page 58 Fuse: F1: 2AG, 1.6 A 250 VAC, slo-blo. F2: 2AG, 2.5 A 250 VAC, slo-blo. Safety Standard: UL 2204 and CSA C22.2, No. 1 Radio Frequency Emission Rating: FCC Class A. OPERATIONAL Pan Speed: Variable, 0.25 - 250°/ sec. Autopan Speed: Variable, 3 - 45°/ sec.
  • Page 59 V1466 series NOVA CPUs, V1400-DVC System Console and V1300X-DVC desktop keypad or V1300-RVC rack- mounted keypad. Control Software: Vicon’s ProTech software (or compatible) run on a standard PC-type computer with an RS-422/485 half duplex protocol interface. Also, Vicon's Surveyor2000 Direct Control software.
  • Page 60 ENVIRONMENTAL Operating Temperature Range: Indoor Units: 35 to 122°F (2 to 50°C). Outdoor Units: -40 to 122°F (-40 to 50°C). Operating Humidity Range: Indoor Units: Up to 90% relative, noncondensing. Outdoor Units: 100% relative. Storage Temperature Range: -40° to 150° F (-40° to 65° C). Storage Humidity Range: Up to 90% relative, noncondensing.
  • Page 61 Figure 37 Dimensions Technical Information • • • • 55 XX100-00-01 Rev 202 Surveyor1000 Camera Dome System...
  • Page 62 Vicon Industries Inc. Corporate Headquarters 89 Arkay Drive Hauppauge, New York 11788 631-952-CCTV (2288) 800-645-9116 Fax: 631-951-CCTV (2288) Infofax: 800-287-1207 Vicon Europe Headquarters Brunel Way Fareham, PO15 5TX United Kingdom 44/(0) 1489/566300 Fax: 44/(0) 1489/566322 Brussels Office Planet II - Unit E...
