I. Tag Specification
(Mark Sensing)
Black Mark (on underside)
Recommended
Cross Perf
Location
Direction of Media Motion
A Label Width Range
B Backing Width Range
C Min. Gap/Hole/Notch Height
K Min. Refl. Mark Height
I Min Refl. Mark Width
E Media Thickness Range
G Width of Inter-label gap/hole
D Media Length Range
Continuous/Batch Mode
Tear-Off Strip Mode
Tear-Off Mode
Peel-Off Mode
Cut Mode
These figures are approximate and depend upon the active emulation and application.
(1)
1.5 inch with validator support.
II. Tag Specification
(Gap Sensing)
Recommended
Cross Perf
Location
Direction of Media Motion

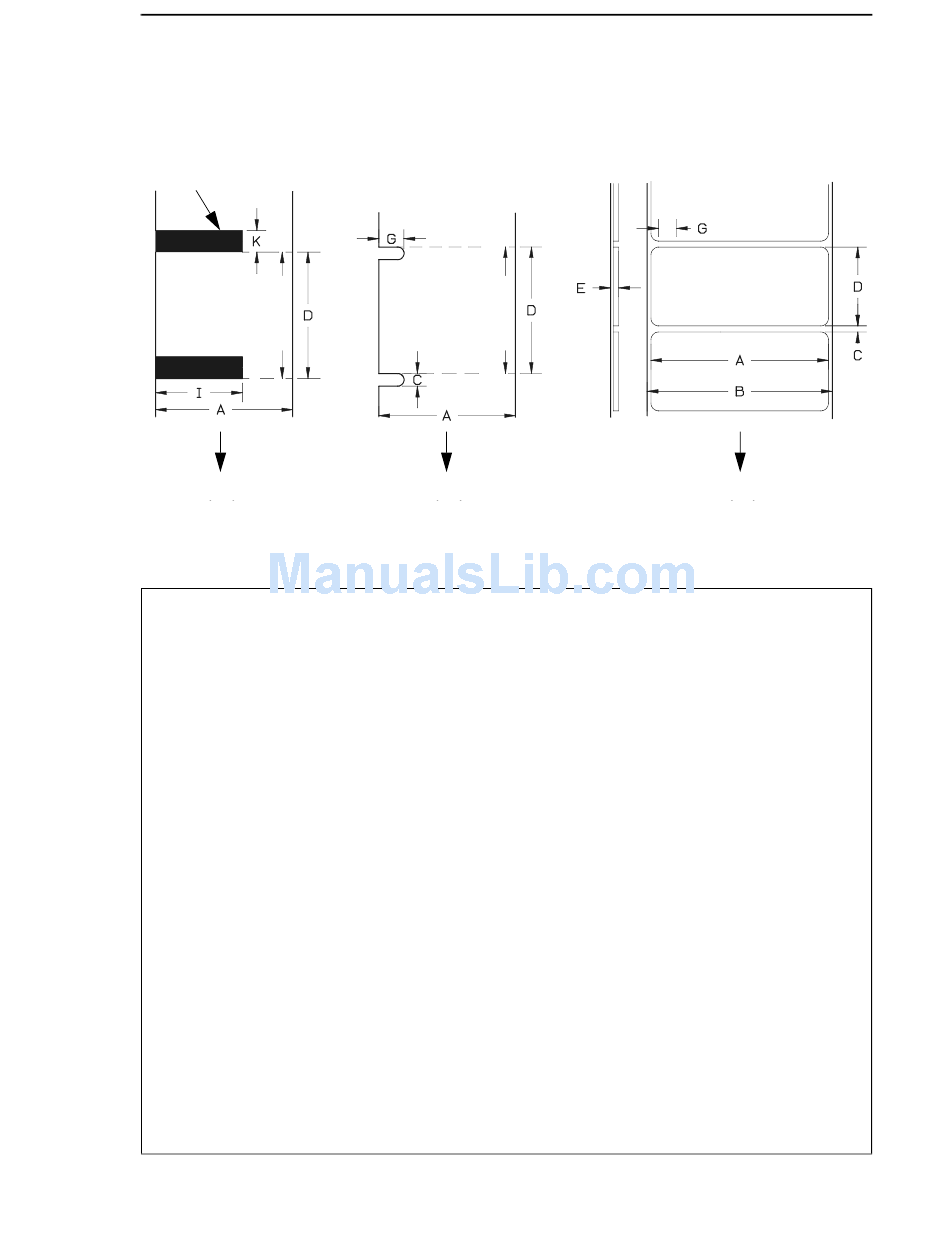

Figure 9. Media Dimensions
Table 20. Media Specifications
T5X04
SL5X04 MP2
0.75 -4.5 in.
19.1-114.3 mm
0.75-4.5 in.
19.1-114.3 mm
0.10 in.
2.54 mm
0.10 in.
2.54 mm
0.5 in.
12.7 mm
.0025-.010 in.
.0635-.254 mm
0.25-0.50 in.
6.35-12.7 mm
0.25 in. (6.35mm) - 99 in. (2515mm)
0.25 in. (6.35mm) - 99 in. (2515mm)
1 in. minimum (25.4 mm) - 99 in. (2515 mm)
1 in. minimum (25.4 mm) - 99 in. (2515 mm)
1 in. minimum (25.4 mm) - 99 in. (2515 mm)
III. Label Specification
(Gap Sensing)
Direction of Media Motion
T5X06 T5X08
SL5X06 MP2
2.0-6.8 in. 3.0-8.75 in.
50.8-172.7 mm 76.2-222.3 mm
2.0-6.8 in. 3.0-8.75 in.
50.8-172.7 mm 76.2-222.3 mm
0.10 in. 0.10 in.
2.54 mm 2.54 mm
0.10 in. 0.10 in.
2.54 mm 2.54 mm
0.5 in. 0.5 in.
12.7 mm 12.7 mm
.0025-.010 in. .0025-.010 in.
.0635-.254 mm .0635-.254 mm
0.25-0.50 in. 0.25-0.50 in.
6.35-12.7 mm 6.35-12.7 mm
(1)
