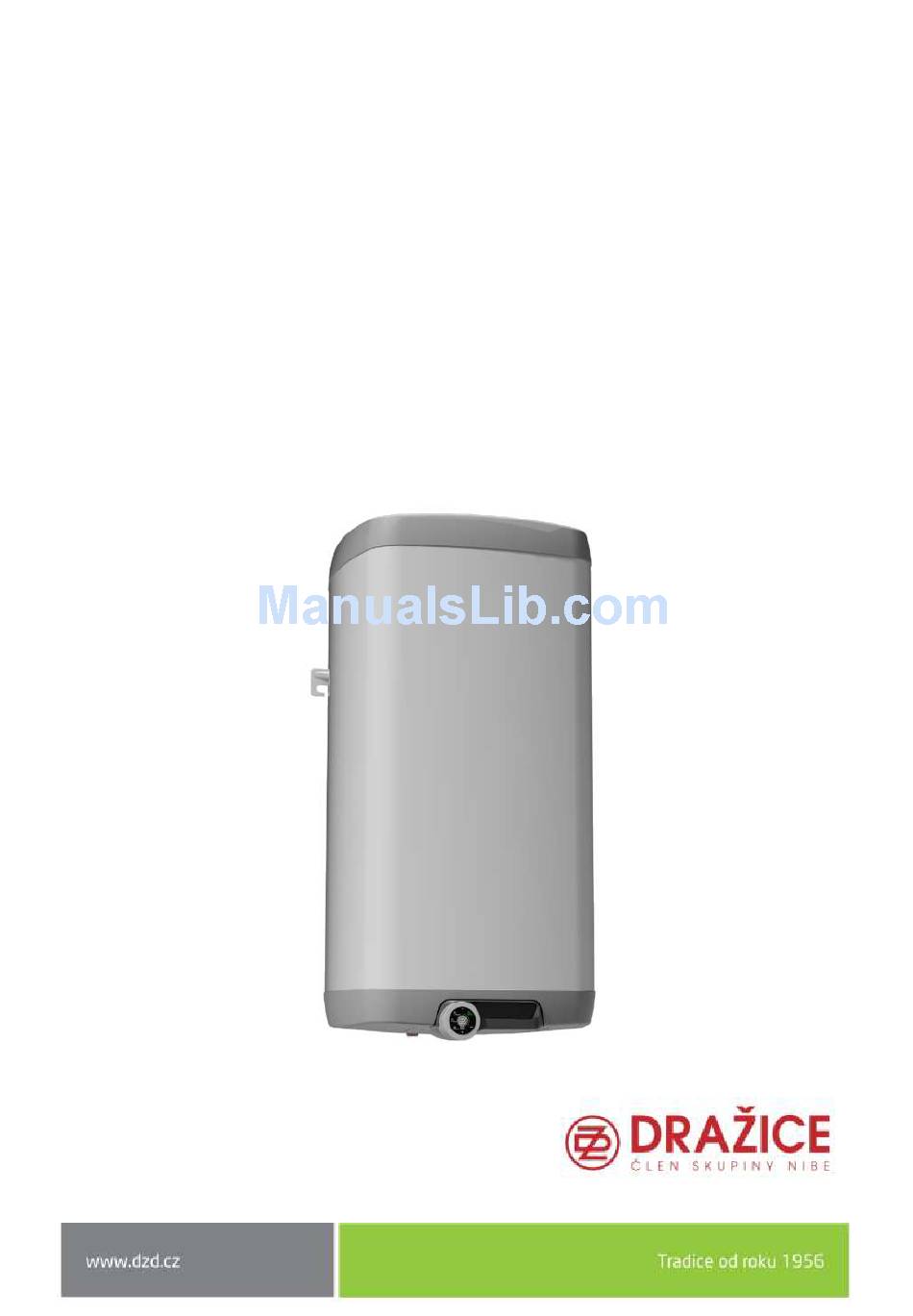

Page 1: Installation Manual
OPERATING AND INSTALLATION MANUAL TANK-TYPE WATER HEATER FOR VERTICAL MOUNTING OKHE 80, 100, 125, 160-SMART Družstevní závody Dražice - strojírna s.r.o. Dražice 69, 294 71 Benátky nad Jizerou tel.: +420 /326 370 990 Fax: +420 / 326 370 980 e-mail: prodej@dzd.cz... -
Page 2: Table Of Contents
CONTENTS TECHNICAL SPECIFICATION OF PRODUCT ....................5 FUNCTION DESCRIPTION ........................5 ADVICE FOR CUSTOMERS ........................6 1.2.1 HOT WATER CONSUMPTION ..................... 6 1.2.2 ENERGY SAVING ......................... 6 1.2.3 EMERGENCY POWER CONSUMPTION ..................6 DESIGN AND GENERAL HEATER DIMENSIONS ................... 8 1.3.1 DESCRIPTION OF BASIC PARTS OF THE HEATER ................ - Page 3 SETTING HDO (BULK REMOTE CONTROL) ..................20 CONTROLS DESCRIPTION ......................... 22 3.6.1 MODE CHANGE WITH CONTROLLER ..................22 3.6.2 BASIC DISPLAY ......................... 22 3.6.3 TEMPERATURE SETTING ......................22 3.6.4 TIME SETTING .......................... 22 3.6.5 FAILURE STATE ......................... 23 SOFTWARE FOR MOBILE DEVICES ......................23 4.1.1 BASIC DESIGN ..........................
- Page 4 CAREFULLY READ THIS MANUAL BEFORE INSTALLING OF THE WATER HEATER! Dear Customer, The Works Cooperative of Dražice - Machine Plant, Ltd., would like to thank you for your decision to use a product of our brand. With this guide, we will introduce you to the use, construction, maintenance and other information on electrical water heaters.
-
Page 5: Technical Specification Of Product
1 TECHNICAL SPECIFICATION OF PRODUCT 1.1 FUNCTION DESCRIPTION The heater is designed for accumulation hot water using electricity. Water is heated by an electric element in an enamelled thermally insulated tank. The unit is controlled by means of the control unit during heating period. -
Page 6: Advice For Customers
1.2 ADVICE FOR CUSTOMERS 1.2.1 HOT WATER CONSUMPTION Consumption of hot water in households depends on the number of people, amount of sanitary equipment, length, diameter and insulation of piping in the flat, or on individual habits of users. The cheapest option of water heating comes at the time when the electricity rate is reduced. - Page 7 OKHE 80- OKHE 100- OKHE 125- OKHE 160- MODEL SMART SMART SMART SMART NOMINAL CAPACITY [l] TIME OF WARMING CONTENT OF TEMPERATURE ∆T=50°C [hours] ELECTRICITY CONSUMPTION FOR WARMING CONTENTS FROM 15°C TO 65°C [kWh] TOTAL HEAT LOSSES [kWh/24h] 0,72 0,83 1,00 1,32 LOAD PROFILE...
-
Page 8: Design And General Heater Dimensions
1.3 DESIGN AND GENERAL HEATER DIMENSIONS The heater tank is made of a steel plate and tested by 0.9 MPa overpressure. The inside of the tank is enamelled. A flange is welded onto the bottom of the tank with a flange lid screwed to it. A sealing ring is inserted between the flange lid and the flange. -
Page 9: Heater Dimensions
1.3.2 HEATER DIMENSIONS Figure 2 OKHE 80 - OKHE 100- OKHE 125- OKHE 160- SMART SMART SMART SMART 1040 1237 1041 1223 1010 Table 3 - 9 -... -
Page 10: Operation And Fitting Instructions
2 OPERATION AND FITTING INSTRUCTIONS 2.1 OPERATING CONDITIONS The tank shall only be used in accordance with the conditions specified on the power plate and in instructions for electric wiring. Besides legally acknowledged national regulations and standards, also conditions for connection defined in local electric and water works have to be adhered to, as well as the installation and operation manual. -
Page 11: Plumbing Fixture
If the hot water heater is mounted in a tight, small space, or in an intermediate ceiling, etc., you have to make sure that the connecting side of the appliance (connections to water supply, area for electric plugging) remained accessible and no heat accumulation occurs. Free space of up to 500 mm from the bottom edge of the heater has to be available under the heater. -
Page 12: Electric Wiring
Required pressures - Table 4. We recommend that the hot water distribution from the heater was as short as possible to minimise heat losses. U - Closure Allowable Maximum operational P - Safety valve with Start-up pressure in the backflow valve overpressure pressure of the cold water... -
Page 13: Electronic Thermostat Connection Diagram
Ø10 Ø8 Ø8 Ø10 Figure 5 It is necessary to observe the below requirements during the electric wiring. Heater is connected to power supply 1 PEN AC 230V/50Hz via a fixed movable wire/wires (depending on the connection method). The circuit must contain a breaker disconnecting all poles of the network, and a circuit breaker (protector). -
Page 14: First Heater Commissioning
The terminals of L, N, PE (230V/50Hz) supply include factory connected flexible plug with length 2,5m connectable to the standardized plug EU. After the cover opening electrical wiring can be disconnected using flexible plug and connect the conductors into the cross-section up to 2.5 mm 2.5 FIRST HEATER COMMISSIONING Before opening the power supply, the tank must be filled with water. -
Page 15: Inspection, Maintenance & Care For The Appliance
Drainage of service water shall be performed after closing the shut-off valve in the cold water supply piping (through the discharge valve for safety valve combination), and with simultaneous opening of all hot water valves of connected fittings. Hot water may outflow during the drainage! If there is a risk of frost it has to be considered that not only the water in the hot water heater and in the hot water piping may get frozen but also the water in the entire cold water supply piping. -
Page 16: Operating Modes And Their Symbols
3.1 OPERATING MODES AND THEIR SYMBOLS Figure 7 - Round controller 3.1.1 SMART MODE In this mode the controller passes through two phases in order to save at least 10% of electric power, comparing to the MANUAL mode. In the first phase in one calendar week the constant temperature of the heater 65°C is maintained, and the control electronics monitors the user's behaviour in terms of water consumption. -
Page 17: Smart Hdo Mode
3.1.2 SMART HDO MODE The thermostat monitors the signal HDO and saves its weekly history. SMART HDO mode operates identical to SMART with the extension; based on saved history of HDO it assumes the high tariff periods when heating is not possible. It starts automatically heating the boiler in advance in order to have available required amount of hot water for the user consumption as recorded in the history of SMART mode consumptions. -
Page 18: Thermostat Control
3.2 THERMOSTAT CONTROL The heater control is possible by means of round controller clockwise and anticlockwise or by means of the application control on the device with Android and iOS (more info in chapter software for mobile devices). 3.2.1 LED DISPLAY The front side of the heater includes the four digit seven segment LED display, additionally to the heater. -
Page 19: The Display Modes On The Display
The controller central part includes the symbols below: Symbol Colour Brief description SMART white SMART mode indication MANUAL white MANUAL mode indication ECO stop indication (MANUAL mode with set OPTIMUM green temperature 55°C) PROG white PROG mode indication The light is on at the time of low tariff if the mode green is on HDO ANTI-FREEZE... -
Page 20: Setting Hdo (Bulk Remote Control)
3.5 SETTING HDO (BULK REMOTE CONTROL) Smart heater includes HDO receiver (bulk remote control). Correct function requires setting the HDO parameters by means of mobile application in the setting section. The setting parameters HDO are detailed in Table 7. To find out the presetting (A, B, DP (P)) and the frequency, it is necessary to open the main home cabinet (place with electricity meter and receiver of HDO signal), with specified code for the consumption location, ideally in the form of the presetting (A, B, DP (P)) + frequency. - Page 21 Another option is that the HDO receiver includes a different code, e.g. A85. This code must be entered in the electricity distributor web pages, where after entering and subsequent conformation, the code is A1B8DP5 displayed in required form. i.e. specifically in A85 and the supplier ČEZ , the code is displayed .
-
Page 22: Controls Description
3.6 CONTROLS DESCRIPTION 3.6.1 MODE CHANGE WITH CONTROLLER Setting the thermostat mode is performed by turning the controller. In case of turning clockwise and anticlockwise, the functions are gradually switched: ANTI-FREEZE, SMART, PROG, MANUAL. Each controller step changes the function to the next or changes temperature during mode MANUAL by 1°C. 3.6.2 BASIC DISPLAY In all modes during common operation the display contains the actual water temperature in the in the... -
Page 23: Failure State
3.6.5 FAILURE STATE In case of the defect detected by thermostat, the display shows the defect code: The error codes required by the client are specified in the table below. Failure code Status description Er01 Excessive wear of anode (anode voltage is lower than the limit) Er02 upper temperature sensor defect Er03... -
Page 24: Pairing Screen
Figure 10: Navigation panel 4.1.2 PAIRING SCREEN After the first application start or the device disconnection, the list with available heaters is displayed so the user can simply select the heater to be controlled by means of the application. The selected heater pairs with the mobile application by means of PIN code which is on the LED display of the boiler control panel (see chapter Bluetooth). -
Page 25: Program Section
Figure 11: Mode screen in width display 4.1.4 PROGRAM SECTION This section enables setting the mode „Program“ by means of two operating boiler temperatures and their assignment to individual hours in the week. Temperature symbolized with grey wheel represents the reduction and temperature symbolized with orange, red wheel represents higher heating. - Page 26 Figure 12: Setting the program mode Figure 13: Notification of the program mode - 26 -...
-
Page 27: Vacation Section
4.1.5 VACATION SECTION Section for setting the period when the heater is in mode „ANTI-FREEZE“. The displayed calendar in this case is used only for the vacation deadline visualisation, and it has no further function. Information on the ongoing vacation is visibly specified in the status information in the main signpost during the height mode, or on the left panel in the width mode. -
Page 28: Setting Section
Figure 15: Statistics screen 4.1.7 SETTING SECTION This section enables to additionally synchronize the boiler time, unless it was completed after starting the application, and it is possible to activate or deactivate the HDO function. It is possible to set the name of the connected boiler which is suitable in situation the user owns more SMART heaters and it is necessary to differentiate them simply. -
Page 29: Info And Tips
The application is designed for the servicing technicians and contains additional servicing settings which enable to configure the boiler volume or HDO parameters. Figure 17: Setting screen (HDO) 4.1.8 INFO AND TIPS The section contains information on SMART technology with the definition of the main functions and smart boiler modes. -
Page 30: Important Notices
5 IMPORTANT NOTICES 5.1 INSTALLATION REGULATIONS Without a confirmation of performed electrical installation issued by an authorised company, the warranty certificate shall be void. Check and exchange the Mg anode regularly. You have to apply for approval of a local power supplier to connect the heater. No stop valves can be put between the heater and the safety valve.
