CONTENTS PRODUCT TECHNICAL SPECIFICATION ....................... 4 FUNCTION DESCRIPTION ........................4 1.1.1 OPERATING ACTIVITY......................... 4 ADVICE FOR CUSTOMERS ........................4 1.2.1 HOT WATER CONSUMPTION ..................... 4 1.2.2 ENERGY SAVING ......................... 5 1.2.3 EMERGENCY POWER CONSUMPTION ..................5 DESIGN AND GENERAL HEATER DIMENSIONS ................... 5 OPERATION AND FITTING INSTRUCTIONS ....................
Page 3
CAREFULLY READ THIS MANUAL BEFORE INSTALLING THE WATER HEATER! Dear customer, The Works Cooperative of Dražice – Machine Plant, Ltd., would like to thank you for your decision to use a product of our brand. With this guide, we will introduce you to the use, construction, maintenance and other information on electrical water heaters.

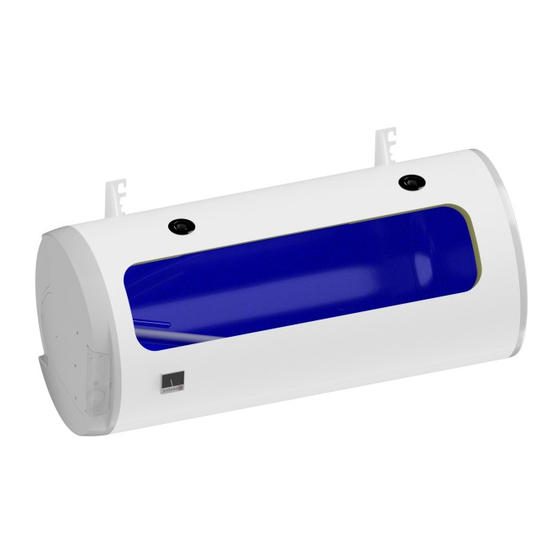

1 PRODUCT TECHNICAL SPECIFICATION 1.1 FUNCTION DESCRIPTION The heater is designed for accumulation heating of service water using electricity or thermal energy via an exchanger (for the combined design only). Water is heated by an electric element (or a heat exchanger) in an enamelled thermally insulated accumulator at the time defined by the power supplier.

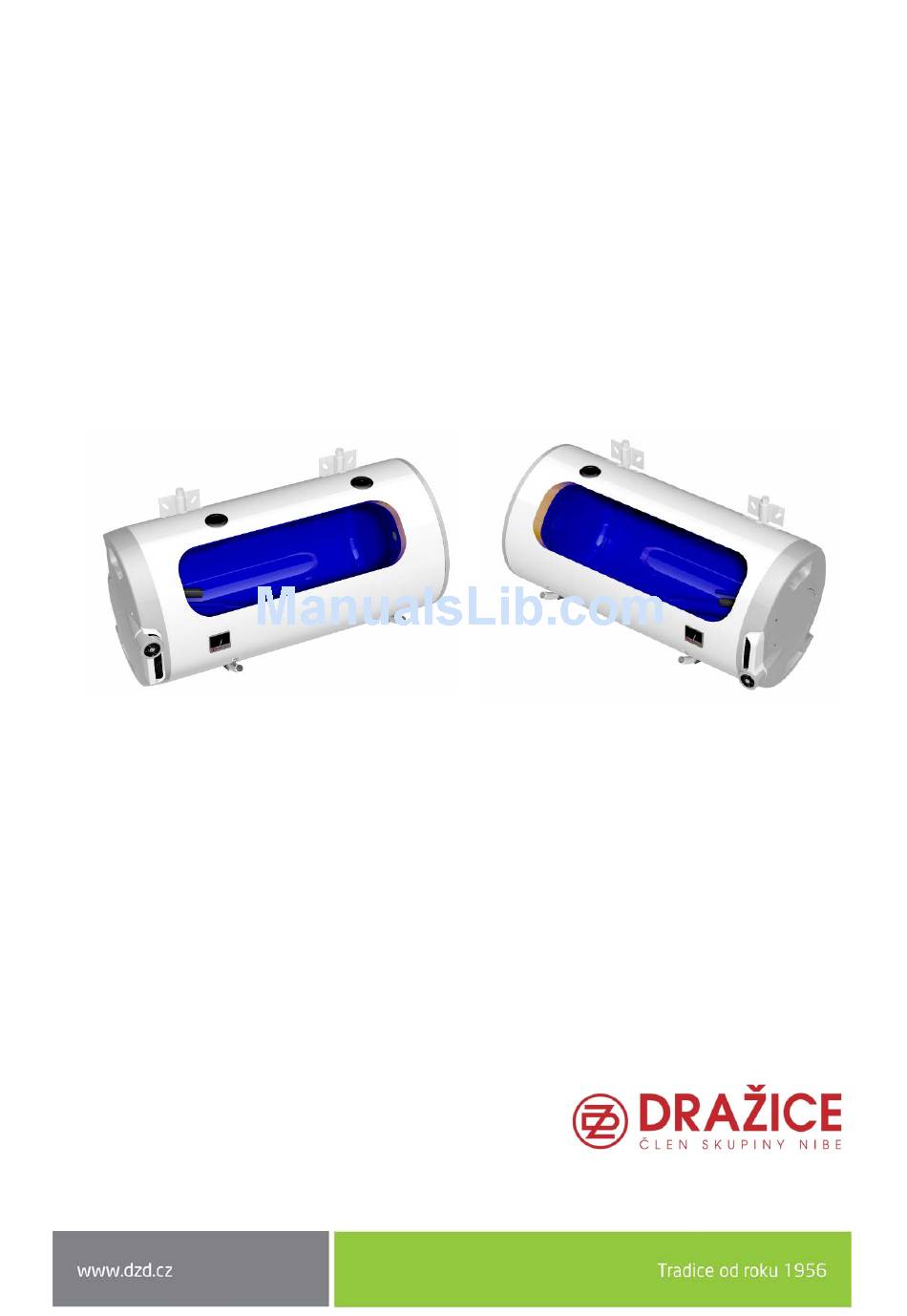

In combined versions, a heat exchanger is welded in the pressure tank. The heat exchanger is only intended for the heating circuit. Heater types OKCV 200 are produced in the right and left design.
Page 6
OKCV 200 TYPE OKCEV 200 VOLUME MAX OPERATING OVERPRESSURE IN THE TANK MAX OPERATING OVERPRESSURE IN THE EXCHANGER* ELECTRICAL CONNECTION 3 PE-N ~ 400 V/50Hz INPUT 4000 EL. PROTECTION IP 42 MAX WARM WATER TEMPERATURE °C RECOMMENDED WARM WATER °C...
2 OPERATION AND FITTING INSTRUCTIONS 2.1 OPERATING CONDITIONS The tank shall only be used in accordance with the conditions specified on the power plate and in instructions for electric wiring. Besides legally acknowledged national regulations and standards, also conditions for connection defined in local electric and water works have to be adhered to, as well as the installation and operation manual.
2.3 PLUMBING FIXTURE Connection of heaters to plumbing fixtures is illustrated on (Figure 4, Figure 5).For potential disconnection of the heater, the service water inlets and outlets must be provided with screw coupling Js 3/4“.The safety valve is mounted on the cold water inlet identified with a blue ring.
Page 11
Heaters must be provided with a discharge valve mounted on the cold service water inlet to the heater for potential disassembly or repair. OKCV 200 O – deaerating valve U – closing valve P1 – safety valve with backflow flap P2 –...
2.4 ELECTRICAL INSTALLATION 2.4.1 GENERAL INFORMATION FOR ELECTRICAL INSTALLATION • The electric wiring scheme is attached to the water heater on the side of the electric installation guard (Figure 6) • Connection, repairs, and wiring inspections may only be implemented by a company (person) authorised to such activity.
2.6 FIRST COMMISSIONING After connecting the heater to the water supply, the hot water heating system, the electric network, and after testing its safety valve (based on the valve manual attached), the heater may be put into operation. Before opening the power supply, the tank must be filled with water.
entire cold water supply piping. It is therefore advisable to drain all fittings and piping that carry water, up to the part where the house water meter is installed (connection of the house to water main) which is not jeopardised by frost. When the tank is to be used again, it has to be filled with water and one needs to make sure that the water flowing out at the hot water valves did not contain any bubbles.
2.9 MOST FREQUENT FUNCTION FAILURES AND THEIR CAUSES Other possible defects - Table 6 FAILURE SYMPTOM INDICATOR SOLUTION Water is cold • Light on • The temperature set on the thermostat is too low • Heating element failure Water is cold •...
3 OPERATION OF THERMOSTAT 3.1 SERVICING 3.1.1 OPERATING DEVICES OF THE HEATER Electrical installation cover for heaters OKC 200, OKC 200/1m Electric circuit closing indicator lamp Thermostat knob Tipping plastic guard Figure 9 3.1.2 TEMPERATURE SETTING Water temperature is set by turning the thermostat knob. The desired symbol is adjusted against the fixed mark on the control panel (Figure 10).
4 IMPORTANT NOTICES 4.1 INSTALLATION REGULATIONS Without a confirmation of performed electrical installation issued by an authorised company, the warranty certificate shall be void. Check and exchange the Mg anode regularly. You have to apply for approval of a local power supplier to connect the heater. No stop valves can be put between the heater and the safety valve.
4.2 ACCESSORIES AND SPARE PARTS The product is supplied with a safety valve, elements to be used for suspension of the heater on the wall, i.e. a bracket (bended stiffened tubes). The above parts are packed and placed in the packaging in the top part of the heater.
