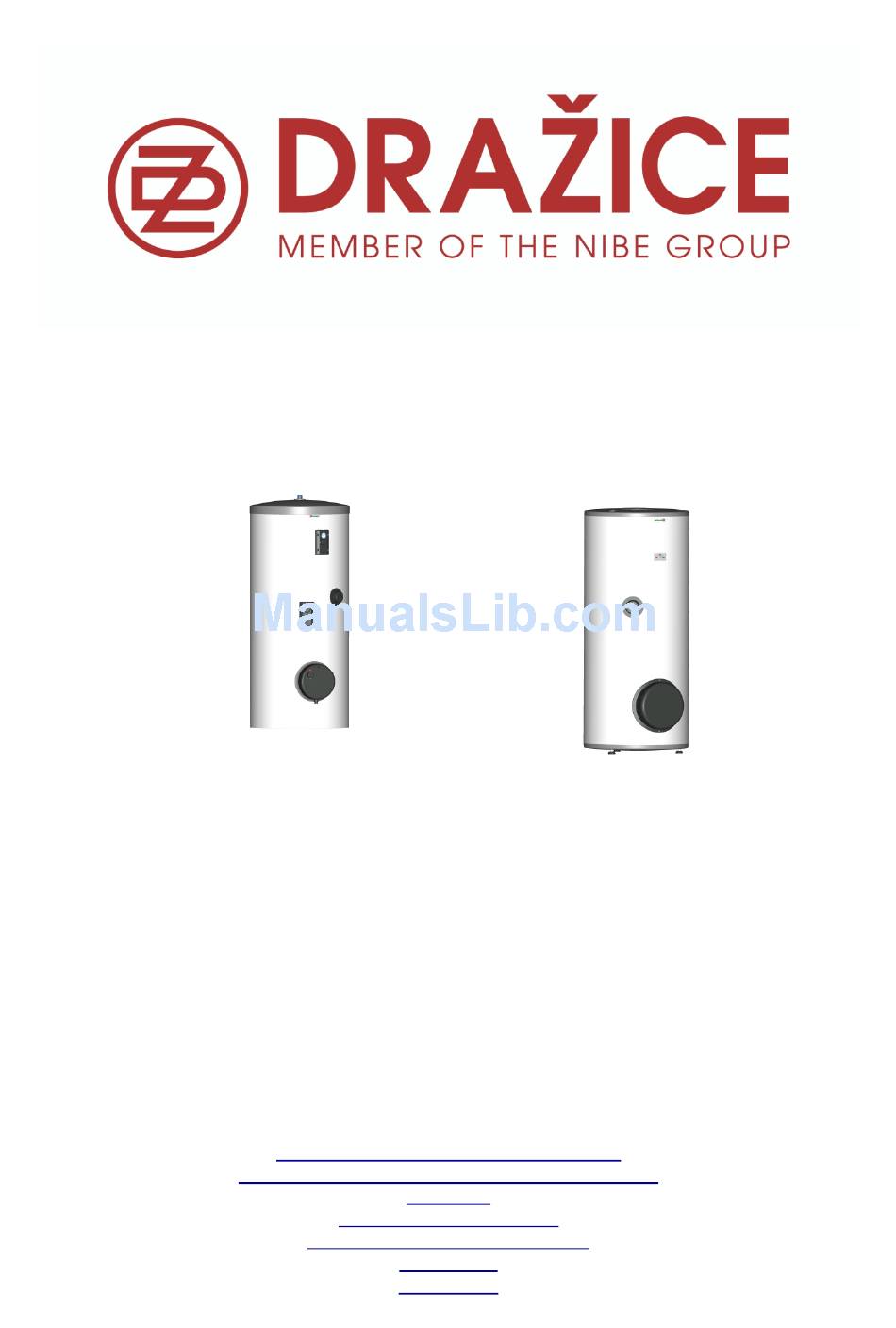

OPERATING AND INSTALLATION MANUAL

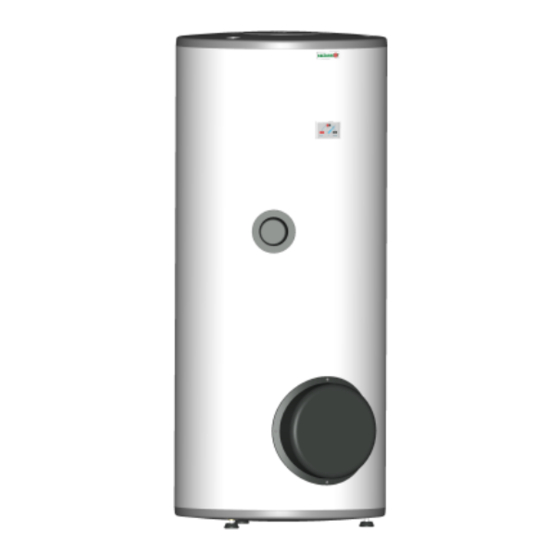

STATIONARY WATER HEATERS
OKCE 160 NTR
OKCE 200 NTR
OKCE 250 NTR
OKCE 300 NTR
OKCE 300 NTR
OKCE 200 NTRR
OKCE 250 NTRR
OKCE 300 NTRR /
OKCE 300 NTRR
Družstevní závody Dražice-strojírna s.r.o.
(Works Cooperative - Dražice – Machine Plant, Ltd.)
/ 2,2 kW
/ 2,2 kW
/ 2,2 kW
/ 2,2 kW
/ 3-6 kW
/ 2,2 kW
/ 2,2 kW
2,2 kW
/ 3-6 kW
Dražice 69
294 71 Benátky nad Jizerou
Tel.: 326 370 911, Fax: 326 370 980
www.dzd.cz
dzd@dzd.cz
OKC 160 NTR
/ BP
OKC 200 NTR
/ BP
OKC 250 NTR
BP
/
OKC 300 NTR
/ BP
OKC 200 NTRR
/ BP
OKC 250 NTRR
/ BP
OKC 300 NTRR
/ BP
Advertisement
Table of Contents
Related Manuals for Drazice OKCE 160 NTR / 2,2 kW
Summary of Contents for Drazice OKCE 160 NTR / 2,2 kW
- Page 1 OPERATING AND INSTALLATION MANUAL STATIONARY WATER HEATERS OKCE 160 NTR OKC 160 NTR / 2,2 kW / BP OKCE 200 NTR OKC 200 NTR / 2,2 kW / BP OKCE 250 NTR OKC 250 NTR / 2,2 kW OKCE 300 NTR OKC 300 NTR / 2,2 kW / BP...
-
Page 2: Table Of Contents
Read carefully the below instructions prior to the installation of the heater! Data sheet pursuant to Directive No 442/2004 Coll. and Annex No 7 Electricity Time of Energy consumption for Heat losses Nominal content Heat losses Heater types efficiency heating of volume ((Wh/24hr)/l) capacity (l) heating... -
Page 3: Product Description
PRODUCT DESCRIPTION The heater tank is welded from a steel sheet; the exchangers from a steel tube and, as a unit, it is entirely coated with hot water resistant enamel. For additional corrosion protection a magnesium anode is mounted in the upper part of the heater to adjust the electric potential inside the tank, reducing the risk of corrosion. -
Page 4: Technical Parameters
When heating service water heating by electric energy, turn on the electricity (for combined heaters, the heating water inlet to the heating insert must be closed); When heating the water with thermal energy from a hot water heating system, turn off the electricity and open the valves at the inlet and outlet of heating water or bleed the exchanger. - Page 5 OKCE 200 NTRR/2,2 kW, OKCE 250 NTRR/2,2 kW, OKC 200 NTRR/BP, OKC 250 NTRR/BP OKCE 200 NTRR/2,2 kW OKCE 250 NTRR/2,2 kW Type OKC 200 NTRR/BP OKC 250 NTRR/BP 1362 1542 1282 1465 1065 1002 1152 1335...
-
Page 6: Hsw (Hot Service Water) Temperature Control
OKCE 300 NTR/2,2 kW, OKCE 300 NTR/3-6 kW OKCE 300 NTRR/2,2 kW, OKCE 300 NTRR/3-6 kW OKC 300 NTR/BP OKC 300 NTRR/BP HSW (Hot Service Water) TEMPERATURE CONTROL HSW TEMPERATURE CONTROL for 300 litre heaters – the panel is a part of the heater Each heater has a separate HSW temperature control for every exchanger. - Page 7 b) HSW (Hot Service Water) TEMPERATURE CONTROL for heaters: OKCE 160 NTR/2,2 kW, OKCE 200 NTR/2,2 kW, OKCE 250 NTR/2,2 kW,OKC 160 NTR/BP, OKC 200 NTR/BP, OKC 250 NTR/BP OKCE 200 NTRR/2,2 kW, OKCE 250 NTRR/2,2 kW, OKC 200 NTRR/BP, OKC 250 NTRR/BP Each heater has a separate HSW temperature control for every exchanger.
-
Page 8: Technical Data Chart
TECHNICAL DATA CHART Type Capacity 80/77 95/92 106/103 106/103 116/112 116/122/111 150/155/148 Maximum weight of the heater Maximum operating pressure in the tank Maximum operating overpressure in the exchanger Maximum heating water temperature °C Maximum temperature of HSW (Hot Service Water) °C 1,45 1,45... -
Page 9: Pressure Losses
PRESSURE LOSSES EXAMPLES OF HEATERS CONNECTION Connecting a heater to a heating circuit The heater is placed on the ground, next to the heating source, or in its vicinity. The heating circuit is connected to marked inputs and outputs of the heater exchanger; the deaerating valve is mounted in the highest place. It is necessary to install a filter into the circuit in order to protect the pumps, the three-way valve, and backflow flaps, and the exchanger from sedimentation. -
Page 10: Electric Wiring
OKC 160-300 NTR OKC 200-300 NTRR heated by a gas boiler with two pumps nahřívaný plynovým kotlem a slunečními kolektory controlled by a three-way valve ELECTRIC WIRING OKCE 160 NTR/2,2 kW, OKCE 200 NTR/2,2 kW, OKCE 200 NTRR/2,2 kW, OKCE 250 NTR/2,2kW, OKCE 250 NTRR/2,2 kW, OKCE 300 NTR/2,2 kW, OKCE 300 NTRR/2,2 kW, OKCE 300 NTR/3-6 kW OKCE 300 NTRR/3-6 kW Water heaters are equipped with a universal electric heating unit with either set or adjustable heating element... - Page 11 switches off the electric circuit and thus discontinues water heating. The control light signals if the element is in operation (light is on) or if it is off (the light goes out). When putting the heater out of service for an extended period, in winter you can set the thermostat to the “snowflake”...
-
Page 12: Security Equipment
Heating unit 3-6 kW The 3-6 kW heating unit allows 4 universal types of connection based on either the required time of heating, or possibilities of electric network in the place of use. To achieve the chosen performance of the heating unit, connect the inlet conductor to the terminal board L1-L2-L3-N and interconnect the terminals on the terminal board 1 –... -
Page 13: Spare Parts
SPARE PARTS - Flange lid - flange lid seal - insulation flange lid - thermostat and thermal fuse - Magnesium anode - control button for the thermostat - control lights with wires - capillary thermometer - set of M12 (or M10) bolts When ordering spare parts, give part name, type, and type number from the heater label.
