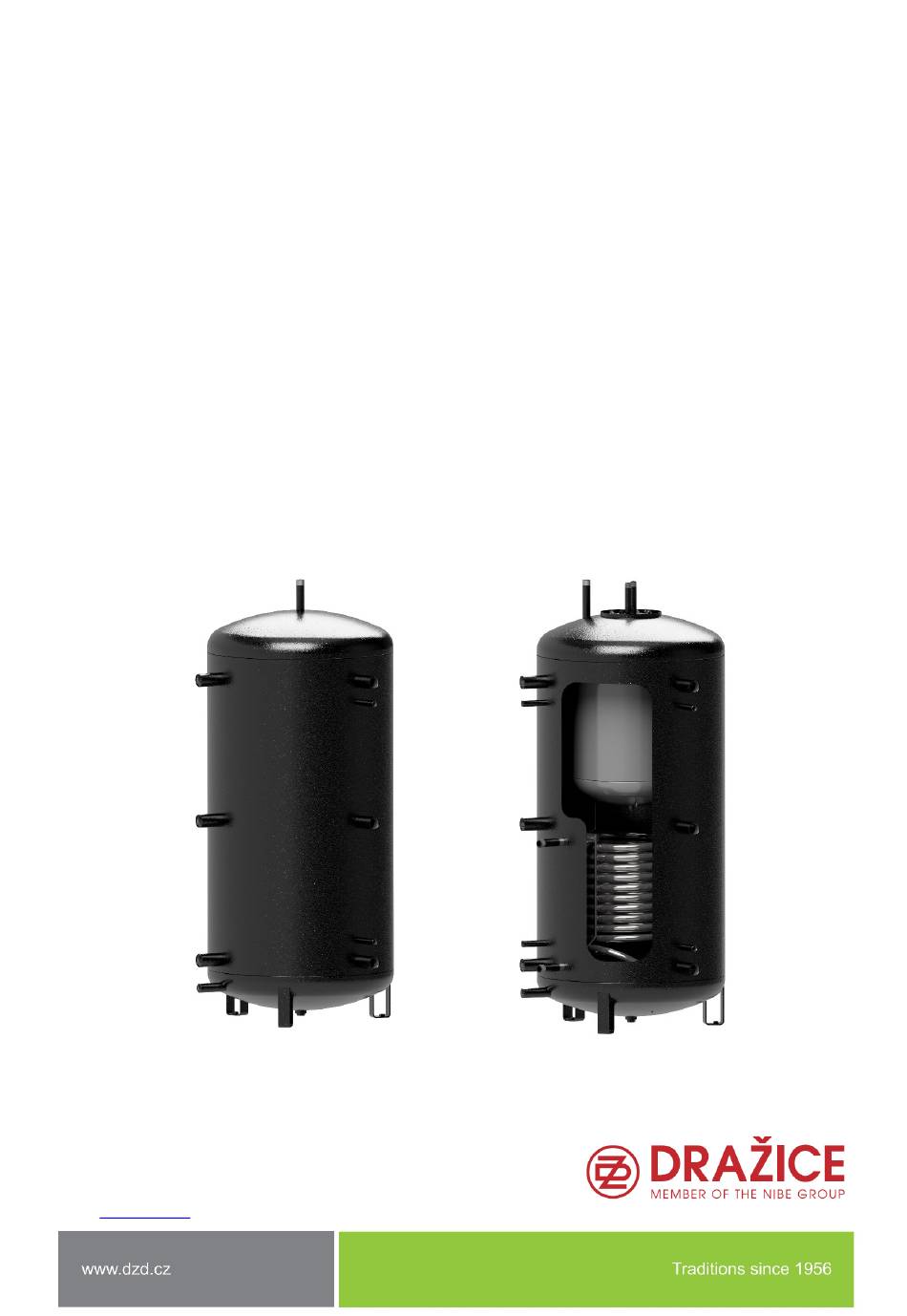

- Page 1 OPERATING AND INSTALLATION MANUAL STORAGE TANKS NADS 800 v3 NADS 900 v3 NADOS 800/140v1 NADOS 900/140v1 NADOS 800/140v2 NADOS 900/140v2 Družstevní závody Dražice-strojírna s.r.o. Dražice 69, 294 71 Benátky nad Jizerou tel.: +420 / 326 370 911 fax: +420 / 326 370 980 e-mail: export@dzd.cz...
-
Page 2: Table Of Contents
CONTENTS DESCRIPTION ............................. 4 DESIGNING THE SIZE AND CONNECTION OF STORAGE TANK ..............4 TECHNICAL PARAMETERS .......................... 5 TECHNICAL DESCRIPTION .......................... 6 DIMENSIONS AND CONNECTION ......................7 DISPOSAL OF PACKAGING MATERIAL AND NON-FUNCTIONING PRODUCT..........10 - 2 -... - Page 3 CAREFULLY READ THIS MANUAL BEFORE INSTALLING THE TANK! Dear Customer, The Družstevní závody Dražice - strojírna s.r.o. would like to thank you for your decision to use a product of our brand. The product is not intended to be controlled by a) people (including children) with reduced physical, sensual or mental capacities, or b) people with insufficient knowledge and experiences unless supervised by responsible person, or unless properly instructed by such responsible person.
-
Page 4: Description
1 DESCRIPTION Storage tanks are used to accumulate excess heat from its source. The source can be a solid fuel boiler, heat pump, solar collectors, fireplace insert, etc. The NADS tanks only serve to store heat in a heating system. The NADOS tanks also allow heating or preheating of DHW in the inner vessel. -
Page 5: Technical Parameters
We recommend to start up the heating circle before commissioning and to clean possible dirts caught in the filter and after this the system would be fully functional. 3 TECHNICAL PARAMETERS NADOS 800/140v1 NADOS 900/140v1 TYPY NADOS 800/140v2... -
Page 6: Technical Description
4 TECHNICAL DESCRIPTION NADOS 800,900/140v1 NADOS 800,900/140v2 NADS 800,900 Inlets and outlets of the storage tank, it is possible to mount a TJ body inner G 1 ½“ Inlet and outlet of the DHW tank outer G 3/4“ Outlet of accumulated hot water (venting) outer G 1“... -
Page 7: Dimensions And Connection
5 DIMENSIONS AND CONNECTION NADS 800 v3, NADS 900 v3 G 1 1/2" inner G 1/2" inner G 1" outer G 1" inner Figure 1 NADS 800 v3 1470 1380 1750 1880 1900 NADS 900 v3 1020 1795 1705... - Page 8 NADOS 800/140v1, NADOS 900/140v1 G 1 1/2" inner G 1/2" inner G 1" outer G 3/4" outer G 1" inner Figure 2 NADOS 800/140v1 1470 1380 1750 1880 1900 NADOS 900/140v1 1020 1795 1705 2075...
- Page 9 NADOS 800/140v2, NADOS 900/140v2 G 1 1/2" inner G 1/2" inner G 1" outer G 3/4" outer G 1" inner Figure 3 NADOS 800/140v2 1470 1380 1750 1880 1900 NADOS 900/140v2 1020 1795 1705 2075 2205 2220 Table 4...
-
Page 10: Disposal Of Packaging Material And Non-Functioning Product
Thermal insulation NEODUL LB PP Insulation NEODUL of 80 mm thickness. It consists of an upper cover, flange cover and hole caps. Insulation is supplied in a separate packaging. We recommend that the insulation was fitted at room temperature. At temperatures significantly below 20 °C the insulation shrinks.
