Retaining Rolls with 3 in (76 mm) Cardboard Core on the
Winding Axle
Note: Before mounting the winding axle read this section and Insertion of the
Prepared Winding Axle on page 8-34. Pay attention to the running of the media
in dependence to inside and outside wound label rolls.
Note: For rolls with 3 in (76 mm) cardboard core you have to mount the
winding adapter on the flanges and remove the spring from the winding axle
as described in Preparing the Winding Axle and the Flanges on page 8-30.

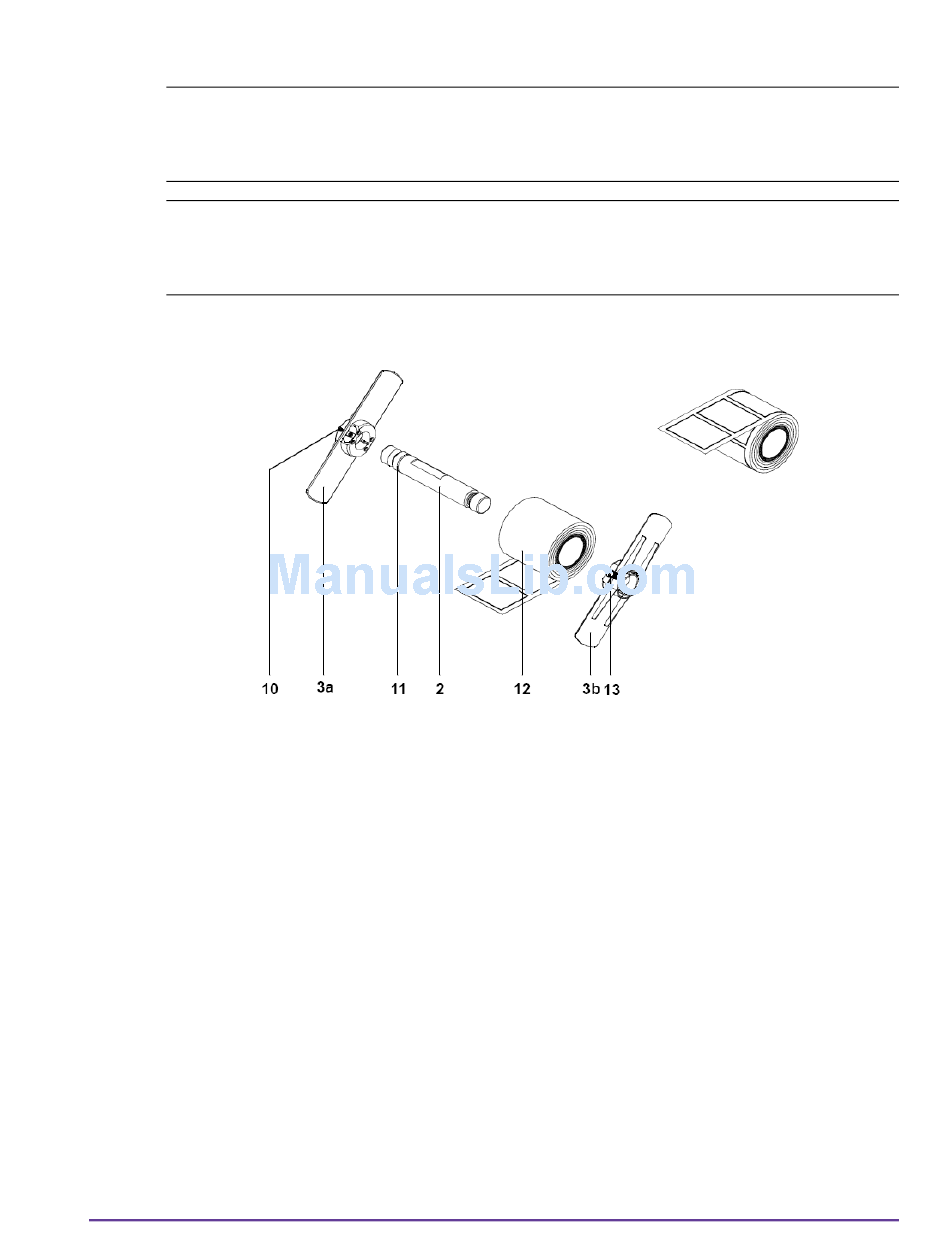

Mounting the winding axle
• Slide the flange (3a) on the winding axle (2) so that the attachment of the
flange points to the outside.
• Align the flange (3a) so that the screw (10) grasps into the groove (11) of
the winding axle (2). Tighten the screw (10) in the flange.
• Slide the material roll (12) onto the axle until it touches the flange slightly.
• Push the second flange (3b) with the attachment outside onto the axle
until it touches the material roll. The cardboard core of the material roll
has to be positioned on the winding adapters.
• Tighten the knurled screw (13) in the flange (3b).
Now you can mount the winding axle on the unwinder.
Pronto! 482/486/682/863 8-33
