Setting Emulation Mode

EasyCoder 4420 and 4440 Bar Code Label Printer User's Manual
Helvetica
Helvetica Condensed
3In the top bank of the Test and Service mode DIP switches, turn off
*
switch 1 and turn on switches 2 and 3.
To adjust the label rest point forward (feed more label), turn off DIP
switch 4.
To adjust the label rest point backward (retract label), turn on DIP
switch 4.

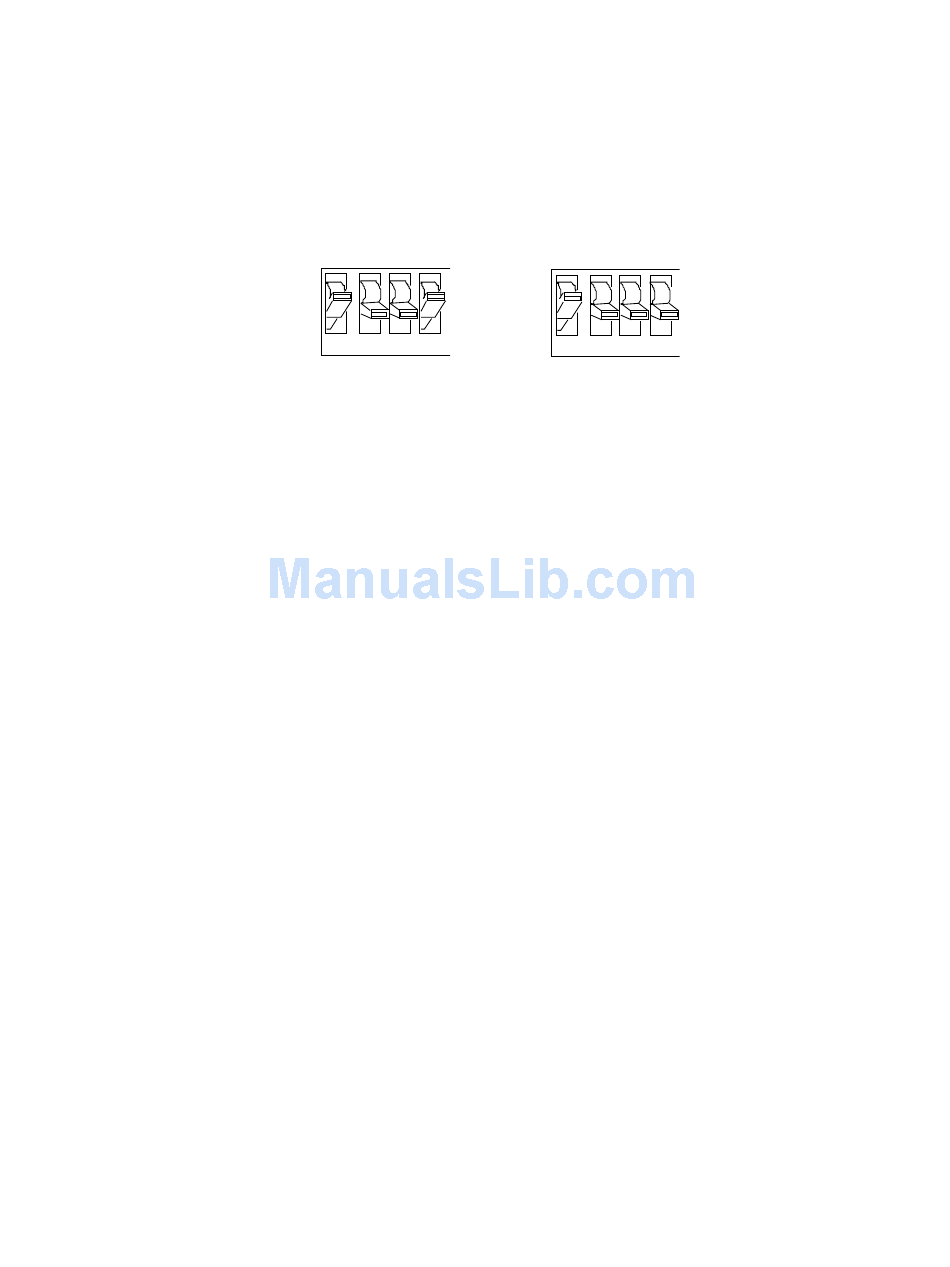

Top Bank
OFF
ON
1 2 3
Switch settings
for feeding
label forward
4 In the bottom bank of the Test and Service mode DIP switches, turn on
*
or off the appropriate DIP switches. See the Dot increments DIP switch
settings illustration earlier in this chapter.
*5 Press the Feed/Pause button.
The printer prints out the software configuration label and stops at the
new location.
*6 Verify that the Label Rest Point number on the software configuration
label matches the number you set in Step 4.
*7 Try printing again to see if you need to readjust the DIP switches in the
bottom bank.
*8 If you need to readjust the DIP switches in the bottom bank, repeat
Steps 4 through 6. If not, exit Test and Service mode by turning off the
printer, returning all DIP switches to their original settings, and turning
on the printer.
If you are replacing an Intermec 8636 or 8646 printer with a 4420 or
4440 printer, you can keep your existing network, hardware, software, and
label formats by using Emulation mode. The labels the 4420 or 4440
printer produces will look just like the labels that the 86XX printer prints.
There are three ways to set the printer to Emulation mode:
*• Use the DIP switches in the Test and Service DIP switch bank. For
help, see the following procedure.
*• Use PrintSet to select either 100 dpi (10 mil) or 66 dpi (15 mil) mode.
For help, see the PrintSet online help.
*• Use the IPL command set to select Emulation mode. For help, see the
IPL Programming Reference Manual
Chapter 6 — Using Test and Service Mode
Top Bank
OFF
ON
4 1 2
Switch settings
for retracting label
44XXU064.eps
.
3 4
