Chapter 1 — Getting Started
10
C d 39
➤
Head lift
*lever Edge
guide Lower
media
guide Supply
roll
post
4Place the fanfold media slightly lower than the slot in the printer back
*
cover. Align the fanfold media with the label path through the printer.
Insert media through the slot at the rear of the printer and thread it over
the supply roll post.
*5 Unscrew the edge guide and slide it to the outer edge of the lower media
guide. Screw it in place.
*6 Pull down on the lower media guide to allow easy access to the media
path.

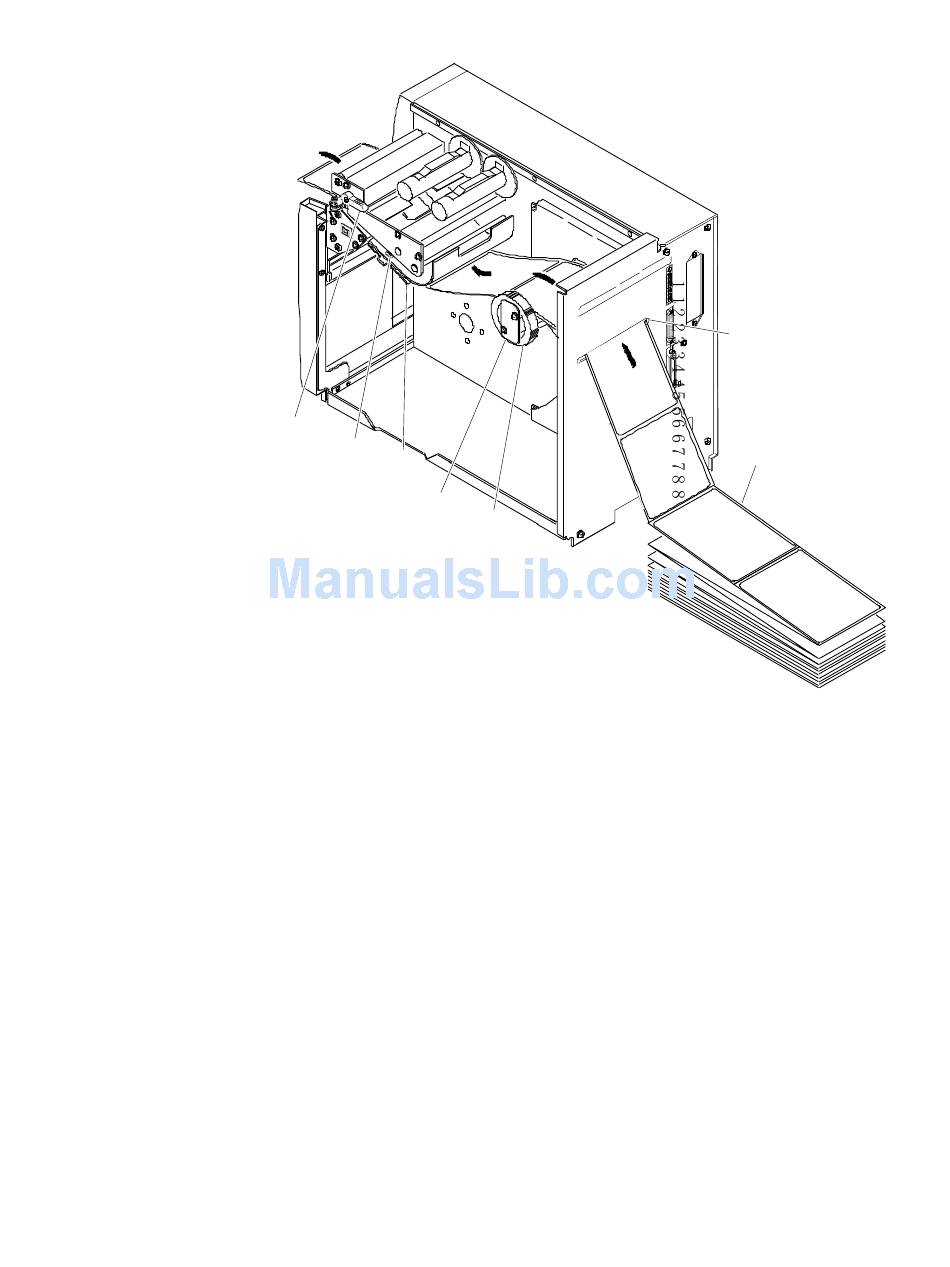

*7 Insert the fanfold media through the printer mechanism as shown in the
previous illustration. The fanfold media passes over the supply roll post
and out the front opening of the printer.
*8 Release the lower media guide and adjust the edge guide to position the
media firmly against the inside wall of the printer.
*9 Slide the supply roll retainer up to the edge of the fanfold media and
turn the supply roll retainer clockwise until it locks firmly in place. This
action secures the media against the inside wall of the printer.
*10 Rotate the head lift lever counterclockwise until it locks to engage the
printhead.
