Intermec EasyCoder 4420 User Manual page 68

EasyCoder 4420 and 4440 Bar Code Label Printer User's Manual
1Remove the media cover.
*
Note: Do not raise the printhead while adjusting the TOF position.

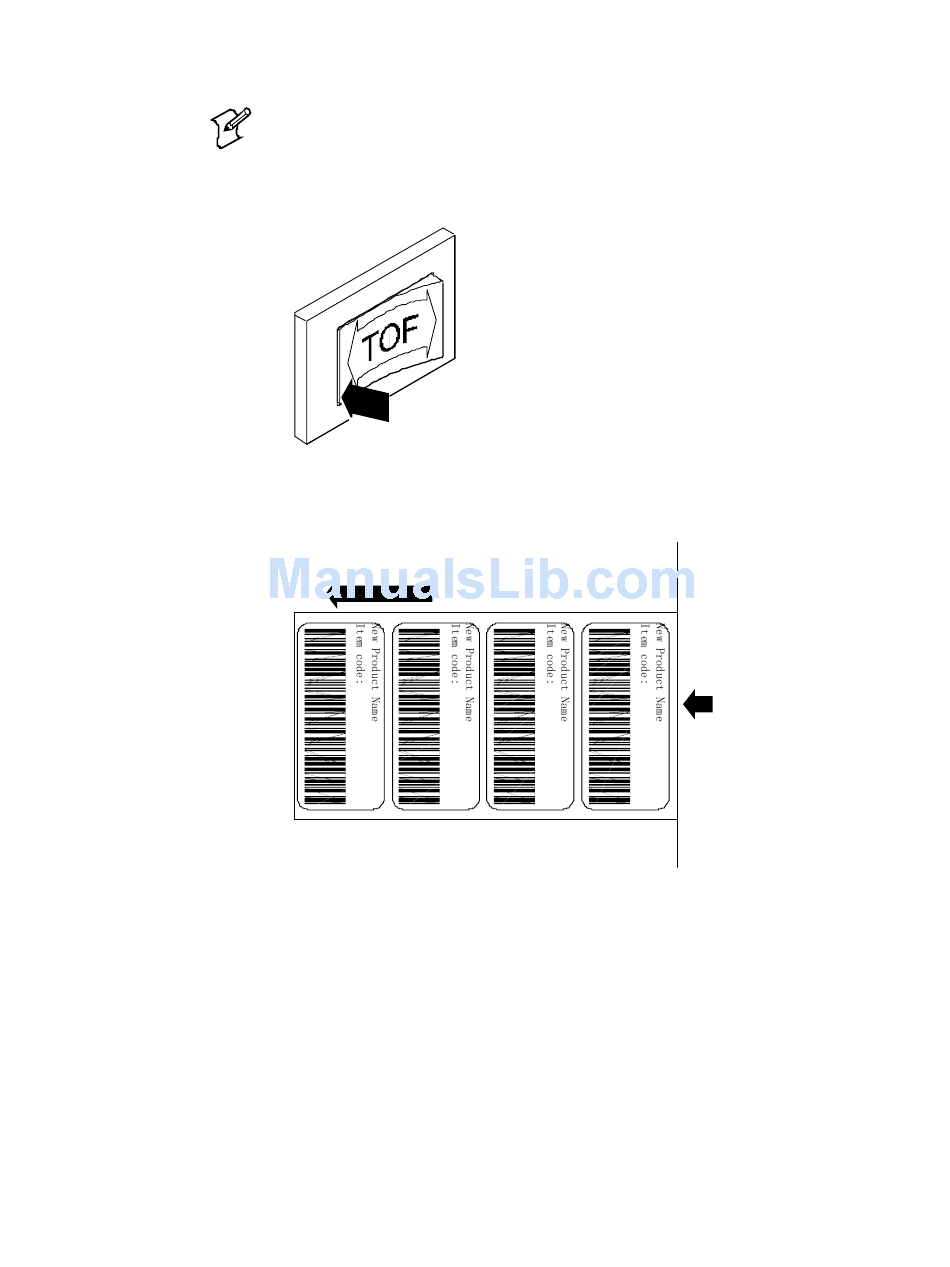

2Press on the back part of the TOF switch. Each time you press the TOF
*
switch, you move the label format backward 0.127 mm (0.005 in).
44XXU059.eps
3 Press the TOF switch repeatedly until the format moves backward to
*
the correct position on the label.
Label direction from printer
Chapter 5 — Optimizing Printer Performance
44XXU056.eps
53
