Chapter 3 — Maintaining the Printer

Cleaning the Media Guides and Media Path

36
C d
6Clean both sides of the tear bar with a cloth dampened with isopropyl
*
alcohol. Remove all traces of dust, paper, and adhesive.
*7 Replace the media and ribbon.
*8 Engage the printhead by turning the head lift lever counterclockwise
until the printhead locks.
*9 If you are finished cleaning, replace the media cover.
You should clean the media guides and media path regularly to keep debris
off the media surface and printhead where irregularities can spoil print
quality or damage the printhead. Cleaning the guides also prevents the
media from skewing or improperly tracking as it travels through the media
path, which can result in smeared images and print off the side of the label.
Always clean the media guides immediately after a label jam in the printer.
To clean the media guides and media path
1Turn off the printer and remove the power cord.
*
*2 Remove the media cover.
*3 Remove the media and ribbon (if necessary).

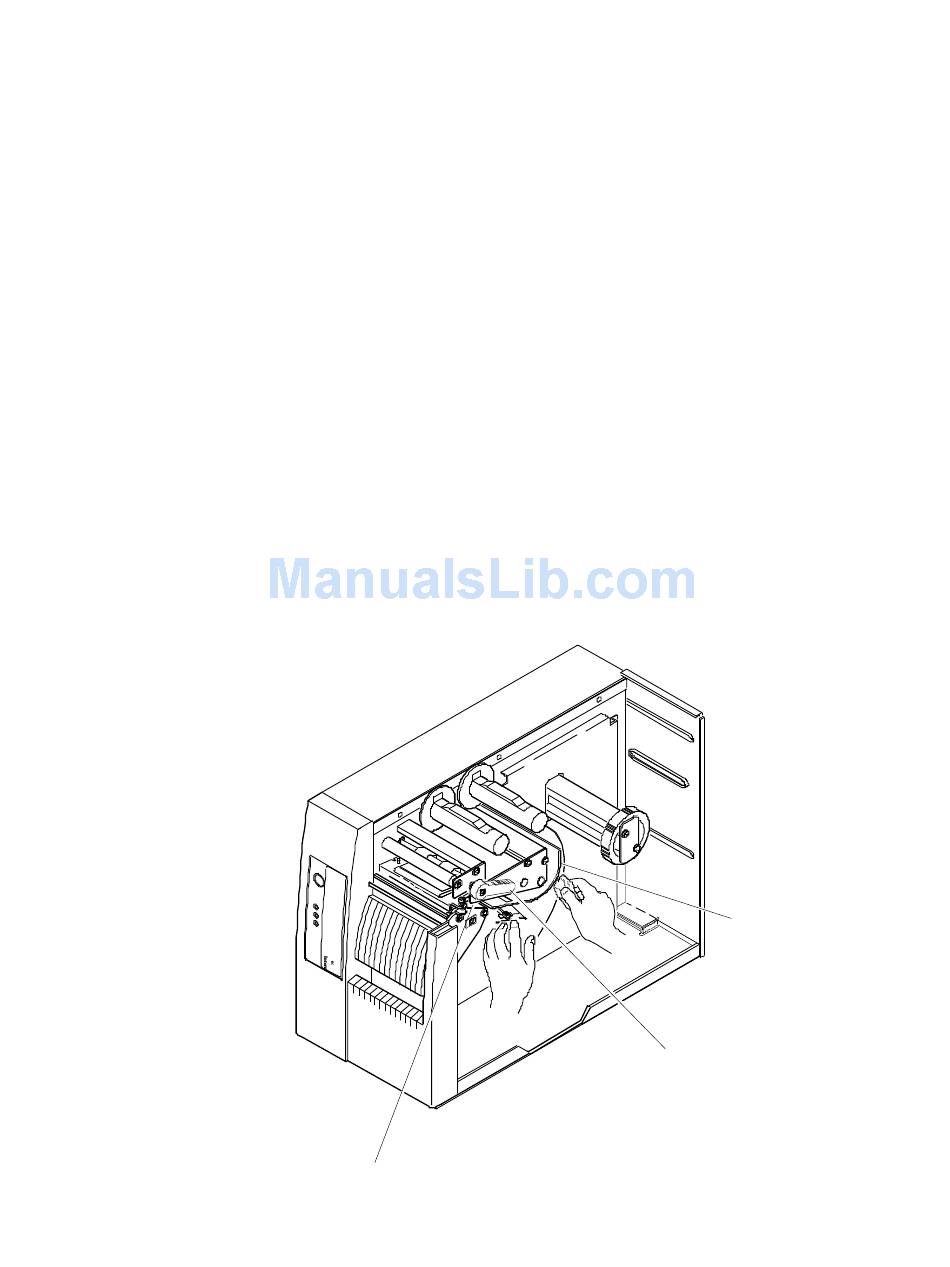

*4 Pull down on the lower media guide to open up the media path.
Feed/Paus e
Powe
r /D
at a
Aler t
Empty/P aus e
Media
path
EasyCoder 4420 and 4440 Bar Code Label Printer User's Manual
39
Helvetica Condensed
Lower
media
guide
44XXU039.eps
Upper media
guide
