EasyCoder 4420 and 4440 Bar Code Label Printer User's Manual
C d 39

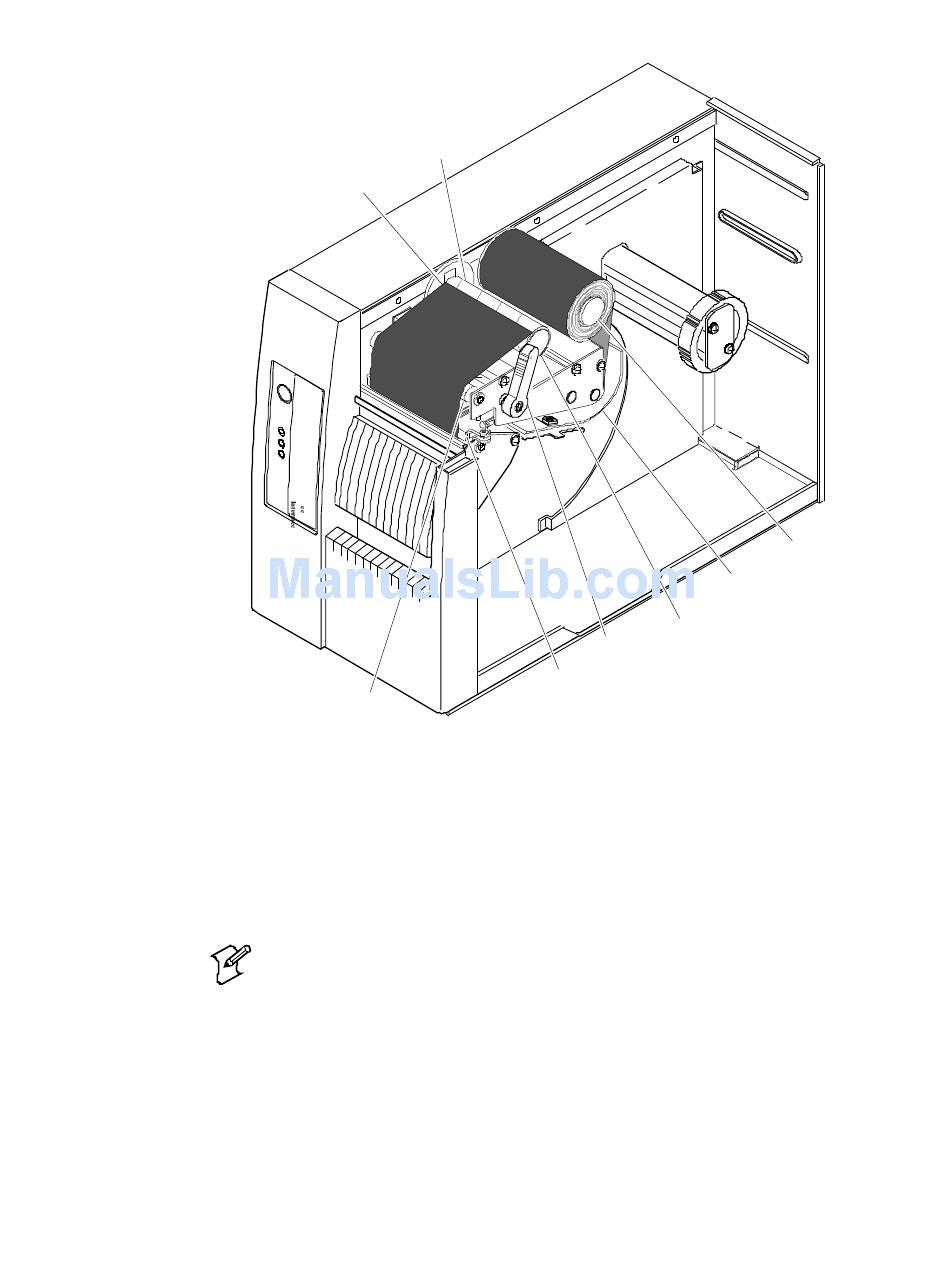

Empty ribbon
roll
Thermal transfer
ribbon
Feed/Pause
Power/
Data
Ale
rt
Empty
/Pause
TTR assist
roller
8 Engage the printhead by rotating the head lift lever counterclockwise
*
until it locks.
*9 Enable thermal transfer printing by setting DIP switch 8 on the bottom
bank of switches to the on position. Refer to "Configuring the Serial
Port for Communications" in Chapter 2 for DIP switch settings.
*10 Press the Feed/Pause button to advance the ribbon through the printer.
The printer is now ready to print the hardware configuration test label.
Note: When replacing the thermal transfer ribbon roll in the future, use
the empty ribbon supply core as the new rewinder core.
Chapter 1 — Getting Started
Helvetica Condense
Head
lift lever
Printhead
Ribbon supply
hub
Upper media
guide
Ribbon rewind
hub
44XXU028.eps
13
