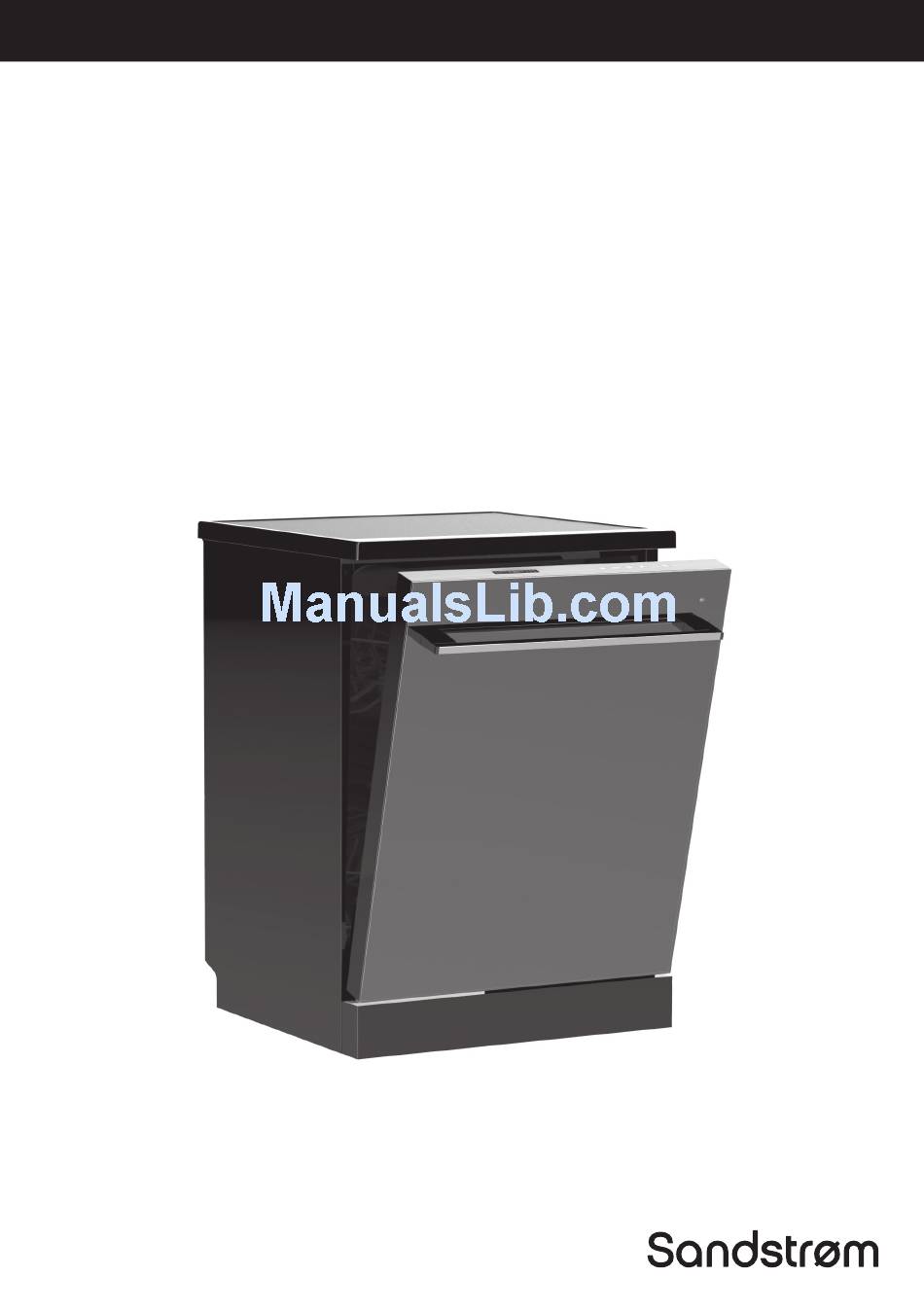

- Page 1 Instruction Manual Dishwasher SDW60GW13 / SDW60GB13...
-
Page 3: Table Of Contents
Contents Safety Warnings ......................... 5 Unpacking ..........................8 Installation ..........................9 Location .................................. 9 Product Overview ........................12 Front View ................................12 Upper Basket Use ..............................12 Internal View................................12 Rear View ................................12 Lower Basket Use ...............................12 Control Panel ...............................13 LED Display ................................13 Before Operating ........................14 To Open the Door ..............................14 To Close the Door ..............................14 Items Not Suitable for Use in the Dishwasher ..................14... - Page 4 Cleaning After Use ........................28 External Care ...............................28 Internal Care ................................28 Frost Precaution ........................30 Moving the Dishwasher ......................30 Maintenance After a Prolonged Period of Non-Operation ..........31 Hints and Tips ..........................32 Technical Problems ............................32 Disposal of the Dishwasher ....................34 Disposal of Packing Material ....................34 Specifications ...........................35...
-
Page 5: Safety Warnings
Safety Warnings • For your continued safety and • Keep children away from to reduce the risk of injury or detergents and rinse aids. These electric shock, please follow all may cause chemical burns in the safety precautions listed the mouth, throat and eyes or below. - Page 6 WARNING • Do not allow plastic items to come into contact with heating IT IS HAZARDOUS FOR element. ANYONE OTHER THAN • Check that the detergent AUTHORISED SERVICE PERSONNEL TO CARRY OUT receptacle is empty after completion of the wash cycle. SERVICING OF REPAIRS WHICH INVOLVE THE • Do not wash plastic items unless...
- Page 7 Earthing Instructions WARNING: THIS APPLIANCE MUST BE EARTHED. • This appliance is equipped with a mains cable having an equipment-earthing conductor and an earthing plug. • The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with local standards and requirements.
-
Page 8: Unpacking
Unpacking Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations. The following items are included: The Main Unit Salt Funnel Water Supply Hose Condensation Strip (Cold water only) U-shape Hose Holder Measuring Cup Detergent Measuring... -
Page 9: Installation
Installation INSTALLATION Location When selecting a position for your dishwasher you should make sure the installation surface is flat and firm, and the room is well ventilated. Avoid locating your dishwasher near a heat source, e.g. cooker, boiler or radiator. Extreme cold ambient temperatures may also cause the appliance not to perform properly. - Page 10 INSTALLATION 1. Make sure your plumbing is suitable Water mains for use with the dishwasher. If in doubt contact a qualified plumber. This unit MUST BE connected to COLD WATER Y-Adaptor MAINS using the new water inlet hose. (not included) OLD HOSE SETS MUST NOT BE RE-USED.
- Page 11 INSTALLATION • Do not bend your drain hose. • You may use the U-shaped drain hose holder to secure your drain hose and to avoid bending it. U-shaped drain hose holder water drain hose • Secure the water drain hose to the waste pipe to avoid it coming off during the washing process.
-
Page 12: Product Overview
Product Overview Front View Rear View Control Panel Door Handle Water Inlet (connect to supply hose) Drain Hose Mains Cable Upper Basket Use Lower Basket Use Cup Racks Spikes Internal View Cutlery Basket Spray Arms Upper Basket Salt Reservoir Filtering System Lower Basket Dispenser... -
Page 13: Control Panel
Control Panel AUTO 1. LED Display Delay Start Button Displays time, programme, salt and rinse • Press repeatedly to preset the delay aid information. timer and delay the start time by up to 24 hours. 2. Alt Button • Each press of this button increases the Press to select the half load washing cycle. -
Page 14: Before Operating
Before Operating To Open the Door • First open the door slightly to avoid water spillage. • Pull the door handle. If the door is opened during operation all functions are automatically interrupted. To Close the Door • After loading the dishes, push the baskets fully into the dishwasher. • Lift the door upwards and push until it clicks into position. -
Page 15: Adding Detergent Powder Or Tablet
Adding Detergent Powder or Tablet Only use detergents specifically designed for use in dishwashers. To be more environmentally friendly, please use no more than the correct amount of detergent. Fill the detergent dispenser with detergent power or tablet. See the detergent manufacturers instructions for the correct amount to use. -
Page 16: Adding Rinse Aid
Adding Rinse Aid Rinse aid helps to ensure water does not cling and leave marks on crockery during the drying phase and helps crockery dry faster after it has been washed. Only pour rinse aid that is for domestic dishwashers into the reservoir. This model is designed to use liquid rinse aids only. Please follow the steps below to pour the rinse aid into the storage reservoir, and the amount will dispense automatically. -
Page 17: Adding Salt
Adding Salt If the water in your area is hard, deposits will form on your dishes and utensils. As such, this appliance contains a salt reservoir for you to reduce the hardness of the water. Please follow the steps below to pour the salt into the salt reservoir and to correspond to the water hardness level in your area. -
Page 18: Adjusting Salt Consumption
Adjusting Salt Consumption Salt consumption must be adjusted to correspond to the water hardness level in your area. If you don’t know how hard the water in your home is, please ask the company that supplies water in your area. It is recommended that adjustments should be made in accordance with the following chart. -
Page 19: Loading The Dishwasher
Loading the Dishwasher Before Loading the Dishwasher In general, please observe the following notes before loading your cutlery and crockery in the basket. • Remove lipstick stains and any food residues from crockery and dishes. Rinse if necessary. • Dishes and cutlery must not lay inside one another, or cover each other. • Load your cutlery and crockery so that water can access all surfaces. -
Page 20: Upper Basket
Upper Basket We recommend using the upper basket for small and lightweight items such as cups saucers, glasses, dessert bowls, etc. Shallow pans or casserole dishes can also be placed in the dishwasher basket. Long items such as soup ladles, mixing spoons and long knives should be placed lying down in the middle of the cutlery basket. -
Page 21: Lower Basket
Loading the Upper Basket for 14 Place Settings For optimum placement of crockery in the upper basket, please refer to the follow list and the accompanying image. Number Item Cups Saucers Glasses Large Serving Bowls To prevent water dripping from the upper basket onto the dishes in the lower basket, we recommend that you empty the lower basket first and then the upper basket. -
Page 22: Cutlery Basket
Loading the Lower Basket for 14 Place Settings For optimum placement of crockery in the lower basket, please refer to the following list and image. Number Item Saucers Small Serving Bowls Medium Serving Bowls Dessert Dishes Dinner Plates Soup Plates Oval Platter Cutlery Basket To make unloading much easier, the cutlery should be grouped in zones and placed in the... - Page 23 Method 1 Raise Right Tray to Slant towards Centre 1. Lift right-hand side tray up. 2. You will feel it click into place. Method 2 Raise Both Trays to Slant towards Centre 1. Lift right tray. 2. Lift left tray. 3.
-
Page 24: Wash Cycle Table
Wash Cycle Table Running Energy Water Cycle Selection Detergent Rinse Programme Process Time Consumption Consumption Information Amount (min.) (Kwh) Autowash Auto sensing wash, • Pre-wash (45°C) • Pre-wash 120- 0.9-1.3 8.4-12.7 lightly normally or • Autowash (5g) heavily soiled crockery, (45-55°C) • Main wash with or without dried-on... -
Page 25: Starting A Wash Cycle
• Express function is available only for intensive, normal, economy, or glass washing cycle. • Extra drying function is available only for intensive, normal, economy, glass, or 1 hour washing cycle. • If you choose to use detergent tablet in these washing cycles, please do not add rinse aid. Condensing dry technology • Energy is saved by drying the dishes using the remaining heat after the last rinse cycle. -
Page 26: Changing A Programme
Do not leave the appliance unattended with the door fully open as this could present a trip hazard. LED Indicator Table LED Colour Action Description Blue Blinking • Wash programme in progress. Blue Solid • Wash programme paused. White (for SDW60GW13) Solid (with 3 beeps) • Wash programme is finished. Green (for SDW60GB13) -
Page 27: Switching Off The Unit
Switching Off the Unit To save energy, remember to switch the dishwasher off using the On/Off button. The dishwasher will continue to use electricity until it is switched off with the On/Off button. If the dishwasher is not going to be used for a long period of time, e.g. whilst on holiday, disconnect the unit from the mains supply and the water tap. -
Page 28: Cleaning After Use
Cleaning After Use External Care The Door and the Door Seal Clean the door seals regularly with a soft damp cloth to remove food deposits. When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door. - Page 29 2. Turn the coarse filter and gently lift it out. OP EN 3. Gently lift out the filter, separate its parts and clean under running water. 4. Rinse all the filters under running water, including the filter cylinder, and then refit all filters in the reverse order.
-
Page 30: Frost Precaution
Spray Arms Particles of food can get stuck in the spray arm jets and bearings. The spray arms should therefore be checked and cleaned regularly. 1. Switch off the unit. 2. Remove the middle spray arm by holding the middle joint firmly. Turn the spray arms to remove. -
Page 31: Maintenance After A Prolonged Period Of Non-Operation
Maintenance After a Prolonged Period of Non-Operation If you are not going to use the unit for a prolonged period of time, you are advised to: 1. Run a wash cycle with the dishwasher empty. 2. Disconnect the dishwasher from the mains socket. 3. -
Page 32: Hints And Tips
Hints and Tips • Repairs should only be carried out by a qualified technician in strict accordance with current local and national safety regulations. Unauthorised or incorrect repairs could cause personal injury or damage to the unit. • Before calling for service, please refer to the section Hints and Tips to solve some general problems by yourself. - Page 33 General Problems Problem Possible Causes Remedy Knocking noise in the A spray arm is knocking Interrupt the programme, and wash cabinet. against an item in a basket. rearrange the items which are obstructing the spray arm. See the section Loading the Dishwasher. Smearing appears on The rinse aid dosage is set Adjust the dial of the rinse aid...
-
Page 34: Disposal Of The Dishwasher
Disposal of the Dishwasher • When disposing of your old dishwasher, first make it unusable. Disconnect from the electricity and water supplies, cut off the cable and the plug from the mains cable. Make the door lock inoperative, so that children cannot accidentally shut themselves in. Make appropriate arrangements for the disposal of the dishwasher. -
Page 35: Specifications
Specifications Model SDW60GW13/SDW60GB13 With the door closed: 598 mm(W) x 600 mm(D) x 845 mm(H) Dimensions (no door handle) With the door opened: 598 mm(W) x 1175 mm(D) x 845 mm(H) Capacity 14 Place Settings Water Pressure Required 0.04 - 1.00MPa... - Page 36 Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only) Calls charged at National Rate. This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste.
