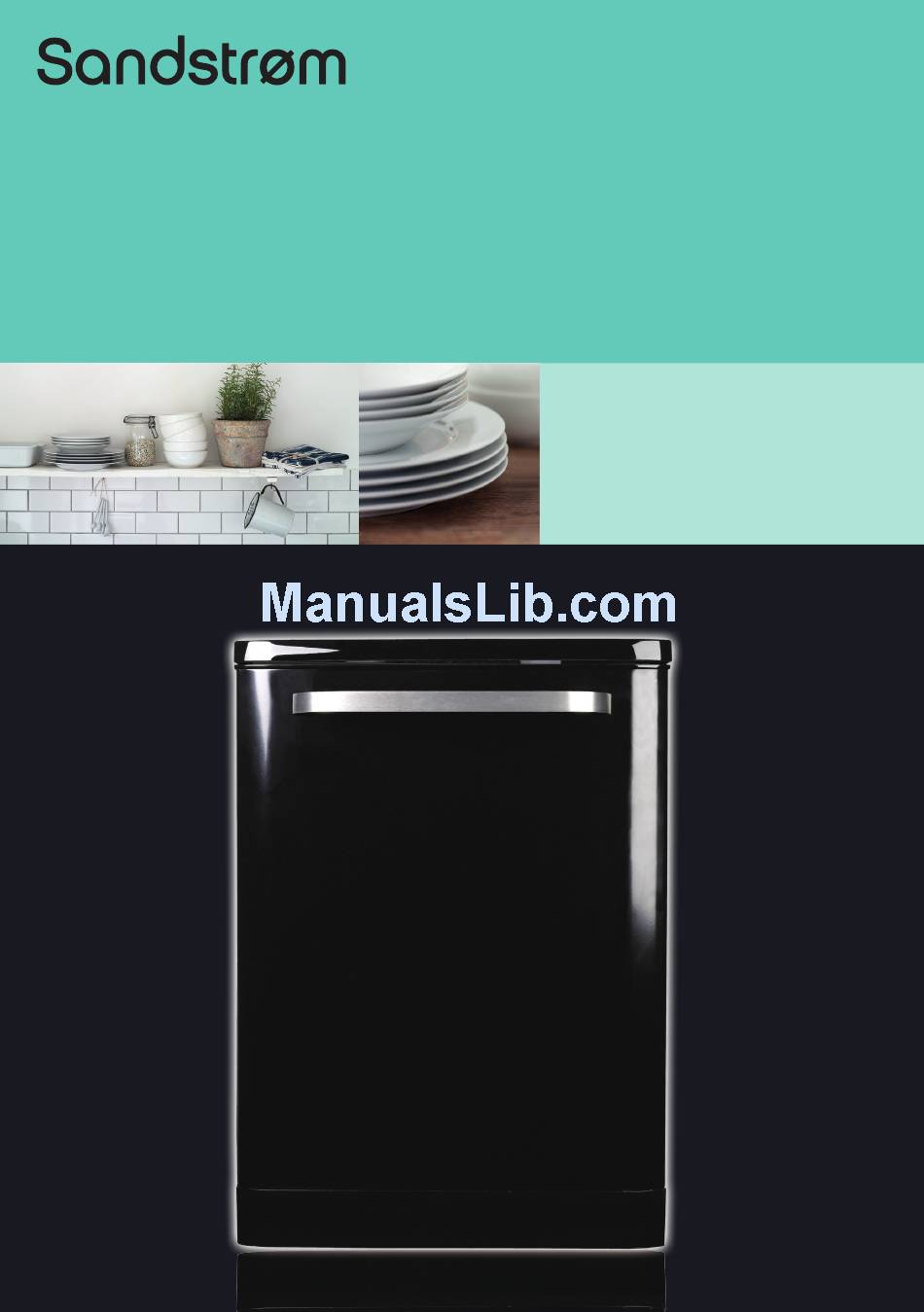

- Page 1 Instruction Manual Freestanding Dishwasher SDW60B12...
-
Page 3: Table Of Contents
Contents Unpacking ............................. 5 Installation ............................ 6 Location ..................................6 Product Overview ........................10 Internal View................................10 Rear View .................................. 10 Control Panel Overview ......................11 Before Operating ........................12 To Open the Door ..............................12 To Close the Door ..............................12 Adding the Detergent Powder and Tablet .................... - Page 4 Maintenance For Prolonged Period of Non-Operation ............25 Moving the Dishwasher ......................25 Helpful Tips and Guide ....................... 26 Fault Code ................................26 Technical Problems ............................... 27 Disposal of Dishwasher ......................28 Disposal of Packing Material ..................... 28 Specifications ..........................29 Safety Warnings ..........................
-
Page 5: Unpacking
Thank you for purchasing your new Sandstrøm Freestanding Dishwasher. You must spend some time reading this installation/instruction manual in order to fully understand how to install and operate it. Read all the safety instructions carefully before use and keep this installation/instruction manual for future reference. -
Page 6: Installation
Installation INSTALLATION Location When selecting a position for your freestanding dishwasher you should make sure the installation surface is flat and firm, and the room is well ventilated. Avoid locating your dishwasher near a heat source, eg. cooker, boiler or radiator. Extreme cold ambient temperatures may also cause the appliance not to perform properly. - Page 7 INSTALLATION 3. Do not connect the unit to the mains before installation. Ensure you are not installing the unit right in front of the mains socket. This is to avoid potential damage to the back of the unit and to allow disconnection from the supply mains.
- Page 8 INSTALLATION 5. Make sure your plumbing is suitable for use with the dishwasher. If in doubt contact water mains a qualified plumber. This unit MUST BE connected to COLD WATER MAINS using the Y-Adaptor new water inlet hose. OLD HOSE SETS MUST (not included) NOT BE RE-USED.
- Page 9 INSTALLATION • You may use a U-shaped drain hose holder (not included) to secure your drain hose and to avoid kinking it. holder • Secure the water drain hose to the waste pipe to avoid it coming off during the washing process.
-
Page 10: Product Overview
Product Overview Internal View Cup Rack Upper Basket Upper Spray Arms Active Drying Unit Lower Basket Lower Spray Arms Salt Reservoir Filtering System Rinse Aid Detergent Reservoir Dispenser Rear View Dra n Outlet Dra n Hose Ma ns Cable Water Inlet * images are for indication only;... -
Page 11: Control Panel Overview
Control Panel Overview On/Off Mode Button • To turn the dishwasher on and off. In Off Mode the appliance is still connected to the mains supply. To turn off completely the mains plug should be disconnected. 2. Display Window • Shows the selected programme, programme time, time delay and error codes. -
Page 12: Before Operating
Before Operating To Open the Door • First open the door slightly to avoid water spillage. • Pull the door handle to open the door. If the door is opened during operation, all functions are automatically interrupted. To Close the Door •... -
Page 13: Adding The Detergent Powder And Tablet
Adding the Detergent Powder and Tablet Only use detergents specifically designed for use in dishwashers. To be more environmentally friendly, please use no more than the correct amount of detergent. Fill the detergent dispenser with detergent power or tablet. See the detergent manufacturers instructions for the correct amount to use. If using tablets read the manufacturers recommendations on the tablet packaging in order to determine where the tablet should be placed ( e.g. -
Page 14: Adding Rinse Aid
Adding Rinse Aid Rinse aid helps to ensure water does not cling and leave marks on crockery during the drying phase and helps crockery dry faster after it has been washed. Only pour rinse aid that is for domestic dishwashers into the reservoir. -
Page 15: Adding Salt
Adding Salt If the water in your area is hard, deposits will form on your dishes and utensils. As such, this appliance contains a salt reservoir for you to reduce the hardness of the water. Open Please follow the steps below to pour the salt into the salt reservoir and to correspond to the water hardness level in your area. - Page 16 To optimise your dishwasher for the local water hardness, please follow the steps below and refer to the above table. 1. After resetting the dishwasher, press and hold the Program button and then press the On/Off Mode button. 2. Keep the Program button pressed until “SL” disappears from the display window. 3.
-
Page 17: Loading The Dishwasher
Loading the Dishwasher Before Loading the Dishwasher In general, please observe the following notes before loading your cutlery and crockery in the basket. • Remove lipstick stains and any food residues from crockery and dishes. Rinse if necessary. • Dishes and cutlery must not lay inside one another or cover each other. •... -
Page 18: Hinged Cup Rack
Hinged Cup Rack To make room for taller items in the dishwasher basket, lift and push the cup rack upwards. You can lean the tall glasses against it. You can lift upwards also remove it when it is not required for use. Loading the Upper Basket for 12 Place Settings For optimum placement of crockery in the upper basket, please refer to the follow list and the accompanying image. -
Page 19: Loading The Lower Basket For 12 Place Settings
Loading the Lower Basket for 12 Place Settings For optimum placement of crockery in the upper basket, please refer to the following list and image. 7. Dessert dishes 8. Oval platter 9. Dinner plates 10. Soup plates 11. Cutlery basket Cutlery Basket To make unloading much easier, cutlery should be grouped in zones and placed in the cutlery basket. -
Page 20: Wash Cycle Table
Wash Cycle Table Running Energy Water Cycle Selection Detergent Programme Process Time Consumption Consumption information Amount (min.) (Kwh) • pre-wash (5g) Auto 111-183 1.22-1.8 13.3-24.6 • main wash Automatically Automatically Intensive (25g) adjust the adjust the washing time with washing time with • pre-wash temperature and temperature and... -
Page 21: Starting A Wash Cycle
Starting a Wash Cycle 1. Ensure the unit is connected to the mains power and the water supply is fully opened (water pressure between 0.04MPa and 1.00MPa). 2. Open the door. Pull out the lower and upper baskets, load the dishes and push the baskets back. It is recommended that the lower basket is loaded first, and then the upper basket. -
Page 22: Delay Start
At the End of a Programme At the end of the programme, the dishwasher will beep and the end of program indicator will turn on. It is advisable to leave the door closed until you are ready to unload the crockery. Do not leave the door only partially open. -
Page 23: Half Load
Half Load In case you do not have enough dishes for a full load, the half load option can be selected. Three types of wash cycles can be selected: lower basket, upper basket and both baskets. This will help save hot water and electricity. -
Page 24: External Care
External Care Filtering System The filtering system in the base of the wash cabinet retains coarse debris from the washing cycle. The collected coarse debris may cause the filters to clog. Check the condition of the filters regularly and clean them if necessary under running water. -
Page 25: Frost Precaution
Frost Precaution Avoid placing the dishwasher in a location where the temperature can get below 0˚C. If your appliance is left in an unheated place over the winter, you are advised to: 1. Disconnect the unit from the water inlet. 2. -
Page 26: Helpful Tips And Guide
Helpful Tips and Guide • Repairs should only be carried out by a qualified technician in strict accordance with current local and national safety regulations. Unauthorised or incorrect repairs could cause personal injury or damage to the unit. • Before calling for service, please refer to Helpful Tips and Guide to solve some general problems by yourself. -
Page 27: Technical Problems
Technical Problems Technical Problems Problem Possible Causes Remedy The door is not properly closed. Close the door firmly. The unit is not connected to the Insert the plug to the mains. The dishwasher does not start. mains. On/Off Mode button The unit is not switched on. -
Page 28: Disposal Of Dishwasher
General problems (continue) Problem Possible Causes Remedy The wash temperature of the Select a programme with a higher selected programme was too wash temperature. low. Tea or lipstick stains have The bleaching effect of the Change your detergent. not been completely detergent used is too low. -
Page 29: Specifications
Specifications Model SDW60B12 Dimensions 596mm(W) x 598mm(D) x 845mm(H) Water Pressure Required 0.03 - 1.00MPa Power Consumption 2200W Rated Voltage 220-240V~50Hz Capacity 12 Place Settings Energy Efficiency Class Annual Energy Consumption 273 kWh Energy Consumption of the Standard Cleaning Cycle 0.95 kWh... -
Page 30: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the dishwasher and keep them for future reference. • Retain the manual. - Page 31 • The supply plug for this applicance should remain accessible or a switch for disconnection from the supply must be incorporated in the fixed wiring with at least 3mm contact separation in all poles. • The door should not be left in the open position since this could present a tripping hazard. •...
- Page 32 If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Cutlery Basket 42021073 Water Supply Hose 42005932 Salt Funnel 42005853 Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories.
- Page 36 52065297...
