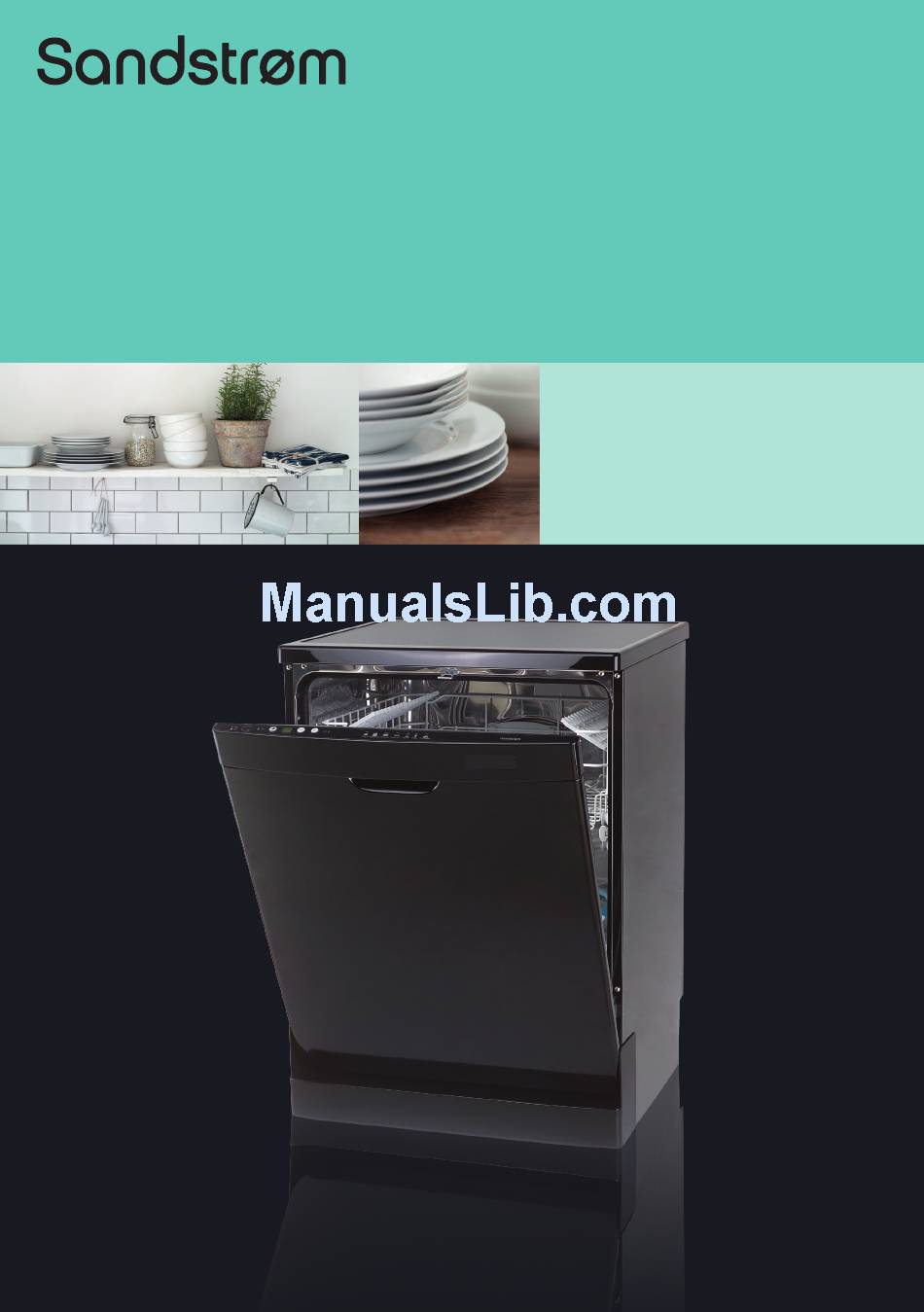

- Page 1 Instruction Manual Freestanding Dishwasher SDW60B10...
-
Page 3: Table Of Contents
Contents Unpacking ............................. 4 Installation ............................ 5 Location ..................................5 Product Overview ......................... 9 Internal View................................9 Rear View ..................................9 Control Panel Overview ......................10 Before Operating ........................11 To open the door ..............................11 To close the door ..............................11 Adding the Detergent Powder and Tablet ....................12 Adding of Rinse Aid .............................. -
Page 4: Unpacking
U-shape hose holder X 1 Detergent measuring spoon x 1 Instruction manual X 1 P.N.: 673006200003 1 full spoon = 20g (approx.) P.N.: SDW60B10-003 P.N.: 673002200079 If items are missing, or damaged please contact Partmaster (UK only). Tel: 0844 800 3456 for assistance. -
Page 5: Installation
INSTALLATION Location When selecting a position for your freestanding dishwasher you should make sure the installation surface is flat and firm, and the room is well ventilated. Avoid locating your dishwasher near a heat source, eg. cooker, boiler or radiator. Extreme cold ambient temperatures may also cause the appliance not to perform properly. - Page 6 INSTALLATION 3. If required, the worktop of the dishwasher can be removed. The height without the worktop is 820 mm. The minimum dimensions required to accommodate the dishwasher within fitted kitchen furniture units. Do not connect the unit to the mains before installation.
- Page 7 INSTALLATION 6. Position the dishwasher next to a water tap and a drain. Ensure the water inlet and drain hoses are not kinked or squashed. The unit must not stand on the mains cable. 7. Make sure your plumbing is suitable for use with the dishwasher.
- Page 8 INSTALLATION • You may use the U-shaped drain hose holder to secure your drain hose and to avoid bending it. U-shaped drain hose holder water drain hose • Secure the water drain hose to the waste pipe to avoid it coming off during the washing process.
-
Page 9: Product Overview
Product Overview Internal View Cup Rack Upper Basket Salt Reservoir Lower Spray Basket Arms Filtering System Detergent Rinse Aid Dispenser Reservoir Rear View Drain Oulet Water Inlet Mains Cable Drain Hose... -
Page 10: Control Panel Overview
Control Panel Overview PROG 1. On/Off Button • To turn the dishwasher on and off. Power on light • Illuminates when On/Off button is pressed. 2. Delay Start Button • Press to preset the wash timer and delay the starting time by up to 24 hours. •... -
Page 11: Before Operating
Before Operating To open the door • Pull the door handle to open the door. • If the door is opened during operation, all functions are automatically interrupted. To close the door • After loading the dishes, push the baskets fully into the dishwasher. •... -
Page 12: Adding The Detergent Powder And Tablet
Adding the Detergent Powder and Tablet Only use detergents specifically designed for use in dishwashers. To be more environmentally friendly, please use no more than the correct amount of detergent. Fill the detergent dispenser with detergent power or tablet. Please follow the steps below to fill the detergent dispenser. 1. -
Page 13: Adding Of Rinse Aid
Adding of Rinse Aid Rinse aid helps to ensure water does not cling and leave marks on crockery during the drying phase and helps crockery dry faster after it has been washed. Only pour rinse aid that is for domestic dishwashers into the reservoir. -
Page 14: Adding Of Salt
Adding of Salt If the water in your area is hard, deposits will form on your dishes and utensils. As such, this appliance contains a salt reservoir for you to reduce the hardness of the water. Open Please follow the steps below to pour the salt into the salt reservoir and to correspond to the water hardness level in your area. -
Page 15: Loading The Dishwasher
Loading the Dishwasher Before Loading the Dishwasher In general, please observe the following notes before loading your cutlery and crockery in the basket. • Remove lipstick stains and any food residues from crockery and dishes. Rinse if necessary. • Dishes and cutlery must not lay inside one another or cover each other. •... -
Page 16: Hinged Cup Rack
Hinged Cup Rack To make room for taller items in the dishwasher basket, raise the cup rack upwards. You can lean the tall glasses against it. You can also remove it when it is not required for use. raise upward Loading the Upper Basket for 12 Place Settings For placement method of the upper basket, please refer to the list below. -
Page 17: Loading The Lower Basket For 12 Place Settings
Loading the Lower Basket for 12 Place Settings For placement method of the lower basket, please refer to the list below. 1. Dessert dishes 2. Oval platter 3. Dinner plates 4. Soup plates 5. Cutlery basket Cutlery Basket To make unloading much easier, cutlery should be grouped in zones and placed in the cutlery basket. -
Page 18: Wash Cycle Table
Wash Cycle Table Running Energy Water Cycle Selection Rinse Programme Process Detergent Time Consumption Consumption information (min.) (Kwh) • Pre-wash Pots, utensils (50°C) 3 in 1 and cutlery. 3 in 1 • Wash (50°C) detergent Normally • Rinse (70°C) tablet soiled. -
Page 19: Starting A Wash Cycle
Starting a Wash Cycle Please follow the steps below to start a wash cycle. 1. Ensure the unit is connected to the mains power and the water supply is fully opened (water pressure between 0.04MPa and 1.00MPa). 2. Open the door. Pull out the dishwasher basket, load the dishes and push the baskets back. 3. -
Page 20: Delay Start
At the End of a Programme At the end of the programme, the dishwasher will sound. The condensation strip helps to prevent the risk of steam damage to the worktop edging above the dishwasher, it is advisable to leave the door closed until you are ready to unload the crockery. You can also open the dishwasher door fully until the dishes and crockery are cool enough to unload. -
Page 21: Half Load
Half Load In case you do not have enough dishes for a full load, the half load option can be selected for washing with upper spray only. Load the dishes in the upper basket only. This will bring about a saving in hot water and electricity. -
Page 22: Filtering System
Filtering System The filtering system in the base of the wash cabinet retains coarse soil from the suds solution. Collection of coarse soil may cause the filters to clog. Check the condition of the filters regularly and clean them if necessary under running water. -
Page 23: Frost Precaution
Frost Precaution Avoid placing the dishwasher in a location where the temperature is below 0˚C. If your appliance is left in an unheated place over the winter, you are advised to: 1. Disconnect the unit from the water inlet. 2. Turn on the unit. Select any washing cycle and let it runs for 1 minute only. This allows to drain out all the excessive water that remains in the unit. -
Page 24: Helpful Tips And Guide
Helpful Tips and Guide • Repairs should only be carried out by a qualified technician in strict accordance with current local and national safety regulations. Unauthorised or incorrect repairs could cause personal injury or damage to the unit. • Before calling for service, please refer to Helpful Tips and Guide to solve some general problems by yourself. - Page 25 General problems (continue) Problem Possible Causes Remedy A spray arms is knocking against Interrupt the programme, and Knocking noise in the wash an item in a basket. rearrange the items which are cabinet. obstructing the spray arm. See the section “Loading the dishwasher”. Smearing appears on The rinse aid dosage is set too Adjust the dial of the rinse aid...
-
Page 26: Disposal Of Dishwasher
Disposal of Dishwasher • When disposing your old dishwasher, first make it unusable. Disconnect, cut off the cable and the plug from the cable. Make the door lock inoperative, so that children cannot accidentally shut themselves in. Make appropriate arrangements for the disposal of the dishwasher. •... -
Page 27: Specification
Specification Model SDW60B10 Dimensions 600mm(W) x 580mm(D) x 850mm(H) Capacity 12 Place Settings Water Pressure Required 0.04 - 1.00MPa Power Consumption 1930W Rated Voltage 230V~50Hz Off Mode Power Consumption Left-on Mode Power Consumption 1.4W Energy Efficiency Class Annual Energy Consumption... -
Page 28: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the dishwasher and keep them for future reference. • Retain the manual. - Page 29 • For energy saving, always remember to switch the dishwasher off when you have finished using it. The dishwasher should not be left unattended when in use. • Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.
- Page 30 There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product. DSG Retail Ltd. • Maylands Avenue • Hemel Hempstead Herts • HP2 7TG • England (P.N.: SDW60B10-003)
