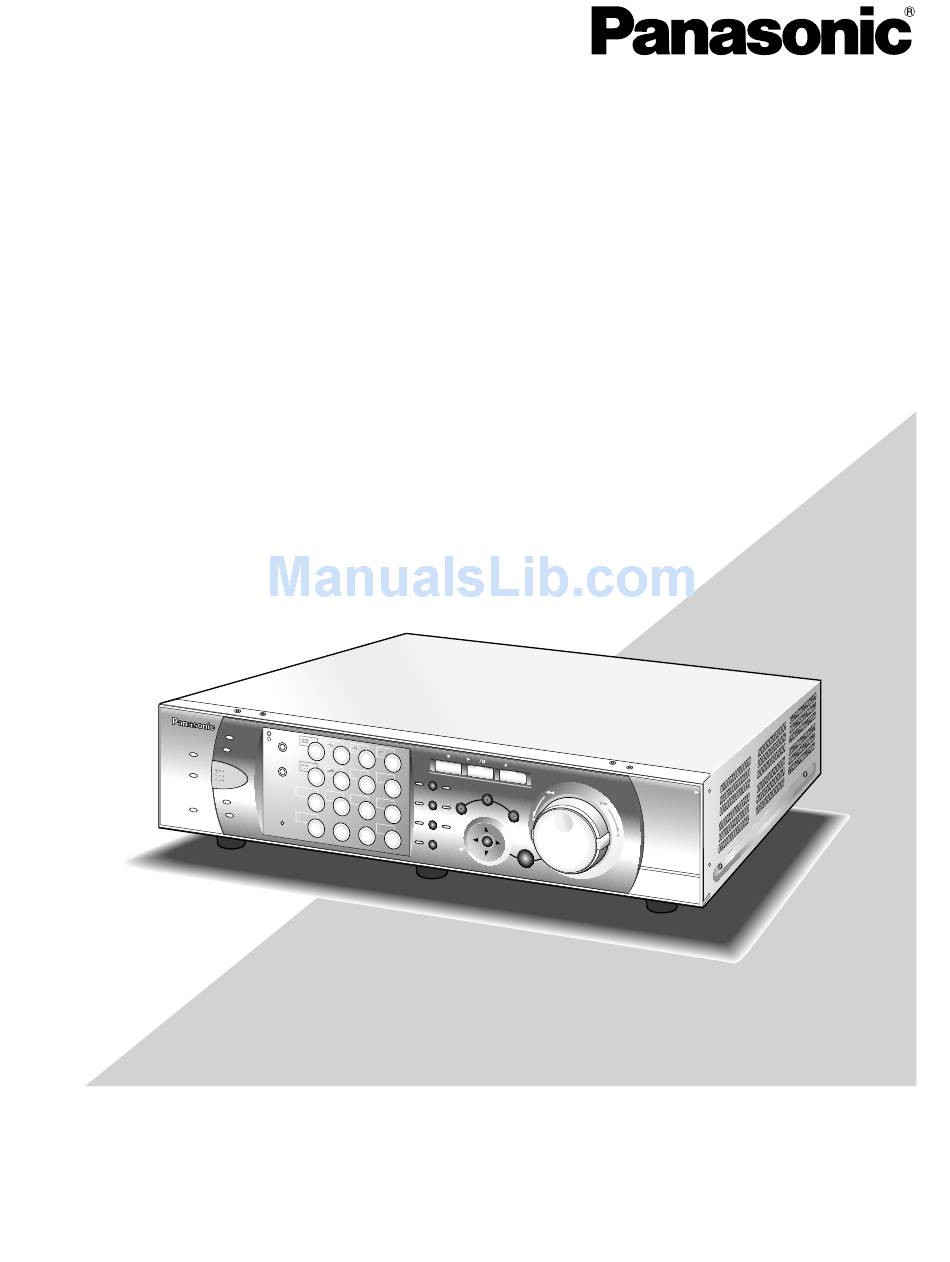

Page 1: Operating Instructions
Digital Disk Recorders Operating Instructions WJ-HD309 WJ-HD316 Model Nos. MO NIT OR 1 TIM ER MO NIT OR 2 AL AR M ER RO R ST OP PL AY PA US E AL AR M SH IFT RE C- - REC STO P...
Page 2: English Version
ENGLISH VERSION Caution: Before attempting to connect or operate this product, please read the label on the bottom. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8) Do not use near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
Page 4: Table Of Contents
CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..... 3 OPERATION USING A PC .......... 62 I Features ..............62 PREFACE ..............5 I System Requirements of a PC ......62 FEATURES ..............5 PRECAUTIONS ............6 INSTALLATION IN THE RACK ........63 TRADEMARKS AND REGISTERED OPERATING THE UNIT FOR THE FIRST TIME ..
Page 5: Preface
PREFACE The Digital Disk Recorders WJ-HD316/309 are designed for directly (up to 9 cameras to the WJ-HD309) and it is possi- use within a surveillance system and are a combination of a ble to record their camera pictures. It is also possible to...
Page 6: Precautions
PRECAUTIONS • Refer all work related to the installation of these Replacement costs of the hard disk drives are not cov- products to qualified service personnel or system ered by the warranty even if it needs to be done within installers.
Page 7: Trademarks And Registered Trademarks
TRADEMARKS AND REGISTERED TRADEMARKS • Adobe, Adobe logos, and Acrobat are registered trade- About These Operating Instructions marks of Adobe Systems Incorporated in the U.S. and/ There are 3 operating instructions for the WJ-HD316/WJ- or other countries. HD309 as follows. •...
Page 8: Major Operating Controls And Their Functions
!0 Camera Selection Buttons ([1] - [10/0], [11] - [16] for Pressing this button cancels alarm activation, and the WJ-HD316, [1] - [9], [0] for the WJ-HD309) returns the system to the condition before the alarm Pressing a button displays live or playback images of was activated.
Page 9 When the shift button is lit, these buttons work as the @3 Set Button (SET) toggled function buttons. Works differently depending on the situations listed (The buttons available as the toggled function buttons below: will light green when the shift button is lit.) •...
Page 10: I Rear View
CAMERA IN 1 - 8 connectors of the WJ-HD316, or the Connect a VGA monitor with this connector. The same CAMERA IN 1 - 6 of the WJ-HD309 (accept connection video signal supplied to the MONITOR OUT2 connector with coaxial cables).
Page 11: I On The Monitor 1 (To Display Only Live Image)
COM-#: When a command alarm has occurred. TRM-#: When a terminal alarm has occurred. *: Camera number (1 - 16 for the WJ-HD316, 1 - 9 for the WJ-HD309) #: Event number Note: Refer to page 45 for further information about...
Page 12: I On The Monitor 2 (To Display Live Or Recorded Image)
I On the Monitor 2 (To display live Mode 2 Displays the status on the main bar, the left bar and the or recorded image) right bar. w – A Mode 3 Displays the status only on the main bar, and does not Note: Refer to page 45 for further information about event display information on the left bar and the right bar.
Page 13 G Status on the Task Bar • On the Main Bar q Status Display Area e Live/Playback Time Display Area t Error Display Area w Copy/Delete Icons r Alarm Display Area q Status Display Area Indicated Item Status Indication Live Indicates live image display status : Live image is displayed : Live images are displayed...
Page 14 COPY1 port on the rear panel *: Camera number (1 - 16 for the WJ-HD316, 1 - 9 External recording device for the WJ-HD309) connected to the COPY2 port on the front panel #: Abbreviation that indicates partition...
Page 15 • On the Left Bar Indicated Item Status Indication Camera Indicates recording and displaying status Gray: Camera currently not displayed or not con- nected to a respective channel Green: Camera displayed on the monitor Orange: Camera currently being recorded Blue: Camera currently being recorded and dis- Camera 1 is on the top and camera played on the monitor 16 is on the bottom...
Page 16: Startup
It is also possible to enter numbers by pressing the camera selection buttons ([1] - [10/0] for the WJ-HD316, [1] - [9], [0] for the WJ-HD309). To move the cursor, press the arrow buttons. Use the same method to enter or edit characters attached to images.
Page 17: Clock Adjustment
CLOCK ADJUSTMENT It is recommended to check the clock periodically and put Move the cursor to "Time & Date" using the the clock right if it shows the wrong time. arrows button (C D), and press the SET but- Adjust the clock when displaying a live image. ton.
Page 18: Shutdown
SHUTDOWN To shutdown the unit, do the following. When recording is being performed, press the REC button for 2 or more seconds. Recording will stop and the indica- tor on the REC button will go off. When playback is being performed, press the STOP button. Playback will stop and the indicator on the PLAY/PAUSE button will go off.
Page 19: Recording (Manual Recording)
RECORDING (Manual Recording) Do the following to record manually. When recording with higher priority than manual recording Refer to a system administrator about the required settings is performed, manual recording will not be performed until for manual recording. this recording finishes. Refer to the following about the recording mode.
Page 20: Recording Time
G Recording Time Approximate possible recording durations will be as follows (with built-in HDD, manual recording): Recording with audio Unit: Hour Recording Rate [ips] (For Extended Recording) (Standard) (High Quality) (Highest Quality) 2 040 1 730 1 320 1 070 2 040 1 730 1 320...
Page 21: Recording (Emergency Recording)
RECORDING (Emergency Recording) Record manually using an external switch at an emergency • When starting emergency recording while another event occurrence. recording with a different recording mode is being per- For example, install an external switch at the reception formed, the indicator on the REC button will remain lit counter, and start recording with it when a suspicious indi- and the other recording will resume after the emer- vidual appears.
Page 22: Playback
PRESET EL-ZOOM LOGOUT /AUTO Refer to a system administrator about the settings. BUSY Other than those above: Playback will start from the end [WJ-HD309] point of the recorded image played last time. STOP PLAY PAUSE REC - REC STOP MONITOR1 Stop playback.
Page 23 TILT LAST Multi-screen display It is possible to display recorded images in multi-screen format (4/7/9/10/13/16 for the WJ-HD316, 4/7/9 for the WJ-HD309). (For the WJ-HD316) q Press the SHIFT button. The SHIFT indicator will light. SHIFT w Press a camera selection button (1 - 6 for the WJ-HD316, 1 - 3 for the WJ-HD309) to select a desired multi-screen.
Page 24 (For the WJ-HD316) 1. Press the SHIFT button. The SHIFT indicator will light. SHIFT Mark 2. Press the camera selection button 12 (9 for the WJ-HD309) (MARK) at a desired point to be marked during playback. (For the WJ-HD309) Mark SHIFT Up to 100 points can be marked.
Page 25: Playback Image On A Designated Disk
Normal recording area Press the camera selection button 9 (7 for the Recording area for WJ-HD309) (DISK SELECT). event recording and emergency recording The DISK SELECTION window will be displayed on monitor Event recording area 2 and the VGA monitor.
Page 26 To stop playback, press the STOP button. The indicator on the PLAY/PAUSE button will go off and STOP PLAY PAUSE REC - REC STOP playback will stop. MONITOR1 MONITOR2 PAN/ GOTO Live images will be displayed on monitor 2 and the VGA TILT LAST SEARCH...
Page 27: Playback From A Designated Time And Date
PLAYBACK FROM A DESIGNATED TIME AND DATE It is possible to play recorded images from a designated Press the PLAY/PAUSE button. time and date without stopping recording. The indicator on the PLAY/PAUSE button will light and start Playback images will be displayed on monitor 2 and the playback from the entered time and date.
Page 28: Search And Play
SEARCH AND PLAY There are 3 ways to search for a recorded image and play it. • Search for a recording event and play it (Recording event search) • Search for a motion detected time and date from recorded images and play it (VMD search) •...
Page 29 Searching filter buttons: Selects the searching filter Filter cancel button: Cancels the selected searching filter and lists all recording events Time and date: <When searched by recording event> Time when recording started will be displayed. <When searched by VMD> Time when motion had been detected will be displayed. <When searched by marked point>...
Page 30 Use the arrows button (A B) to select a STOP PLAY PAUSE REC - REC STOP MONITOR1 MONITOR2 searching filter (TIME & DATE, CAMERA, PAN/ GOTO SEARCH TILT LAST SHIFT EVENT, TEXT), and press the SET button. SETUP PAN/TILT SLOW /ESC ZOOM/ FOCUS...
Page 31 Select camera channel numbers (1 - 16 for the WJ-HD316, APR.25.03*12:34:56 AM 01ch MANUAL ABCDEFGHIJ APR.25.03*12:34:56 AM 01ch MANUAL ABCDEFGHIJ 1 - 9 for the WJ-HD309) by pressing the camera selection APR.25.03*12:34:56 AM 01ch MANUAL ABCDEFGHIJ APR.25.03*12:34:56 AM 01ch MANUAL ABCDEFGHIJ buttons to apply filtering.
Page 32: I Searching For A Motion Detected Time And Date From Recorded Images And Play It (Vmd Search)
Press the SEARCH button repeatedly until the VMD search list is displayed. STOP PLAY PAUSE REC - REC STOP MONITOR1 MONITOR2 PAN/ GOTO TILT LAST SEARCH SHIFT SETUP PAN/TILT /ESC VMD SEARCH SLOW ZOOM/ FOCUS REPEAT – TIME&DATE DISK SELECT COPY TEXT MARK...
Page 33 The motion detection area setup window will be displayed. STOP PLAY PAUSE REC - REC STOP MONITOR1 To search using the same conditions as the previous MONITOR2 PAN/ GOTO search, press the PLAY/PAUSE button. SEARCH TILT LAST SHIFT SETUP PAN/TILT SLOW /ESC ZOOM/...
Page 34 ⁄0 Select the sensitivity using the arrows button STOP PLAY PAUSE REC - REC STOP MONITOR1 MONITOR2 (D C) from the following. PAN/ GOTO SEARCH TILT LAST SHIFT SETUP PAN/TILT OFF: Motion will not be detected SLOW /ESC ZOOM/ FOCUS REPEAT –...
Page 35 ⁄4 ⁄7 ⁄4 ⁄ 6 Press the SET button or the PLAY/PAUSE but- ton to start searching and display the results STOP PLAY PAUSE REC - REC STOP of the VMD search. MONITOR1 MONITOR2 PAN/ GOTO TILT LAST SEARCH SHIFT SETUP PAN/TILT /ESC...
Page 36: I To Delete The Motion Detection Area
I To delete the motion detection Any motion will be detected anywhere in the A, B, C, D areas. area Note: In the ANY AREA mode, it is possible to set the masking duration. When the masking duration is set, motion will be ignored for a certain period (set duration STOP PLAY...
Page 37: I Searching For A Marked Point And Play From That Point (Marking Search)
I Searching for a marked point To delete all displayed marking list, press the camera selection buttons [1] and [2] simultaneously for 2 seconds and play from that point or more when displaying the marking list window. (Marking search) Display the recording time of recorded images with a Rotate the jog dial to select a desired marked marked point in a list or a thumbnail and select the desired time.
Page 38: Monitor Live Images
SLOW /ESC ZOOM/ – FOCUS REPEAT DISK SELECT COPY TEXT MARK 10/0 IRIS LISTED PRESET EL-ZOOM LOGOUT /AUTO BUSY [WJ-HD309] [WJ-HD309] STOP PLAY PAUSE REC - REC STOP MONITOR1 MONITOR2 PAN/ GOTO TILT LAST SEARCH SHIFT TEXT SETUP PAN/TILT SLOW...
Page 39: I Displaying On A Multi-Screen
The camera selection buttons respective to live images dis- played on a multi-screen will light green or blue. It is possible to display images on a multi-screen (4, 7, 9, 10, 13, 16 for the WJ-HD316, 4, 7, 9 for the WJ-HD309). [WJ-HD316] STOP...
Page 40: I Sequential Display
/ESC ZOOM/ SLOW – FOCUS REPEAT DISK SELECT COPY TEXT MARK 10/0 IRIS LISTED PRESET EL-ZOOM LOGOUT /AUTO BUSY [WJ-HD309] STOP PLAY PAUSE REC - REC STOP MONITOR1 MONITOR2 PAN/ GOTO TILT LAST SEARCH SHIFT TEXT SETUP PAN/TILT SLOW /ESC ZOOM/ –...
Page 41: Control Cameras
CONTROL CAMERAS I Zoom When displaying live images, the following camera controls are possible. Zooms in/out on images. Depending on models of the con- • Panning/tilting: Moves a camera horizontally/vertically. nected cameras, the image size for the respective zooming • Zooming: Zooms in/out on images.
Page 42: I Iris
Use the arrows button (A B) to adjust the iris. 10/0 IRIS LISTED LOGOUT PRESET EL-ZOOM /AUTO To reset the set iris, press the SET button. BUSY [WJ-HD309] STOP PLAY PAUSE REC - REC STOP MONITOR1 MONITOR2 PAN/ GOTO TILT...
Page 43: I Move A Camera To The Preset Position
Press a camera selection button ([1] - [10/0] for the WJ-HD316, [1] - [9], [0] for Select "OK" using the arrows button and press the WJ-HD309) to select a desired preset posi- the SET button. tion. The adjusted camera position (currently displayed on the...
Page 44: I Auto Panning
I Auto Panning Pans a camera automatically from the start point to the end point registered in advance. STOP PLAY PAUSE REC - REC STOP MONITOR1 MONITOR2 PAN/ GOTO TILT LAST SEARCH SHIFT SETUP PAN/TILT SLOW /ESC ZOOM/ FOCUS REPEAT –...
Page 45: About The Event Function
ABOUT THE EVENT FUNCTION G Activity Detection Mode (ACT DET) The event action will be performed when the following events occur. This mode records images in the place where an event • Motion detection: When motion is detected by the occurred without announcing it.
Page 46: I Alarm Function
I Alarm Function G Displays the event information in the alarm display area on monitor 1 and the camera G Blinks the ALARM indicator on the front title display area on monitor 2 panel MONITOR1 MONITOR2 TIMER ERROR ALARM SHIFT TEXT ALARM SUSPEND...
Page 47: I Cancel The Alarm Action
I Cancel the Alarm Action I Suspend the Alarm Actions When an alarm has occurred, this unit will start the alarm It is possible to suspend (deactivate temporarily) the alarm action according to the selected alarm action mode. actions even when an event has occurred. To cancel the alarm action, press the ALARM RESET but- This function will be useful when it is necessary not to acti- ton.
Page 48: Copying (Duplicate)
/ESC ZOOM/ SLOW – FOCUS REPEAT DISK SELECT COPY TEXT MARK 10/0 IRIS LISTED PRESET EL-ZOOM LOGOUT /AUTO BUSY [WJ-HD309] STOP PLAY PAUSE REC - REC STOP MONITOR1 MONITOR2 PAN/ GOTO TILT LAST SEARCH SHIFT TEXT SETUP PAN/TILT SLOW /ESC ZOOM/ –...
Page 49 STOP PLAY PAUSE REC - REC STOP MONITOR1 MONITOR2 PAN/ GOTO TILT LAST SEARCH SHIFT SETUP PAN/TILT SLOW /ESC ZOOM/ FOCUS REPEAT – DISK SELECT COPY TEXT MARK 10/0 IRIS LISTED PRESET EL-ZOOM LOGOUT LOGOUT /AUTO BUSY Select the "OK" button using the arrows button and press the SET button.
Page 50: Disk Management
DISK MANAGEMENT Perform the settings for the built-in hard disk of the unit, the Move the cursor to "Maintenance" using the extension unit and the DVD-RAM disk. These are the arrows button (C D A B) and press the SET descriptions of how to delete recorded images on the hard button.
Page 51 Press the SET button for 2 seconds or more. The SETUP MENU will be closed and the live images will be STOP PLAY PAUSE REC - REC STOP MONITOR1 MONITOR2 displayed. PAN/ GOTO TILT LAST SEARCH SHIFT SETUP PAN/TILT /ESC SLOW ZOOM/ FOCUS...
Page 52: Format (Initialize) A Dvd-Ram Disk
FORMAT (INITIALIZE) A DVD-RAM DISK To copy (duplicate) recorded images onto the DVD-RAM Select "Data Delete" using the arrows button disk, formatting (initializing) the DVD-RAM disk is required (C D). in advance. To delete images recorded on the DVD-RAM disk, format- ting (initialization) of the DVD-RAM disk is also required.
Page 53 STOP PLAY PAUSE REC - REC STOP MONITOR1 MONITOR2 PAN/ GOTO TILT LAST SEARCH SHIFT SETUP PAN/TILT /ESC SLOW ZOOM/ FOCUS REPEAT – DISK SELECT COPY TEXT MARK 10/0 IRIS LISTED PRESET EL-ZOOM LOGOUT LOGOUT /AUTO BUSY Press the SET button to select "FORMAT". The confirmation window will be displayed.
Page 54: Display/Edit Text Information
PRESET EL-ZOOM LOGOUT /AUTO To close the TEXT INFORMATION window, press the BUSY SETUP/ESC button or the SET button. [WJ-HD309] Press the TEXT button again to edit text infor- mation. STOP PLAY PAUSE REC - REC STOP MONITOR1...
Page 55 SLOW /ESC ZOOM/ – FOCUS REPEAT DISK SELECT COPY TEXT MARK 10/0 IRIS LISTED PRESET EL-ZOOM LOGOUT /AUTO BUSY [WJ-HD309] STOP PLAY PAUSE REC - REC STOP MONITOR1 MONITOR2 PAN/ GOTO TILT LAST SEARCH SHIFT TEXT SETUP PAN/TILT ZOOM/ SLOW /ESC –...
Page 56: Error/Warnings
ERROR/WARNINGS • The "error" status When a fatal error (one that might cause the system to go down) has occurred, the ERROR indicator will blink red. • The "warning" status When an error (even though it has not caused the system trouble yet, but which may become a fatal error) has occurred, the ERROR indicator will blink orange.
Page 57 Indication Status Description Solution MEDIUM-n Warning The external recording device is not Press the ALARM RESET button to can- operable because no disk or different cel the warning status. Confirm that a format disk has been inserted, etc. disk has been inserted, or check the inserted disk format.
Page 58: Operation Using A System Controller
Note: To perform the operation with buttons with the shadowed background ( ), press the SHIFT button of the system con- troller to light the SHIFT indicator on the right side of the SHIFT button. Item WJ-HD316/WJ-HD309 WV-CU360C Note SETUP...
Page 59 Item WJ-HD316/WJ-HD309 WV-CU360C Note ALM RESET Alarm reset ALARM RESET ALM RECALL ALM SUSPEND Alarm suspension ALARM RESET SETUP REC - REC STOP → Manual recording FUNCTION Press for 2 SETUP REC - REC STOP → Stop manual recording Available only during recording...
Page 60 SETUP Mark a point Mark SHIFT → (For the WJ-HD316) FUNCTION SETUP Mark a point Mark SHIFT → (For the WJ-HD309) FUNCTION MONITOR1 → MONITOR2 Select monitor 1 MONITOR1 → MONITOR2 Select monitor 2 SEQUENCE Sequential display ON It is possible to stop the sequential display by...
Page 61 ON (For the WJ-HD316) pausing playback FUNCTION SETUP Text information display Available only when displaying a list or when TEXT SHIFT → ON (For the WJ-HD309) pausing playback FUNCTION SETUP Text information display TEXT SHIFT → Available only when displaying text information...
Page 62: Operation Using A Pc
OPERATION USING A PC I System Requirements of a PC It is possible to perform the settings or operate the unit using a web browser installed on a PC when this unit is It is recommended to operate this unit using a PC that connected to a network.
Page 63: Installation In The Rack
INSTALLATION IN THE RACK 1. Remove the rubber legs (6 pcs.) on the bottom of the unit. • Use a flat-blade screwdriver and remove the screws. Remove the rubber legs. 2. Install the rack mounting brackets on both sides of the unit.
Page 64: Operating The Unit For The First Time
OPERATING THE UNIT FOR THE FIRST TIME Important: Press the SETUP/ESC button for 2 seconds or When connecting an optional extension unit (the WJ- more. HDE300 series), turn on the power of the extension unit The SETUP MENU will be displayed. before turning the power of this unit on.
Page 65: Preparation For Maintenance (Hdd Replacement, Installation, Etc.)
The camera selection buttons (1 - 16 for the WJ-HD316, 1 - press the SET button. 9, 0 for the WJ-HD309) will light green and orange (for 2 seconds each) alternately. The following window will be displayed after around 30 sec-...
Page 66 The camera selection buttons on the front panel (1 - 16 for supplied to the front panel and the unit will be enabled to the WJ-HD316, 1 - 9, 0 for the WJ-HD309) will light green operate with the front panel.
Page 67: Connections
• The power plug should be connected last. • When connecting combination cameras , connect them to the video input connectors 1 - 8 when using the WJ-HD316 or 1 - 6 when using the WJ-HD309 (for coaxial communication). G Examples of connections...
Page 68: I Connections With An Extension Unit
I Connections with an extension unit An example of connections is shown below when the unit is used together with an extension unit. This unit can be connected with up to seven extension units. Connect the EXT IN port on the rear panel of the extension unit and the EXT STORAGE port on the rear panel of this unit using the cable provided with the extension unit.
Page 69: I Connections With Dvd-Ram, Cd-R, And Dvd-R Drives
I Connections with DVD-RAM, CD-R, and DVD-R drives This is an example of connection when the unit is used together with the designated DVD-RAM, DVD-R and CD-R drive. Connect the designated DVD-RAM, DVD-R and CD-R drive and the COPY1 port on the rear panel or the COPY2 port inside the connectors cover on the front panel of this unit using an USB cable (not included).
Page 70: I Connections With The Vcr
I Connections with the VCR When it is necessary to copy the recorded images to a video tape using a VCR, connect the VCR to the S-VIDEO connector (or the VIDEO OUT connector) and the AUDIO OUT connector inside the connectors cover on the front panel of this unit as below. Open the terminal cover.
Page 71: I Connections With Ps·data Systems
I Connections with PS·Data systems This is an example of connection when the unit is used together with the PS·Data devices. If a connected system controller is PS·Data compatible, it is possible to operate this unit or connected devices using the sys- tem controller.
Page 72 G When this unit is connected with the system device (when this unit is used as a controller) System Controller RS485 cable UNIT ALARM POWER ALARM RESET SUSPEND SET UP ALARM SUSPEND Data Multiplex Unit WJ-MP204 Coaxial communication unit Termination: ON Controller Unit Address : 1 Termination: ON...
Page 73: I Cascade Connection Of Multiple Units
I Cascade connection of multiple units Up to of four units can be connected. For the cascade connection, connect the CASCADE IN connector and the CASCADE OUT connector on the rear panel of each unit as below. Important: When connecting the unit in the cascade connection, set "Cascade" of "PS·Data Setup" in "Comm" on the SETUP MENU to "ON".
Page 74 G When the PS·Data compatible device is connected to the first unit (when this unit is used as a receiver) Controller Termination: ON Unit Address : 1 Monitor 2 Monitor 1 System Controller RS485 cable (provided with Mode switch the controller) (No.
Page 75 G When the PS·Data compatible device is connected to the third unit (when this unit is used as a receiver) Monitor 2 Monitor 1 Mode switch (No. 7: ON) BNC Cable (Locally procured) 1 2 3 4 5 6 7 8 Unit Address settings of "PS·Data Setup"...
Page 76 G When the PS·Data compatible devices are connected to the first and third units (when this unit is used as a receiver) PS · Data application Monitor 2 Monitor 1 System Controller Controller Termination: ON Unit Address: 1 RS485 cable (provided with Mode switch the controller)
Page 77: I Connection With The Rs485 Camera
I Connection with the RS485 camera This is an example of connection when the unit is used together with the RS485 devices. Up to eight cameras can be connected using a single RS485 (CAMERA) port. Important: • Terminate both devices on both ends of the connection. Refer to the respective operating instructions for the descriptions of how to terminate.
Page 78 G Daisy connection Multiple cameras can be connected to the RS485 (CAMERA) port. Example: When cameras 1 - 4 are connected to one of the RS485 (CAMERA) port and cameras 9 - 12 are connected to the other RS485 (CAMERA) port. RS485 cable Mode switch 1 2 3 4 5...
Page 79: I Mode Switch
I Mode Switch RS485 interface is used to communicate between this unit and the PS·Data compatible system device ,. In this case, it is nec- essary to terminate both devices on both ends of the RS485 connection. The settings of the mode switch will be different depending on whether this unit is used as a receiver or a controller. When an RS 485 camera is connected to this unit, it is necessary to terminate both devices on both ends of the connection.
Page 80: I How To Use The Terminals Of The Alarm/Control Connector
I How to Use the Terminals of the ALARM/CONTROL Connector These terminals are used for emergency recording, auto time adjustment (Auto Adjust Time), taking measures against power outages (Shutdown Time), and when installing a buzzer, a lamp, or similar alarm device. They are also used to synchronize with the sequential display changeover.
Page 81 G Connection for emergency recording When the external switch is turned ON, emergency recording will be started. Resolution, recording time, recording rate and quality for emergency recording can differ according to the settings of "Emergency REC" of "Recording" on the SETUP MENU. (Refer to page 96.) (Earth) (Emergency record input) External switch...
Page 82 G Connection for the Auto Adjust Time function • When "Auto Adjust Time" of "System" on the SETUP MENU is set to "MASTER" "Time Adjust Output" becomes available and the clock of this unit can be applied to other units. Terminal block of other units Front LED (Earth)
Page 83 G Connection with the Uninterruptible Power System (UPS) This is an example of connection with the uninterruptible power system (UPS) to be installed to protect from a power outage. When a signal is supplied to the outage detection I/O terminals from the uninterruptible power system (UPS), internal process- ing will be started to shut off the power supply for this unit.
Page 84: I How To Use The Terminals Of The Alarm Connector
I How to Use the Terminals of the ALARM Connector These terminals are used to connect the alarm devices, such as sensors, door switches, etc. The pin configurations of these terminals are as shown below. The connector used should be compatible with the pin configu- ration.
Page 85: Alarm Connection
G Alarm connection When a signal is supplied to the alarm input terminals of CH 1-16, recording and displaying of camera images will be per- formed according to the settings. When an alarm device such as a buzzer, a lamp, etc., is installed outside, connect them to the alarm output terminals (pin nos. 9 - 12, pin nos.
Page 86: I How To Use The Serial Connector
I How to Use the SERIAL Connector This connector is compliant with the RS232C Standard, and is used to communicate with a connected PC. A connection example and the pin configuration of the SERIAL connector are as shown below. Important: •...
Page 87: Setup
SETUP To operate this unit, it is necessary to set each item of the SETUP MENU in advance. Perform the settings for each item of the SETUP MENU by displaying the SETUP MENU on monitor 2. Settings items are as below. I Item list of the SETUP MENU Settings menu Description...
Page 88 Settings menu Description Page Switcher Monitor1 Perform the settings for the image switching on monitor 1 such as the setting of the sequential display or the screen to be displayed at login on monitor 1. Monitor 2 Perform the settings for the image switching on monitor 2 such as the setting of the sequential display or the screen to be displayed at login on monitor 2.
Page 89: I About The Setup Menu
I About the SETUP MENU Main menu SET UP MENU Maintenance Recording Event Schedule Live image LIVE Switcher Display Comm System MANU SCHE PRE EVT POST EVT REC Rate Status CAM 1 AUTO 1ips 1ips 1ips 1ips Disk Info CAM 2 AUTO 1ips 1ips...
Page 90: I Basic Operation With The Setup Menu
I Basic Operation with the SETUP MENU z Press the SETUP/ESC button for 2 seconds or more v Perform the settings for each item. when displaying live images. Item selection: Move the cursor using the arrows but- ton (C D A B). [Screenshot 1] Change the setting: Rotate the jog dial.
Page 91: I [Maintenance] Functions For Maintaining
I [Maintenance] Functions for Maintaining Perform the settings for the hard disk drives. Note: The displayed available disk space on this menu It is possible to check the histories (log) of event occur- will not include the space required for data man- rence, error occurrence and access.
Page 92 CONTINUE: When the available disk space has run The auto delete function will not work when OFF is selected. OFF/1DAY/2DAYS/3DAYS/4DAYS/5DAYS/6DAYS/ out, old data will be overwritten by new data. In this case, the oldest data is the first to be overwritten. 7DAYS/8DAYS/9DAYS/10DAYS/14DAYS/30DAYS/45DAYS/ STOP: When the available disk space has run out, 60DAYS/90DAYS/120DAYS/150DAYS/180DAYS...
Page 93 [Error Log] Check the error log Error log will be displayed in list form. SETUP MENU Maintenance Recording Event Schedule LIVE Switcher Display Comm System Time&Date Event REC Rate Status 99 MAR.25.03 11:50:11 PM H.METER MAIN1-1 Disk Info 98 MAR.25.03 11:49:22 PM AL 1-0312312359 97 MAR.25.03 11:39:21 PM R-ERR EXT1-2 Version Info 96 MAR.25.03 11:33:22 PM CAM LOSS1...
Page 94 Indication Description Cause SMART X-Y X indicates the unit/unit number that HDD SMART error has the hard disk error Y indicates the unit/unit number PWR LOSS Detects a power outage H.METER X-Y X indicates the unit/unit number that Hour-meter warning has the hard disk error Y indicates the unit/unit number PROTECT -#...
Page 95: I [Recording]
I [Recording] Perform the settings for the basic recording (REC Setup) • [Manual Recording Channel] and the emergency recording. Select a camera channel for manual recording from the followings. Refer to page 19 for manual recording. MON2: Images from the camera channel currently dis- SETUP MENU Maintenance Recording...
Page 96 Important: Important: • When a live image from the audio assigned camera • When OFF is selected for a specified camera channel, channel is displayed on a single screen on monitor 2, images from a camera channel set to OFF will not be audio will be heard.
Page 97: I [Event] Function For Events
I [Event] Function for Events Perform the settings for event actions of each event type The following are available for the buzzer sound dura- (motion detection, video loss, command alarm and terminal tion. alarm). When OFF is selected, a buzzer will not sound. (s: second, m: minute) OFF: The buzzer will not sound.
Page 98 z Rotate the jog dial to select ON for a desired camera [Screenshot 5] channel for which the motion detection function is to be The motion detection area is set with the start point and the applied, and press the SET button. end point as the points at opposite angles of the motion detection area.
Page 99 G Set the detection mode x Move the cross cursor onto an area to be deleted using the arrows button and press the SET button. Perform the settings of the detection mode (method of detection) in the set detection area. Specifying a method of c To complete the settings, rotate the jog dial to select detection in a detection area is available by setting the "EXIT"...
Page 100 Motion is detected in area C within 20 seconds after <DURATION> Move the cursor to the parameter box of each area being detected in area B. using the arrows button (B) and rotate the jog dial to Motion is detected in area D within 10 seconds after select a moving duration for an object in each area from being detected in area C.
Page 101 G [Alarm Auto Reset] The following are possible for the alarm auto reset. When OFF is selected, the alarm display will not automati- cally disappear. To erase the alarm display, press the ALARM RESET but- ton. OFF/1 s - 30 s (in 1 second intervals) 40 s/50 s/1 m/2 m/3 m4 m/5 m G [Alarm Disarm] The following are possible for the alarm disarm.
Page 102: I [Schedule] Settings For The Recording/Event Action Schedule
I [Schedule] Settings for the recording/event action schedule G [Resolution] Perform the settings for the recording schedules of record- ing and event action by designating a day of the week and Select a resolution for images to be recorded from the fol- time.
Page 103 The following are for the recording rate. When OFF is [Event Prog] Create event programs for an selected, images from the selected camera channel will not event occurrence be recorded. Perform the settings of event action for each event type OFF/0.1 ips/0.2 ips/0.3 ips/0.4 ips/0.5 ips/1 ips/2 ips/3 ips/5 (motion detection, video loss, terminal/command alarm) ips/6 ips/7.5 ips/10 ips/15 ips/30 ips/60 ips...
Page 104: Video Loss
Note: When "OFF" is selected for "Auto Copy" of "Basic [Screenshot 1] Setup" on "System", the auto copy function will not work Start operation after displaying the timetable window. even though "ON" is selected for this setting. Select "HDD", "COPY 1" or "COPY 2" for "Auto Copy". SETUP MENU Maintenance Recording...
Page 105 , Rotate the jog dial to select a desired REC Prog/Event [Screenshot 4] Prog. The checkbox for "New Time Table Setup" is checked. (Rotating the jog dial changes the displayed REC Prog.) SETUP MENU Maintenance Recording Event Schedule REC Prog will be displayed with different colors. LIVE Time Table (MON) Switcher...
Page 106: I [Switcher] Settings For The Switcher Function
I [Switcher] Settings for the switcher function Perform the settings for image switching such as the [Screenshot 2] sequential display setting or the waiting screen (while log- The "Live Sequence" pop-up menu will be displayed. ging out) setting for displaying on monitors 1 and 2. SETUP MENU Maintenance Recording...
Page 107: Login Screen
G Auto Skip [Screenshot 4] The cursor moves to the "PRESET" in "STEP 1". Select ON of OFF to determine whether or not to skip the camera channel without supplying the video input signal because it is not connected, etc. SETUP MENU Maintenance Recording...
Page 108 [Monitor 2] Switcher function of monitor 2 Perform the settings for the switcher function of monitor SETUP MENU Maintenance Recording Event Schedule LIVE Switcher Display Comm System Live Sequence SETUP Monitor 1 Sequence Timing Monitor 2 Auto Skip Login Screen CAM1 Secret View G Live Sequence...
Page 109: I [Display]
I [Display] x Move the cursor to "CAM1" using the arrows button. Perform the display settings for monitors 1 and 2 connected to the unit. [Screenshot 3] The cursor moves to " CAM1". SETUP MENU Maintenance Recording Event Schedule LIVE Switcher Display Comm...
Page 110: Alarm Display
[Screenshot 4] R-UPPER: Displays the camera title at the upper right of the screen. The camera title is entered. R-LOWER: Displays the camera title at the lower right of the screen. CENTER: Displays the camera title at the center of the SETUP MENU Maintenance Recording...
Page 111: Display Mode
[Monitor2] Settings on monitor 2 display Perform the display settings for monitor 2 such as the display mode (task bar style), time display position on/off, camera title display position, etc. SETUP MENU Maintenance Recording Event Schedule LIVE Switcher Display Comm System Display Mode MODE 1...
Page 112: I [Comm] Settings For Communication With Other Devices
RS232C Setup Data Bit NONE Parity NW Setup 1 Stop Bit CAM 1 - 6 CH are available for the WJ-HD309) NW Setup 2 Retry Timing NTP Setup Alarm Data PSD: Controls camera with the PS·Data. (CAM 9 - 16...
Page 113 G Baud Rate [Screenshot 2] Select the communication speed for data transmission with The "Camera Number Setup" pop-up window will be dis- a connected device from the following. played. 2 400/4 800/9 600/19 200/38 400 bps SETUP MENU Maintenance Recording Event Schedule G Data Bit...
Page 114 G Baud Rate v Move the cursor to "OK" using the arrows button and press the SET button. Select the communication speed for data transmission with → Camera channels will be assigned and the "Control a connected device from the following. Camera CH"...
Page 115: Subnet Mask
G Parity G Line Speed Select a method to check a transmission error at communi- The line speed will be displayed. cation from the following. It is impossible to change the value for this setting. NONE: No parity check G Live Video Quality EVEN: Even parity ODD: Odd parity Image quality level for a live (FQB: high quality) will be dis-...
Page 116 G DDNS Select ON and OFF whether or not to use the DDNS (Dynamic Domain Name Server). Selecting ON is available only when "MANUAL" or "AUTO" is selected for "DNS". When "ON" is selected, perform the following. User Name: Enter the user name registered in "DDNS". Password: Enter the password for the user entered in "User Name".
Page 117: I [System] Settings On System
I [System] Settings on System Perform the following system settings required to operate Important: this unit. The auto logout function will not be activated when ON is selected for "Auto Login". Depending on the user level of the auto login user, [Basic Setup] Basic system settings operable functions may be different.
Page 118 G Auto Copy SLAVE: A signal will be supplied to the ALARM/CONTROL connector on the rear and clock of this unit will be ON or OFF whether or not to copy recorded images to the adjusted. copy area on the hard disk automatically. OFF: Does not copy automatically.
Page 119 G Password [Screenshot 3] The cursor will move to the selected cell for entry of the ON Enter 4-32 alphanumeric characters for password. or OFF time for summer time. The same method is used to enter, insert and delete char- acters as for attaching text information to images.
Page 120 HD309): Displays live images from the camera chan- The selected user will be deleted. nels 9 - 12 on a 4-split screen. (When the WJ-HD309 is used, live images from only camera channel 9 will be displayed on the upper left screen of a 4-split screen.)
Page 121 [Host Edit] Correction of registered host infor- mation It is possible to edit registered host information. Move the cursor to "Host IP Address" and rotate the jog dial to select the host IP address. Registered information will be displayed. Editing can be performed in the same way as registra- tion.
Page 122 G Functions that can be enabled/disabled The following functions can be enabled/disabled according to the user level. Function Description WJ-HD300 Setup The SETUP MENU is displayed and the settings can be performed. WJ-HD300 Setup Status Only the SETUP MENU can be displayed. The settings cannot be performed. Camera Setup The setting menu of the camera is displayed and the settings can be performed.
Page 123: Display Setup Menu Of Camera
DISPLAY SETUP MENU OF CAMERA For operating the camera connected to this unit, it is necessary to set the camera function in advance. Setup of camera function can be performed on the setup menu of the connected camera. You can operate the camera setup menu by calling up it from this unit. Contents of the camera setting menu and operations vary according to the connected cameras.
Page 124: Disk Management
DISK MANAGEMENT I Notes on hard disk I How to replace the built-in hard disk Camera images are recorded into the built-in hard disk of this unit. It is possible to replace the hard disk drive regardless of There are two hard disks in this unit. In case one of them whether the power of the unit is on/off.
Page 125 2. Remove the cable from the front panel. 5. Remove the connector from the hard disk drive first, and then remove the hard disk drive from the hard disk mounting bracket. Jumper pin Front panel connector Connector 3. Remove the screws fixing the mounting unit, and then pull the mounting bracket toward you.
Page 126 G When replacing the built-in hard disk of the When replacing the hard disk drive without turning off the power of the unit. extension unit With displaying the HDD SAFETY MODE window, start z Close the SETUP MENU after selecting "ON" for "HDD replacing the built-in hard disk of the extension unit.
Page 127: I About The Hdd Disk Menu
I About the HDD DISK MENU The operations regarding the hard disk can be performed by displaying the "HDD DISK MENU" on monitor 2. The "HDD DISK MENU" will be displayed when the SET button is pressed while displaying the system check complete window. The "HDD DISK MENU"...
Page 128: I Raid 5 Function Of The Extension Unit
I RAID 5 Function of the Extension Unit G Setup/cancel the RAID 5 function Summary of the RAID 5 function (Redundant Arrays for Independent Disks, independent Do the following to set or cancel the RAID 5 function with an data disks with distributed parity blocks) extension unit.
Page 129: I Formatting (Initialization) The Hard Disk
Hard Disk The camera selection buttons ([1] - [10/0] for the WJ- HD316, [1] - [9], [0] for the WJ-HD309) are available to It is necessary to initialize the hard disk in the following enter numbers for password.
Page 130 The camera selection buttons ([1] - [10/0] for the WJ- (A B) and press the SET button. HD316, [1] - [9], [0] for the WJ-HD309) are available to → Formatting will start and the format result dialog enter numbers for password.
Page 131 , Select a setting method for each recording area from [Screenshot 4] the following using the arrows button (A B) and press The "DISK SELECT" menu will be displayed. the SET button. When using the RAID 5 function, the "UNIT SELECTION" Auto Setup: Assigns the same proportion for each menu will be displayed.
Page 132 [Screenshot 7] [Screenshot 9] The "PRE RECORDING AREAS" menu will be displayed. The confirmation dialog window will be displayed. HDD DISK MENU HDD DISK MENU Digital Disk Recorder Digital Disk Recorder WJ-HD300 WJ-HD300 DISK SETTING METHOD PRE RECORDING AREAS DISK SETTING METHOD DETAILED SETUP Normal area Event area...
Page 133: I Setting For Mirroring
The camera selection buttons ([1] - [10/0] for the WJ- • When using the RAID 5 function, it is impossible to acti- HD316, [1] - [9], [0] for the WJ-HD309) are available to vate the mirroring function. enter numbers for the password.
Page 134 The camera selection buttons ([1] - [10/0] for the WJ- DISK MENU" will be displayed. HD316, [1] - [9], [0] for the WJ-HD309) are available to enter numbers for password. The same method is used to enter, insert and delete...
Page 135 The camera selection buttons ([1] - [10/0] for the WJ- Close the information of recording areas : [SETUP/ESC] OK : [SET] HD316, [1] - [9], [0] for the WJ-HD309) are available to enter numbers for password. x Move the cursor to "REMOVE" using the arrows button The same method is used to enter, insert and delete characters as for attaching text information to images.
Page 136 [Screenshot 3] The confirmation window will be displayed after logical remove of the hard disk is started. HDD DISK MENU Digital Disk Recorder WJ-HD300 TOP MENU REMOVING REMOVING MAIN: REMOVED OK EXT7–1 : REMOVED OK EXT6–1 : REMOVED OK EXT6–2 : REMOVED OK EXT6–3 : REMOVED OK EXT6–4 : REMOVED OK EXT5–3 : REMOVED OK...
Page 137: Serial (Rs232C) Connector Command Reference
SERIAL (RS232C) CONNECTOR COMMAND REFERENCE I SERIAL (RS232C) Communication Protocol SERIAL (RS232C) means the EIA standard number of an interface for serial data transfer. With the SERIAL (RS232C) interface, you can control functions of this unit by transferring the specified commands from a personal computer (PC) to this unit. Notes: •...
Page 138 • When an ANSWER command is required The unit sends back the status or data, as shown in the figure. Transmission command (→ The unit) Response command (← The unit) [STX] [ETX] [STX] [ETX] Status inquiry command Status information command Transmission command (→...
Page 139 (9) (PC -> This unit) Logout. [STX]AD001;OLO [ETX] When receiving the command above, the user logged in via SERIAL (RS232C) (ADMIN) will logout. (10) (This unit - > PC) Response against (9). [STX]AD001;OLO[ETX] Note: The character code of [STX], [ETX] and [SP] are as follows. [STX]: 02h [ETX]: 03h [SP] (space): 20h...
Page 140 4. PC Connection Example RS-232C crossing cable is used for connection between the unit and PC. (Refer to the following page for cable specification.) D-sub Pin 9 (Female) D-sub Pin 9 (Female) SIGNAL GND MODE COPY 1 SERIAL ALARM CASCADE POWER AUDIO IN AUDIO OUT...
Page 141 Command Table Basic Operation Item Transmission command (ASCII) Response command (ASCII) Parameter (ASCII) Forward a field Rewind a field Pause during playback Play Manual recording ZMR:nn:ddd ... ddd Manual recording with ZMR:nn nn=01~99 (Sequence number) ddd ... ddd: text (200 bytes or less) text Stop OSP:n...
Page 142 Item Transmission command (ASCII) Response command (ASCII) Parameter (ASCII) Electronic zooming OZM:m OZM:n m=0 Electronic zooming OFF m=1 Electronic zooming ON m=> Switch x2 -> x4 m=< Switch x4 -> x2 m=+ Switch Electronic zooming OFF -> x2 -> x4 -> Electronic zooming OFF -> ... m=- Switch x4 ->...
Page 143 Data Control Item Transmission command (ASCII) Response command (ASCII) Parameter (ASCII) Copy by specifying ZCR:rrrrrrrrrrrrrrrr:m rrrrrrrrrrrrrrrr: Record No. record m=0 Copy to HDD copy sector m=1 Copy to media connected to COPY 1 m=2 Copy to media connected to COPY 2 Copy by specifying date ZCT:y : Start date &...
Page 144 HDD event recording sector p=3 HDD copy sector p=4 Disk connected to COPY 1 p=5 Disk connected to COPY 2 sss: Additional disk space (%) ID request QID:WJ-HD309 QID:WJ-HD316 Interface ID request QIB:WJ-HD309 QIB:WJ-HD316 Production category QIC:2 request...
Page 145 Item Transmission command (ASCII) Response command (ASCII) Parameter (ASCII) zqm: Monitor status: camera CH: Playback time Monitor status n=0 Live n=1 Live sequence n=2 Playback n=3 Other statuses Camera CH Playback time: yyyymmddhhnnss ztl:n Search editing area ON n=0 Search editing area OFF n=1 Recording event search list ON n=2 Recording event search thumbnail n=3 VMD search list ON...
Page 146 Item Transmission command (ASCII) Response command (ASCII) Parameter (ASCII) Record information ZGP:rrrrrrrrrrrrrrrr ZGP:rrrrrrrrrrrrrrrr: rrrrrrrrrrrrrrrr: Record number inquiry ccc:q:nnnn:yyyymmdd ccc: Camera CH hhnnss:nnss:t:ssssss q: picture quality (0 (Very Fine), 1 (Fine), 2 (Normal), 3 (Extended)) nnnn: Recording rate yyyymmddhhnnss: Recording start date and time nnss: Recording total time t=0 Text included...
Page 147: Flowchart Of The Setup Menu
FLOWCHART OF THE SETUP MENU Maintenance Recording Event Schedule REC Rate Status REC Setup Event Setup Time Table Event Setup Maintenance Recording Schedule Disk Info Emergency REC REC PROGRAM Event Setup Video Loss REC PROGRAM Recording Program Maintenance Schedule Event Setup Version info EVENT PROGRAM Terminal Command...
Page 148: Parameters And The Default Settings Of The Setup Menu
PARAMETERS AND THE DEFAULT SETTINGS OF THE SETUP MENU These are the setting parameters and the default settings of the items on the SETUP MENU. Refer to these as reference. Setup Menu Setup Item Parameter Default Setting Maintenance Disk Info Warning for Disk Life Time 10 000h/20 000h/30 000h 30 000h...
Page 149 Setup Menu Setup Item Parameter Default Setting Event Event Setup Alarm Output OFF/1 s/2 s/../30 s/40 s/50 s/1 m/ 2 m/../5 m/EXT VMD: OFF Video Loss: 2 s Terminal Command Alarm: 2 s Output Terminal HD316: TRM1/TRM2/../TRM16 HD309: TRM1/TRM2/../TRM9 Buzzer OFF/1 s/2 s/../30 s/40 s/50 s/1 m/ VMD: OFF 2 m/../5 m/EXT...
Page 150 Setup Menu Setup Item Parameter Default Setting EVENT PROGRAM Action Mode (The unit) ALARM/ACT DET ALARM REC CH ON/OFF Auto Copy ON/OFF Preset Position --/1/2/../64 Serial Notice ON/OFF Mail Notice ON/OFF FTP Alarm Sending ON/OFF Special Days DATE 1/1 to 12/31 Mode MON/TUE/WED/THU/FRI/SAT/SUN Switcher...
Page 151 Setup Menu Setup Item Parameter Default Setting Camera Control COMP S/M/L HD316: CAM1to CAM8: S HD309: CAM1 to CAM6: S TYPE HD316: CAM1 to CAM8: COAX/RS485/OFF, HD316: CAM1 to CAM8: COAX, CAM9 to CAM12: RS485/PSD/OFF, CAM9 to CAM12: RS485, CAM13 to CAM16: RS485/PSD/OFF CAM13 to CAM16: RS485 HD309: CAM1 to CAM6: COAX/RS485/OFF, HD309: CAM1 to CAM6: COAX,...
Page 152 Setup Menu Setup Item Parameter Default Setting Network SNMP COMMUNITY public Setup CONTACT SYSTEM NAME LOCATION NTP Setup Time Adjustment ON/OFF Time Zone GMT-12:00/GMT-11:00/../GMT-4:00/GMT-3:30/ GMT-3:00/../GMT-1:00/GMT 0:00/GMT+1:00/ GMT+2:00/../GMT+9:00/GMT+9:30/ GMT+10:00/../GMT+13:00 GMT-5:00 NTP Server Address Refresh Interval 1 h/2 h/6 h/12 h/24 h Network FTP Setup FTP Server Address User Name User Password...
Page 153 Setup Menu Setup Item Parameter Default Setting Time & Date Date Format YY.MM.DD/MMM.DD.YY/DD.MMM.YY MMM.DD.YY Time Format 24 h/12 h 12 h Auto Adjust Time ON/OFF Master Time 0:00/1:00/../23:00 0:00 Summer Time(Day Light Saving) ON/OFF/AUTO Summer Time(Day Light Saving) Table User Regist. User Name User Edit Password...
Page 154: Troubleshooting
TROUBLESHOOTING Check to see the following before request for repair. Contact your dealer if a trouble cannot be solved even after checking and trying solution. Check item/Remedy Page Problem • Check if the power plug is surely connected to the AC out- –...
Page 155 Coaxial communication control is available for cameras Refer to p. 67. connected to VIDEO IN 1 to 8 for WJ-HD316 (1 to 6 for the WJ-HD309). • Check if the camera you are going to control is a combina- Refer to p. 67.
Page 156 Check item/Remedy Page Problem • Check if alarm input signals are properly input to the Refer to p. 80 ALARM or ALARM/CONTROL at the rear panel. and 84. Alarm operations are not acti- Refer to p. 84. • Check the settings of the ALARM connector. vated.
Page 157 Check item/Remedy Page Problem Refer to p. 91 • Check if "Disk End Mode" is set to STOP. and 92. The additional disk space of HDD is not displayed. – • Check if there is a partition in the HDD. Refer to p.
Page 158: Specification
SPECIFICATION General Power source: 120 V AC, 60 Hz Power consumption 85 W Ambient operating +5 °C to +45 °C temperature Ambient operating Less than 90 % humidity Dimensions 420 mm (W) X 88 mm (H) X 350 mm (D) [16-9/16" (W) X 3-7/16" (H) X 13-3/4"...
Page 159: Standard Accessories
STANDARD ACCESSORIES CD-ROM* ................1 Operating Instructions (this manual) ........1 Warranty ................1 The following are for installation: Power Cord ................. 1 Rack Mounting Bracket ............2 Screw for Rack Mounting Bracket ........4 Cable Clamp ............... 1 Screw for Cable Clamp ............1 Hard Disk Drive Fixing Screw ..........
Page 160 Security Systems Group PANASONIC SALES COMPANY www.panasonic.com/cctv DIVISION OF MATSUSHITA ELECTRIC OF PUERTO RICO INC. Executive Office: One Panasonic Way 3E-7, Secaucus, New Jersey 07094 San Gabriel Industrial Park 65th Infantry Ave. KM. 9.5 Carolina, Zone Office P.R. 00985 (809)750-4300 Eastern: One Panasonic Way, Secaucus, NJ 07094 (201) 348-7303 Central: 1707 N.Randal Road, Elgin, IL 60123 (847) 468-5205...
