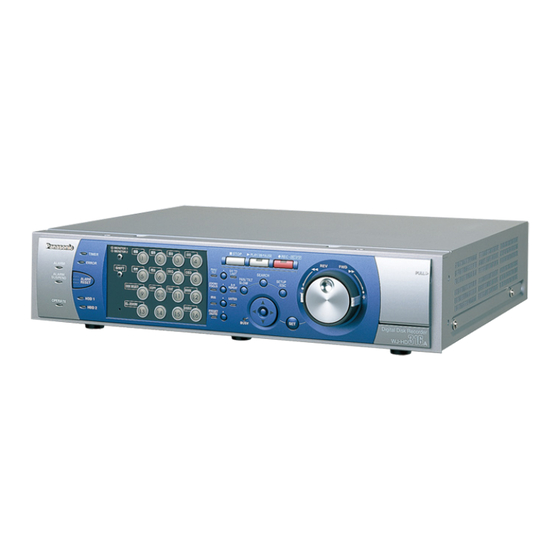

Digital Disk Recorder
WJ-HD300 series S-ATA conversion guide
WJ-HD309, WJ-HD316,WJ-HD309A,WJ-HD316A
1. Sept. 2008
Panasonic System Solutions

Advertisement

Table of Contents
loading

  Related Manuals for Panasonic WJ-HD300 series

  Summary of Contents for Panasonic WJ-HD300 series

  • Page 1 Digital Disk Recorder WJ-HD300 series S-ATA conversion guide WJ-HD309, WJ-HD316,WJ-HD309A,WJ-HD316A 1. Sept. 2008 Panasonic System Solutions...
  • Page 2: Replacement Procedure

    Maintenance guide WJ-HD300 S-ATA conversion guide 1. Introduction This manual describes how to convert the hard disk drive installed in the WJ-HD300 series from the P-ATA type to the S-ATA type. Applicable models: WJ-HD309, WJ-HD316, WJ-HD309A, WJ-HD316A 2. Preparation (1) Screwdriver...
  • Page 3 When removing the screws, hold the HDD by hand to prevent it from falling and being impacted. +++++++++++++++++++++++++++++++++++++++++++ Screws for the upper hard disk drive (4 screws: 2 screws each on the both sides) Hard disk drive mounting angle Panasonic System Solutions HD300_SATAConversionGuide_B...
  • Page 4 (9) Remove two screws fixing the ATA angle, and then remove the ATA angle. Angle screws (10) Install new S-ATA angle on the HDD mounting angle with the two screws removed in step (9). HDD mounting angle Panasonic System Solutions HD300_SATAConversionGuide_B...
  • Page 5 For HDD2 (Gray) CN301 For HDD1 (Red) CN302 To prevent the Twist the power supply cables from cable 360° and insert banking, pass the gray cable under For power supply the red cable. CN305 Panasonic System Solutions HD300_SATAConversionGuide_B...
  • Page 6 (15) Attach the S-ATA label, small (for front) to the front Approx. chassis. (16) Connect the connector to the front panel, and install the front panel with the screw remove in step (1) and close the SATA label(for front) connectors cover. Panasonic System Solutions HD300_SATAConversionGuide_B...
  • Page 7 Attach the S-ATA label, small (for front) to the connectors SATA label(for top) cover. S-ATA Approx. 2mm SATA label(for front) S-ATA Note: The new HDDs need to be formatted before operation. Refer to the Operating Instructions for detail. End of the document +++++++++++++++++++++++++++++++++++++ +++++++++++++++++++++++++++++++++ Panasonic System Solutions HD300_SATAConversionGuide_B...
