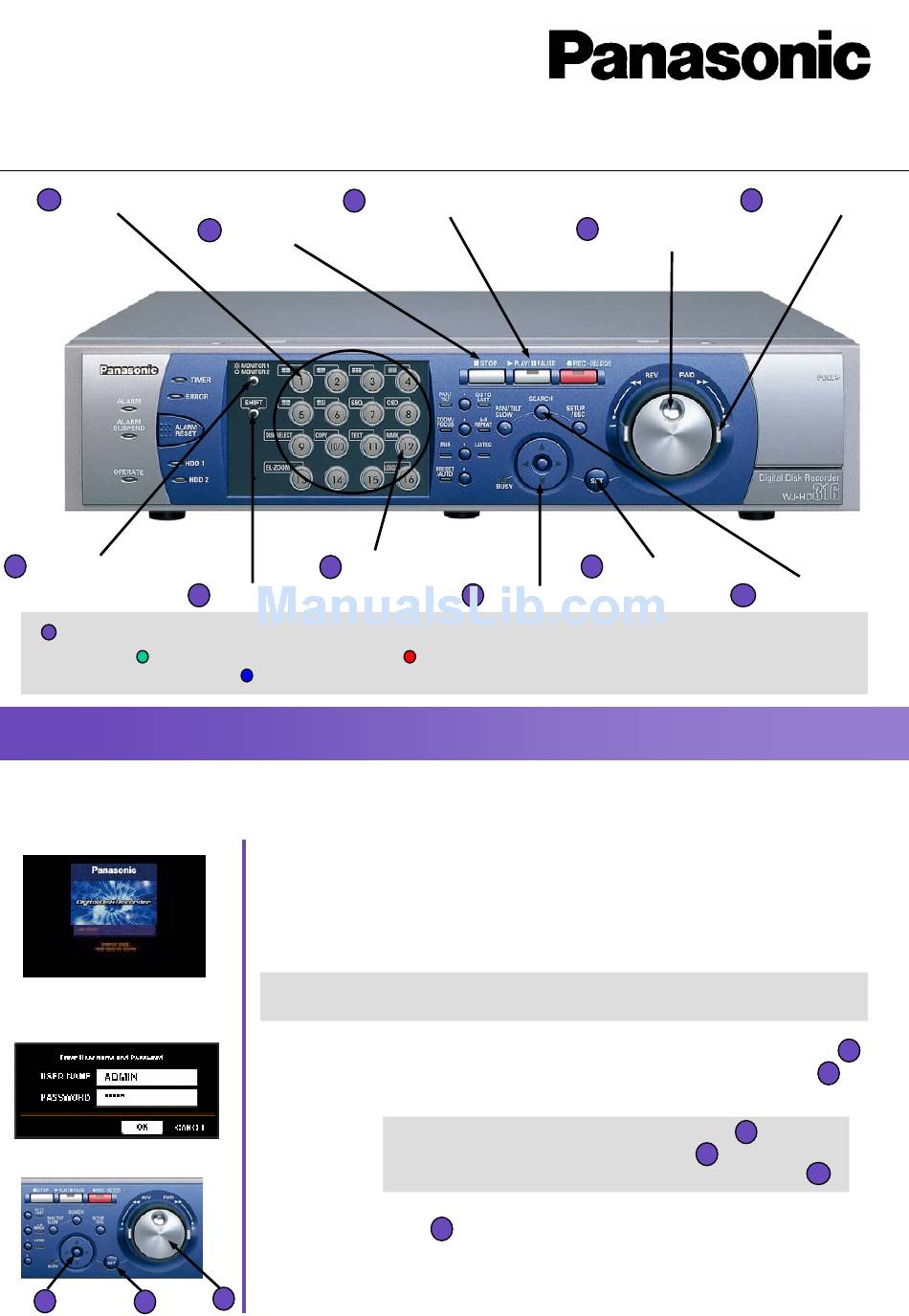

Digital Disk Recorder
WJ-HD316
１
Camera Selection Buttons
６
Monitor Switch Button
The Camera Selection Buttons change their color depending on the operation condition.
１
Green: Camera live on monitor
Startup
Startup
Startup splash image
Login window
９
１０
３
２
STOP Button
８
[12] Button
７
SHIFT Button
Blue: Camera live on monitor and under recording
(1) Insert the power plug to an outlet (make sure of the right
power source) and turn on the power switch on the rear panel.
• The OPERATE indicator will light and the system check will start. The startup
splash image to the left will be displayed on monitor 2 and VGA.
(2) Press any button on the front panel and the login window
will be displayed.
*
When the auto login is on, live images will be displayed after the system
check. (Step 2 to 4 not required)
(3) Enter a user name and password by rotating the jog dial
to select a character and by pressing the arrow buttons
to move the cursor.
(4) Press the SET
•
When authenticated, a live image will be displayed.
４
Quick Operation Guide
PLAY/PAUSE Button
９
Arrow Button
Orange: Camera under Recording
Cursor movement :
Character input :
Number input :
１０
button to display a live image
５
４
Jog Dial
SET Button
１０
１１
９
Arrow button
４
Jog dial
Camera selection button
Shuttle Ring
SEARCH Button
４
９
１
