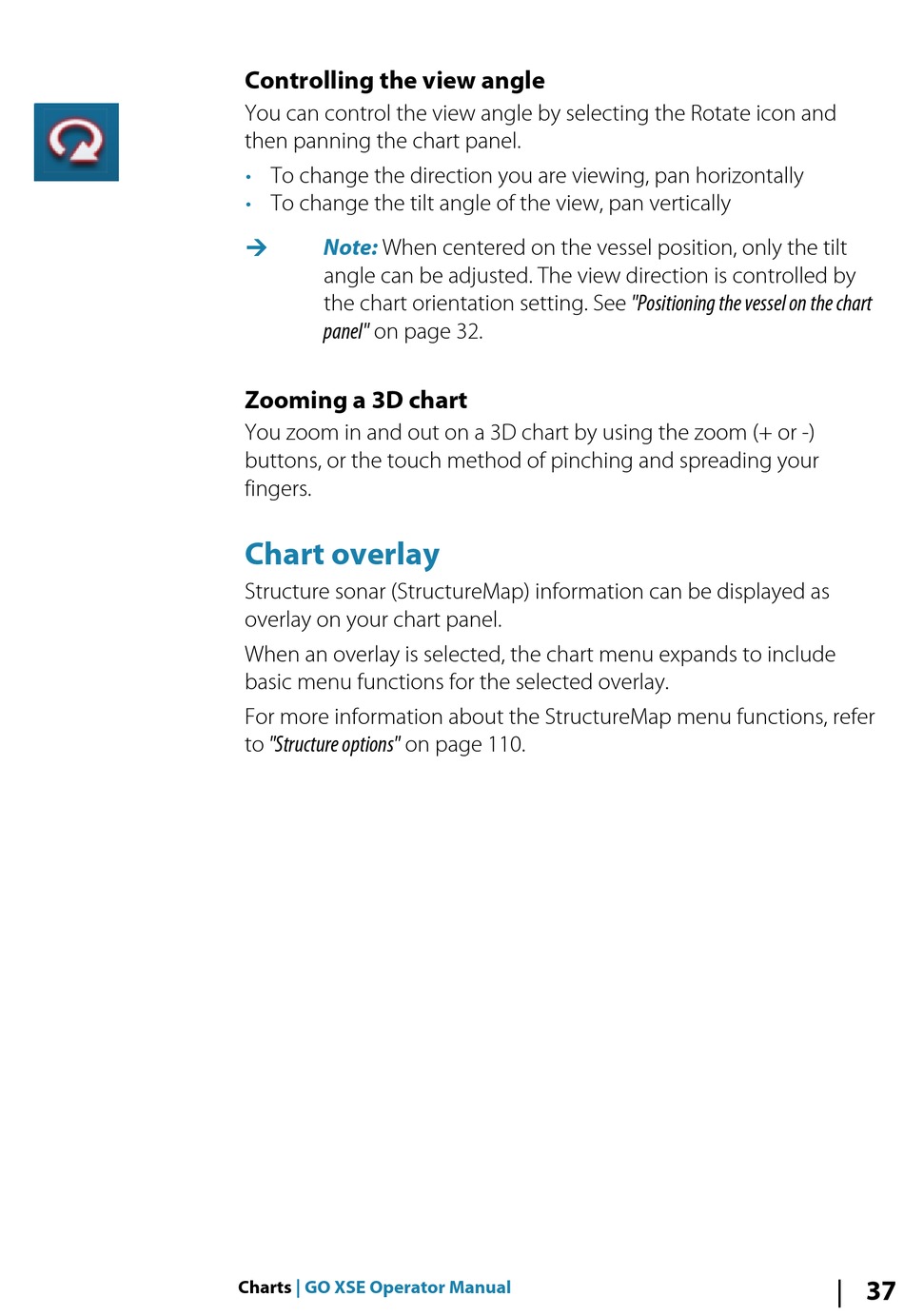

Controlling the view angle
You can control the view angle by selecting the Rotate icon and
then panning the chart panel.
• To change the direction you are viewing, pan horizontally
• To change the tilt angle of the view, pan vertically
Note:
Ú When centered on the vessel position, only the tilt
angle can be adjusted. The view direction is controlled by
the chart orientation setting. See "Positioning the vessel on the chart
panel" on page 32.
Zooming a 3D chart
You zoom in and out on a 3D chart by using the zoom (+ or -)
buttons, or the touch method of pinching and spreading your
fingers.

Chart overlay

Structure sonar (StructureMap) information can be displayed as
overlay on your chart panel.
When an overlay is selected, the chart menu expands to include
basic menu functions for the selected overlay.
For more information about the StructureMap menu functions, refer
to "Structure options" on page 110.
