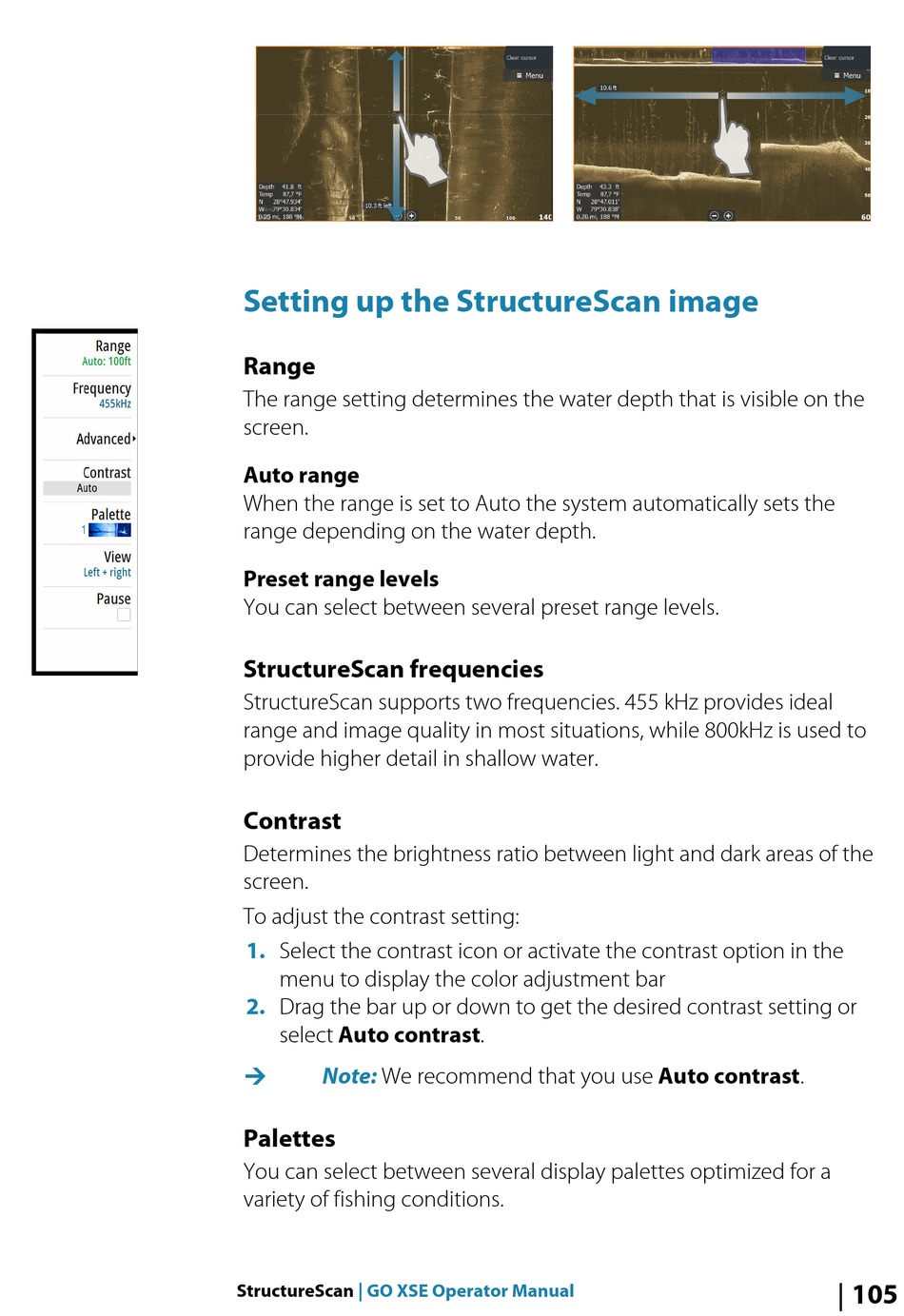

Setting up the StructureScan image

Range
The range setting determines the water depth that is visible on the
screen.
Auto range
When the range is set to Auto the system automatically sets the
range depending on the water depth.
Preset range levels
You can select between several preset range levels.
StructureScan frequencies
StructureScan supports two frequencies. 455 kHz provides ideal
range and image quality in most situations, while 800kHz is used to
provide higher detail in shallow water.
Contrast
Determines the brightness ratio between light and dark areas of the
screen.
To adjust the contrast setting:
1.
Select the contrast icon or activate the contrast option in the
menu to display the color adjustment bar
2.
Drag the bar up or down to get the desired contrast setting or
select Auto contrast.
We recommend that you use Auto contrast.
Note:
Ú
Palettes
You can select between several display palettes optimized for a
variety of fishing conditions.
