HPL to LED Retrofit
Installation and User Manual
revision D
v 1.0
LED fixtures are intended for professional use only.
Read this entire document before using this product.
Copyright © 2016 Electronic Theatre Controls, Inc.
All rights reserved. Product information and specifications subject to change.
Part Number: 7067M1200-1.0.0
Released: March 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Source 4WRD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ETC Source 4WRD

Summary of Contents for ETC Source 4WRD

  • Page 1 HPL to LED Retrofit Installation and User Manual revision D v 1.0 LED fixtures are intended for professional use only. Read this entire document before using this product. Copyright © 2016 Electronic Theatre Controls, Inc. All rights reserved. Product information and specifications subject to change. Part Number: 7067M1200-1.0.0 Released: March 2016...
  • Page 2 All other trade ma rk s, both marked and not ma rked, are the property of their re spe ctive owners. This product is protected by one or more of the following U.S. Pate nts: US 9,261,241 and 9,273,831 ETC intends this document, whether printed or electronic, to be provided in its entirety.

  • Page 3: Table Of Contents

    Remove Incandescent Lamp Housing ... 6 Install Source 4WRD ......7 Fixture Installation .

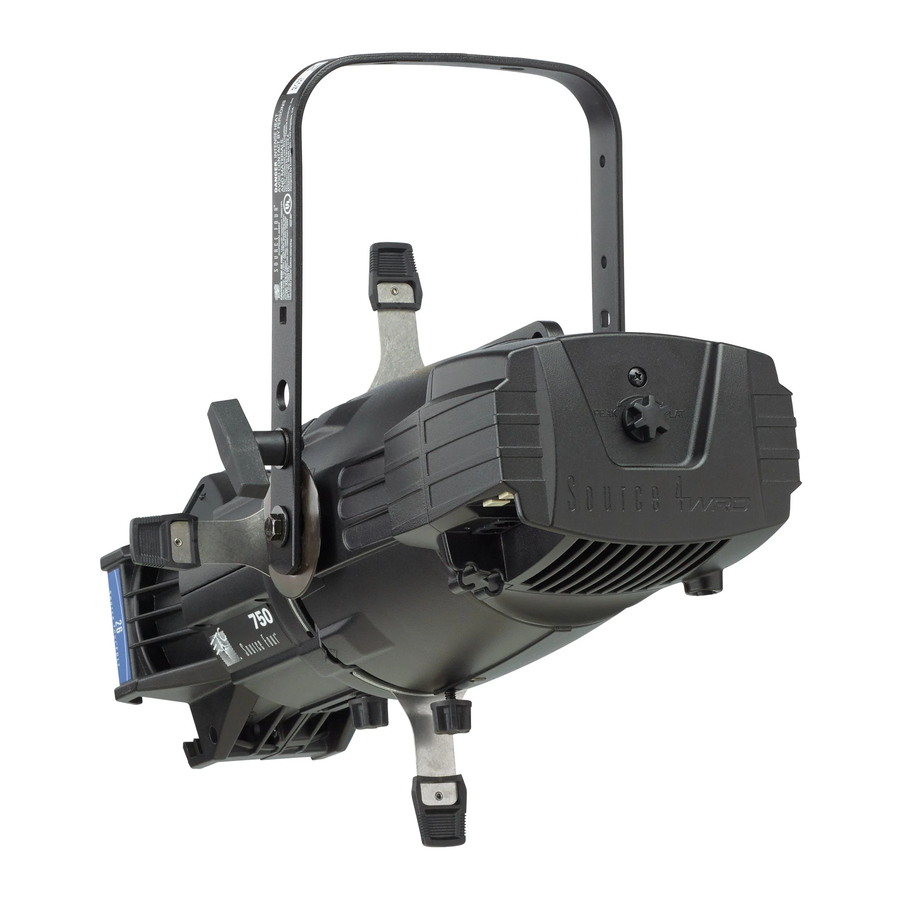

  • Page 5 Source 4 LED retrofit brings a new tool to your lighting inventory. Source 4 expands the options for existing Source Four fixtures and adds a new white LED fixture to the ETC family. Source 4 shown...

  • Page 6: Safety

    • In addition to primary suspension, attach a safety cable (ETC Model 400SC or other approved safety cable or device) to the fixture housing. Appropriate attachment point (hole) is provided in the protruding tab on the fixture housing.

  • Page 7: Specifications

    LEDs • 4 CREE LED modules • 30,000 hour estimated L70 rating. Life-test in progress, results pending. Optical • Compatible with all ETC Source Four lens tubes. Control • DMX512-A compliant • DMX in and thru via two RJ45 connectors •...
  • Page 8 The SCR Off Time may need to be increased from the default setting. Contact ETC for assistance in changing the SCR off time, or any other CEM classic, CEM+, or CEM3 settings. For the most current information on additional dimmer...

  • Page 9: Color Rendering And Quality

    Contacting ETC If you are having difficulties, your most convenient resources are the references given in this user manual. To search more widely, try the ETC Web site at www.etcconnect.com. If none of these resources is sufficient, contact ETC Technical Services directly at one of the offices identified below.

  • Page 10: Retrofit Kit Installation

    The lamp housing is now loose and can be removed. Note: The burner assembly is no longer needed. If you would like ETC to recycle the burner assembly, contact ETC Technical Services for more information. See “Contacting ETC” on page 5. Source 4 Page 6 Electronic Theatre Controls, Inc.

  • Page 11: Install Source 4Wrd

    Install Source 4 WARNING: RISK OF FIRE OR ELECTRIC SHOCK: Install this kit only to luminaires that have the construction features and dimensions shown in the graphics and where the input rating of the retrofit kit does not exceed the input rating of the luminaire. WARNING: Do not make or alter any open holes in an enclosure of wiring or electrical components during kit...

  • Page 12: Fixture Installation

    Shutters (x4) C-clamp and safety cable The C-clamp attaches the fixture to the mounting pipe and allows you to adjust the position of the mounted fixture. ETC recommends using 1.5” schedule 40 pipe. Step 1: Tightly fasten the C-clamp to the yoke with the provided yoke bolt and lock washer.

  • Page 13: Connect Cables

    • Two strain reliefs are built into the bottom of the Source and should be used to support the fixture’s data cable. To order RJ45 to female XLR adapter, use ETC part# W6538 To order RJ45 to male XLR adapter, use ETC part# W6539 Note: Source 4 is not self terminating.

  • Page 14: User Interface

    ETC User Manual User Interface The two button, seven segment display shows either AC mode or the DMX address. To set a DMX address: Use the up and down arrows to navigate to the desired DMX address number, 1-512. To set the fixture to AC mode: Use the down arrow to navigate one ...

  • Page 15: Focus The Fixture

    Focus the fixture Z-adjustment Knob The z-adjustment knob located on the rear of the Source 4 enables you to adjust the field of the LED light for specific applications. Adjustment knob This shows an ideal beam of uniform light Adjust towards “PEAK” to blend over-lapped beams Adjust towards “FLAT”...

  • Page 16: Shape The Beam

    ETC User Manual Setting the angle within the yoke Step 1: Loosen the yoke locking knobs. Do not remove the knobs. Step 2: Tilt the fixture to the desired position. Step 3: Tighten the yoke locking knobs to Yoke locking knob secure in position.

  • Page 17: Pattern Projection

    2.75” diameter patterns 3.70" 3.70" Note: Because the Source 4 aperture is 3 inches wide, ETC recommends using A-size patterns for maximum pattern effectiveness. Cleaning and Maintenance Cleaning Source 4 • Use oil-free canned air to clean the LED domes prior to installation and prior to storage.

  • Page 18: Cleaning Lenses

    ETC User Manual Cleaning Lenses WARNING: Do not use ammonia-based or other harsh commercial cleaners. Clean lens and reflector only as directed. Commercially available glass cleaning agents should be avoided as they may contain ammonia, other harsh chemical detergents or abrasive agents.

  • Page 19: Cleaning 5° And 10° Polymer Lenses

    Reinstall the barrel rotation knob and tighten the retainer bolt. Step 8: Reinstall the LED lamp housing and tighten the attachment See “Install Source 4WRD” on page 7. screw. Cleaning 5° and 10° polymer lenses To quickly clean the lenses, remove dust with a blast of oil-free air. If this is not sufficient, follow these steps.
  • Page 20 Tel +852 2799 1220  Service: (Asia) service@etcasia.com Web: www.etcconnect.com  Copyright © 2016 ETC. All Rights Reserved. Product information and specifications subject to change.  ETC intends this document to be provided in its entirety. 7067M1200-1.0.0 Rev D Released 2016-03  ...
