Hyundai HYMT33 User Manual

Multi-tool
Hide thumbs

Advertisement

Table of Contents

MULTI-TOOL
Model HYMT33
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Hyundai HYMT33

Summary of Contents for Hyundai HYMT33

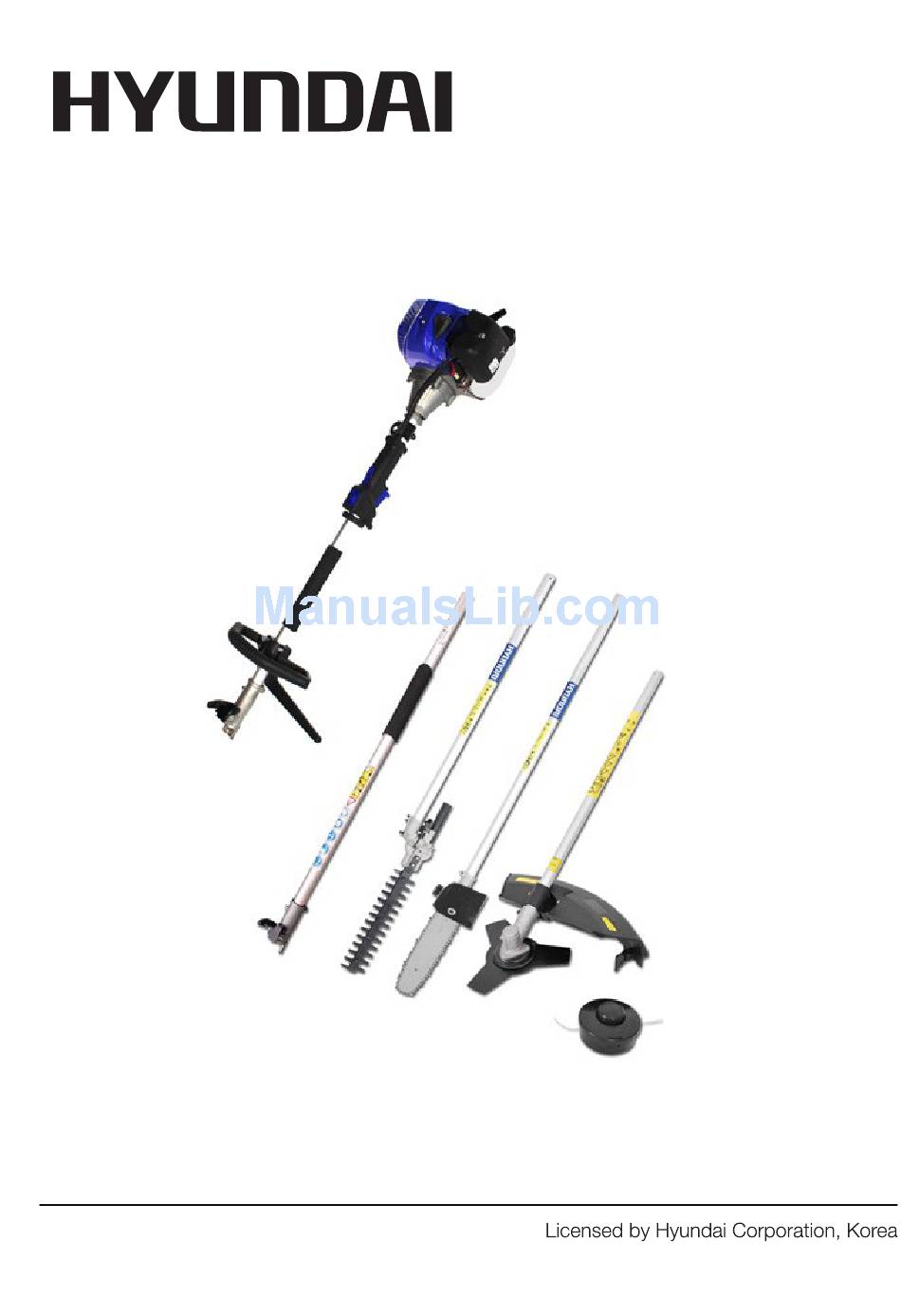

  • Page 1 MULTI-TOOL Model HYMT33 User Manual...

  • Page 2: Table Of Contents

    CONTENTS SAFETY 3 - 5 THE UNIT 5 - 7 ASSEMBLY AND INITIAL OPERATION 8 - 10 OPERATION 11 - 14 INSPECTION & MAINTENANCE 14 - 15 TRANSPORTATION & STORAGE TECHNICAL DATA 17 - 18 TROUBLESHOOTING DECLARATION OF CONFORMITY Page 2 Ver 2...

  • Page 3: Safety

    1. SAFETY 1.1 The operator of the machine is responsible for and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. Please note the following safety points 1.1.2 The machine should never be left it in a condition which would allow an untrained or unauthorised person/s to operate this machine.
  • Page 4 1.3 Carbon monoxide. 1.3.1 Carbon monoxide is a colourless and odourless gas. Inhaling this gas can cause death as well as serious long term health problems such as brain damage. 1.3.2 The symptoms of Carbon monoxide poisoning can include but not limited to the following; 1.3.2.1 Headaches, dizziness, nausea, breathlessness, collapsing or loss of consciousness.
  • Page 5 1.4.7 Dispose of waste fuels correctly. 1.4.8 Petrol safety. 1.4.8.1 Always fuel and defuel in well-ventilated area. 1.4.8.2 Always wear correct, suitable and fit for purpose Personal Protective Equipment (PPE), suggested items are as follows, but are not limited too. 1.4.8.3 1.4.8.4 1.4.8.5...

  • Page 6: The Unit

    2. THE UNIT 2.1 PPower unit. 2.1.1 The unit is a universal combination set enabling perfect care of the garden and hedges and lop trees. 1. SStarting handle 2. Air filter 33. Throttle lockkout 4. Stop switch 5. Front handle 6.

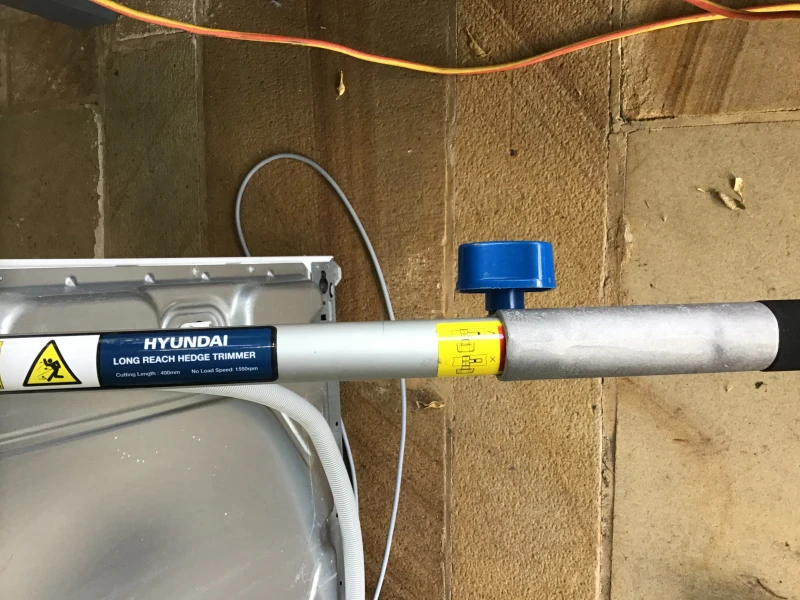

  • Page 7 2.4 Articulating hedge trimmer 1. Pole saw locking hole Automatic oil pump 3. Adjusting lever lockk 4. Cutting unit adjusting lever 135 degrees35° 2.5 Brush cutter 1. Locking hole 2. Guard 33. C utting blade 2.6 Grass trimmer 1. Locking hole 2.

  • Page 8: Assembly And Initial Operation

    33. A SSEMBLY AND INITIAL OPERATION 3.1 Ppower unit. 1. Front handle 2. SScrew 5mm x 35mm 3. Nut M55 4. Cover 5. Front handle bar 6. SScrew 4.2mm x 9.5mm 7. Rubber sleeve 3.1.1 Install the front handle as shown in the diagrams. DO NOT tighten the screws until you have set the perfect working position with the carrying strap.
  • Page 9 3.3 Hedge trimmer. 3.4 Pole saw. Page 9 Ver 2...
  • Page 10 3.5 Fuel information. 33.5.1 Refuelling: 3.5.1.1 For air-cooled 2-stroke engines,mix unleaded petrol thoroughly with synthetic 2-stroke oil at 40:1 ratio or mineral 2-stroke oil at 20:1 ratio. Tip: Always prepare 1 litre of the mix at a time because the mix turns unusable after prolonged storage.

  • Page 11: Operation

    4. OPERATION 4.1 Only attempt to start the machine once the all poles and attachments have been securely fitted and attached. Check for abnormal vibrations when machine is running. If machine is vibrating too much,it is generally because the poles and/or attachments are not fitted and secured properly.
  • Page 12 4.1. Continued. Start the machine by carefully pulling the starting handle. Do this whilst the machine is against the ground. Now control the throttle so that the machine runs evenly until it reaches full speed. Check for abnormal vibrations when machine is running.
  • Page 13 4.33Spark plug removal/replacement. 4.3.1 Pull the spark plug cover (1) off unscrew (in an anti-clockwise direction))the spark plug (2)) using the suppled spark plug wrench and remove spark plug for inspection or replacement. 4.4 Operation safety instructions. 4.4.1 Grass trimmer & brush cutter operation Instructions. 4.4.1.1 To turn the machine off, the switch has to be in STOP position.

  • Page 14: Inspection & Maintenance

    5.3.3.5 Always replace worn or damaged parts. 5.3.3.6 If petrol tank needs draining, always do it outdoors. 5.3.3.7 DO NOT attempt to repair the machine unless you are competent to do so. 5.3.3.8 Use only genuine Hyundai parts and accessories. Page 14 Ver 2...
  • Page 15 This may result in serious injury. 5.4.5 Never attempt maintenance that is not outlined in this manual. All repair work must be carried out by a Hyundai authorised service centre. 5.5 Spark plug adjustment or replacement. 5.5.1 Stop machine and wait for it to cool down.

  • Page 16: Transportation & Storage

    6. TRANSPORTATION & STORAGE 6.1 SStorage. 6.1.1 If the machine is to be out of operation for a long period of time over 1 month),take action as follows: 6.1.1.1 Drain the oil and fuel tank. 6.1.1.2 Remove and clean the string coil and the blade. 6.1.1.3 Wipe the string coil and the blade dry.

  • Page 17: Technical Data

    7. TECHNICAL DATA Guaranteed sound power level (LwA) 112 dB (A)) Guaranteed sound pressure level (LpA) 102 dB (A)) Guaranteed vibration at racing speed 7.5 m/s² Guaranteed vibration at idling speed 5 m/s² Engine: Type of the engine Air-cooled, 2-stroke single cylinder Engine Displacement 32.5 cc...
  • Page 18 Hedge Trimmer: Net Weight 7.4kg Cutting Length 375mm Cutting Speed 1500rpm Engine Speed with Trimmer running 8000rpm-8500rpm L x W x H 2850mm x 260mm x 260mm Brush Cutter and Grass Trimmer: Net Weight (No Attachment)) 6.4kg Net Weight ((With Attachment)) 7.2kg Gross Weight ((With Attachment)) 7.8kg...

  • Page 19: Troubleshooting

    8. TROUBLESHOOTING Fault Cause Remedy Correct starting Follow the procedure not instructions for followed starting Clean the spark plug The machine does Sooted or damp or replace it with a not start sparkk plug new one Contact an authorised Incorrect carburettor customer service setting outlet...

  • Page 20: Declaration Of Conformity

    9. DECLARATION OF CONFORMITY Genpower Ltd confirms that this Hyundai product conforms to the following CE directives: 2006/42/EC Machinery directive 2004/108/EC EMC directive 2000/14/EC Noise emissions directive 97/68/EC NRMM Emissions directive Page 20 Ver 2...
  • Page 21 Page 21 Ver 2...
  • Page 22 Page 22 Ver 2...
  • Page 23 Page 23 Ver 2...
  • Page 24 GENPOWER LTD Isaac Way, London Road Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 E: info@hyundaipowerequipment.co.uk www.hyundaipowerequipment.co.uk...
