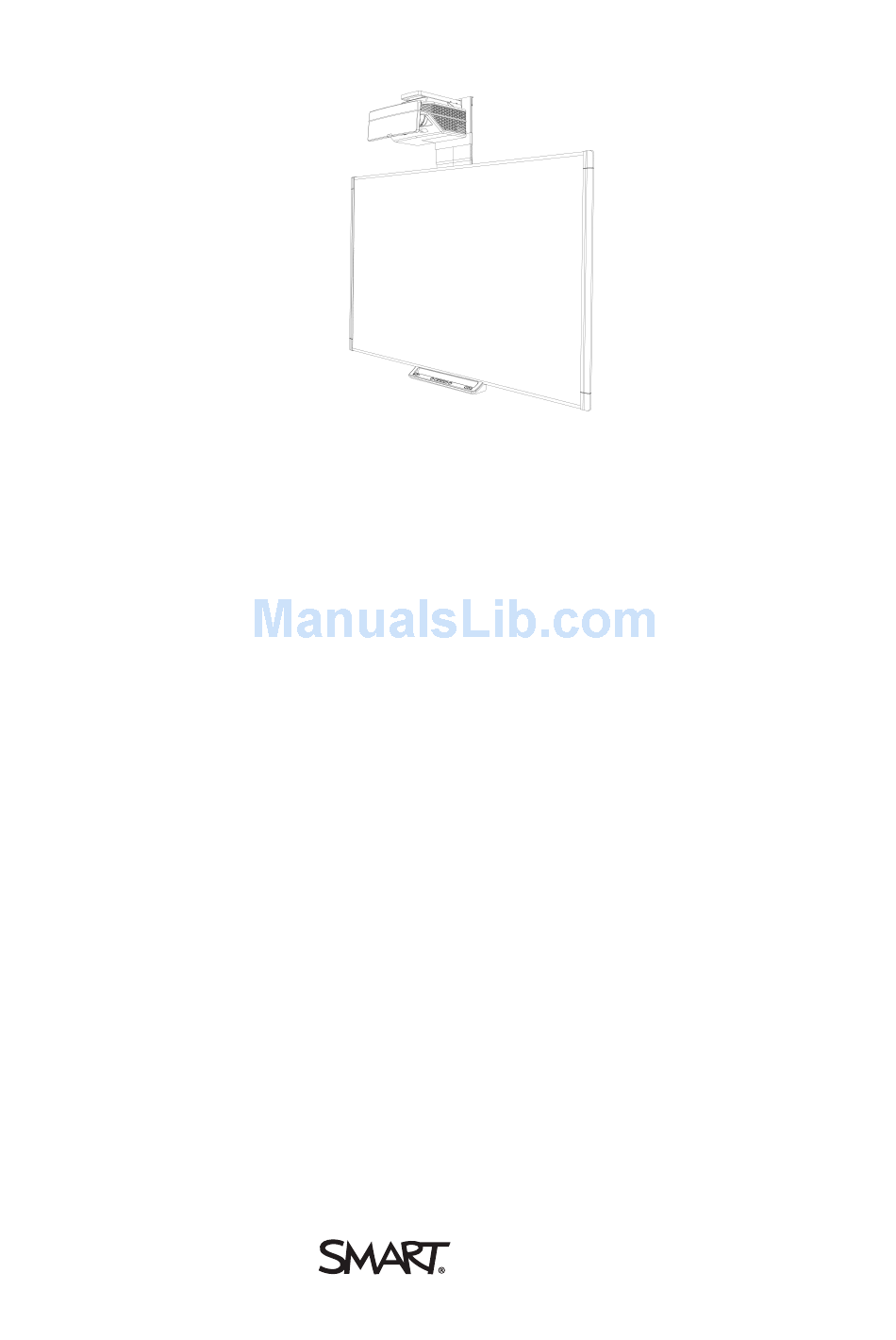

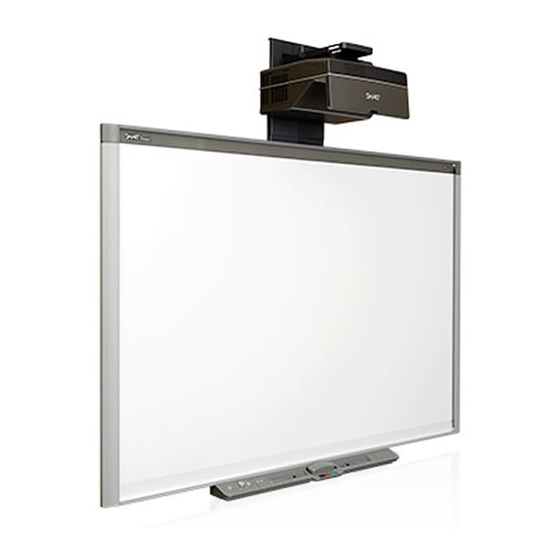

SMART Board® M685ix2
Interactive whiteboard systems
Configuration and user's guide
For model SBM685ix2
