Bellfi res
4
DISMANTLING / ASSEMBLING OF THE GLASS
4.1 VIEW BELL SMALL 3 HIDDEN DOOR (10 cm frame (4 sided))
Dismantling of the glass:
Place paperboard on the chimney breast, under the appliance.
This helps prevent damage.

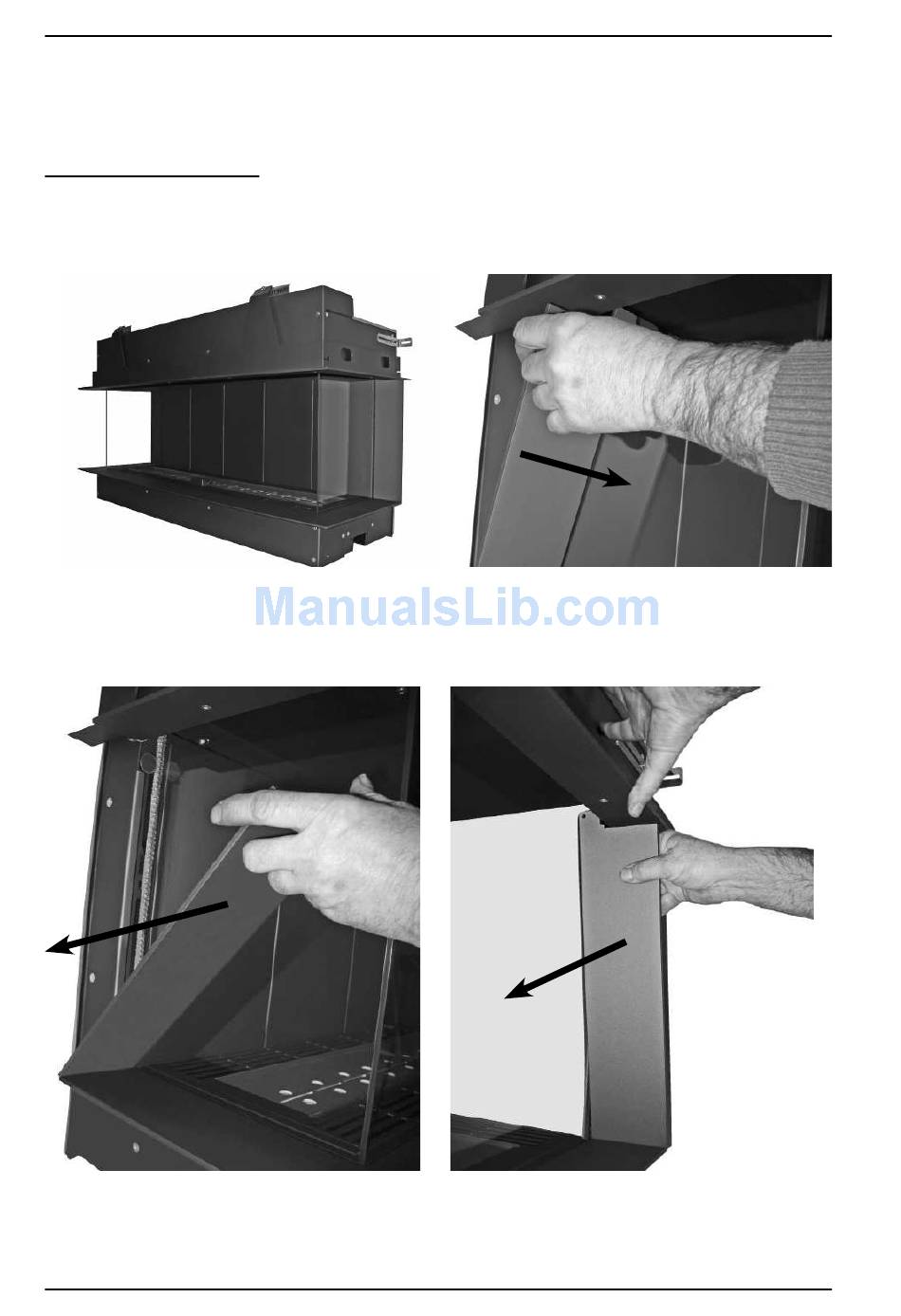

• View Bell Small 3
• Remove the side panel on the long side.
74
• Pull the side panel forwards on the long
side, alongside the glass.
• Pull the side panel forwards on the short
side, alongside the glass.
English
Installation instructions
