Bellfires VIEW BELL SMALL 3 CF/LF Installation Instructions & Manual For Maintenance page 16

Bellfi res
FLEXIBLE CONCENTRIC FLUE Ø100 mm - Ø150 mm SYSTEM CONNECTION
POSSIBILITIES
Appliance: Concentric fl ue connection Ø100-Ø150 mm or Ø130-Ø200 mm
Item descriptions:
see 1.6.2
Appliance:
View Bell Small 3

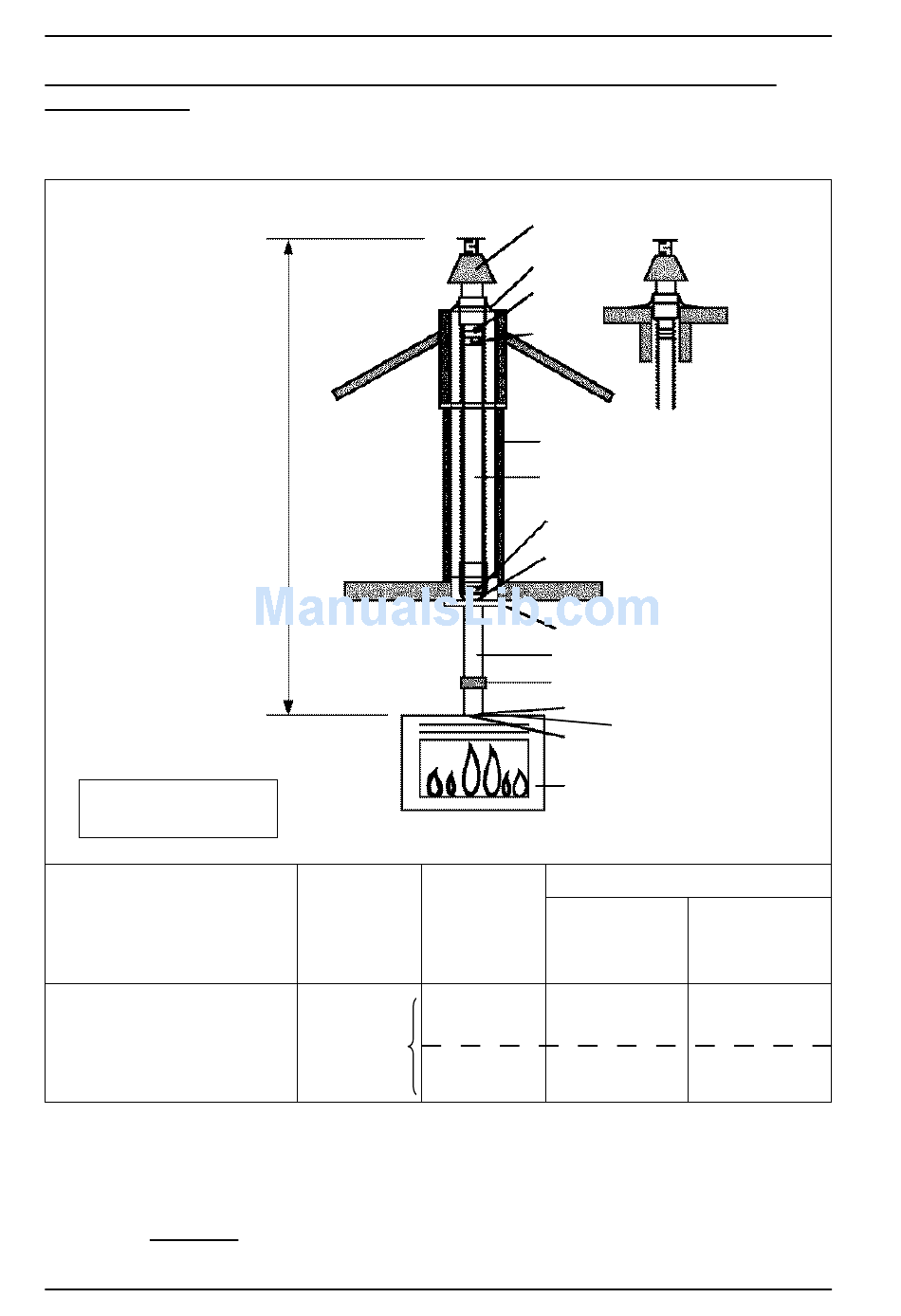

Figure 6: Vertical chimney outlet using an existing lined chimney
(Flexible Ø100 mm and/or rigid Ø100 mm / Ø150 mm)
ALL SIZES INCLUDE THE LENGTH OF THE ROOF OR WALL TERMINATION
16
Y
32
18
30
29
5
7
29
26
25
10, 11, 12, 13
23
28
4
1
Assemble restriction plate:
Distance Y Concentric
(min.-max.) connection
on appliance is
Ø100-Ø150 mm
Width:
2.0 - 4.0 m
B = 30 mm
Width:
4.0 - 12.0 m
B = 40 mm
English
(100)
Concentric
connection
on appliance is
Ø130-Ø200 mm
Width:
B = 65 mm
Width:
B = 80 mm
Installation instructions
