• Make sure that the compression
spring (Left and Right) stays in the
correct position.
Assembling of the glasses:
The assembly of the glass takes place in reverse order.
Important:
• The glass panes fi t together well. There must be no gaps between the glass panes,
or there will be a danger of fl ue leakage.
• The glass panes must fi t properly all round the edges of the combustion chamber.
• Check if the fastening strips have been properly mounted all round.
• Check if the compression springs has been replaced in the correct position.
78

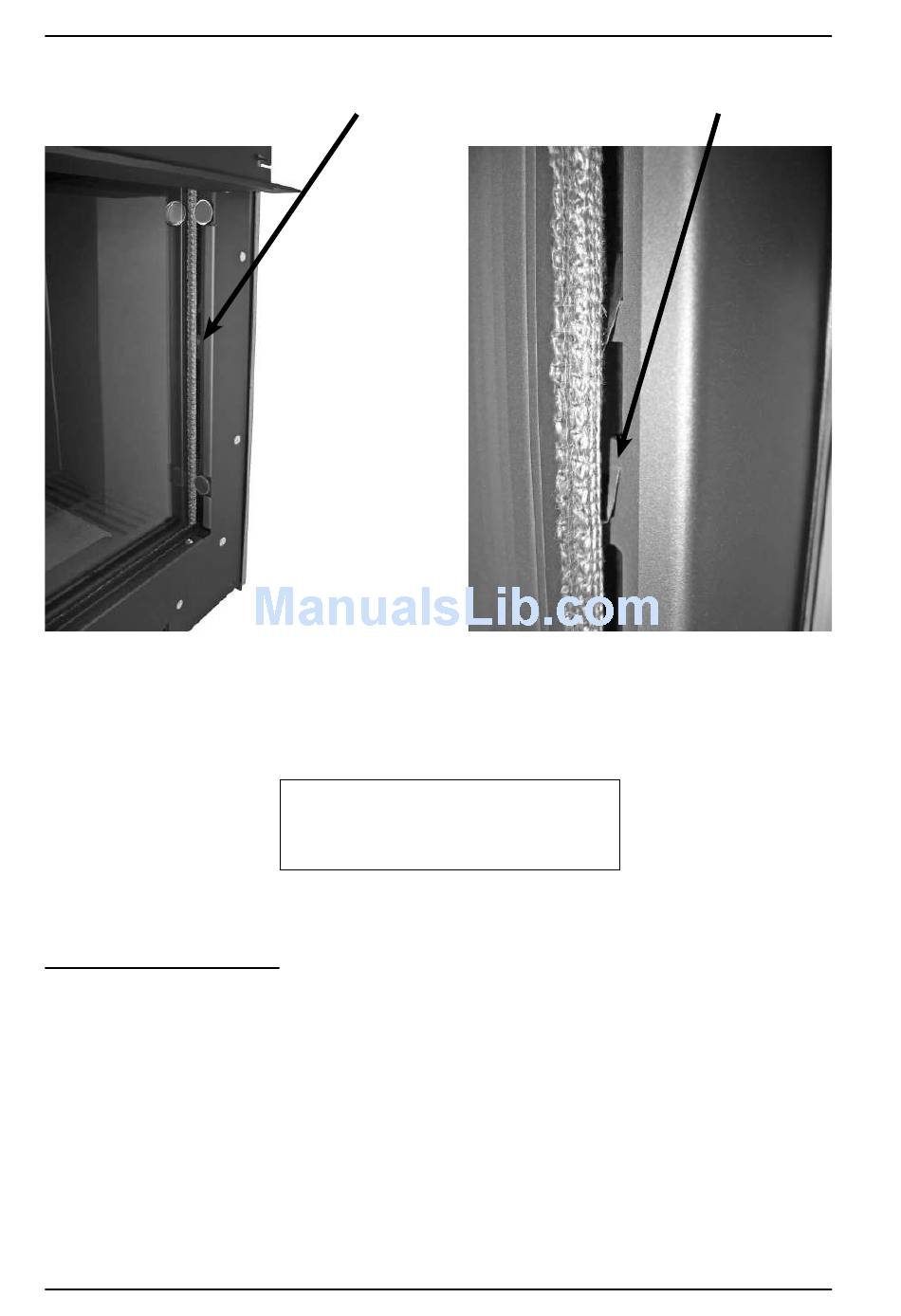

Compression spring position
Side glass L/R
All fastening strips on the top
side remain in position!
Side glass compression spring L/R
• Side glass compression spring
(Left and Right).
