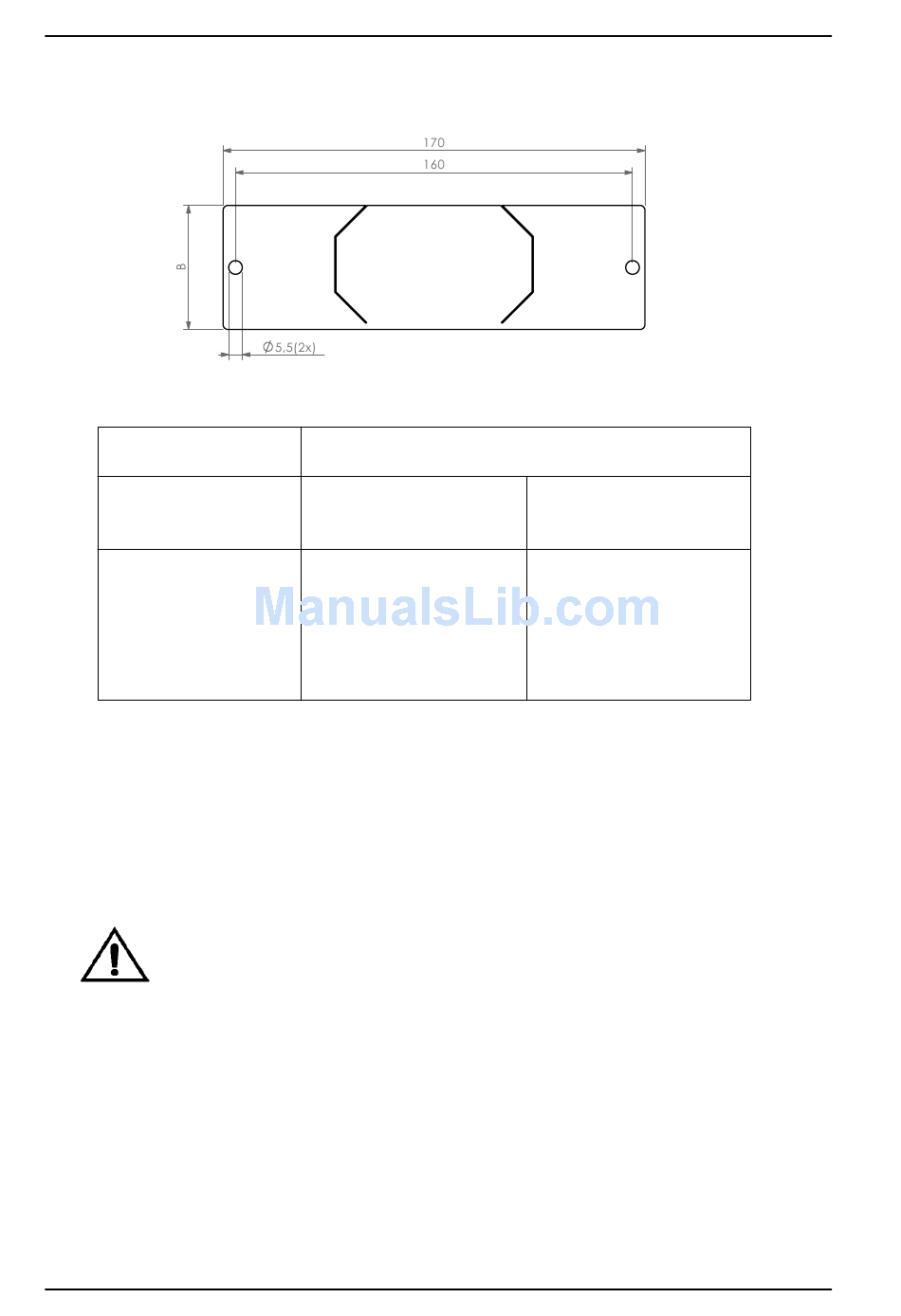

The following restriction plates are supplied:
Restriction plate:
Width:
Width:
Width:
Width:
Width:
1.7.7 Check overpressure hatches
There are two overpressure hatches in the roof of the combustion chamber (front).
Check that the hatches are loose, by lifting a little and carefully letting
them come down again.
Check if the packing under the hatches is sealed.
70
Concentric fl ue connection appliance
[Ø130 - 200 mm]
Horizontal wall outlet
-
B = 40 mm
B = 50 mm
B = 65 mm
B = 80 mm
[Ø100 - 150 mm]
Roof-mounted outlet
B = 30 mm
B = 40 mm
B = 50 mm
B = 65 mm
-
Installation instructions
English
