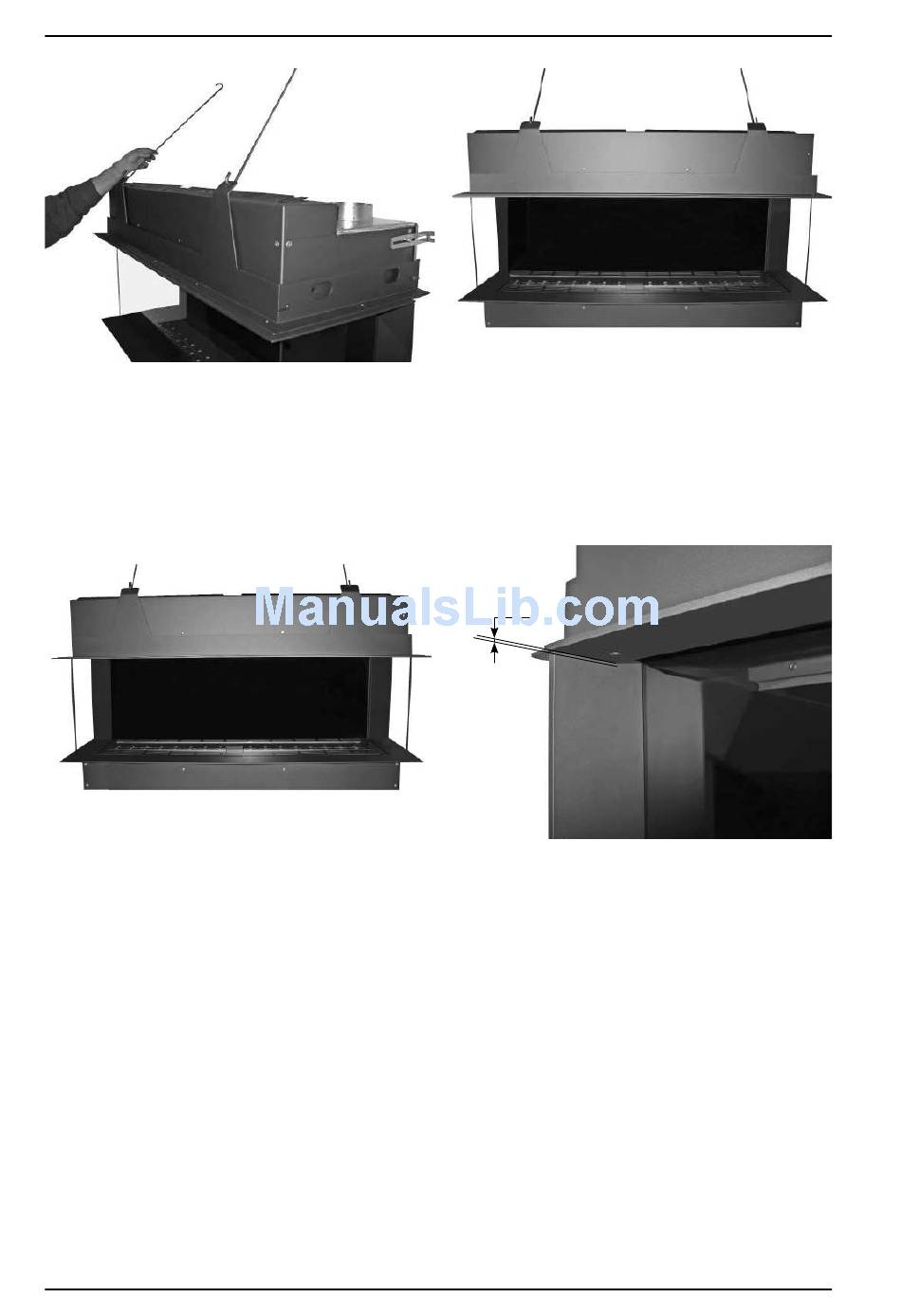

Fix the mantle iron to the rear wall with the bar set. Place the draw bars at an angle of
about 60˚ (between the appliance and the wall). Level the mantle iron with the tension
sleeves.
Ensure that the height between the mantle
iron and the underside of the glass is the
same at left, middle and right.
Put ceramic felt on the top of the mantle iron, before laying bricks or using other heat-
resistant structural materials.
If using other materials, such as stone or heat-resistant plating, you should follow the
supplier's instructions.
60
2 mm
Keep a clearance of 2 mm between the
mantle iron and the top of the side panels.
The side panels should always be easily
removable. Check that the mantle iron is
at right angles to the side panels, both left
and right.
