CyberData 011186 Operation Manual page 18

2.3.3.2 Connecting the Door Strike Intermediate Relay Module
For wiring an electronic door strike, we recommend the use of our external Door Strike Intermediate
Relay (CD# 011269).
This product provides an easier method of connecting standard door strikes as well as AC and
higher voltage devices. See
1
8
J3 Terminal Block
If you have questions about connecting door strikes or setting up the web configurable options,
please contact our support department.
http://www.cyberdata.net/support/voip/index.html
Operations Guide
Figure 2-4 for the wiring diagram.

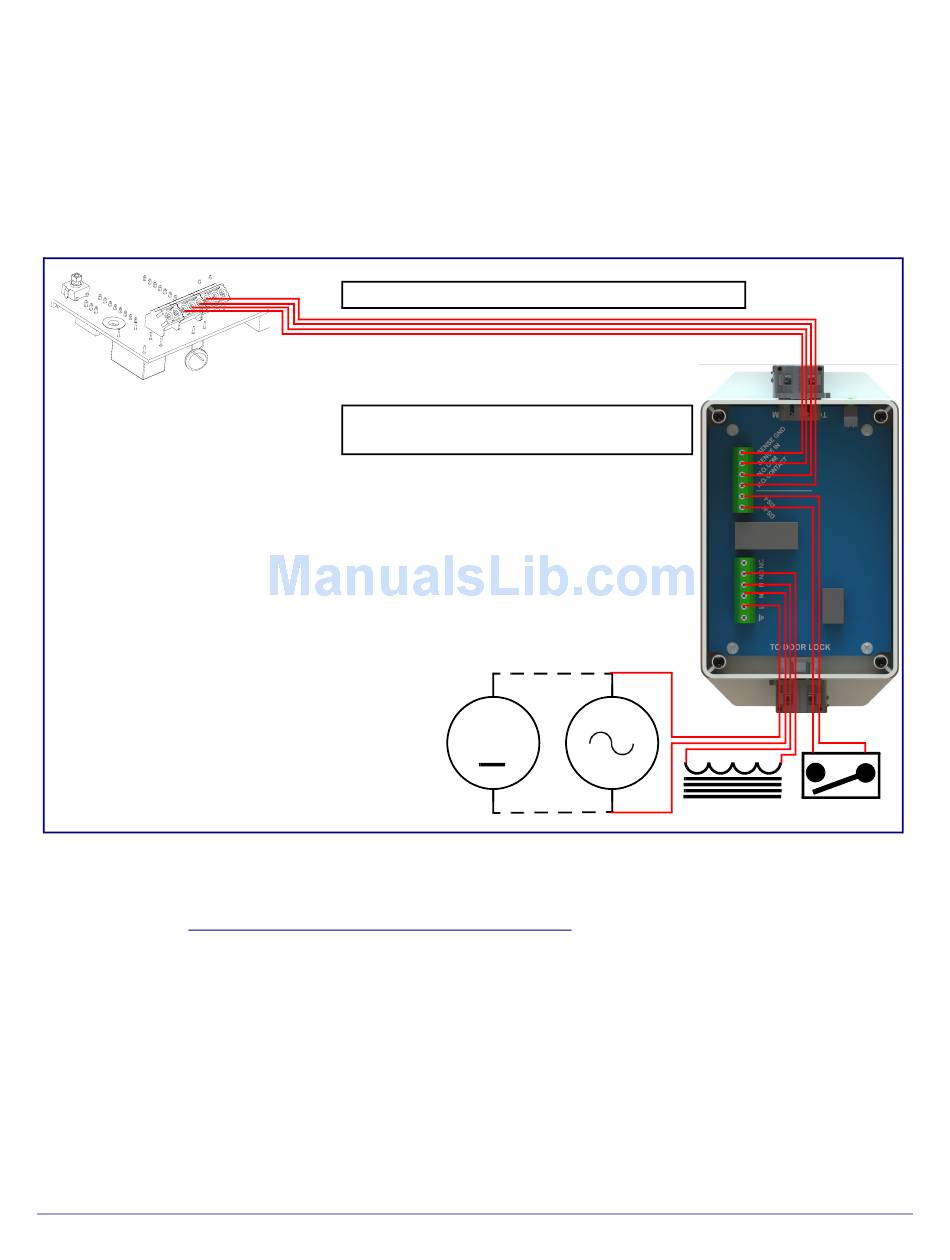

Figure 2-4. Wiring Diagram
The J3 terminal block can accept 16 AWG stranded wire.
Please refer to the Door Strike Intermediate Relay
Operations Guide for connection specifics.
+
DC Source
930796L
Installing the VoIP Outdoor Intercom
AC Source
OR
Door Lock
Intercom Setup
Sense Input
CyberData Corporation
11
