Williams Sound Digi-wave DLT 100 Manual page 8

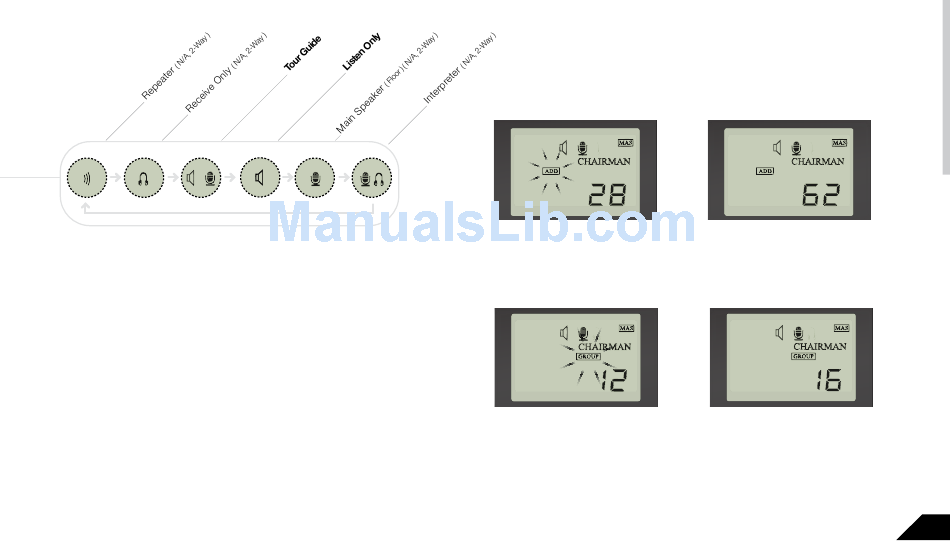

Press ( + ) button, the mode will change in sequence
above. Press ( - ) button for reverse sequence
Note: In 2-Way Mode, 2 different applications can be used
as listed below. Each has a different role but they both can
be used in 2-Way Mode.
2-Way Modes
Tour Guide
Listen Only
DLT 100
9
Address ( ADD ) icon will now begin to blink Press ( + )
or ( - ) button to select a Address number ( 0 – 1023 ).
Use ( 0- 99 ) for voting feature.
11
GROUP icon will now blink.
Press ( + ) or ( - ) button to select a Group number.
Must have one Master in a group. MAS and SLV units
must have same group number
10
Press POWER / MENU button to
enter Address number
12
Press POWER / MENU button to enter
Group number. For 4 simultaneous
groups, numbers must be consecutive.
ie ( 11, 12, 13, 14 ). Can use
( 0 - 1023 ) for group numbers
9
