Williams Sound DLT 100 2.0 User Manual

Dlt 100 2.0 digital transceiver and dlr 60 2.0 digital receiver
Hide thumbs Also See for DLT 100 2.0:
Table of Contents

Advertisement

Quick Links

Digi-Wave
2.0
™

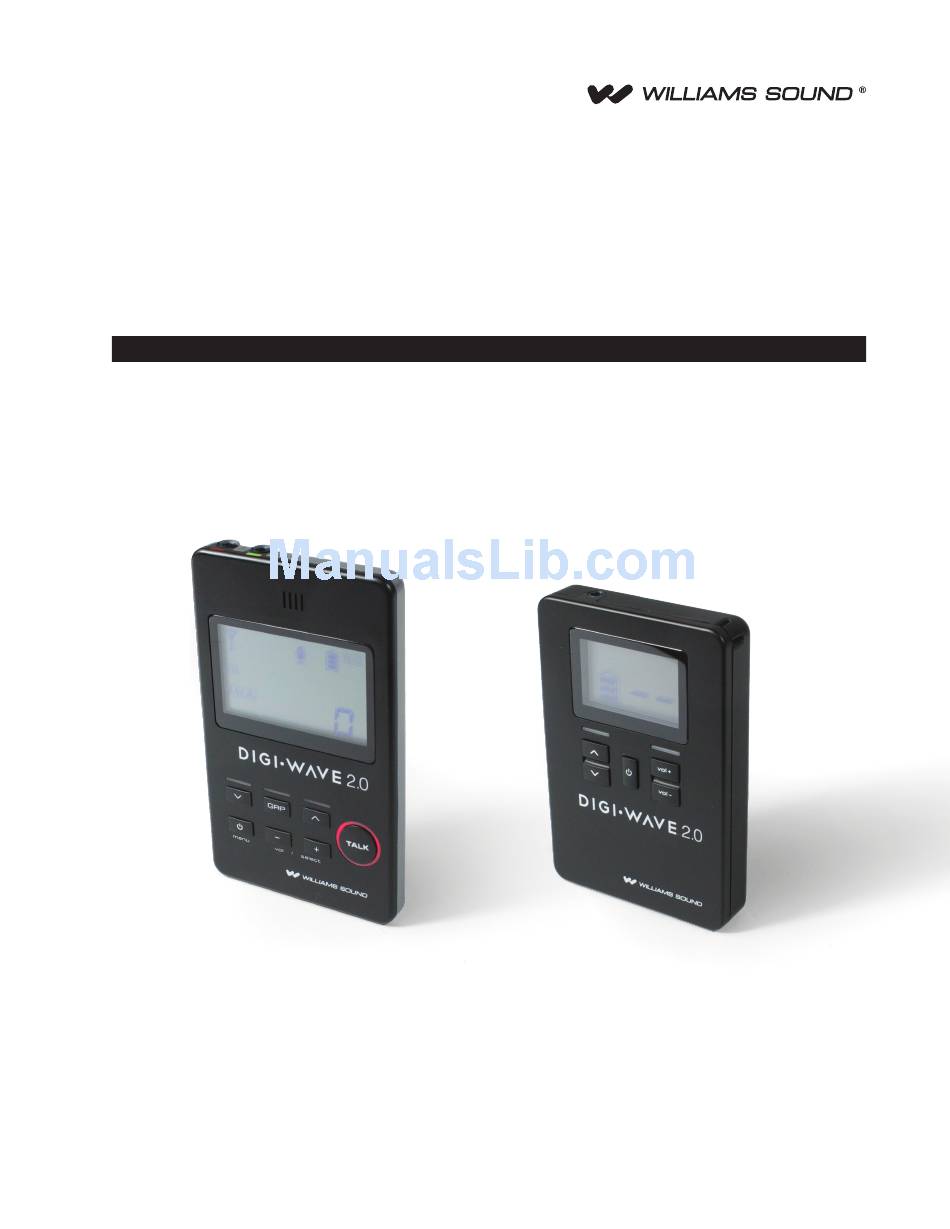

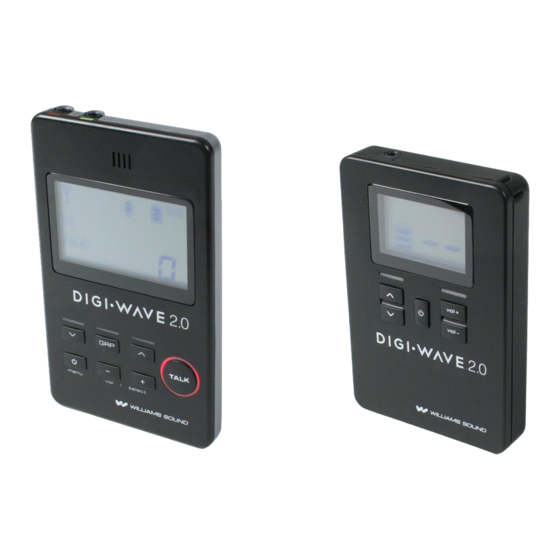

DLT 100 2.0 Digital Transceiver and DLR 60 2.0 Digital Receiver
USER MANUAL
DLT 100 2.0
DLR 60 2.0
MAN 153G

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DLT 100 2.0 and is the answer not in the manual?

Questions and answers

Related Manuals for Williams Sound DLT 100 2.0

Summary of Contents for Williams Sound DLT 100 2.0

  • Page 1 Digi-Wave ™ DLT 100 2.0 Digital Transceiver and DLR 60 2.0 Digital Receiver USER MANUAL DLT 100 2.0 DLR 60 2.0 MAN 153G...

  • Page 2: Table Of Contents

    DLT 100 2.0 DigiTaL Transceiver anD DLr 60 2.0 DigiTaL receiver Contents Digi-Wave™ .................................... 2 DLT 100 2.0 Digital Transceiver and DLR 60 2.0 Digital Receiver ..................2 Safety Information ................................... 3 Recycling Instructions ..............................3 System Overview ..................................4 Getting Started: Preprogrammed Systems ..........................

  • Page 3: Safety Information

    Please take the batteries to a retail or community collection point for recycling. Product Recycling: Please do NOT dispose of your Williams Sound equipment in the household trash. Please take the equipment to an electronics recycling center or return the product to the factory for proper disposal.

  • Page 4: System Overview

    A Digiwave communication system consists of at least one DLT 100 2.0 and various combinations of DLT 100 2.0’s and DLR 60 2.0’s depending on the venue. The DLT 100 2.0 is a 2-way transceiver, meaning that it can transmit and receive audio simultaneously. It can operate in one of 3 different modes: 1.

  • Page 5: Getting Started: Preprogrammed Systems

    CM. As Chairman Slave and Slaves are paired with the CM the CM and CS will show C-#. The # refers to how many DLT 100 2.0’s are paired within the group, i.e. C-12 means that 12 DLT 100 2.0’s are paired with the CM or CS within their group.

  • Page 6: Before Programming The Digi-Wave™ System

    Attendee count will only work with addresses 1-99 (Maximum 100 DLT 100 2.0’s with one Master at address 0). With Secure Key Code active, all DLT 100 2.0’s within the group must have the same 4-digit code entered. (DLR 60s/DLR 50s will not work with secured DLTs) B.
  • Page 7 DLT 100 2.0 Digital Transceiver and DLR 60 2.0 Digital Receiver There must be one Master (usually this is also the floor), and only one, per group. Each Interpreter must be assigned their own channel number. Repeater function can only be used in 1-Way mode.

  • Page 8: Programming The Digi-Wave™ System For 2-Way Mode

    Set Group Number Most of the programming is done on the DLT 100 2.0(s); the receivers just need to be assigned the correct group number. The Chairman Master should be programmed first - all other units sychronize with the Chairman Master.

  • Page 9: Programming The Digi-Wave™ System For 1-Way Mode(S)

    Set Group Number Most of the programming is done on the DLT 100 2.0(s); the receivers just need to be assigned the correct group number. The Chairman Master should be programmed first - all other units sychronize with the Chairman Master.

  • Page 10: Programming The Digi-Wave™ System: Dlt 100 2.0 Optional Settings

    Secure Key Code: When a group has been set up and the same Secure Code has been entered into all the DLT 100 2.0’s, the DLT 100 2.0’s without this Secure Code entered cannot listen in on the group. This may be desirable in private or high security-level functions.
  • Page 11 Address Confirmation Press the MENU button twice for the CM and CS, once for SLVs. The address for the DLT 100 2.0 will be displayed for two seconds. NOTE: Every DLT 100 2.0 MuST have its own address and all must be assigned to the same group.

  • Page 12: Dlt 100 2.0 Controls

    DLT 100 2.0 Digital Transceiver and DLR 60 2.0 Digital Receiver DLT 100 2.0 controls INTERNAL SPEAKER LCD DISPLAY LED INDICATORS TALK BUTTON VOLUME / SELECT UP VOLUME / SELECT DOWN POWER / MENU HEADPHONE JACK 3.5 MM MIC JACK 3.5 MM...
  • Page 13 · Press button momentarily once to activate the microphone. Press button once more to turn off the microphone · Press and hold the button for approximately 2 seconds to mute other DLT 100 2.0 slave units. Only the CM and CS have this function.

  • Page 14: Dlr 60 2.0 Controls

    3. In 1-way mode, the DLR will seek active DLT’s; press channel button up or down to seek next active DLT. In 2-way mode, group must be selected. 4. The Antenna Symbol will flash, and there will be no Signal Strength Bars, if not synched with a DLT 100 2.0. 5. If the units are synched, briefly push the power button to show group assigned (0 to 99).

  • Page 15: Example 1: 2-Way Mode, Tour Guide

    4. Each Tour Group Member and Tour Guide 1 listen directly to Tour Guide 2 using a DLT 100 2.0. 5. With the push of a button, a Tour Group Member uses a DLT 100 2.0 (built-in mic) to ask the Tour Guides a question. Both Tour Guides and all Tour Group Members listen to the question, each using a DLT 100 2.0.

  • Page 16: Example 1: 2-Way Mode, Tour Guide (Continued)

    DLT 100 2.0 Digital Transceiver and DLR 60 2.0 Digital Receiver example 1: 2-way Mode, Tour guide (continued) HOW iT WOrks (cOnTinUeD) TOUR GUIDE 1 TOUR GROUP TOUR GUIDE 2 2-WAY 2-WAY A259...

  • Page 17: 2-Way Setup For Tour Guide Operation

    DLT 100 2.0 Digital Transceiver and DLR 60 2.0 Digital Receiver 2-Way setup for Tour guide Operation 2-WAY MODES Press and hold POWER Mode icon will blink on the Press Use the button for 2 seconds to LCD screen. together for 3 seconds to buttons to select 2-way turn DLT 100 2.0 on...

  • Page 18: 2-Way Setup For Tour Guide Operation (Continued)

    DLT 100 2.0 Digital Transceiver and DLR 60 2.0 Digital Receiver 2-Way setup for Tour guide Operation (continued) Address ( ADD ) icon will GROUP icon will now Press button to enter Press button to now begin to blink. Use Address number and move blink.

  • Page 19: Example 2: Simultaneous Interpretation (1-Way)

    3. The floor speaks, using a DLT 100 2.0 alone (built-in mic) or using it with a compatible headset mic. 4. Interpreter listens directly to the floor, using a DLT 100 2.0 alone (built-in speaker) or using it with a compatible headset mic.

  • Page 20: 1-Way Setup For Simultaneous Interpretation

    DLT 100 2.0 Digital Transceiver and DLR 60 2.0 Digital Receiver 1-way setup for simultaneous interpretation 1-WAY MODES Press and hold POWER Mode icon will blink on the Press Use the button for 2 seconds to LCD screen. buttons together for buttons to select turn DLT 100 2.0 on.

  • Page 21: 1-Way Setup For Simultaneous Interpretation

    DLT 100 2.0 Digital Transceiver and DLR 60 2.0 Digital Receiver 1-way setup for simultaneous interpretation Channel icon will now begin Press POWER / MENU Group icon will now blink. Press POWER / MENU to blink Press ( + ) or ( - )

  • Page 22: Repeater Mode

    DLT 100 2.0 [ LISTEN ONLY ] OR DLR 60 2.0 DLT 100 2.0 [ LISTEN ONLY ] OR DLR 60 2.0 MUST BE ON THE SAME GROUP . EACH LISTENER WOULD SELECT A DESIRED CHANNEL / LANGUAGE. NOTE: WHEN REPEATERS ARE NOT REQUIRED, THE MAIN SPEAKER ( CH 0 ) WILL BE THE MASTER.

  • Page 23: Differences Between Dlt 100 2.0 And Dlt 100

    DLT 100 2.0 Digital Transceiver and DLR 60 2.0 Digital Receiver Differences between DLT 100 2.0 and DLT 100 Function/Description DLT 100 2.0 DLT 100 With settings locked, can ONLY adjust Power, Volume, With settings locked, can adjust Power, Volume, Talk,...

  • Page 24: Differences Between Dlr 60 2.0 And Dlr 60

    Differences between DLT 100 and DLT 100 2.0 firmware versions Just prior to the release of Digiwave 2.0, DLT 100 units ran on firmware version F-6. With the release of the DLT 100 2.0, all units shipped with a new firmware Version 7. Version 8 will be released sometime in 2014. With the DLT 100 2.0 powered on, check the firmware version you have by pushing the power/menu key repeatedly until you see “F-X”...

  • Page 25: Specifications

    DLT 100 2.0 Digital Transceiver and DLR 60 2.0 Digital Receiver Specifications DLT 100 2.0 Transceiver Dimensions 103 x 62 x 11mm (4.1 x 2.4 x 0.4 inches) Weight 80g (2.8oz) including battery Color Black and silver Enclosure Shatter resistant PC/ABS plastic...

  • Page 26: Specifications

    DLT 100 2.0 Digital Transceiver and DLR 60 2.0 Digital Receiver Specifications DLr 60 2.0 receiver Dimensions: 2.36” W x 3.54” H x 0.63” D (60 mm x 90 mm x 16 mm) Weight: 1.7 oz. (47g) without batteries. Frequency Band: 2.4 GHz (ISM band)

  • Page 27: Troubleshooting

    DLT 100 2.0 Digital Transceiver and DLR 60 2.0 Digital Receiver Troubleshooting pROBLEM CAuSE WHAT TO DO power does not turn-on Dead battery Charge the battery, replace battery Power turned off Master device can’t be found Turn on Master unit automatically Power doesn’t turn off...

  • Page 28: Faqs

    DLT 100 2.0 Digital Transceiver and DLR 60 2.0 Digital Receiver faQs What is the range of the system? Up to 100ft outdoors and up to 200ft indoors. (The range always depends on the environmental conditions). What is the benefit of this system over the 72MHz systems? DLT’s can operate in two way mode.

  • Page 29: Fcc Statements

    DLT 100 2.0 Digital Transceiver and DLR 60 2.0 Digital Receiver fcc statements Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 30: 2-Year Warranty

    Williams Sound has no control over the conditions under which this product is used. Williams Sound, therefore, disclaims all warranties not set forth above, both express and implied, with respect to the DLT 100 2.0 and DLR 60 2.0, including but not limited to, any implied warranty of merchantability or fitness of use of such equipment including, without limitation, any warranty that the use of such equipment for any purpose will comply with applicable laws and regulations.

  • Page 31: Notes

    DLT 100 2.0 Digital Transceiver and DLR 60 2.0 Digital Receiver notes...
  • Page 32 10300 Valley View Rd • Eden Prairie, MN 55344 800-328-6190 / 952-943-2252 • FAX: 952-943-2174 www.williamssound.com ©2014 Williams Sound • All Rights Reserved MAN 153G...
